Location

Location ANSS

The ANSS event ID is ak0236phrb1h and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0236phrb1h/executive.

2023/05/26 02:17:59 61.704 -150.826 56.6 4.2 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/05/26 02:17:59:0  61.70 -150.83  56.6 4.2 Alaska

 Stations used:
   AK.CAST AK.CUT AK.FID AK.GHO AK.GLI AK.KLU AK.KNK AK.KTH
   AK.L22K AK.N19K AK.P23K AK.PWL AK.RC01 AK.SCM AK.SKN AK.SLK
   AT.PMR AV.P19K AV.RED AV.SPCP

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 2.43e+22 dyne-cm
  Mw = 4.19
  Z  = 66 km
  Plane   Strike  Dip  Rake
   NP1      210    65   -70
   NP2      349    32   -126
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.43e+22     18     285
    N   0.00e+00     18      21
    P  -2.43e+22     64     154

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.15e+21
       Mxy    -3.80e+21
       Mxz     1.04e+22
       Myy     1.96e+22
       Myz    -1.09e+22
       Mzz    -1.75e+22




                     #######-------
                 ###############-----##
              ####################-#######
             ##################------######
           ##################---------#######
          #################------------#######
         #################--------------#######
        ##   ############----------------#######
        ## T ##########-------------------######
       ###   #########--------------------#######
       ##############---------------------#######
       #############----------------------#######
       #############----------------------#######
        ###########-----------   ---------######
        ##########------------ P ---------######
         #########------------   ---------#####
          ########-----------------------#####
           ######-----------------------#####
             ####----------------------####
              ###---------------------####
                 #------------------###
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.75e+22   1.04e+22   1.09e+22
  1.04e+22  -2.15e+21   3.80e+21
  1.09e+22   3.80e+21   1.96e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230526021759/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 210
      DIP = 65
     RAKE = -70
       MW = 4.19
       HS = 66.0

The NDK file is 20230526021759.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

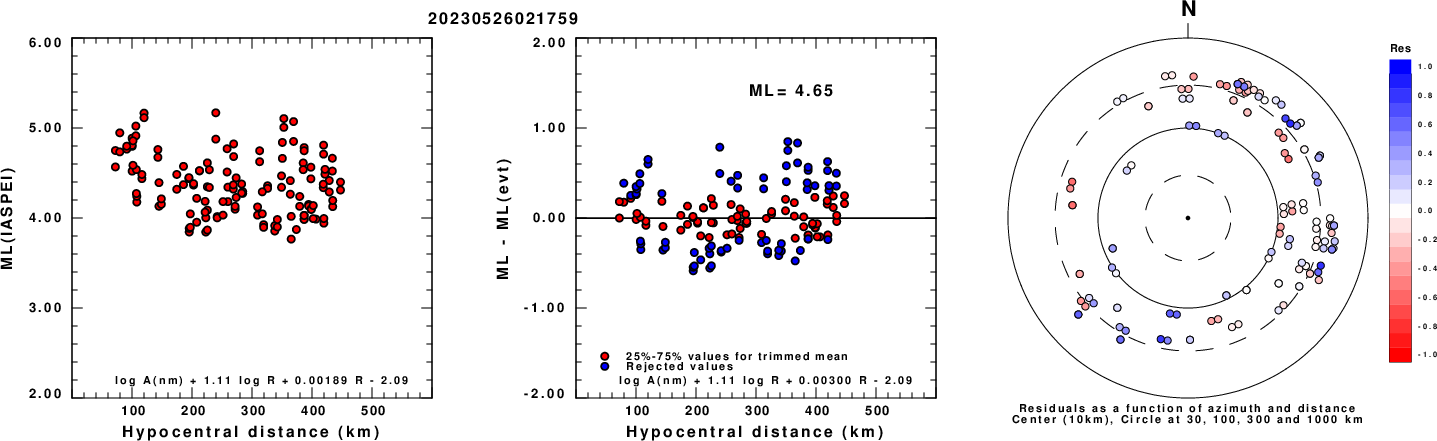

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

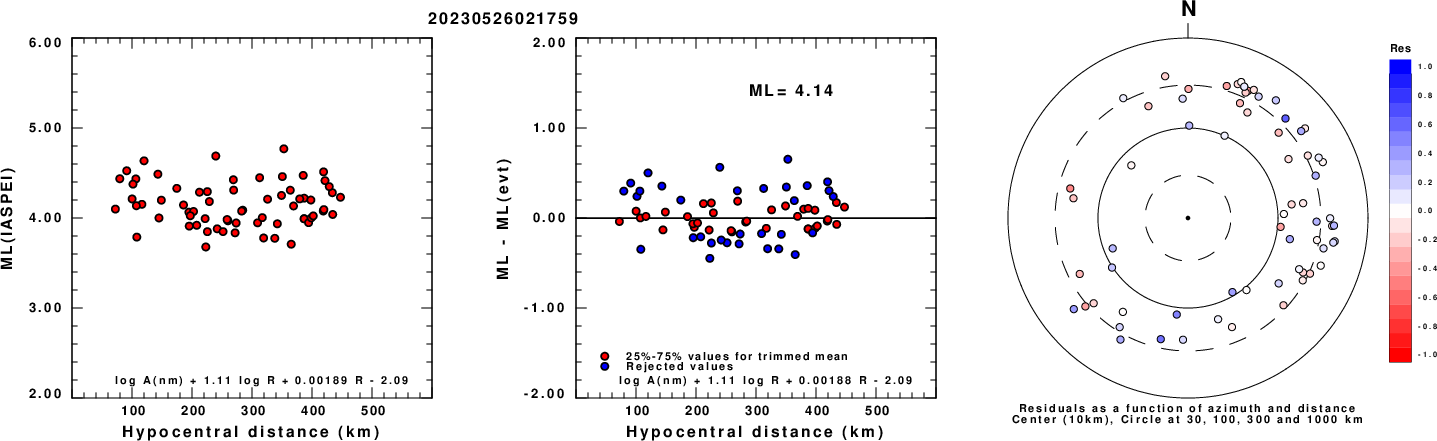

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

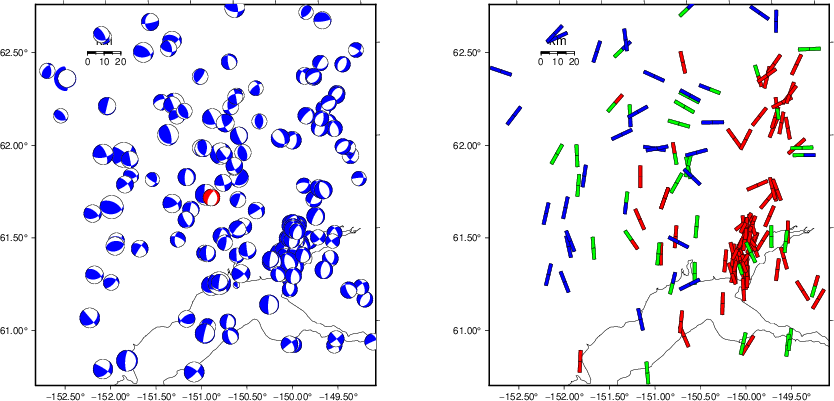

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

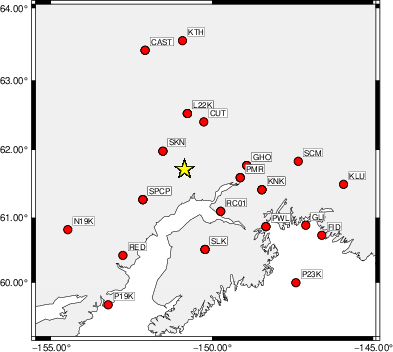

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   260    40    85   3.45 0.2483
WVFGRD96    4.0    45    75    50   3.46 0.2022
WVFGRD96    6.0    45    80    50   3.47 0.2417
WVFGRD96    8.0    50    75    60   3.55 0.2716
WVFGRD96   10.0   180    25    30   3.54 0.2961
WVFGRD96   12.0   140    50   -35   3.62 0.3328
WVFGRD96   14.0   140    50   -35   3.65 0.3649
WVFGRD96   16.0   140    50   -35   3.68 0.3879
WVFGRD96   18.0   140    50   -35   3.70 0.4048
WVFGRD96   20.0   140    50   -35   3.73 0.4147
WVFGRD96   22.0   140    50   -30   3.75 0.4180
WVFGRD96   24.0   140    50   -30   3.77 0.4166
WVFGRD96   26.0   165    30    25   3.75 0.4193
WVFGRD96   28.0   165    30    20   3.78 0.4258
WVFGRD96   30.0   160    30    15   3.80 0.4281
WVFGRD96   32.0   145    25   -15   3.82 0.4324
WVFGRD96   34.0   140    25   -20   3.84 0.4404
WVFGRD96   36.0   130    25   -45   3.86 0.4526
WVFGRD96   38.0   125    25   -50   3.87 0.4639
WVFGRD96   40.0    90    20   -80   4.01 0.4643
WVFGRD96   42.0    85    20   -80   4.03 0.4866
WVFGRD96   44.0    80    20   -85   4.04 0.5072
WVFGRD96   46.0   255    70   -90   4.06 0.5322
WVFGRD96   48.0    65    20   -95   4.07 0.5543
WVFGRD96   50.0    70    20   -90   4.09 0.5748
WVFGRD96   52.0    75    25   -80   4.10 0.5928
WVFGRD96   54.0    75    25   -80   4.11 0.6109
WVFGRD96   56.0   215    65   -70   4.13 0.6213
WVFGRD96   58.0   215    65   -70   4.14 0.6343
WVFGRD96   60.0   210    65   -70   4.16 0.6439
WVFGRD96   62.0   210    65   -70   4.17 0.6508
WVFGRD96   64.0   210    65   -70   4.18 0.6536
WVFGRD96   66.0   210    65   -70   4.19 0.6539
WVFGRD96   68.0   210    65   -70   4.19 0.6500
WVFGRD96   70.0   210    65   -70   4.20 0.6422
WVFGRD96   72.0   210    65   -70   4.20 0.6307
WVFGRD96   74.0   210    65   -70   4.21 0.6175
WVFGRD96   76.0   210    65   -70   4.21 0.6013
WVFGRD96   78.0   205    60   -75   4.19 0.5864
WVFGRD96   80.0   210    65   -85   4.19 0.5727
WVFGRD96   82.0   210    65   -85   4.19 0.5602
WVFGRD96   84.0    85    35   -85   4.15 0.5469
WVFGRD96   86.0    85    35   -85   4.15 0.5384
WVFGRD96   88.0    85    40   -75   4.15 0.5295
WVFGRD96   90.0    85    40   -75   4.15 0.5209
WVFGRD96   92.0    85    40   -75   4.15 0.5119
WVFGRD96   94.0    85    40   -75   4.15 0.5024
WVFGRD96   96.0    85    40   -85   4.14 0.4934
WVFGRD96   98.0    85    40   -85   4.14 0.4857

The best solution is

WVFGRD96   66.0   210    65   -70   4.19 0.6539

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

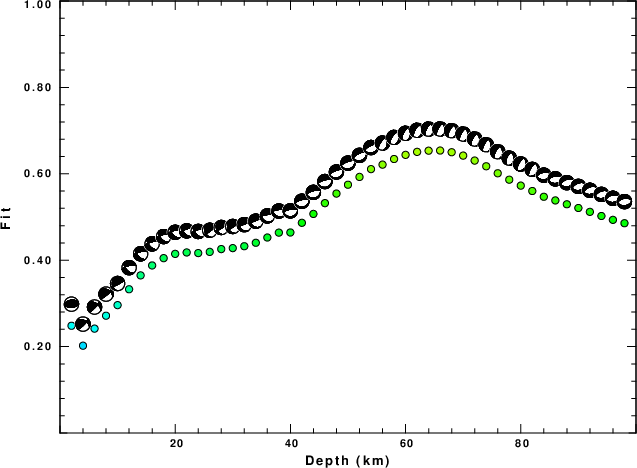

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

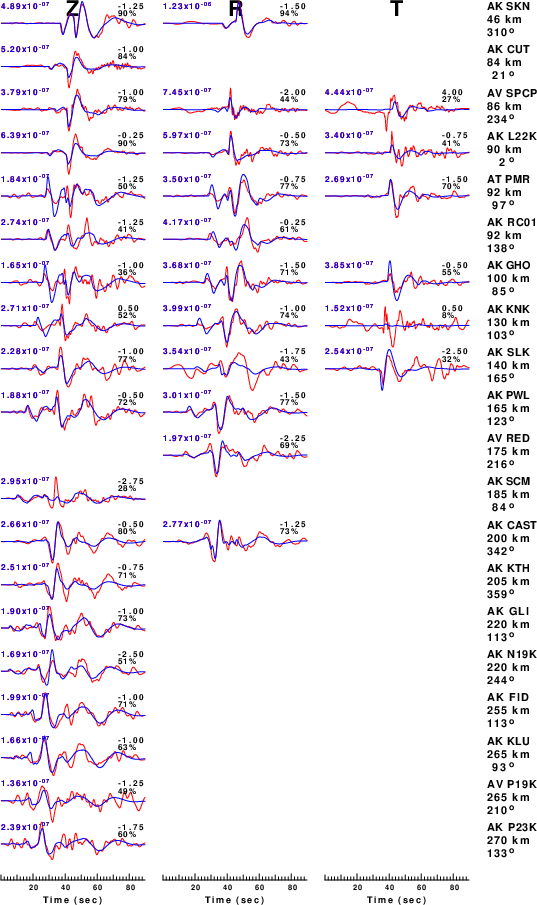

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

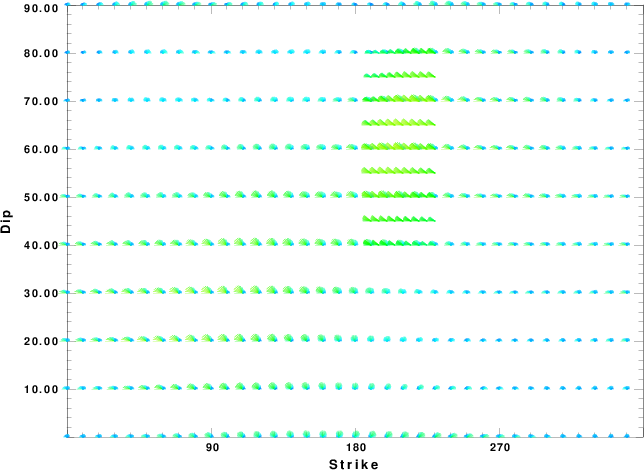

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

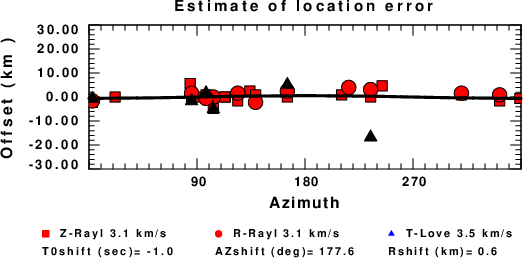

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
