Location

Location ANSS

The ANSS event ID is ak0234a0aako and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0234a0aako/executive.

2023/04/03 12:27:14 61.359 -150.182 40.9 3.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/04/03 12:27:14:0  61.36 -150.18  40.9 3.9 Alaska

 Stations used:
   AK.BPAW AK.DIV AK.FIRE AK.GHO AK.KNK AK.PWL AK.RC01 AK.SAW
   AK.SCM AK.SKN AK.SLK AK.SWD AT.PMR AV.STLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.40e+22 dyne-cm
  Mw = 4.03
  Z  = 57 km
  Plane   Strike  Dip  Rake
   NP1      190    81   -93
   NP2       30    10   -70
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.40e+22     36     283
    N   0.00e+00      3     190
    P  -1.40e+22     54      96

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.04e+20
       Mxy    -1.53e+21
       Mxz     2.09e+21
       Myy     4.08e+21
       Myz    -1.30e+22
       Mzz    -4.49e+21




                     ##########----
                 #############---------
              ###############------------#
             ################--------------
           #################----------------#
          ##################-----------------#
         ##################-------------------#
        ###################-------------------##
        #####   ##########---------------------#
       ###### T ##########---------------------##
       ######   ##########----------   --------##
       ##################----------- P --------##
       ##################-----------   --------##
        #################---------------------##
        #################---------------------##
         ###############---------------------##
          ##############--------------------##
           #############-------------------##
             ###########-----------------##
              ##########---------------###
                 #######------------###
                     -##-------####



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.49e+21   2.09e+21   1.30e+22
  2.09e+21   4.04e+20   1.53e+21
  1.30e+22   1.53e+21   4.08e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230403122714/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 30
      DIP = 10
     RAKE = -70
       MW = 4.03
       HS = 57.0

The NDK file is 20230403122714.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

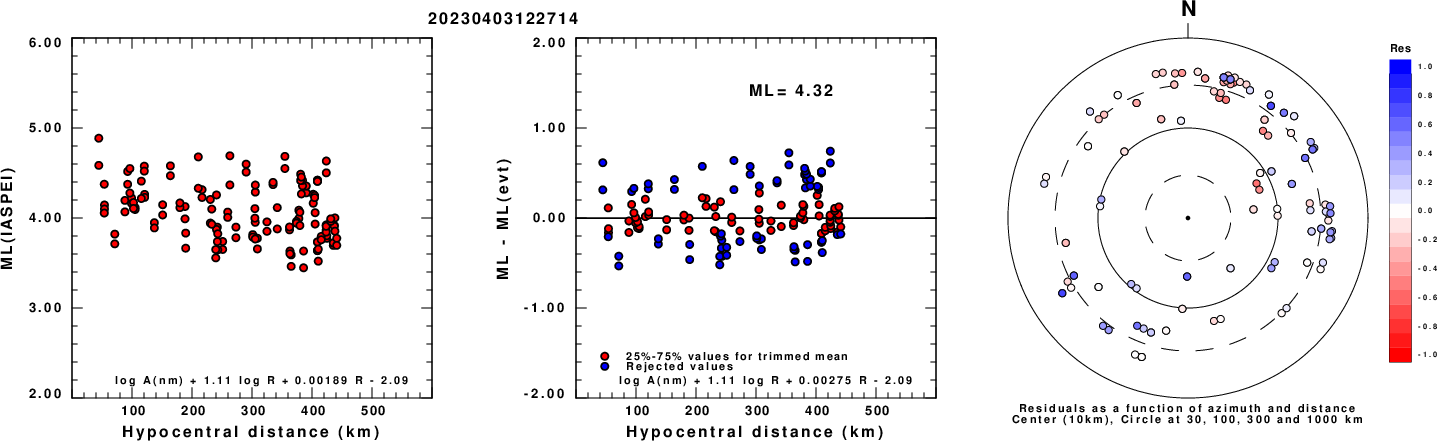

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

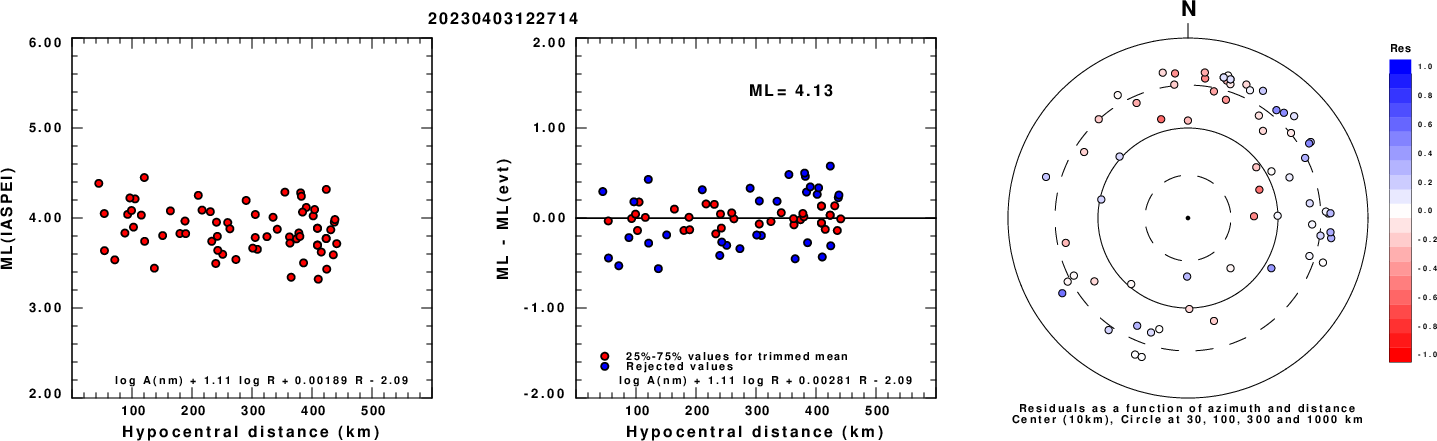

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

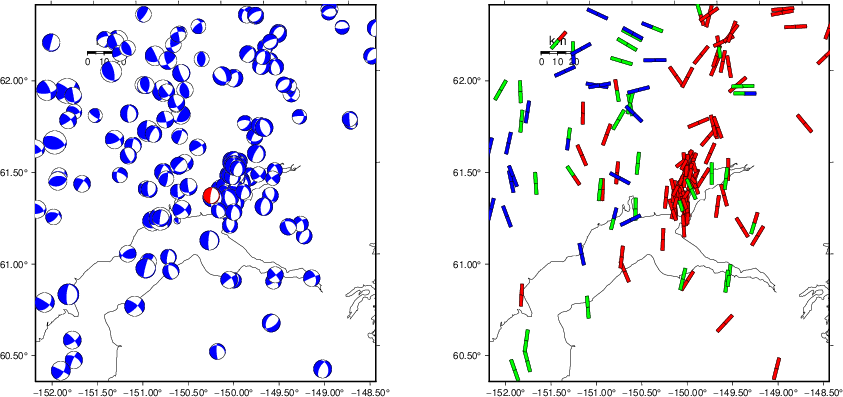

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

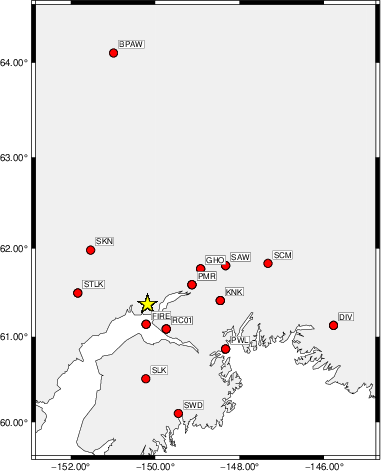

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    40    45   -85   3.19 0.1637
WVFGRD96    2.0    40    45   -85   3.34 0.2337
WVFGRD96    3.0    40    45   -85   3.40 0.2470
WVFGRD96    4.0    55    50   -65   3.41 0.2424
WVFGRD96    5.0   260    65   -15   3.35 0.2474
WVFGRD96    6.0   265    60     0   3.38 0.2589
WVFGRD96    7.0   260    55   -10   3.41 0.2699
WVFGRD96    8.0   260    50   -10   3.46 0.2797
WVFGRD96    9.0   275    50    35   3.50 0.2878
WVFGRD96   10.0    90    45    35   3.51 0.2986
WVFGRD96   11.0    90    45    35   3.52 0.3133
WVFGRD96   12.0    90    45    35   3.54 0.3267
WVFGRD96   13.0    90    45    35   3.55 0.3391
WVFGRD96   14.0    90    45    35   3.56 0.3504
WVFGRD96   15.0    85    45    30   3.57 0.3615
WVFGRD96   16.0    85    45    30   3.58 0.3724
WVFGRD96   17.0    85    45    30   3.59 0.3824
WVFGRD96   18.0    85    45    30   3.60 0.3915
WVFGRD96   19.0    85    45    30   3.62 0.4011
WVFGRD96   20.0    85    40    25   3.62 0.4090
WVFGRD96   21.0    70    35   -15   3.63 0.4199
WVFGRD96   22.0    70    35   -15   3.64 0.4307
WVFGRD96   23.0    70    35   -20   3.65 0.4424
WVFGRD96   24.0    65    35   -25   3.67 0.4522
WVFGRD96   25.0    65    30   -25   3.68 0.4633
WVFGRD96   26.0    65    30   -30   3.69 0.4732
WVFGRD96   27.0    65    30   -30   3.70 0.4823
WVFGRD96   28.0    70    30   -20   3.70 0.4925
WVFGRD96   29.0    65    25   -30   3.72 0.5051
WVFGRD96   30.0    65    25   -30   3.73 0.5179
WVFGRD96   31.0    70    25   -25   3.74 0.5324
WVFGRD96   32.0    70    25   -25   3.75 0.5484
WVFGRD96   33.0    65    20   -30   3.76 0.5648
WVFGRD96   34.0    65    20   -35   3.77 0.5816
WVFGRD96   35.0    60    20   -40   3.78 0.5970
WVFGRD96   36.0    60    20   -40   3.78 0.6109
WVFGRD96   37.0    60    20   -40   3.79 0.6232
WVFGRD96   38.0    60    20   -40   3.80 0.6346
WVFGRD96   39.0    60    20   -45   3.80 0.6433
WVFGRD96   40.0    55    15   -45   3.94 0.6458
WVFGRD96   41.0    50    15   -50   3.94 0.6512
WVFGRD96   42.0    50    15   -50   3.95 0.6546
WVFGRD96   43.0    50    15   -55   3.96 0.6573
WVFGRD96   44.0    50    15   -55   3.96 0.6616
WVFGRD96   45.0    50    15   -55   3.97 0.6644
WVFGRD96   46.0    50    15   -55   3.97 0.6663
WVFGRD96   47.0    50    15   -55   3.98 0.6690
WVFGRD96   48.0    30    10   -75   3.99 0.6696
WVFGRD96   49.0    30    10   -75   3.99 0.6714
WVFGRD96   50.0    30    10   -75   4.00 0.6739
WVFGRD96   51.0    30    10   -70   4.00 0.6751
WVFGRD96   52.0    30    10   -70   4.00 0.6755
WVFGRD96   53.0    30    10   -70   4.01 0.6775
WVFGRD96   54.0    30    10   -70   4.01 0.6785
WVFGRD96   55.0    30    10   -70   4.02 0.6776
WVFGRD96   56.0    30    10   -70   4.02 0.6785
WVFGRD96   57.0    30    10   -70   4.03 0.6788
WVFGRD96   58.0    30    10   -70   4.03 0.6776
WVFGRD96   59.0    30    10   -70   4.03 0.6761

The best solution is

WVFGRD96   57.0    30    10   -70   4.03 0.6788

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

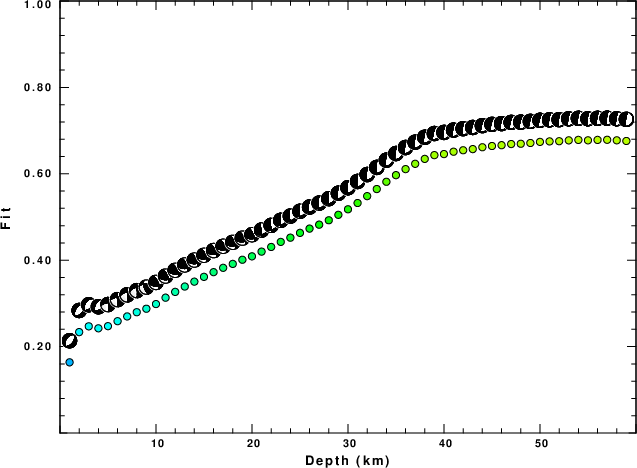

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

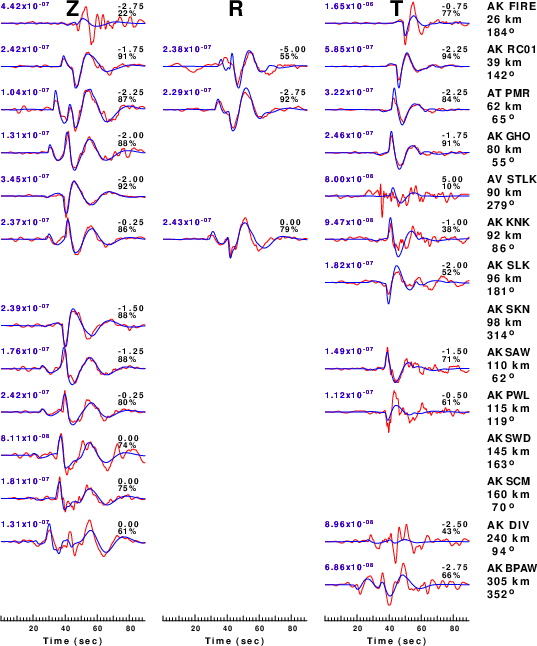

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

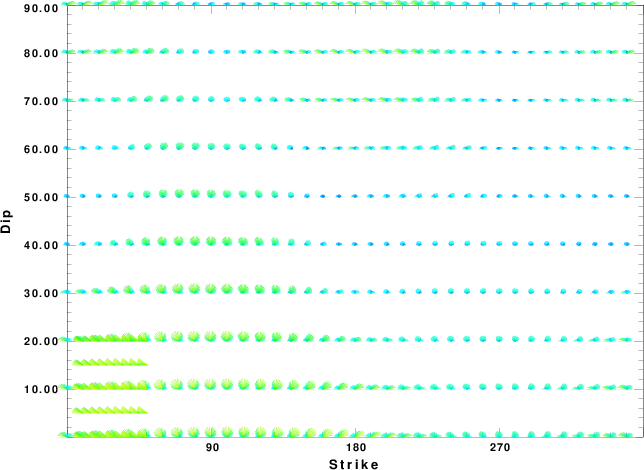

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

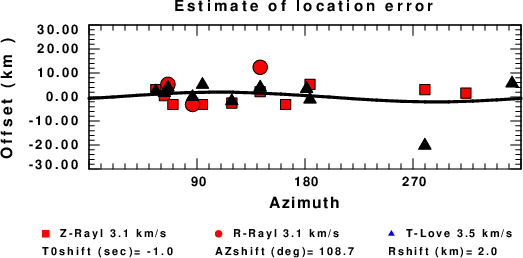

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Mon Apr 22 10:51:01 PM CDT 2024
