The ANSS event ID is ak0233339thf and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0233339thf/executive.

2023/03/08 17:24:25 61.485 -149.449 44.9 3.8 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/03/08 17:24:25:0  61.49 -149.45  44.9 3.8 Alaska

 Stations used:
   AK.CUT AK.GHO AK.KNK AK.L22K AK.PWL AK.RC01 AK.SAW AK.SCM
   AK.SKN AK.SLK AK.WAT6 AT.PMR

 Filtering commands used:
   cut o DIST/3.8 -15 o DIST/3.8 +25
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.25 n 3

 Best Fitting Double Couple
  Mo = 6.10e+21 dyne-cm
  Mw = 3.79
  Z  = 37 km
  Plane   Strike  Dip  Rake
   NP1      338    61   -132
   NP2      220    50   -40
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.10e+21      6      97
    N   0.00e+00     36       3
    P  -6.10e+21     53     195

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.93e+21
       Mxy    -1.28e+21
       Mxz     2.74e+21
       Myy     5.79e+21
       Myz     1.41e+21
       Mzz    -3.86e+21




                     --------------
                 #######---------------
              ############---------#######
             ###############--#############
           ###############----###############
          ##############-------###############
         #############----------###############
        ############-------------###############
        ###########---------------##############
       ###########-----------------##############
       ##########-------------------#############
       #########--------------------##########
       ########----------------------######### T
        ######-----------------------#########
        ######----------   ----------###########
         #####---------- P -----------#########
          ####----------   -----------########
           ###------------------------#######
             #-----------------------######
              #----------------------#####
                 -------------------###
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.86e+21   2.74e+21  -1.41e+21
  2.74e+21  -1.93e+21   1.28e+21
 -1.41e+21   1.28e+21   5.79e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230308172425/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 220
      DIP = 50
     RAKE = -40
       MW = 3.79
       HS = 37.0

The NDK file is 20230308172425.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

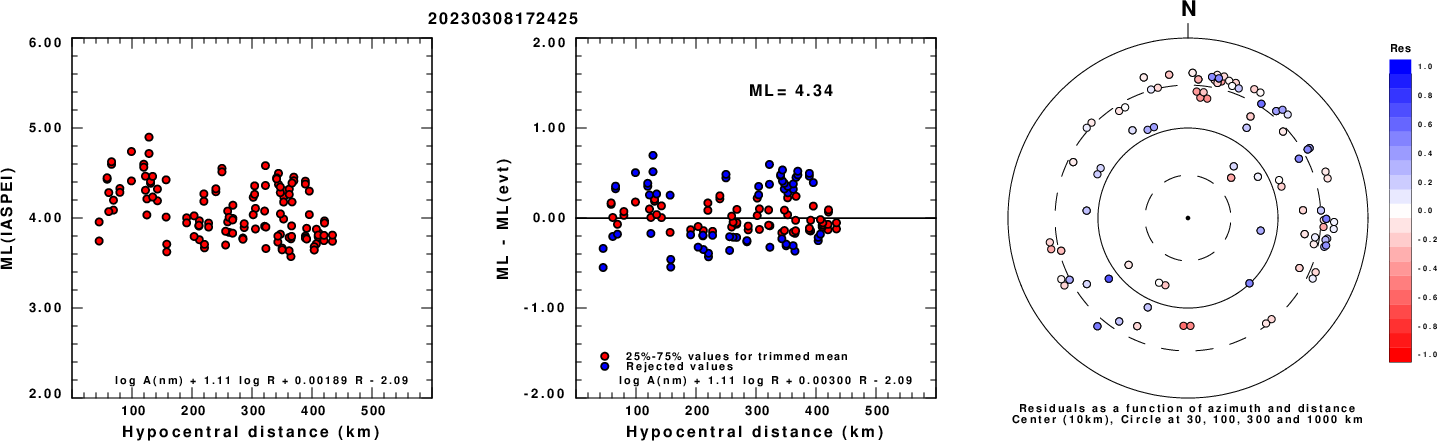

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

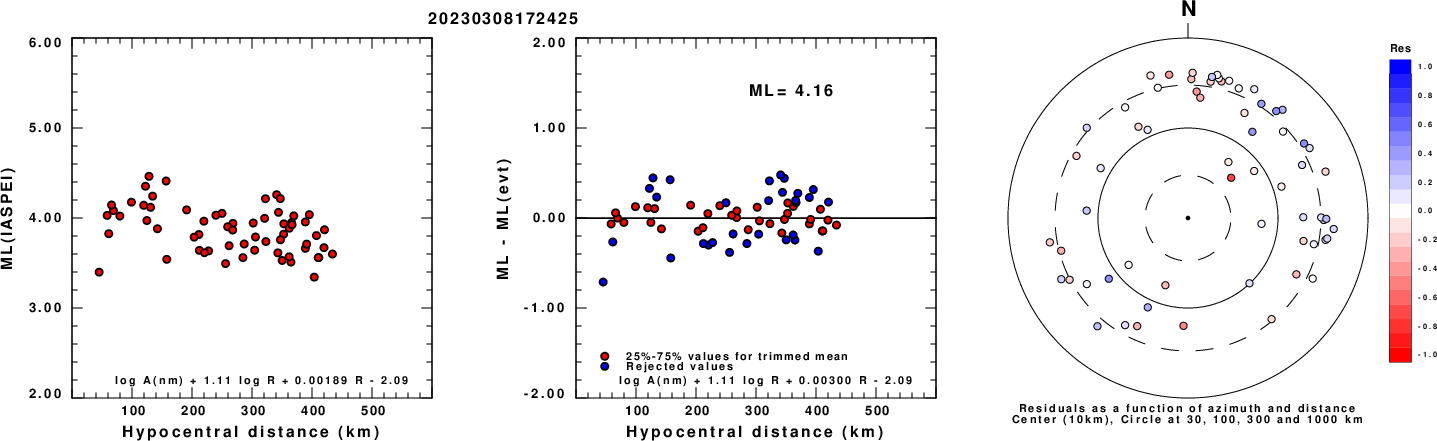

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

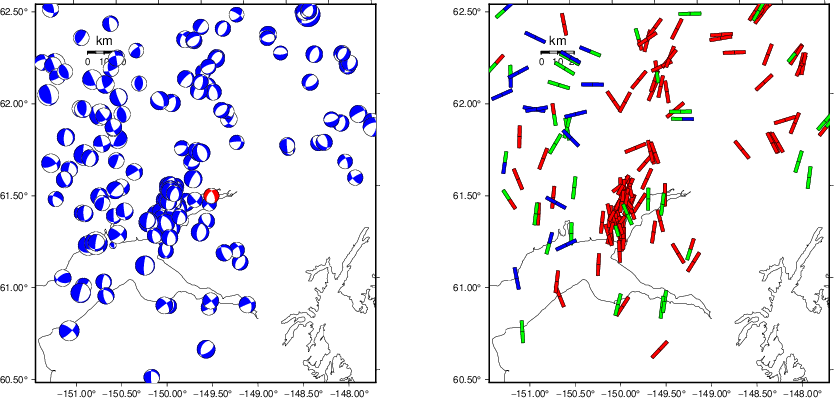

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

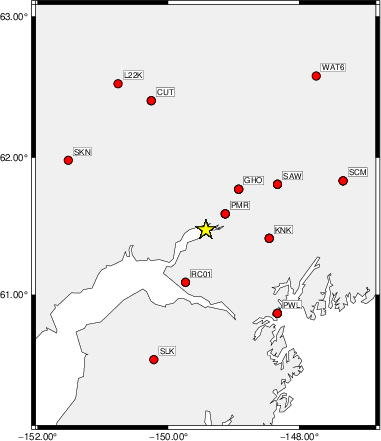

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.8 -15 o DIST/3.8 +25
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.25 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   315    30    25   2.87 0.1275
WVFGRD96    2.0   335    30    50   3.10 0.1476
WVFGRD96    3.0   180    15    70   3.18 0.1746
WVFGRD96    4.0   340    65    45   3.19 0.1870
WVFGRD96    5.0   210    55   -50   3.24 0.1931
WVFGRD96    6.0   150    45    35   3.30 0.2001
WVFGRD96    7.0   150    45    35   3.35 0.1989
WVFGRD96    8.0    40    60   -45   3.43 0.1907
WVFGRD96    9.0    30    70   -55   3.49 0.1958
WVFGRD96   10.0    30    70   -55   3.53 0.2027
WVFGRD96   11.0    35    70   -50   3.56 0.2048
WVFGRD96   12.0    35    70   -50   3.60 0.2065
WVFGRD96   13.0    35    70   -45   3.62 0.2090
WVFGRD96   14.0    40    70   -40   3.64 0.2182
WVFGRD96   15.0    35    65   -45   3.67 0.2326
WVFGRD96   16.0    40    65   -40   3.68 0.2436
WVFGRD96   17.0    35    60   -45   3.69 0.2468
WVFGRD96   18.0    40    70   -40   3.72 0.2522
WVFGRD96   19.0    40    70   -40   3.73 0.2556
WVFGRD96   20.0   225    50   -25   3.66 0.2593
WVFGRD96   21.0   230    50   -20   3.69 0.2657
WVFGRD96   22.0   225    50   -25   3.69 0.2700
WVFGRD96   23.0    45    50   -35   3.76 0.2861
WVFGRD96   24.0    45    50   -35   3.76 0.3016
WVFGRD96   25.0    45    45   -35   3.76 0.3175
WVFGRD96   26.0    45    50   -35   3.77 0.3365
WVFGRD96   27.0    45    50   -35   3.77 0.3498
WVFGRD96   28.0    50    45   -35   3.78 0.3603
WVFGRD96   29.0    45    45   -35   3.77 0.3710
WVFGRD96   30.0   225    45   -25   3.77 0.3905
WVFGRD96   31.0   225    45   -25   3.78 0.4047
WVFGRD96   32.0   225    45   -25   3.79 0.4191
WVFGRD96   33.0   225    45   -25   3.79 0.4406
WVFGRD96   34.0   220    45   -35   3.79 0.4534
WVFGRD96   35.0   220    50   -40   3.79 0.4780
WVFGRD96   36.0   220    50   -40   3.79 0.4847
WVFGRD96   37.0   220    50   -40   3.79 0.4855
WVFGRD96   38.0   220    50   -35   3.79 0.4824
WVFGRD96   39.0   220    50   -35   3.80 0.4681
WVFGRD96   40.0   220    45   -35   3.89 0.4666
WVFGRD96   41.0   220    45   -35   3.91 0.4591
WVFGRD96   42.0   220    45   -35   3.92 0.4480
WVFGRD96   43.0   220    50   -40   3.92 0.4386
WVFGRD96   44.0   220    50   -35   3.93 0.4388
WVFGRD96   45.0   220    45   -35   3.94 0.4284
WVFGRD96   46.0   220    45   -35   3.95 0.4340
WVFGRD96   47.0   220    45   -35   3.96 0.4297
WVFGRD96   48.0   220    45   -30   3.96 0.4373
WVFGRD96   49.0   210    45   -55   3.96 0.4336
WVFGRD96   50.0   210    45   -50   3.97 0.4432
WVFGRD96   51.0   210    45   -50   3.97 0.4469
WVFGRD96   52.0   210    45   -50   3.98 0.4489
WVFGRD96   53.0   215    50   -50   3.98 0.4521
WVFGRD96   54.0   215    50   -50   3.98 0.4548
WVFGRD96   55.0   215    50   -50   3.99 0.4600
WVFGRD96   56.0   215    50   -50   3.99 0.4593
WVFGRD96   57.0   210    50   -50   3.99 0.4659
WVFGRD96   58.0   210    50   -50   3.99 0.4625
WVFGRD96   59.0   210    50   -50   3.99 0.4667

The best solution is

WVFGRD96   37.0   220    50   -40   3.79 0.4855

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

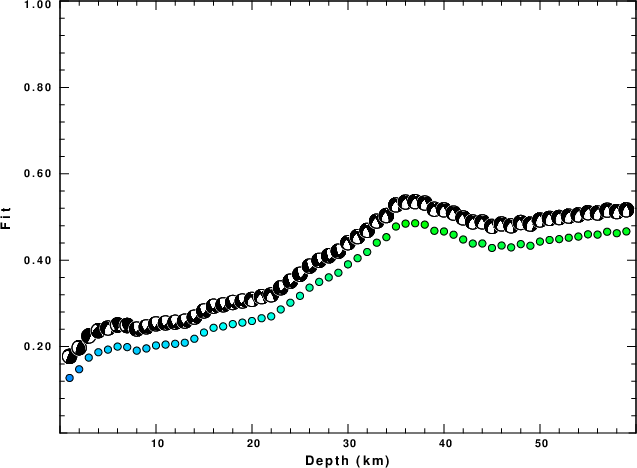

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

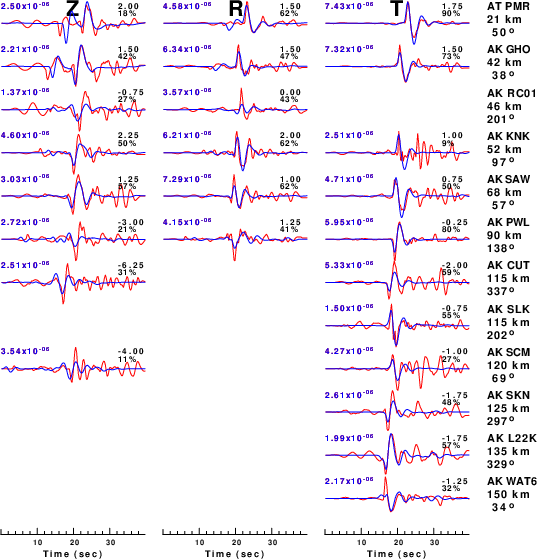

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.8 -15 o DIST/3.8 +25
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.25 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

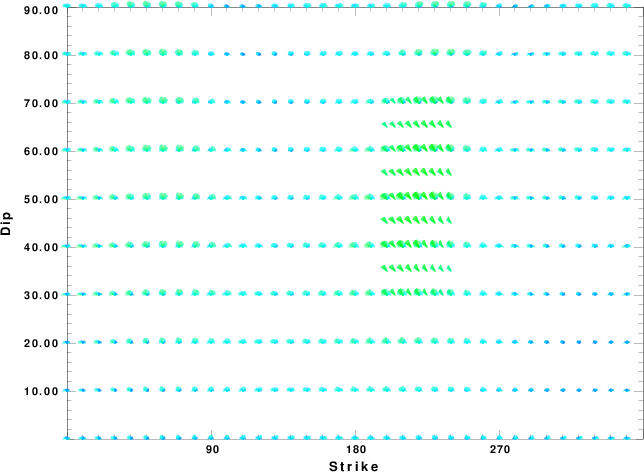

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

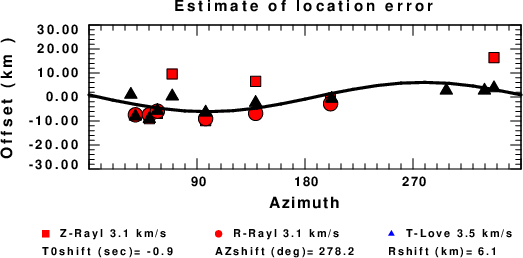

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Mon Apr 22 10:20:52 PM CDT 2024
