Location

Location ANSS

The ANSS event ID is ak022esj2eua and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak022esj2eua/executive.

2022/11/18 00:03:09 61.350 -150.168 42.9 4.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2022/11/18 00:03:09:0  61.35 -150.17  42.9 4.9 Alaska

 Stations used:
   AK.BPAW AK.CAST AK.CCB AK.CNP AK.CRQ AK.CUT AK.EYAK AK.FID
   AK.FIRE AK.GHO AK.GLB AK.GLI AK.HDA AK.HIN AK.HOM AK.I21K
   AK.I23K AK.ISLE AK.J25K AK.K20K AK.K24K AK.KLU AK.KNK
   AK.KTH AK.L20K AK.L22K AK.L26K AK.MCAR AK.MCK AK.MLY
   AK.N18K AK.N19K AK.NEA2 AK.O18K AK.P17K AK.P23K AK.PAX
   AK.POKR AK.PWL AK.RAG AK.RIDG AK.RND AK.SAW AK.SCM AK.SCRK
   AK.SKN AK.SWD AK.TGL AK.VRDI AK.WRH AT.MENT AT.PMR AV.ILS
   AV.RED AV.STLK IM.IL31 IU.COLA

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 2.92e+23 dyne-cm
  Mw = 4.91
  Z  = 54 km
  Plane   Strike  Dip  Rake
   NP1      190    80   -75
   NP2      313    18   -146
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.92e+23     33     267
    N   0.00e+00     15       7
    P  -2.92e+23     53     118

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.25e+22
       Mxy     5.34e+22
       Mxz     5.89e+22
       Myy     1.19e+23
       Myz    -2.59e+23
       Mzz    -9.64e+22




                     ----------####
                 ---##########-########
              -##############-------######
             ################---------#####
           #################------------#####
          ##################--------------####
         ##################----------------####
        ###################-----------------####
        ##################-------------------###
       ###################--------------------###
       ######   ##########--------------------###
       ###### T #########---------------------###
       ######   #########----------   ---------##
        #################---------- P ---------#
        ################-----------   --------##
         ###############----------------------#
          ##############---------------------#
           #############--------------------#
             ###########-------------------
              ##########------------------
                 #######---------------
                     ###-----------



 Global CMT Convention Moment Tensor:
      R          T          P
 -9.64e+22   5.89e+22   2.59e+23
  5.89e+22  -2.25e+22  -5.34e+22
  2.59e+23  -5.34e+22   1.19e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20221118000309/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 190
      DIP = 80
     RAKE = -75
       MW = 4.91
       HS = 54.0

The NDK file is 20221118000309.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

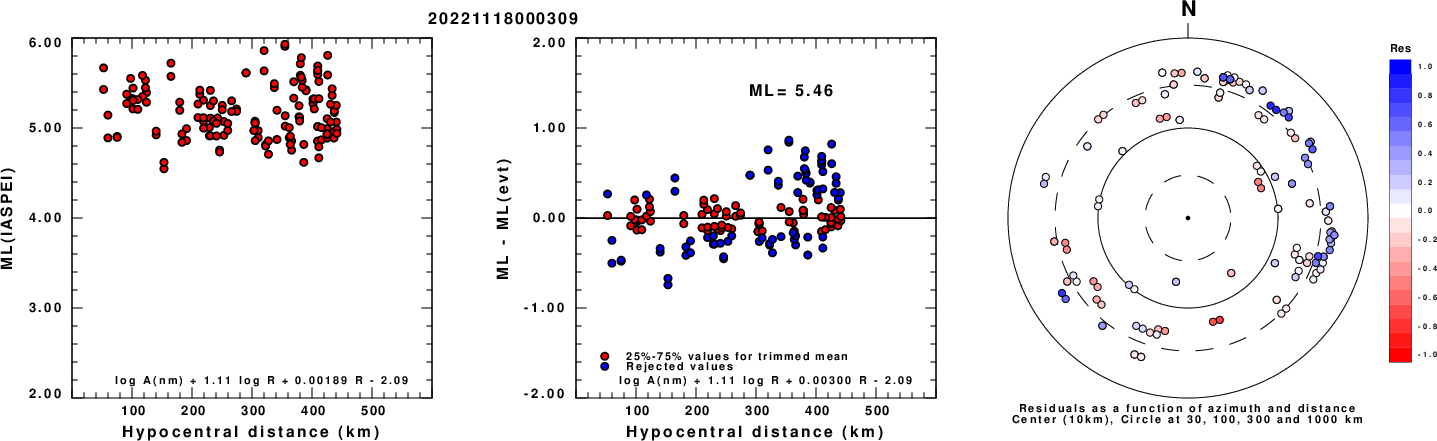

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

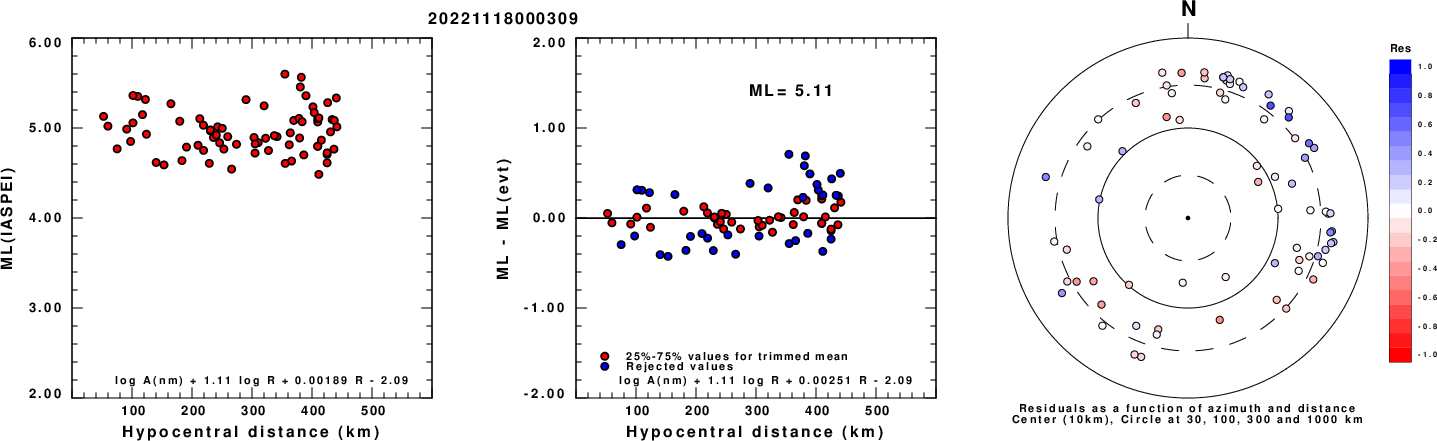

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

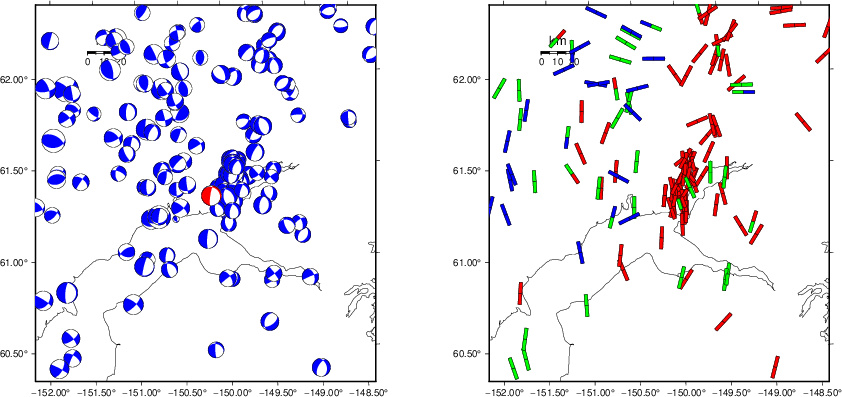

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

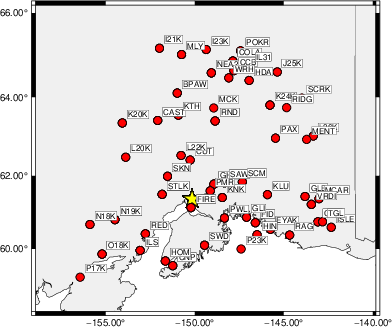

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   165    40    90   4.25 0.2620
WVFGRD96    4.0   155    45    75   4.33 0.2430
WVFGRD96    6.0   300    50    30   4.30 0.2225
WVFGRD96    8.0    85    25     5   4.35 0.2443
WVFGRD96   10.0    90    30    15   4.37 0.2863
WVFGRD96   12.0    90    30    15   4.39 0.3255
WVFGRD96   14.0    85    30     5   4.41 0.3618
WVFGRD96   16.0    80    25    -5   4.44 0.3960
WVFGRD96   18.0    75    25   -15   4.46 0.4299
WVFGRD96   20.0    75    25   -15   4.49 0.4616
WVFGRD96   22.0    70    25   -20   4.52 0.4905
WVFGRD96   24.0    70    20   -20   4.54 0.5190
WVFGRD96   26.0    70    20   -20   4.56 0.5466
WVFGRD96   28.0    70    20   -25   4.59 0.5740
WVFGRD96   30.0    60    15   -35   4.60 0.6010
WVFGRD96   32.0    60    15   -35   4.62 0.6276
WVFGRD96   34.0    55    15   -45   4.64 0.6520
WVFGRD96   36.0   190    80  -100   4.66 0.6732
WVFGRD96   38.0   190    80   -80   4.66 0.6919
WVFGRD96   40.0   190    80   -85   4.82 0.7044
WVFGRD96   42.0   190    80   -80   4.83 0.7153
WVFGRD96   44.0   190    80   -80   4.85 0.7254
WVFGRD96   46.0   190    80   -80   4.86 0.7341
WVFGRD96   48.0   190    80   -80   4.87 0.7404
WVFGRD96   50.0   190    80   -80   4.89 0.7443
WVFGRD96   52.0   190    80   -75   4.90 0.7469
WVFGRD96   54.0   190    80   -75   4.91 0.7472
WVFGRD96   56.0   190    80   -75   4.92 0.7444
WVFGRD96   58.0   185    80   -80   4.93 0.7406
WVFGRD96   60.0   185    80   -80   4.94 0.7346
WVFGRD96   62.0   185    80   -80   4.95 0.7269
WVFGRD96   64.0   185    80   -80   4.96 0.7171
WVFGRD96   66.0   185    80   -80   4.96 0.7065
WVFGRD96   68.0   185    80   -80   4.97 0.6935
WVFGRD96   70.0   185    85   -80   4.97 0.6802
WVFGRD96   72.0   185    85   -80   4.98 0.6677
WVFGRD96   74.0   185    85   -80   4.99 0.6550
WVFGRD96   76.0    40     5   -50   4.99 0.6399
WVFGRD96   78.0    40     5   -50   5.00 0.6282
WVFGRD96   80.0    45     5   -40   5.00 0.6148
WVFGRD96   82.0    50     5   -35   5.01 0.6013
WVFGRD96   84.0    15     5   -70   5.01 0.5832
WVFGRD96   86.0   150     0    60   5.01 0.5663
WVFGRD96   88.0    65     5   -20   5.02 0.5569
WVFGRD96   90.0    65     5   -20   5.02 0.5408
WVFGRD96   92.0    70     5   -15   5.02 0.5252
WVFGRD96   94.0    70     5   -15   5.02 0.5084
WVFGRD96   96.0    75     5   -15   5.02 0.4911
WVFGRD96   98.0    70     5   -20   5.02 0.4747

The best solution is

WVFGRD96   54.0   190    80   -75   4.91 0.7472

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

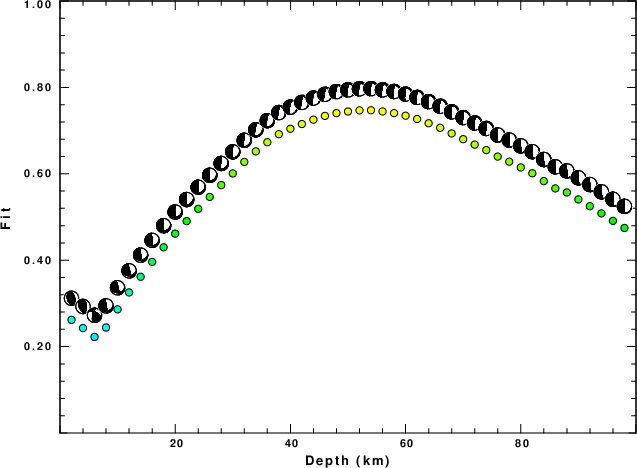

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

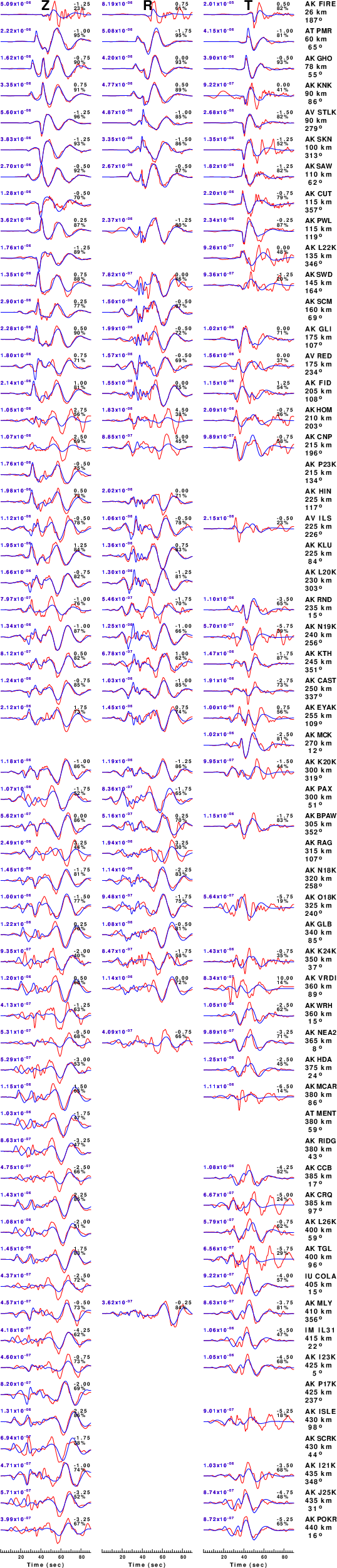

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

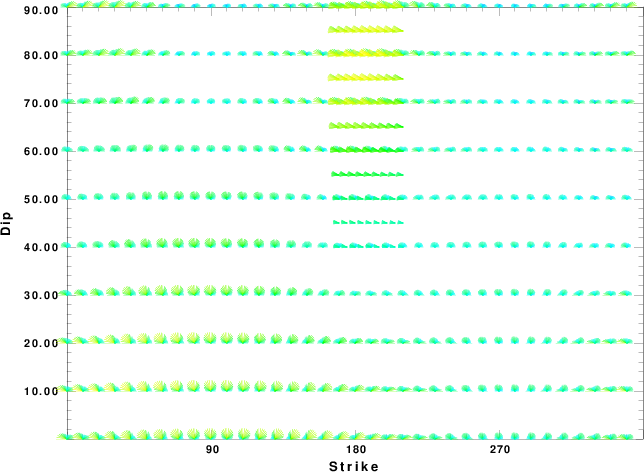

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

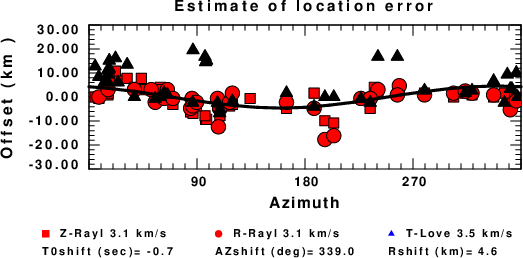

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 02:51:20 AM CDT 2024
