Location

Location ANSS

The ANSS event ID is us6000i1v7 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us6000i1v7/executive.

2022/07/12 16:09:45 54.449 -161.483 35.0 3.8 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2022/07/12 16:09:45:0  54.45 -161.48  35.0 3.8 Alaska

 Stations used:
   AK.CHN AK.FALS AT.SDPT AV.PS4A AV.S14K AV.WESP

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 5.13e+21 dyne-cm
  Mw = 3.74
  Z  = 29 km
  Plane   Strike  Dip  Rake
   NP1       72    58   116
   NP2      210    40    55
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.13e+21     66      32
    N   0.00e+00     22     238
    P  -5.13e+21     10     144

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.67e+21
       Mxy     2.74e+21
       Mxz     2.32e+21
       Myy    -1.47e+21
       Myz     4.95e+20
       Mzz     4.14e+21




                     --------------
                 ---------------#######
              -------------###############
             -----------###################
           -----------#######################
          ----------##########################
         ----------############################
        ---------############   ################
        --------############# T ###############-
       ---------#############   ##############---
       --------#############################-----
       -------#############################------
       -------##########################---------
        ------#######################-----------
        #-----####################--------------
         ####-##############-------------------
          ####--------------------------------
           ####------------------------------
             ##----------------------   ---
              ##--------------------- P --
                 --------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  4.14e+21   2.32e+21  -4.95e+20
  2.32e+21  -2.67e+21  -2.74e+21
 -4.95e+20  -2.74e+21  -1.47e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220712160945/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 210
      DIP = 40
     RAKE = 55
       MW = 3.74
       HS = 29.0

The NDK file is 20220712160945.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

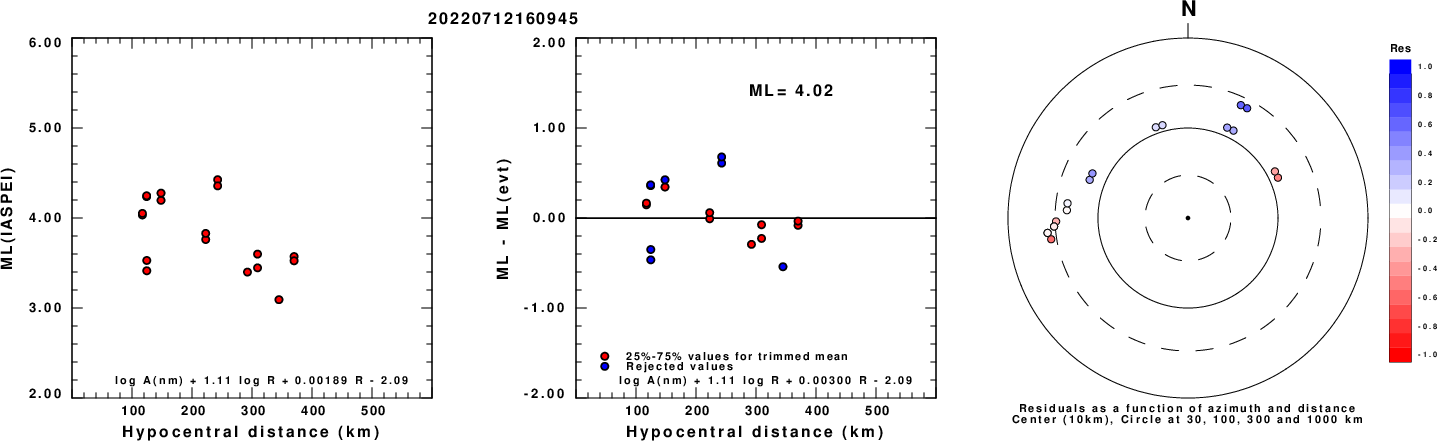

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

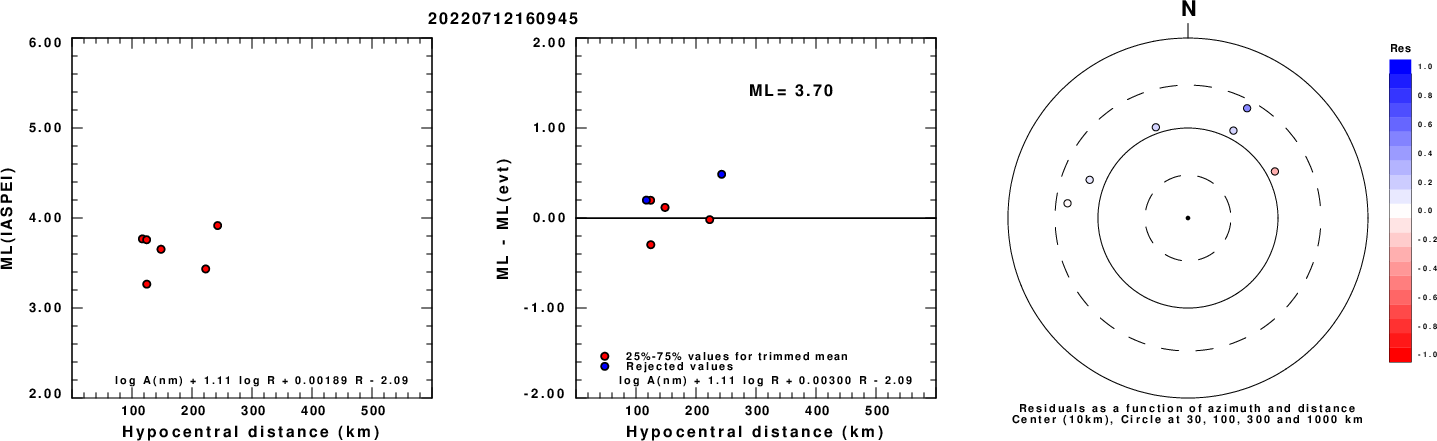

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

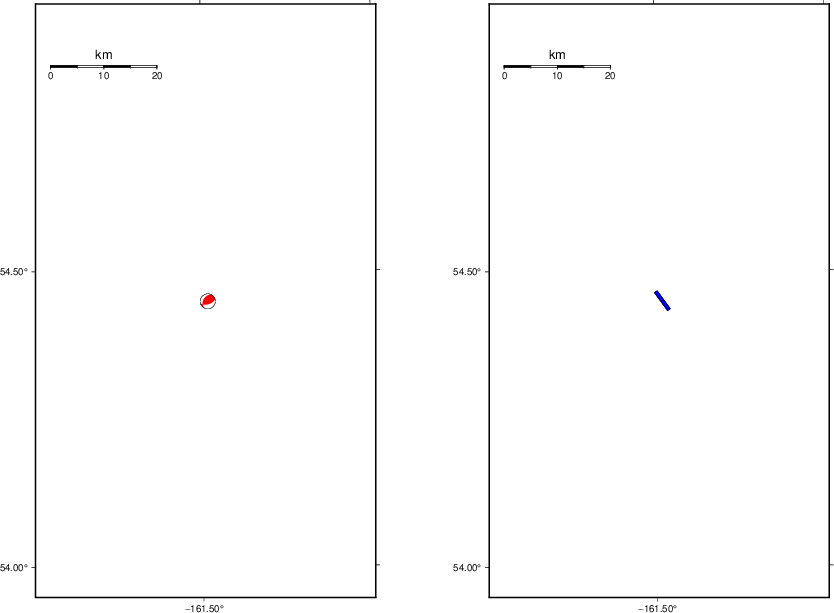

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

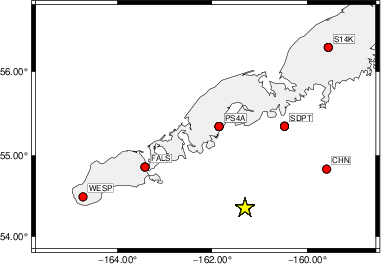

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    85    45   -90   3.18 0.2738
WVFGRD96    2.0    85    45   -90   3.30 0.3489
WVFGRD96    3.0    85    45   -95   3.35 0.3107
WVFGRD96    4.0   305    65   -45   3.28 0.2244
WVFGRD96    5.0   140    30   -25   3.28 0.2151
WVFGRD96    6.0   145    30   -15   3.29 0.2421
WVFGRD96    7.0   150    30   -15   3.30 0.2693
WVFGRD96    8.0   145    25   -20   3.38 0.2953
WVFGRD96    9.0   150    30   -10   3.39 0.3258
WVFGRD96   10.0   155    30    -5   3.41 0.3546
WVFGRD96   11.0   155    30    -5   3.43 0.3822
WVFGRD96   12.0   180    35    10   3.46 0.4092
WVFGRD96   13.0   185    35    20   3.48 0.4374
WVFGRD96   14.0   190    35    30   3.50 0.4644
WVFGRD96   15.0   190    40    30   3.53 0.4923
WVFGRD96   16.0   195    40    35   3.55 0.5198
WVFGRD96   17.0   200    45    50   3.58 0.5483
WVFGRD96   18.0   200    45    45   3.60 0.5769
WVFGRD96   19.0   200    45    45   3.61 0.6043
WVFGRD96   20.0   205    45    55   3.63 0.6304
WVFGRD96   21.0   205    45    50   3.65 0.6530
WVFGRD96   22.0   205    45    50   3.66 0.6767
WVFGRD96   23.0   205    45    50   3.68 0.6983
WVFGRD96   24.0   205    45    50   3.69 0.7172
WVFGRD96   25.0   210    40    55   3.70 0.7345
WVFGRD96   26.0   210    40    55   3.71 0.7494
WVFGRD96   27.0   210    40    55   3.72 0.7609
WVFGRD96   28.0   210    40    55   3.73 0.7680
WVFGRD96   29.0   210    40    55   3.74 0.7700
WVFGRD96   30.0   210    40    55   3.75 0.7663
WVFGRD96   31.0   215    35    60   3.76 0.7589
WVFGRD96   32.0   210    35    55   3.76 0.7482
WVFGRD96   33.0   210    35    50   3.77 0.7332
WVFGRD96   34.0   210    35    50   3.78 0.7146
WVFGRD96   35.0   210    35    50   3.78 0.6936
WVFGRD96   36.0   205    35    45   3.79 0.6712
WVFGRD96   37.0   205    35    45   3.79 0.6486
WVFGRD96   38.0   205    35    45   3.79 0.6274
WVFGRD96   39.0   205    35    50   3.80 0.6071
WVFGRD96   40.0   210    30    50   3.90 0.5790
WVFGRD96   41.0   210    30    50   3.91 0.5593
WVFGRD96   42.0   210    30    55   3.91 0.5390
WVFGRD96   43.0   210    30    55   3.91 0.5202
WVFGRD96   44.0   205    30    50   3.92 0.5021
WVFGRD96   45.0   205    30    50   3.92 0.4860
WVFGRD96   46.0   205    30    50   3.92 0.4704
WVFGRD96   47.0   205    30    50   3.92 0.4564
WVFGRD96   48.0   205    30    50   3.93 0.4432
WVFGRD96   49.0   200    30    45   3.93 0.4312

The best solution is

WVFGRD96   29.0   210    40    55   3.74 0.7700

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

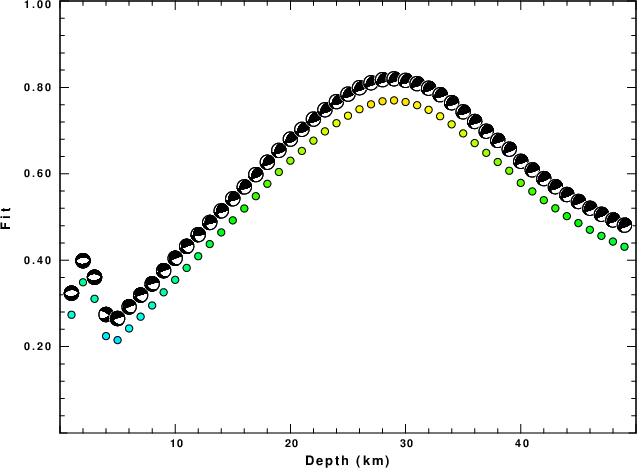

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

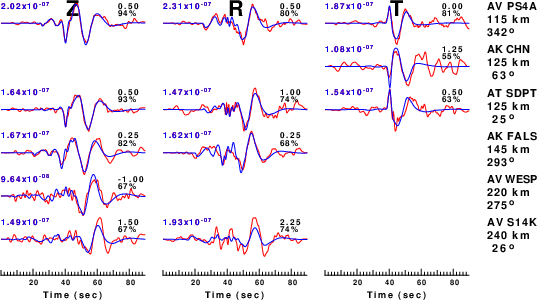

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

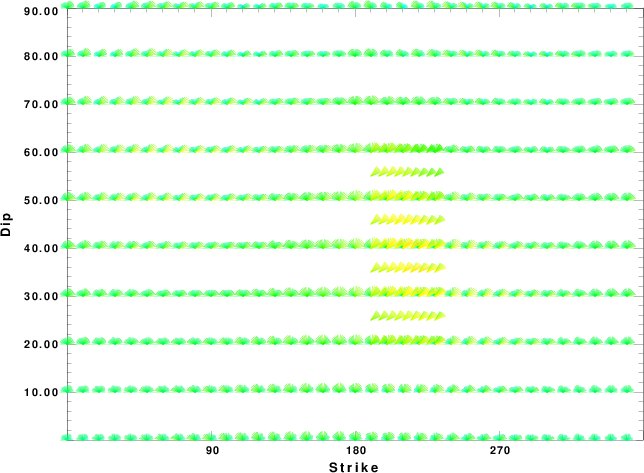

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

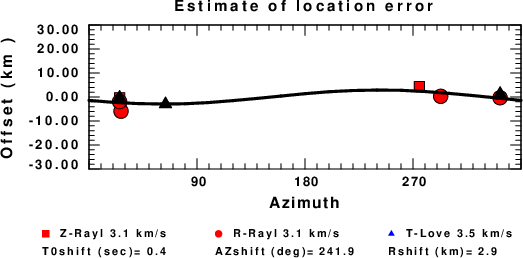

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
