Location

Location ANSS

The ANSS event ID is us6000i1t1 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us6000i1t1/executive.

2022/07/12 13:43:00 28.038 -107.478 15.1 4.6 Chihuahua, Mexico

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2022/07/12 13:43:00:0  28.04 -107.48  15.1 4.6 Chihuahua, Mexico

 Stations used:
   AE.319A AE.DUN6 EP.KIDD GM.NMP11 IM.TX31 IU.TUC MX.HPIG
   MX.HSIG NX.WTX35 NX.WTX36 SC.121A TX.ALPN TX.MNHN TX.PB01
   TX.PB04 TX.PB10 TX.PB12 TX.PB16 TX.PECS TX.SAND TX.VHRN
   US.MNTX

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.00e+23 dyne-cm
  Mw = 4.60
  Z  = 18 km
  Plane   Strike  Dip  Rake
   NP1      313    51   -124
   NP2      180    50   -55
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.00e+23      1      66
    N   0.00e+00     26     336
    P  -1.00e+23     64     157

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -7.68e+15
       Mxy     4.39e+22
       Mxz     3.69e+22
       Myy     8.07e+22
       Myz    -1.42e+22
       Mzz    -8.07e+22




                     -----#########
                 -------###############
              ---------###################
             ########--####################
           #########--------#################
          ##########-----------##############
         ##########--------------############ T
        ###########----------------##########
        ##########-------------------###########
       ###########---------------------##########
       ###########----------------------#########
       ###########-----------------------########
       ###########------------------------#######
        ##########-----------   -----------#####
        ###########---------- P -----------#####
         ##########----------   -----------####
          ##########------------------------##
           #########------------------------#
             ########----------------------
              #########-------------------
                 #######---------------
                     #####---------



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.07e+22   3.69e+22   1.42e+22
  3.69e+22  -7.68e+15  -4.39e+22
  1.42e+22  -4.39e+22   8.07e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220712134300/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 180
      DIP = 50
     RAKE = -55
       MW = 4.60
       HS = 18.0

The NDK file is 20220712134300.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2022/07/12 13:43:00:0  28.04 -107.48  15.1 4.6 Chihuahua, Mexico

 Stations used:
   AE.319A AE.DUN6 EP.KIDD GM.NMP11 IM.TX31 IU.TUC MX.HPIG
   MX.HSIG NX.WTX35 NX.WTX36 SC.121A TX.ALPN TX.MNHN TX.PB01
   TX.PB04 TX.PB10 TX.PB12 TX.PB16 TX.PECS TX.SAND TX.VHRN
   US.MNTX

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.00e+23 dyne-cm
  Mw = 4.60
  Z  = 18 km
  Plane   Strike  Dip  Rake
   NP1      313    51   -124
   NP2      180    50   -55
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.00e+23      1      66
    N   0.00e+00     26     336
    P  -1.00e+23     64     157

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -7.68e+15
       Mxy     4.39e+22
       Mxz     3.69e+22
       Myy     8.07e+22
       Myz    -1.42e+22
       Mzz    -8.07e+22




                     -----#########
                 -------###############
              ---------###################
             ########--####################
           #########--------#################
          ##########-----------##############
         ##########--------------############ T
        ###########----------------##########
        ##########-------------------###########
       ###########---------------------##########
       ###########----------------------#########
       ###########-----------------------########
       ###########------------------------#######
        ##########-----------   -----------#####
        ###########---------- P -----------#####
         ##########----------   -----------####
          ##########------------------------##
           #########------------------------#
             ########----------------------
              #########-------------------
                 #######---------------
                     #####---------



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.07e+22   3.69e+22   1.42e+22
  3.69e+22  -7.68e+15  -4.39e+22
  1.42e+22  -4.39e+22   8.07e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220712134300/index.html

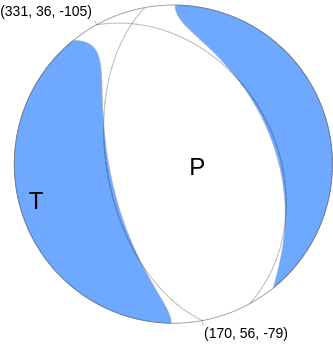

Regional Moment Tensor (Mwr)
Moment 9.352e+15 N-m
Magnitude 4.58 Mwr
Depth 14.0 km
Percent DC 79%
Half Duration -
Catalog US
Data Source US 1
Contributor US 1

Nodal Planes
Plane Strike Dip Rake
NP1 331 36 -105
NP2 170 56 -79

Principal Axes
Axis Value Plunge Azimuth
T 9.824e+15 N-m 10 252
N -1.028e+15 N-m 9 344
P -8.796e+15 N-m 77 114



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

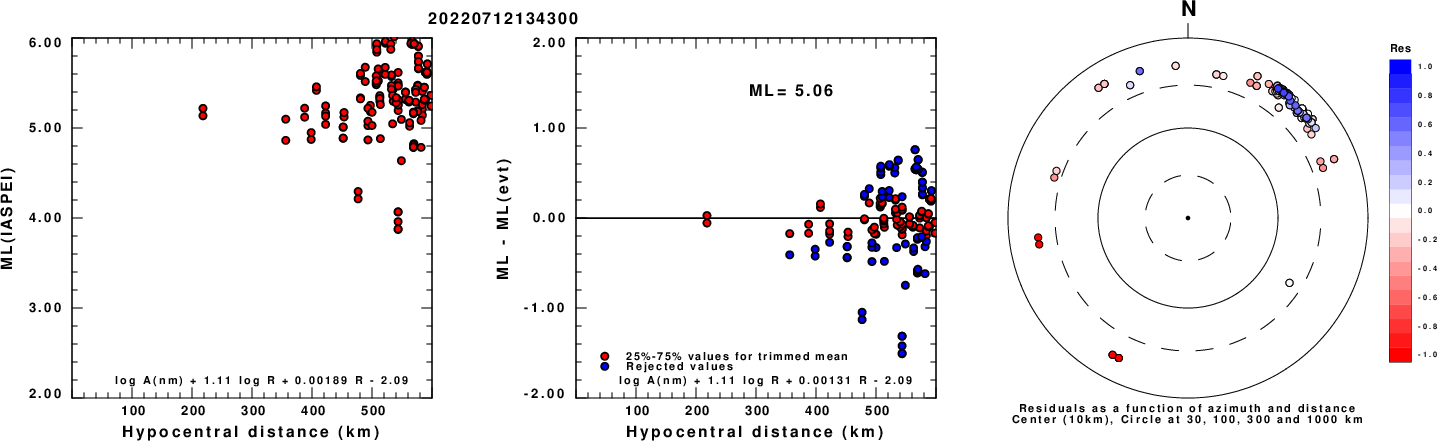

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

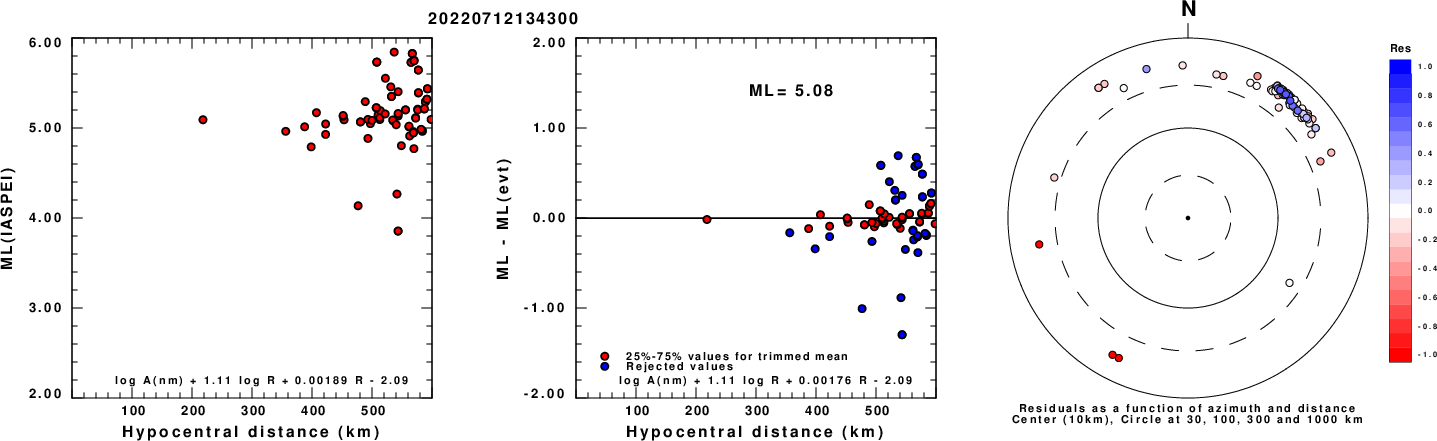

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

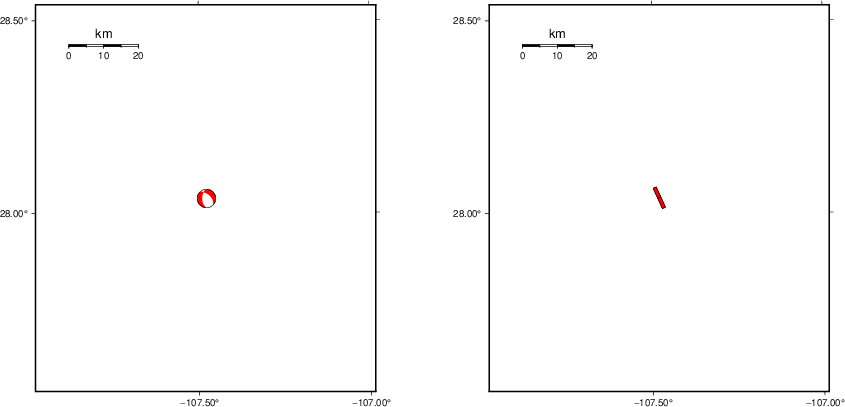

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

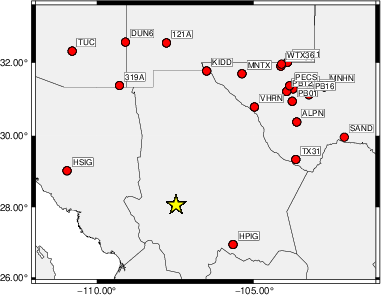

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    90    45    90   4.31 0.4387
WVFGRD96    2.0    90    50    90   4.38 0.4783
WVFGRD96    3.0   190    55    10   4.39 0.4344
WVFGRD96    4.0   190    40     0   4.44 0.4351
WVFGRD96    5.0   185    40   -15   4.45 0.4552
WVFGRD96    6.0   180    40   -25   4.46 0.4800
WVFGRD96    7.0   185    45   -25   4.46 0.5023
WVFGRD96    8.0    45    25    40   4.51 0.5186
WVFGRD96    9.0    55    30    40   4.50 0.5440
WVFGRD96   10.0    55    35    45   4.51 0.5711
WVFGRD96   11.0    50    40    45   4.52 0.5930
WVFGRD96   12.0   165    60   -90   4.55 0.6168
WVFGRD96   13.0   175    50   -65   4.57 0.6465
WVFGRD96   14.0   180    50   -60   4.57 0.6701
WVFGRD96   15.0   180    50   -60   4.58 0.6866
WVFGRD96   16.0   180    50   -60   4.59 0.6966
WVFGRD96   17.0   180    50   -55   4.59 0.7016
WVFGRD96   18.0   180    50   -55   4.60 0.7024
WVFGRD96   19.0   185    55   -50   4.60 0.7010
WVFGRD96   20.0   185    55   -50   4.61 0.6964
WVFGRD96   21.0   185    55   -45   4.63 0.6898
WVFGRD96   22.0   185    55   -45   4.63 0.6809
WVFGRD96   23.0   185    55   -45   4.64 0.6698
WVFGRD96   24.0   185    55   -45   4.64 0.6569
WVFGRD96   25.0   185    55   -45   4.65 0.6426
WVFGRD96   26.0   185    60   -45   4.66 0.6273
WVFGRD96   27.0   185    60   -40   4.67 0.6120
WVFGRD96   28.0   185    60   -40   4.67 0.5961
WVFGRD96   29.0   185    60   -40   4.68 0.5795

The best solution is

WVFGRD96   18.0   180    50   -55   4.60 0.7024

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

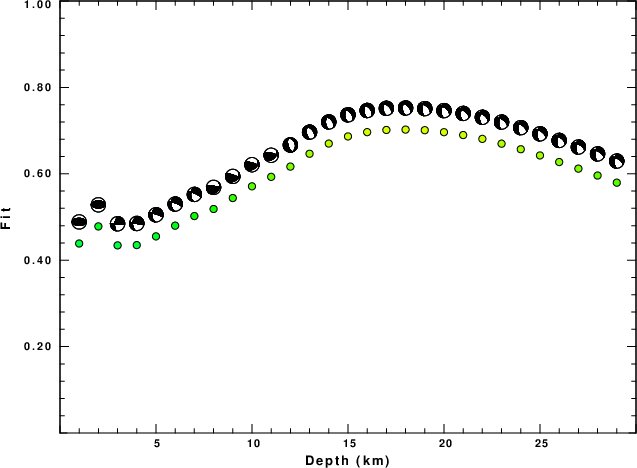

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

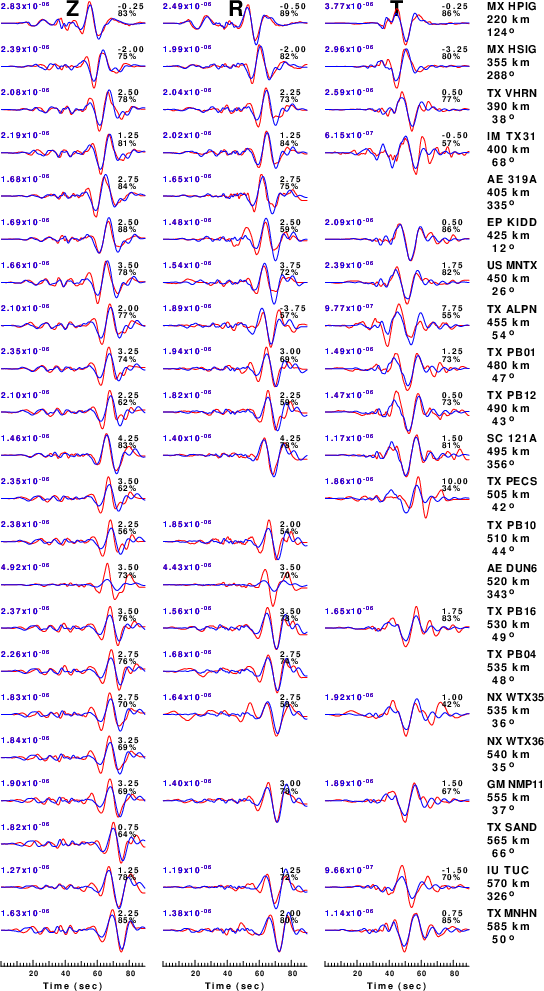

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

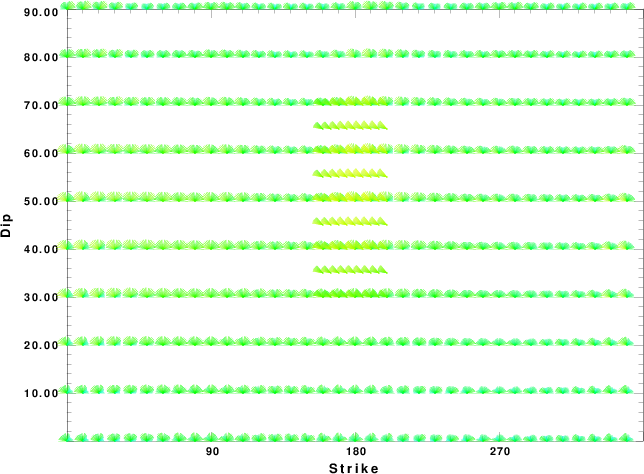

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

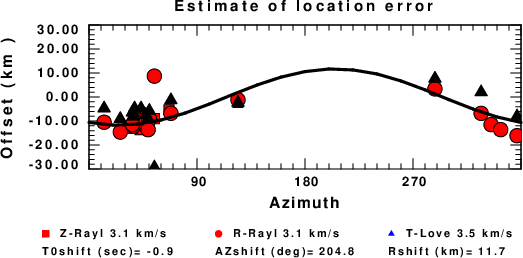

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Wed Apr 24 11:45:44 PM CDT 2024
