The ANSS event ID is se60400941 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/se60400941/executive.

2022/06/26 05:31:54 34.167 -80.725 3.5 3.4 S. Carolina

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2022/06/26 05:31:54:0  34.17  -80.72   3.5 3.4 S. Carolina

 Stations used:
   CO.CASEE CO.CSB CO.TEEBA IM.TKL N4.152A N4.154A N4.257A
   N4.456A N4.KMSC N4.S54A N4.S57A N4.T59A N4.U56A N4.V53A
   N4.V55A N4.V58A N4.W50A N4.W52A N4.W57A N4.X58A N4.Y58A
   N4.Y60A US.GOGA US.NHSC US.TZTN

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.20e+21 dyne-cm
  Mw = 3.32
  Z  = 2 km
  Plane   Strike  Dip  Rake
   NP1       10    90   -145
   NP2      280    55     0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.20e+21     24     139
    N   0.00e+00     55      10
    P  -1.20e+21     24     241

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.37e+20
       Mxy    -9.25e+20
       Mxz    -1.20e+20
       Myy    -3.37e+20
       Myz     6.79e+20
       Mzz     0.00e+00




                     ##########----
                 ##############--------
              #################-----------
             #################-------------
           ###################---------------
          ####################----------------
         #######-------------##----------------
        ####-----------------########-----------
        #--------------------############-------
       ---------------------###############------
       ---------------------#################----
       ---------------------###################--
       ---------------------####################-
        -------------------#####################
        -----   -----------#####################
         ---- P -----------####################
          ---   ----------###########   ######
           ---------------########### T #####
             -------------###########   ###
              -----------#################
                 --------##############
                     ----##########



 Global CMT Convention Moment Tensor:
      R          T          P
  0.00e+00  -1.20e+20  -6.79e+20
 -1.20e+20   3.37e+20   9.25e+20
 -6.79e+20   9.25e+20  -3.37e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220626053154/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 280
      DIP = 55
     RAKE = 0
       MW = 3.32
       HS = 2.0

The NDK file is 20220626053154.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2022/06/26 05:31:54:0  34.17  -80.72   3.5 3.4 S. Carolina

 Stations used:
   CO.CASEE CO.CSB CO.TEEBA IM.TKL N4.152A N4.154A N4.257A
   N4.456A N4.KMSC N4.S54A N4.S57A N4.T59A N4.U56A N4.V53A
   N4.V55A N4.V58A N4.W50A N4.W52A N4.W57A N4.X58A N4.Y58A
   N4.Y60A US.GOGA US.NHSC US.TZTN

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.20e+21 dyne-cm
  Mw = 3.32
  Z  = 2 km
  Plane   Strike  Dip  Rake
   NP1       10    90   -145
   NP2      280    55     0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.20e+21     24     139
    N   0.00e+00     55      10
    P  -1.20e+21     24     241

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.37e+20
       Mxy    -9.25e+20
       Mxz    -1.20e+20
       Myy    -3.37e+20
       Myz     6.79e+20
       Mzz     0.00e+00




                     ##########----
                 ##############--------
              #################-----------
             #################-------------
           ###################---------------
          ####################----------------
         #######-------------##----------------
        ####-----------------########-----------
        #--------------------############-------
       ---------------------###############------
       ---------------------#################----
       ---------------------###################--
       ---------------------####################-
        -------------------#####################
        -----   -----------#####################
         ---- P -----------####################
          ---   ----------###########   ######
           ---------------########### T #####
             -------------###########   ###
              -----------#################
                 --------##############
                     ----##########



 Global CMT Convention Moment Tensor:
      R          T          P
  0.00e+00  -1.20e+20  -6.79e+20
 -1.20e+20   3.37e+20   9.25e+20
 -6.79e+20   9.25e+20  -3.37e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220626053154/index.html

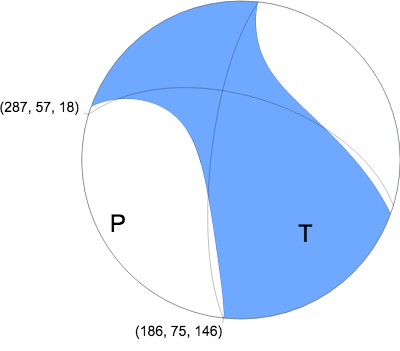

Regional Moment Tensor (Mwr)
Moment 1.473e+14 N-m
Magnitude 3.38 Mwr
Depth 3.0 km
Percent DC 54%
Half Duration -
Catalog US
Data Source US 2
Contributor US 2

Nodal Planes
Plane Strike Dip Rake
NP1 287 57 18
NP2 186 75 146

Principal Axes
Axis Value Plunge Azimuth
T 1.253e+14 N-m 35 142
N 0.370e+14 N-m 53 345
P -1.622e+14 N-m 11 240



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

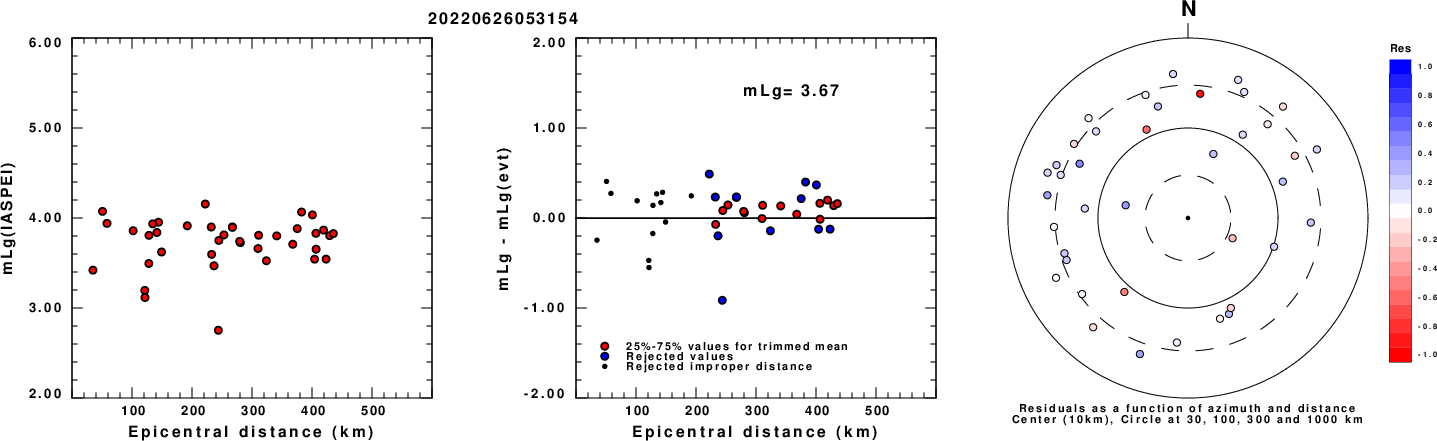

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

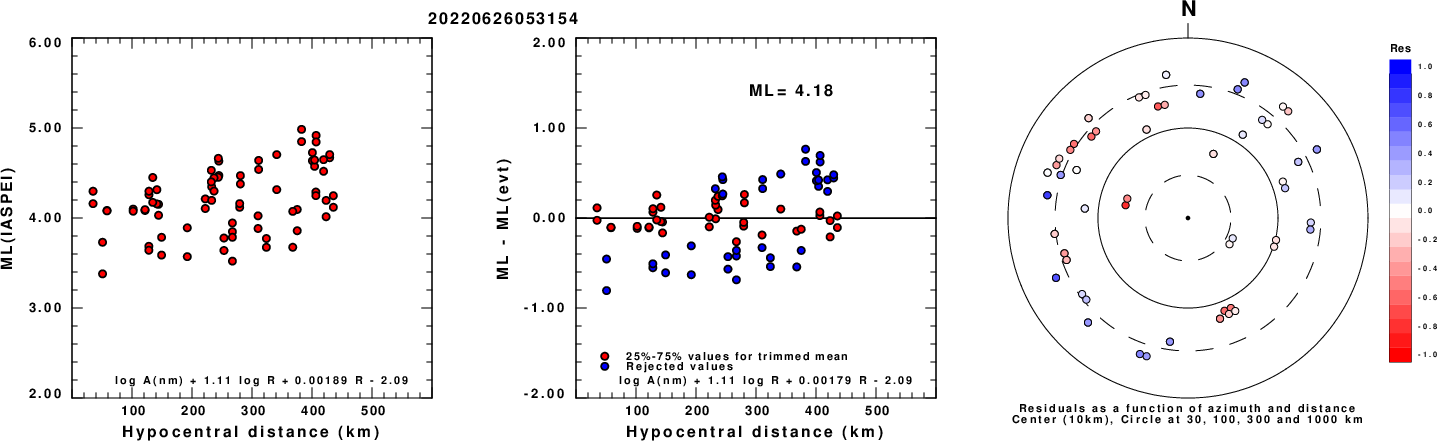

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

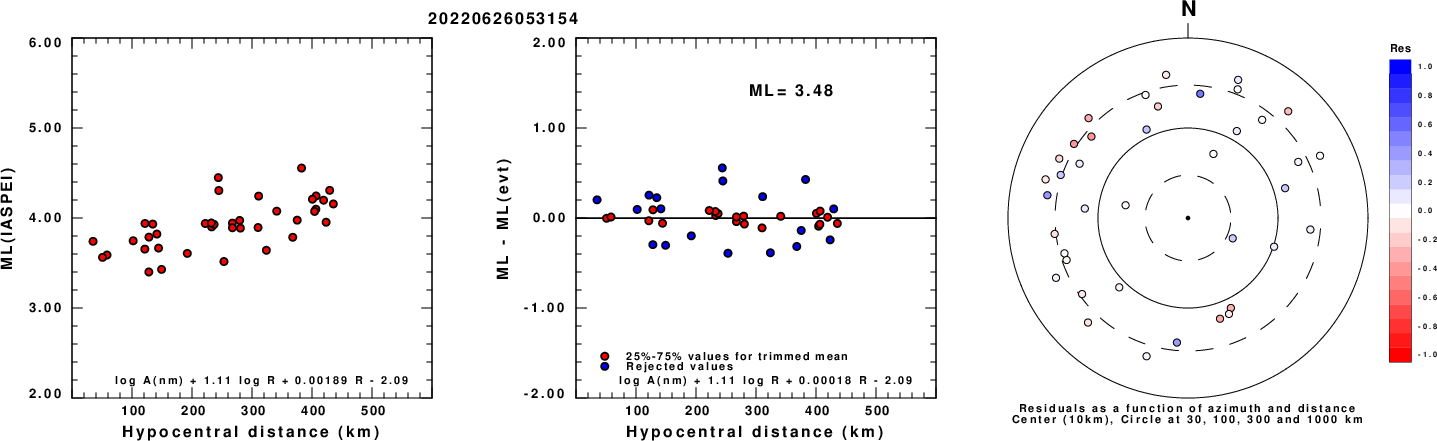

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

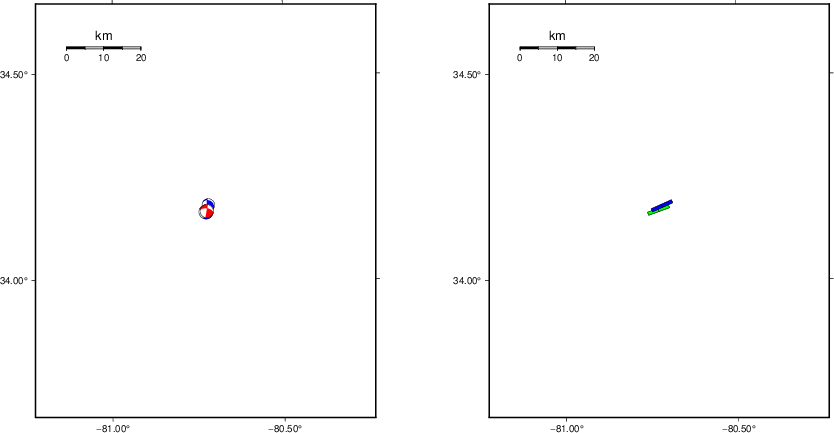

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

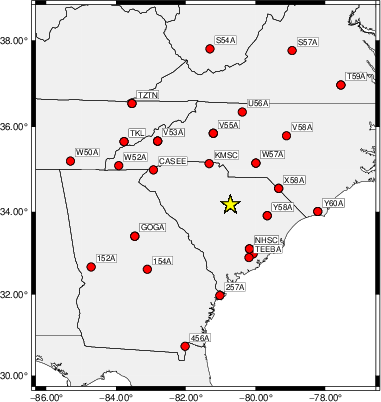

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   280    35     0   3.38 0.5393
WVFGRD96    2.0   280    55     0   3.32 0.5529
WVFGRD96    3.0   280    60     5   3.32 0.5467
WVFGRD96    4.0   105    70    30   3.34 0.5409
WVFGRD96    5.0   100    75    25   3.33 0.5317
WVFGRD96    6.0   100    75    25   3.34 0.5263
WVFGRD96    7.0   100    75    25   3.34 0.5232
WVFGRD96    8.0   100    75    25   3.35 0.5184
WVFGRD96    9.0   100    80    25   3.36 0.5129
WVFGRD96   10.0   100    75    25   3.38 0.5064
WVFGRD96   11.0   100    75    25   3.38 0.4990
WVFGRD96   12.0   100    75    25   3.39 0.4910
WVFGRD96   13.0   100    75    25   3.40 0.4824
WVFGRD96   14.0   100    75    25   3.40 0.4734
WVFGRD96   15.0   100    75    25   3.41 0.4649
WVFGRD96   16.0   275    80   -25   3.42 0.4606
WVFGRD96   17.0   275    75   -25   3.43 0.4529
WVFGRD96   18.0   275    75   -25   3.44 0.4472
WVFGRD96   19.0   275    75   -20   3.45 0.4411
WVFGRD96   20.0   275    65   -15   3.46 0.4377
WVFGRD96   21.0   275    65   -15   3.47 0.4339
WVFGRD96   22.0   275    65   -15   3.48 0.4297
WVFGRD96   23.0   275    65   -15   3.49 0.4255
WVFGRD96   24.0   275    65   -10   3.49 0.4213
WVFGRD96   25.0   280    65    -5   3.50 0.4183
WVFGRD96   26.0   280    65    -5   3.50 0.4146
WVFGRD96   27.0   280    70     0   3.50 0.4118
WVFGRD96   28.0   280    70     0   3.51 0.4094
WVFGRD96   29.0    95    75   -20   3.52 0.4103

The best solution is

WVFGRD96    2.0   280    55     0   3.32 0.5529

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

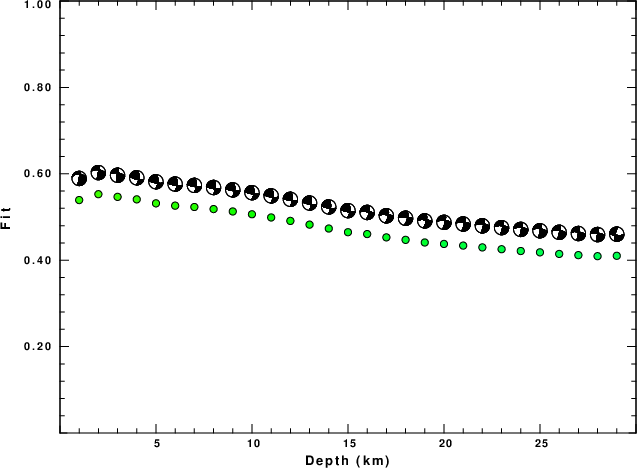

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

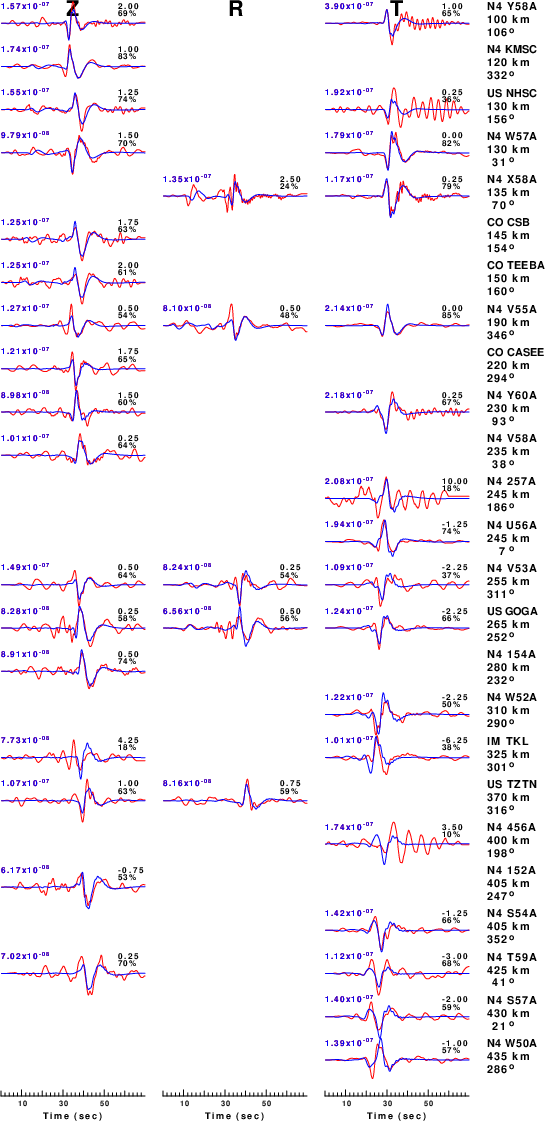

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

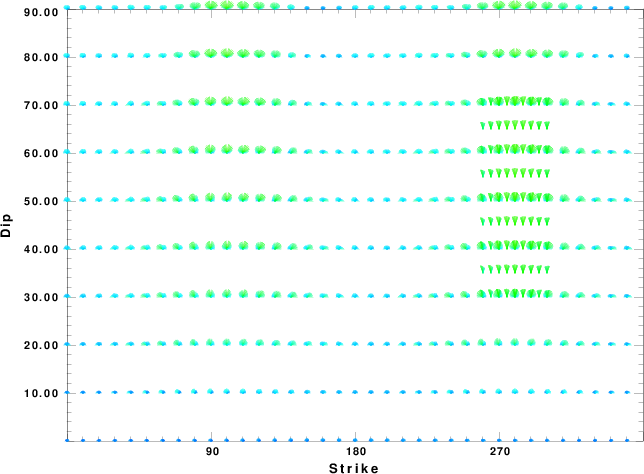

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

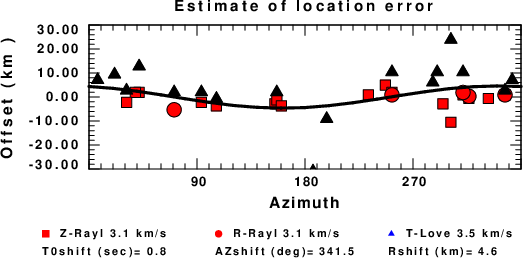

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
