The ANSS event ID is tx2022ihbu and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2022ihbu/executive.

2022/04/28 17:08:57 31.615 -103.971 8.8 4 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2022/04/28 17:08:57:0  31.61 -103.97   8.8 4.0 Texas

 Stations used:
   EP.KIDD GM.NMP25 GM.NMP41 GM.NMP44 GM.NMP45 IM.TX31 IU.ANMO
   SC.121A TX.ALPN TX.MB04 TX.MB05 TX.MNHN TX.ODSA TX.OZNA
   TX.PB01 TX.PB05 TX.PB11 TX.PB21 TX.PB28 TX.PECS TX.POST
   TX.SAND TX.SGCY TX.VHRN US.JCT US.MNTX

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 8.91e+21 dyne-cm
  Mw = 3.90
  Z  = 11 km
  Plane   Strike  Dip  Rake
   NP1       81    82   -140
   NP2      345    50   -10
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.91e+21     21     207
    N   0.00e+00     49      90
    P  -8.91e+21     33     311

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.46e+21
       Mxy     6.20e+21
       Mxz    -5.38e+21
       Myy    -1.94e+21
       Myz     1.72e+21
       Mzz    -1.52e+21




                     ---###########
                 -----------###########
              ----------------############
             -------------------###########
           ----------------------############
          ------   ----------------###########
         ------- P -----------------###########
        --------   -----------------############
        -----------------------------###########
       -------------------------------##########-
       -------------------------------####-------
       ---------------------------####-----------
       ---------------#################----------
        ###############################---------
        ###############################---------
         ##############################--------
          ############################--------
           ###########################-------
             ######   ###############------
              ##### T ##############------
                 ##   #############----
                     #############-



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.52e+21  -5.38e+21  -1.72e+21
 -5.38e+21   3.46e+21  -6.20e+21
 -1.72e+21  -6.20e+21  -1.94e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220428170857/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 345
      DIP = 50
     RAKE = -10
       MW = 3.90
       HS = 11.0

The NDK file is 20220428170857.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

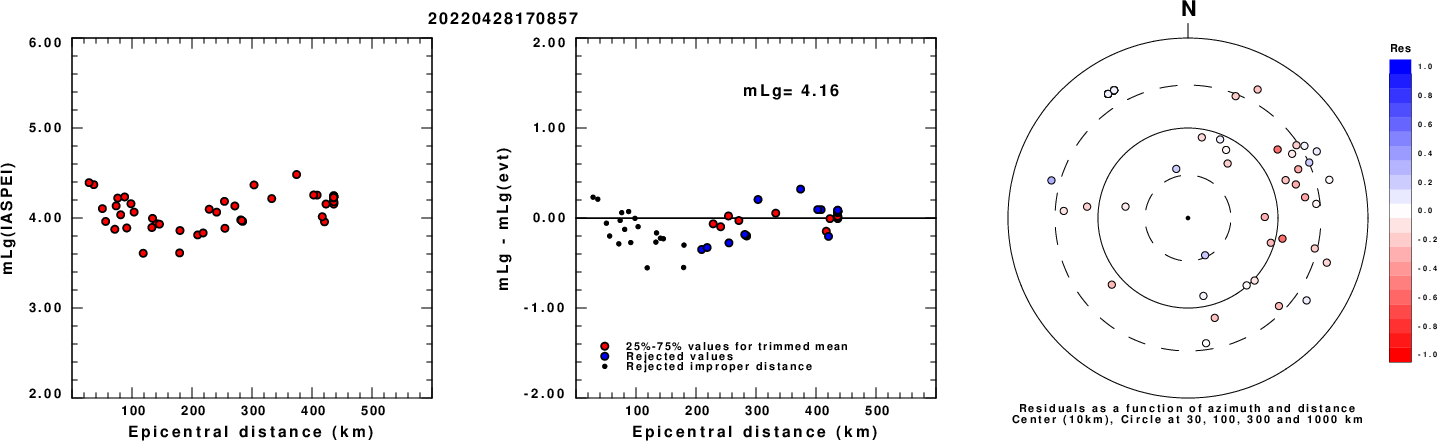

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

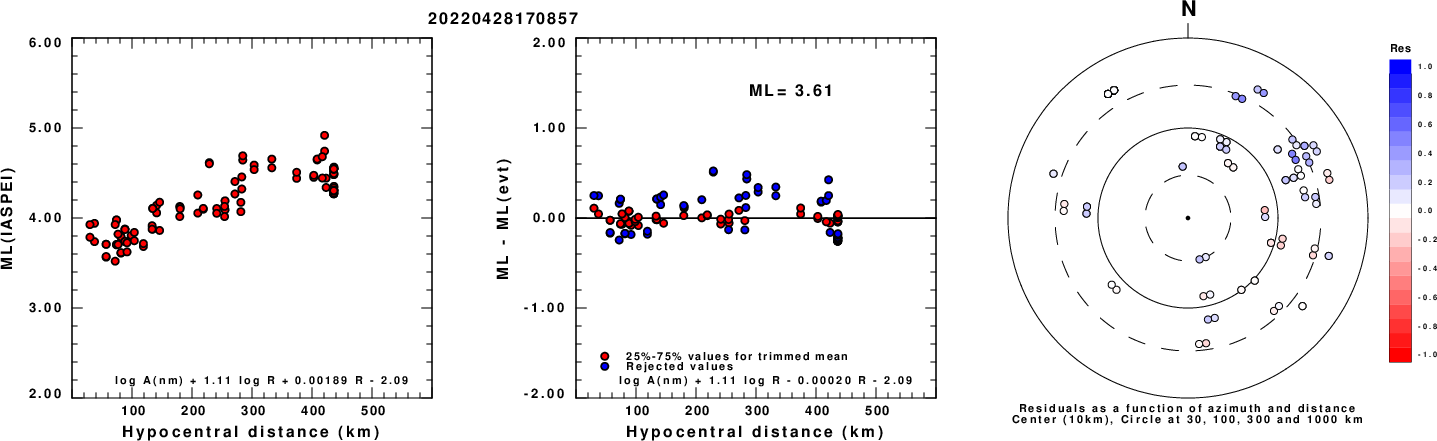

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

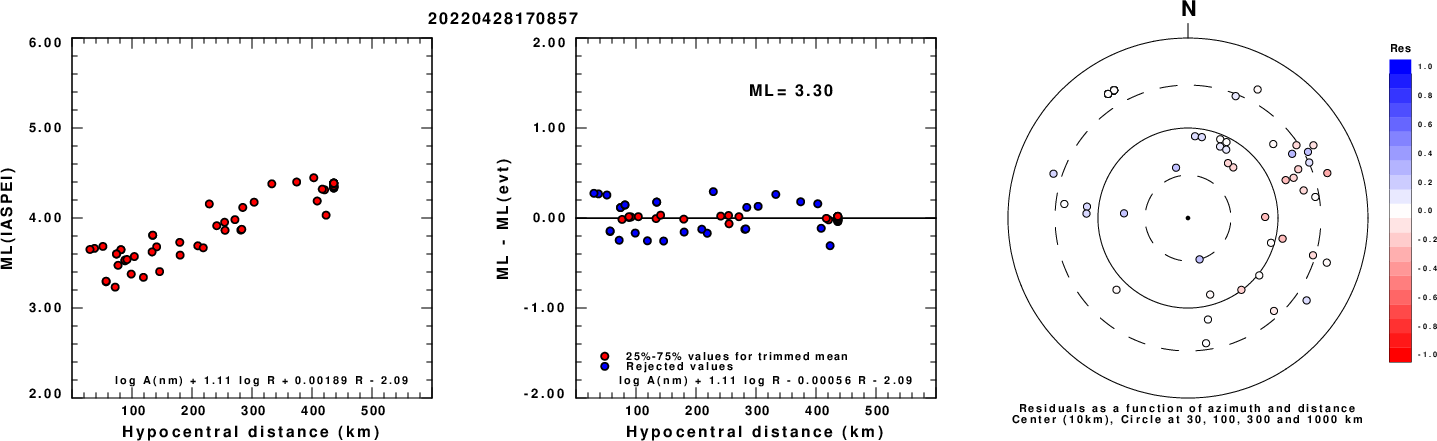

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

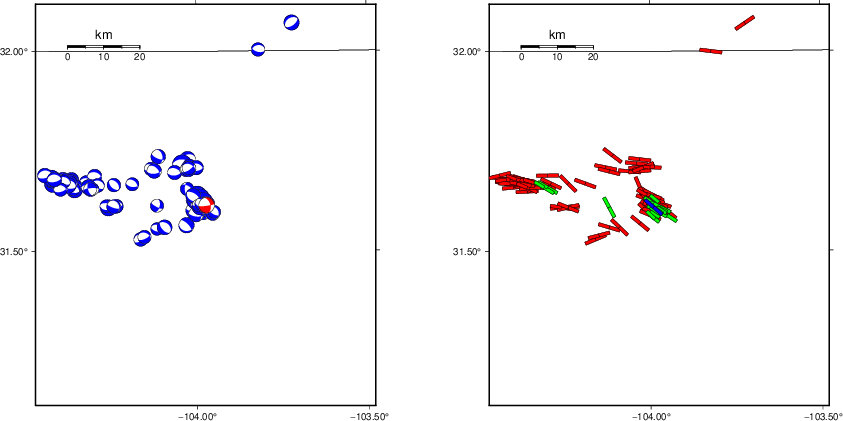

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

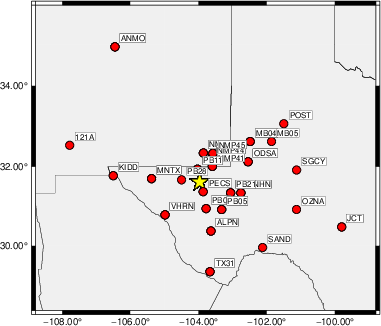

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   155    65   -25   3.50 0.2552
WVFGRD96    2.0   155    60   -30   3.64 0.3324
WVFGRD96    3.0   340    40   -15   3.74 0.3818
WVFGRD96    4.0   340    35   -15   3.78 0.4394
WVFGRD96    5.0   340    40   -20   3.80 0.4843
WVFGRD96    6.0   340    40   -15   3.81 0.5256
WVFGRD96    7.0   345    45   -10   3.82 0.5583
WVFGRD96    8.0   340    40   -20   3.88 0.5876
WVFGRD96    9.0   340    45   -20   3.89 0.6042
WVFGRD96   10.0   340    45   -20   3.90 0.6132
WVFGRD96   11.0   345    50   -10   3.90 0.6141
WVFGRD96   12.0   345    50   -10   3.91 0.6119
WVFGRD96   13.0   345    50    -5   3.92 0.6046
WVFGRD96   14.0   345    50    -5   3.92 0.5942
WVFGRD96   15.0   345    55    -5   3.93 0.5817
WVFGRD96   16.0   350    55     5   3.94 0.5688
WVFGRD96   17.0   350    55     5   3.94 0.5552
WVFGRD96   18.0   350    55     5   3.94 0.5406
WVFGRD96   19.0   350    55     5   3.95 0.5262
WVFGRD96   20.0   350    55    10   3.95 0.5115
WVFGRD96   21.0   350    55    10   3.96 0.4974
WVFGRD96   22.0   350    55    10   3.96 0.4836
WVFGRD96   23.0   350    55    10   3.97 0.4702
WVFGRD96   24.0   350    55    10   3.97 0.4574
WVFGRD96   25.0   350    55    10   3.97 0.4454
WVFGRD96   26.0   355    55    20   3.98 0.4349
WVFGRD96   27.0   355    55    20   3.98 0.4259
WVFGRD96   28.0   355    55    20   3.99 0.4178
WVFGRD96   29.0   355    55    20   3.99 0.4103

The best solution is

WVFGRD96   11.0   345    50   -10   3.90 0.6141

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

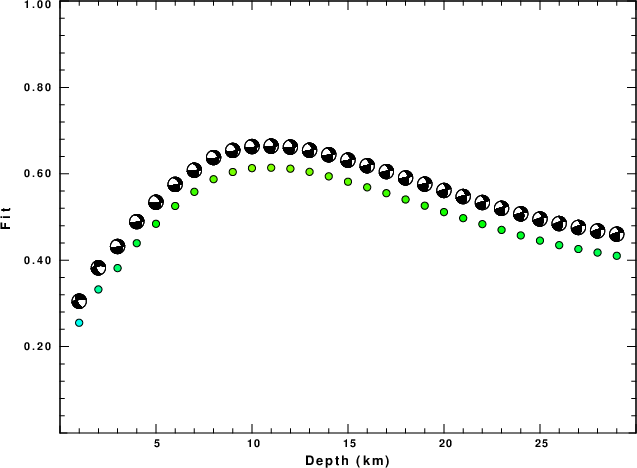

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

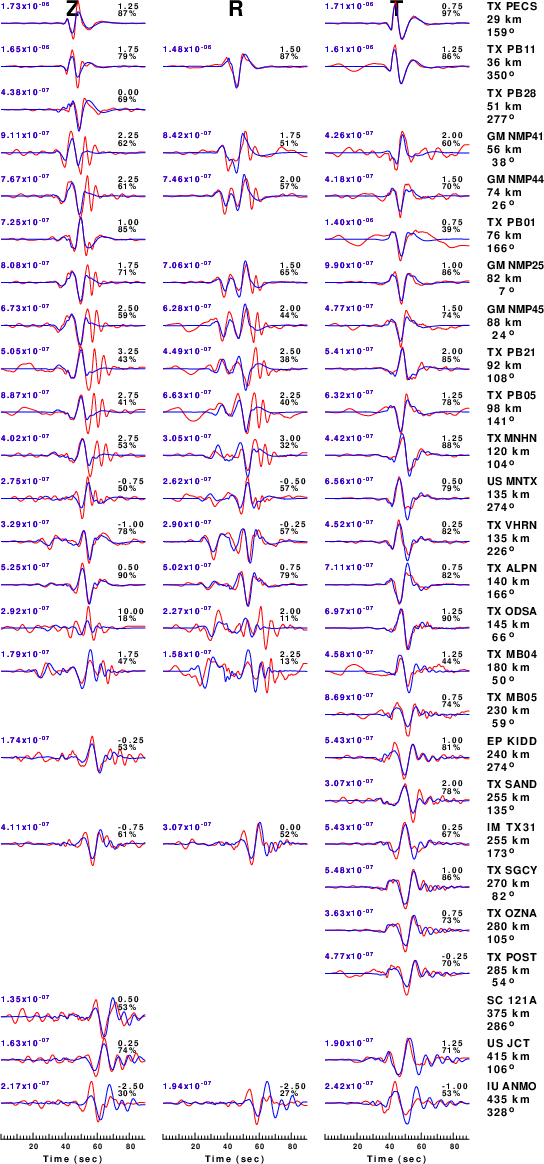

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

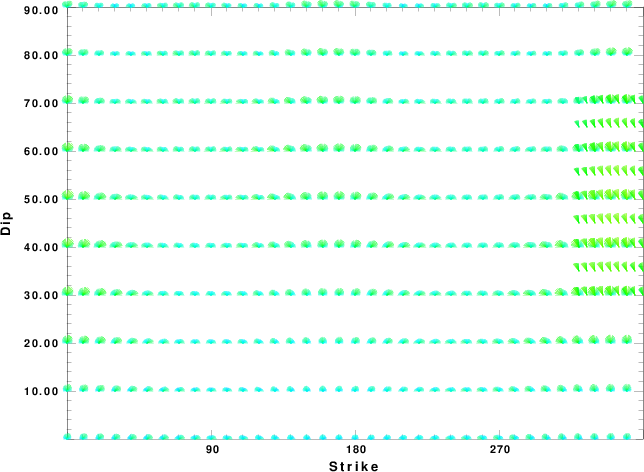

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

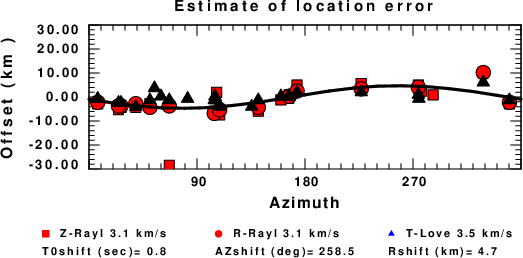

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
