Location

Location ANSS

The ANSS event ID is ak0222cjwd3a and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0222cjwd3a/executive.

2022/02/20 12:58:15 61.785 -151.807 111.2 4.3 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2022/02/20 12:58:15:0  61.78 -151.81 111.2 4.3 Alaska

 Stations used:
   AK.CNP AK.CUT AK.DHY AK.FIRE AK.GHO AK.L22K AK.O18K AK.O19K
   AK.RC01 AK.RND AK.SKN AK.SLK AK.SSN AK.SWD AV.SPCP AV.STLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 3.20e+22 dyne-cm
  Mw = 4.27
  Z  = 110 km
  Plane   Strike  Dip  Rake
   NP1       55    80    25
   NP2      320    65   169
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.20e+22     25     280
    N   0.00e+00     63      75
    P  -3.20e+22     10     186

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.99e+22
       Mxy    -7.59e+21
       Mxz     7.52e+21
       Myy     2.53e+22
       Myz    -1.14e+22
       Mzz     4.62e+21




                     --------------
                 ----------------------
              ##--------------------------
             ########----------------------
           #############---------------------
          #################-----------------##
         ####################-------------#####
        #######################---------########
        ###   ##################------##########
       #### T ####################--#############
       ####   ####################-##############
       ########################-----#############
       #####################---------############
        ##################------------##########
        ###############----------------#########
         ##########---------------------#######
          ######-------------------------#####
           ------------------------------####
             ----------------------------##
              ---------------------------#
                 --------   -----------
                     ---- P -------



 Global CMT Convention Moment Tensor:
      R          T          P
  4.62e+21   7.52e+21   1.14e+22
  7.52e+21  -2.99e+22   7.59e+21
  1.14e+22   7.59e+21   2.53e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20220220125815/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 55
      DIP = 80
     RAKE = 25
       MW = 4.27
       HS = 110.0

The NDK file is 20220220125815.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

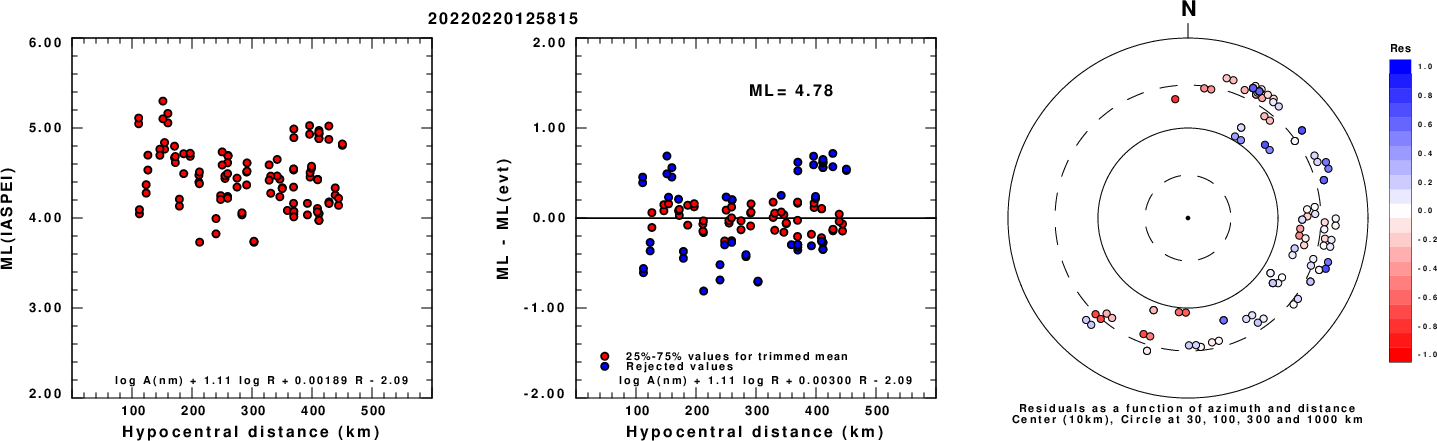

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

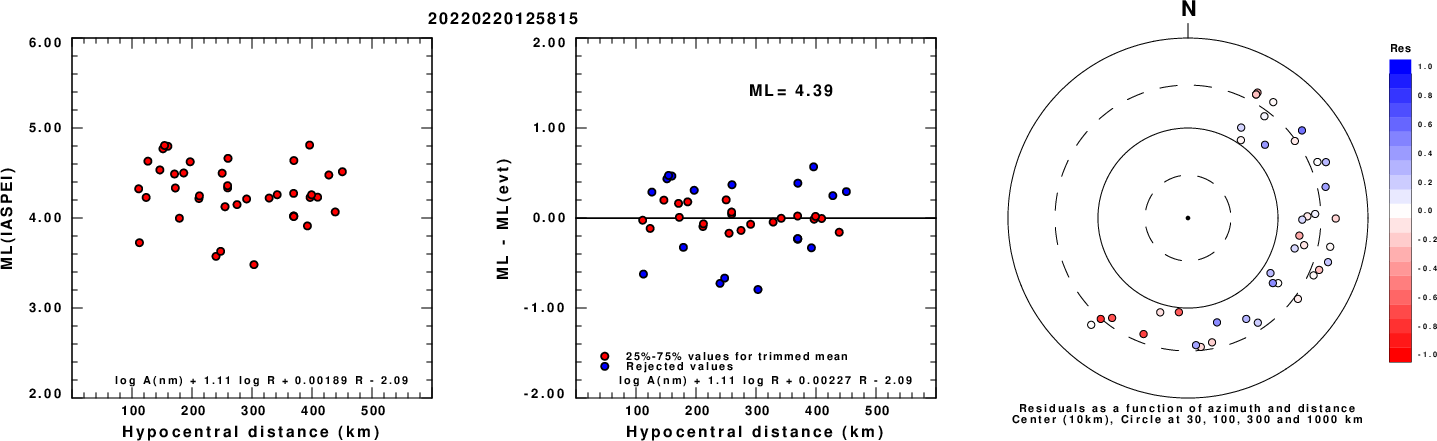

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

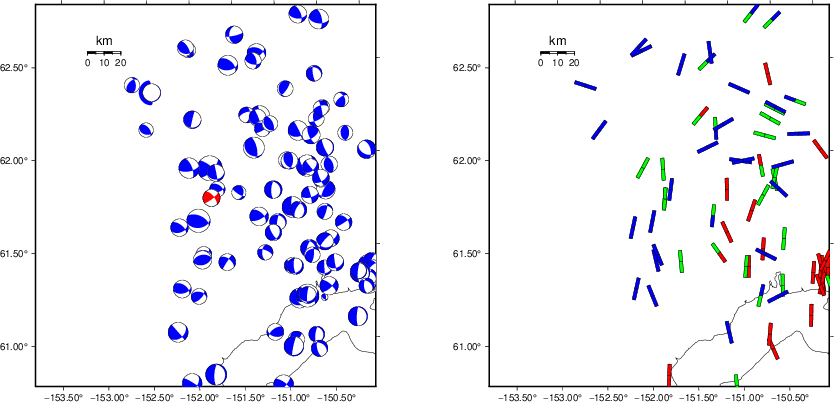

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

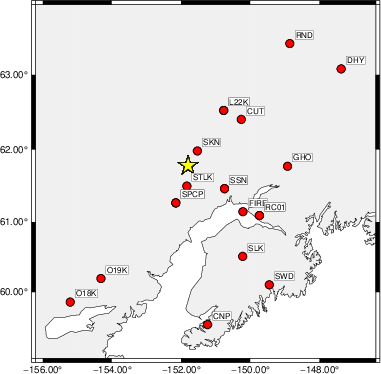

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    50    80   -15   3.48 0.3326
WVFGRD96    4.0    50    75   -15   3.56 0.3864
WVFGRD96    6.0   230    70   -20   3.62 0.4042
WVFGRD96    8.0   230    70   -20   3.66 0.4160
WVFGRD96   10.0   230    70   -15   3.68 0.4216
WVFGRD96   12.0   235    75    -5   3.71 0.4248
WVFGRD96   14.0   235    75    -5   3.74 0.4251
WVFGRD96   16.0   235    75    -5   3.76 0.4266
WVFGRD96   18.0   235    80    15   3.78 0.4283
WVFGRD96   20.0   235    75     0   3.80 0.4320
WVFGRD96   22.0   235    75     0   3.82 0.4377
WVFGRD96   24.0   240    70    15   3.87 0.4440
WVFGRD96   26.0   240    75    15   3.89 0.4512
WVFGRD96   28.0   240    75    15   3.91 0.4592
WVFGRD96   30.0   240    75    10   3.93 0.4655
WVFGRD96   32.0   240    75    10   3.95 0.4733
WVFGRD96   34.0   240    75     5   3.98 0.4769
WVFGRD96   36.0   240    75     5   4.00 0.4827
WVFGRD96   38.0   240    75     5   4.03 0.4843
WVFGRD96   40.0   240    70     5   4.08 0.4844
WVFGRD96   42.0   240    75     5   4.09 0.4825
WVFGRD96   44.0   235    70   -10   4.10 0.4838
WVFGRD96   46.0   235    70   -10   4.12 0.4922
WVFGRD96   48.0   235    75   -10   4.13 0.5024
WVFGRD96   50.0   235    75   -15   4.15 0.5131
WVFGRD96   52.0   235    75   -15   4.17 0.5250
WVFGRD96   54.0   235    80   -15   4.17 0.5363
WVFGRD96   56.0   235    80   -15   4.18 0.5454
WVFGRD96   58.0   230    75   -25   4.19 0.5546
WVFGRD96   60.0   235    80   -15   4.20 0.5597
WVFGRD96   62.0   235    85   -15   4.19 0.5643
WVFGRD96   64.0   235    85   -15   4.20 0.5700
WVFGRD96   66.0   235    85   -15   4.21 0.5740
WVFGRD96   68.0   235    85   -15   4.22 0.5787
WVFGRD96   70.0   235    85   -15   4.22 0.5823
WVFGRD96   72.0   235    85   -15   4.23 0.5859
WVFGRD96   74.0   235    85   -15   4.24 0.5885
WVFGRD96   76.0   235    85   -15   4.24 0.5911
WVFGRD96   78.0   235    90   -25   4.23 0.5934
WVFGRD96   80.0   235    90   -25   4.24 0.5967
WVFGRD96   82.0   235    90   -25   4.24 0.5987
WVFGRD96   84.0   235    90   -25   4.24 0.6009
WVFGRD96   86.0    55    85    25   4.24 0.6042
WVFGRD96   88.0    55    85    25   4.24 0.6063
WVFGRD96   90.0    55    85    25   4.25 0.6084
WVFGRD96   92.0    55    85    25   4.25 0.6098
WVFGRD96   94.0    55    85    25   4.25 0.6112
WVFGRD96   96.0    55    85    25   4.26 0.6120
WVFGRD96   98.0    55    85    25   4.26 0.6124
WVFGRD96  100.0    55    85    25   4.26 0.6129
WVFGRD96  102.0    55    80    25   4.26 0.6128
WVFGRD96  104.0    55    80    25   4.26 0.6127
WVFGRD96  106.0    55    80    25   4.26 0.6129
WVFGRD96  108.0    55    80    25   4.27 0.6133
WVFGRD96  110.0    55    80    25   4.27 0.6141
WVFGRD96  112.0    55    80    25   4.28 0.6138
WVFGRD96  114.0    55    80    25   4.28 0.6130
WVFGRD96  116.0    55    80    25   4.28 0.6120
WVFGRD96  118.0    55    80    25   4.29 0.6111
WVFGRD96  120.0    55    80    25   4.29 0.6115
WVFGRD96  122.0    55    80    25   4.29 0.6109
WVFGRD96  124.0    55    80    25   4.30 0.6091
WVFGRD96  126.0    55    75    30   4.29 0.6068
WVFGRD96  128.0    55    75    30   4.29 0.6077
WVFGRD96  130.0    55    75    30   4.30 0.6068
WVFGRD96  132.0    55    75    30   4.30 0.6047
WVFGRD96  134.0    55    75    30   4.30 0.6033
WVFGRD96  136.0    55    75    30   4.30 0.6031
WVFGRD96  138.0    55    75    30   4.31 0.6012
WVFGRD96  140.0    55    75    30   4.31 0.5994
WVFGRD96  142.0    55    75    30   4.31 0.5987
WVFGRD96  144.0    55    75    30   4.32 0.5971
WVFGRD96  146.0    55    75    30   4.32 0.5955
WVFGRD96  148.0    55    75    30   4.32 0.5945

The best solution is

WVFGRD96  110.0    55    80    25   4.27 0.6141

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

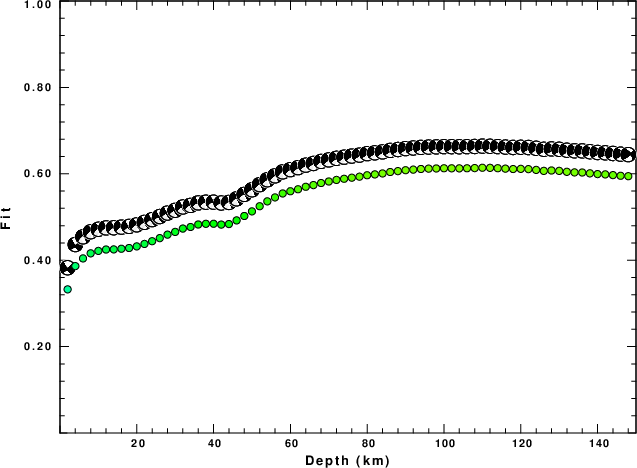

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

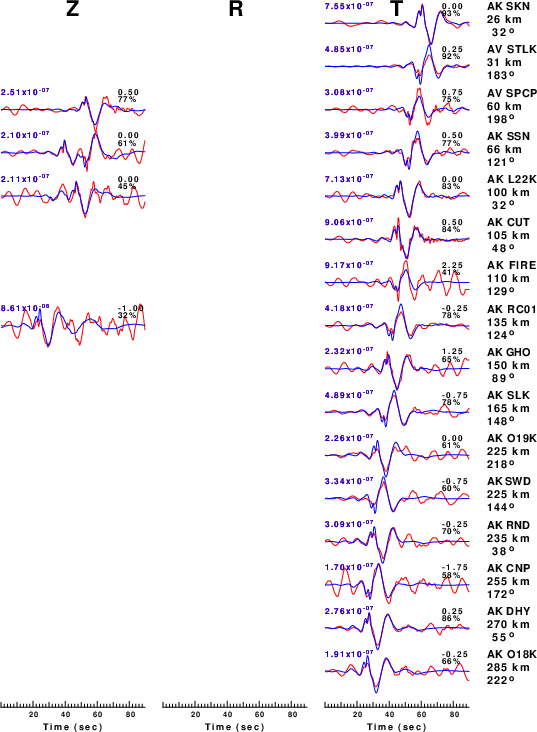

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

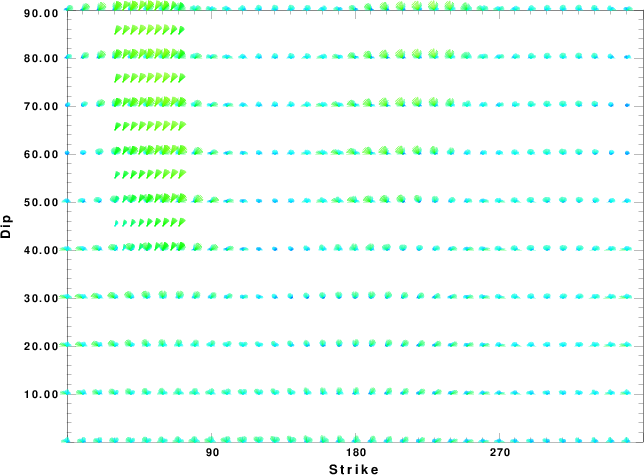

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

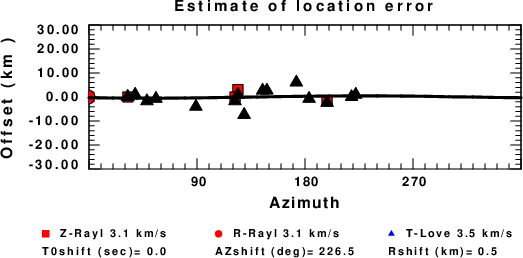

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Wed Apr 24 09:45:21 PM CDT 2024
