Location

Location ANSS

The ANSS event ID is nm60363582 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nm60363582/executive.

2021/11/18 02:53:03 36.908 -90.543 16.5 4 Missouri

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2021/11/18 02:53:03:0  36.91  -90.54  16.5 4.0 Missouri

 Stations used:
   AG.CCAR AG.FCAR AG.LCAR AG.U40A AG.WHAR AG.WLAR AG.X40A
   GS.DEC04 GS.DEC06 GS.DEC08 IU.CCM IU.WCI IU.WVT N4.N41A
   N4.P38B N4.P40B N4.P43A N4.P46A N4.Q44B N4.S39B N4.S44A
   N4.T45B N4.T47A N4.U38B N4.U49A N4.V48A N4.X48A N4.Y45B
   NM.BLO NM.CGM3 NM.CLTN NM.FFIL NM.FVM NM.GLAT NM.GNAR
   NM.HALT NM.HBAR NM.HICK NM.LNXT NM.MGMO NM.MPH NM.OLIL
   NM.PEBM NM.PENM NM.PLAL NM.SLM NM.UALR NM.UTMT US.HDIL
   US.MIAR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.40e+22 dyne-cm
  Mw = 4.03
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1      295    85   -25
   NP2       27    65   -174
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.40e+22     14     344
    N   0.00e+00     65     104
    P  -1.40e+22     21     248

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.05e+22
       Mxy    -7.71e+21
       Mxz     4.80e+21
       Myy    -9.47e+21
       Myz     3.46e+21
       Mzz    -1.02e+21




                     #   ##########
                 ##### T #############-
              ########   #############----
             #########################-----
           ###########################-------
          ############################--------
         --###########################---------
        --------#####################-----------
        -------------################-----------
       ------------------###########-------------
       ----------------------######--------------
       --------------------------##--------------
       ---------------------------###------------
        ---   -------------------#######--------
        --- P ------------------###########-----
         --   ----------------################-
          -------------------#################
           ----------------##################
             -------------#################
              ---------###################
                 ---###################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.02e+21   4.80e+21  -3.46e+21
  4.80e+21   1.05e+22   7.71e+21
 -3.46e+21   7.71e+21  -9.47e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20211118025303/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 295
      DIP = 85
     RAKE = -25
       MW = 4.03
       HS = 13.0

The NDK file is 20211118025303.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2021/11/18 02:53:03:0  36.91  -90.54  16.5 4.0 Missouri

 Stations used:
   AG.CCAR AG.FCAR AG.LCAR AG.U40A AG.WHAR AG.WLAR AG.X40A
   GS.DEC04 GS.DEC06 GS.DEC08 IU.CCM IU.WCI IU.WVT N4.N41A
   N4.P38B N4.P40B N4.P43A N4.P46A N4.Q44B N4.S39B N4.S44A
   N4.T45B N4.T47A N4.U38B N4.U49A N4.V48A N4.X48A N4.Y45B
   NM.BLO NM.CGM3 NM.CLTN NM.FFIL NM.FVM NM.GLAT NM.GNAR
   NM.HALT NM.HBAR NM.HICK NM.LNXT NM.MGMO NM.MPH NM.OLIL
   NM.PEBM NM.PENM NM.PLAL NM.SLM NM.UALR NM.UTMT US.HDIL
   US.MIAR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.40e+22 dyne-cm
  Mw = 4.03
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1      295    85   -25
   NP2       27    65   -174
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.40e+22     14     344
    N   0.00e+00     65     104
    P  -1.40e+22     21     248

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.05e+22
       Mxy    -7.71e+21
       Mxz     4.80e+21
       Myy    -9.47e+21
       Myz     3.46e+21
       Mzz    -1.02e+21




                     #   ##########
                 ##### T #############-
              ########   #############----
             #########################-----
           ###########################-------
          ############################--------
         --###########################---------
        --------#####################-----------
        -------------################-----------
       ------------------###########-------------
       ----------------------######--------------
       --------------------------##--------------
       ---------------------------###------------
        ---   -------------------#######--------
        --- P ------------------###########-----
         --   ----------------################-
          -------------------#################
           ----------------##################
             -------------#################
              ---------###################
                 ---###################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.02e+21   4.80e+21  -3.46e+21
  4.80e+21   1.05e+22   7.71e+21
 -3.46e+21   7.71e+21  -9.47e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20211118025303/index.html

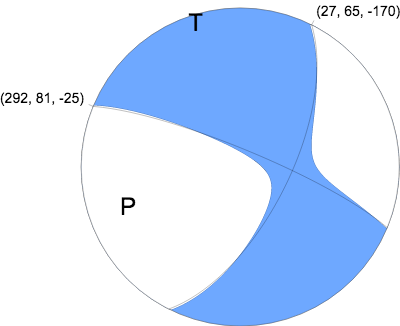

Regional Moment Tensor (Mwr)
Moment 1.443e+15 N-m
Magnitude 4.04 Mwr
Depth 16.0 km
Percent DC 90%
Half Duration -
Catalog US
Data Source US 2
Contributor US 2

Nodal Planes
Plane Strike Dip Rake
NP1 27° 65° -170°
NP2 292° 81° -25°

Principal Axes
Axis Value Plunge Azimuth
T 1.406e+15 N-m 11° 342°
N 0.070e+15 N-m 63° 94°
P -1.477e+15 N-m 24° 247°



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

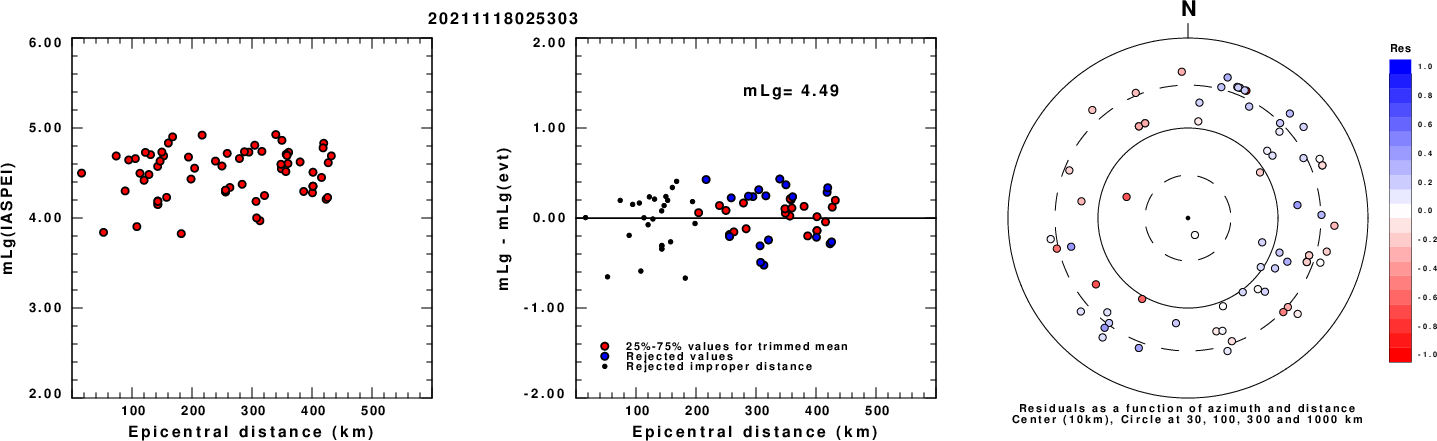

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

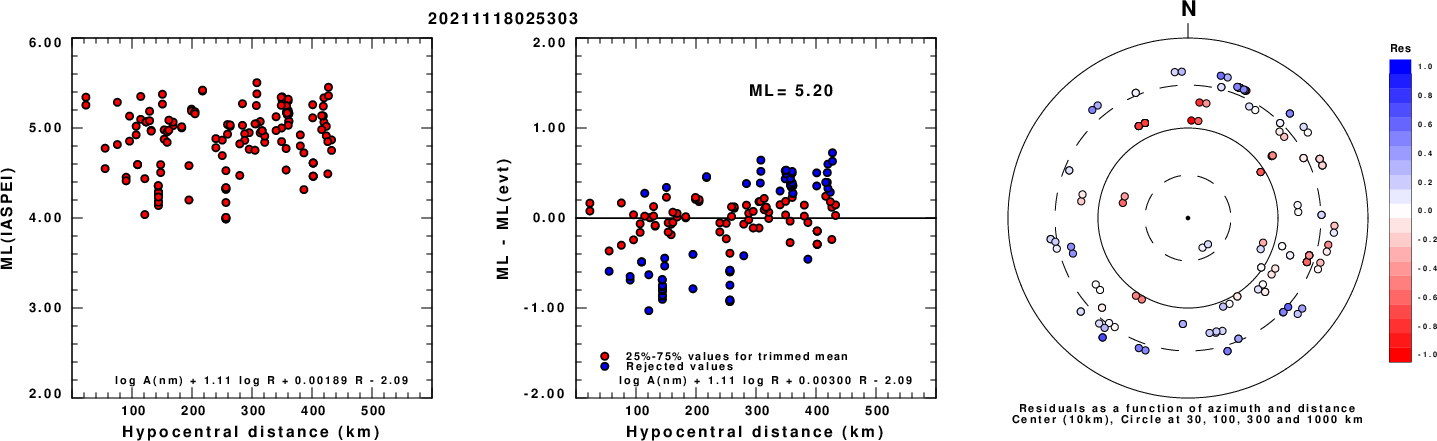

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

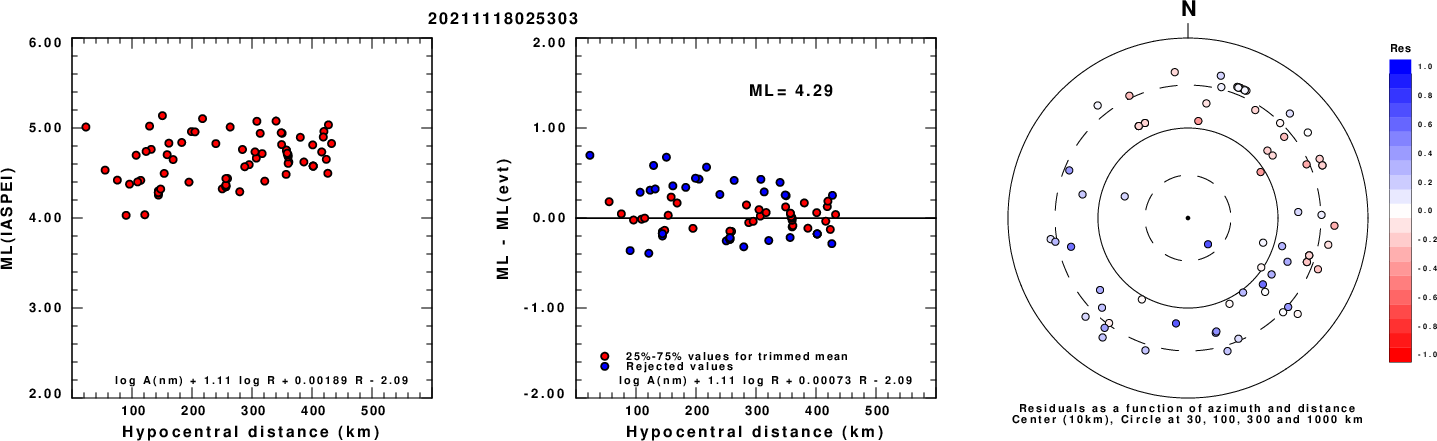

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

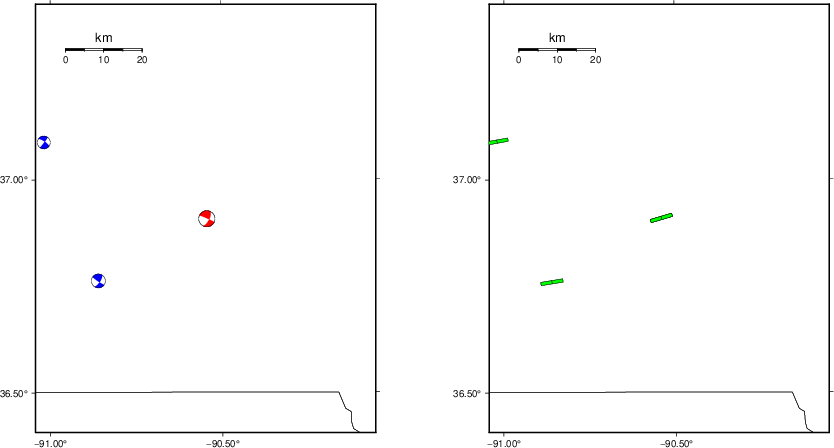

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

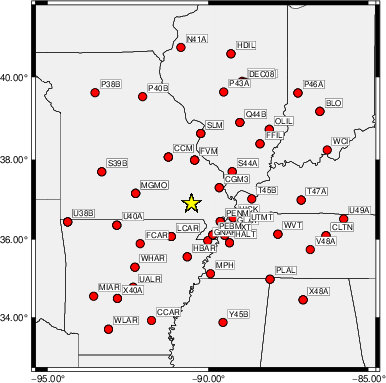

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   300    75    20   3.86 0.4127
WVFGRD96    2.0   115    90     0   3.87 0.4282
WVFGRD96    3.0   120    80    35   3.93 0.4303
WVFGRD96    4.0   120    85    35   3.94 0.4431
WVFGRD96    5.0   295    85   -35   3.95 0.4602
WVFGRD96    6.0   295    85   -35   3.96 0.4764
WVFGRD96    7.0   295    85   -30   3.97 0.4911
WVFGRD96    8.0   295    85   -30   3.98 0.5035
WVFGRD96    9.0   295    85   -30   3.98 0.5127
WVFGRD96   10.0   295    85   -30   4.00 0.5203
WVFGRD96   11.0   295    85   -30   4.01 0.5251
WVFGRD96   12.0   295    85   -25   4.02 0.5276
WVFGRD96   13.0   295    85   -25   4.03 0.5290
WVFGRD96   14.0   295    85   -25   4.04 0.5283
WVFGRD96   15.0   295    85   -25   4.04 0.5258
WVFGRD96   16.0   115    90    25   4.05 0.5193
WVFGRD96   17.0   115    90    25   4.06 0.5145
WVFGRD96   18.0   295    85   -25   4.06 0.5114
WVFGRD96   19.0   295    85   -25   4.07 0.5048
WVFGRD96   20.0   295    85   -25   4.09 0.4971
WVFGRD96   21.0   115    90    25   4.09 0.4882
WVFGRD96   22.0   115    90    25   4.10 0.4807
WVFGRD96   23.0   115    90    25   4.10 0.4727
WVFGRD96   24.0   295    85   -25   4.11 0.4663
WVFGRD96   25.0   115    90    25   4.11 0.4567
WVFGRD96   26.0   115    90    25   4.12 0.4490
WVFGRD96   27.0   295    85   -25   4.12 0.4426
WVFGRD96   28.0   115    90    25   4.13 0.4335
WVFGRD96   29.0   115    90    25   4.14 0.4266

The best solution is

WVFGRD96   13.0   295    85   -25   4.03 0.5290

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

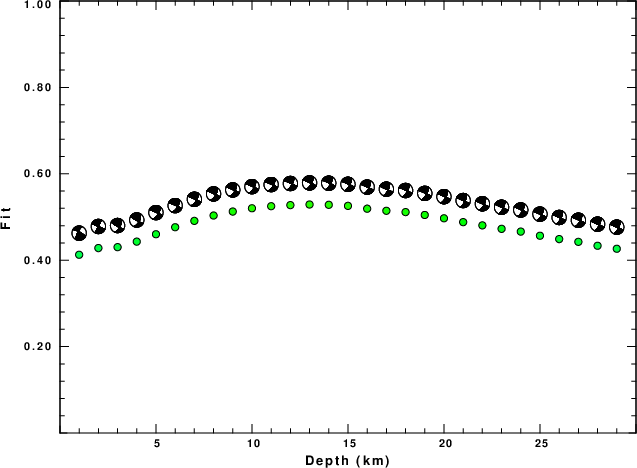

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

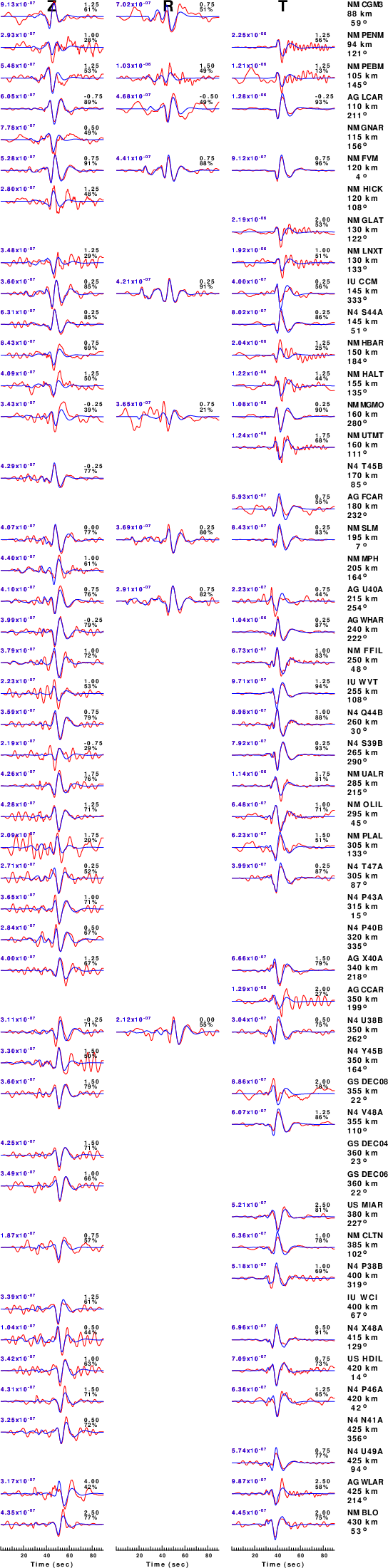

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

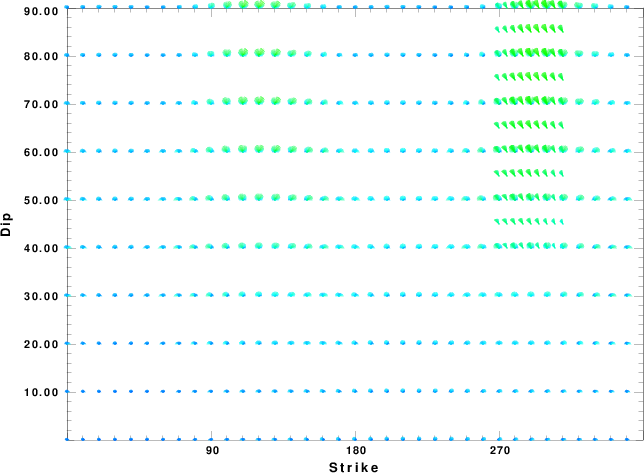

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

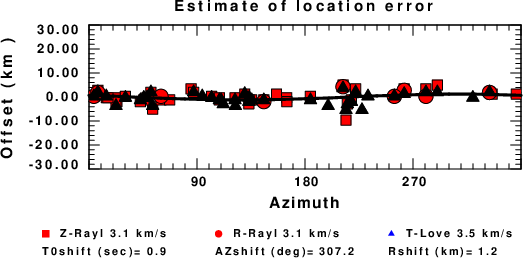

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
Last Changed Thu Apr 25 02:52:53 AM CDT 2024
