Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is us6000f3nc and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us6000f3nc/executive.
2021/08/09 19:29:31 39.720 -98.388 5.0 3.5 Kansas
USGS/SLU Moment Tensor Solution
ENS 2021/08/09 19:29:31:0 39.72 -98.39 5.0 3.5 Kansas
Stations used:
C0.LAMA GS.KS28 GS.OK029 GS.OK038 GS.OK051 GS.OK052 N4.K30B
N4.L34B N4.P38B N4.R32B O2.ALVA O2.FREE O2.FW03 O2.FW06
O2.GORE O2.MRSH O2.PERY O2.PW05 O2.PW09 O2.SC19 OK.CROK
TX.DRZT US.CBKS US.KSU1
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.53e+21 dyne-cm
Mw = 3.39
Z = 2 km
Plane Strike Dip Rake
NP1 310 60 -70
NP2 94 36 -121
Principal Axes:
Axis Value Plunge Azimuth
T 1.53e+21 13 26
N 0.00e+00 17 120
P -1.53e+21 68 261
Moment Tensor: (dyne-cm)
Component Value
Mxx 1.18e+21
Mxy 5.35e+20
Mxz 3.83e+20
Myy 6.82e+19
Myz 6.63e+20
Mzz -1.25e+21
##############
################# ##
#################### T #####
##################### ######
-----------#######################
-----------------###################
---------------------#################
------------------------################
--------------------------##############
-----------------------------#############
-------------- --------------###########
#------------- P ---------------##########
##------------ ----------------########-
##-------------------------------######-
####------------------------------###---
#####-----------------------------#---
#######------------------------###--
#########-----------------#######-
##############################
############################
######################
##############
Global CMT Convention Moment Tensor:
R T P
-1.25e+21 3.83e+20 -6.63e+20
3.83e+20 1.18e+21 -5.35e+20
-6.63e+20 -5.35e+20 6.82e+19
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210809192931/index.html
|
STK = 310
DIP = 60
RAKE = -70
MW = 3.39
HS = 2.0
The NDK file is 20210809192931.ndk The waveform inversion is preferred.

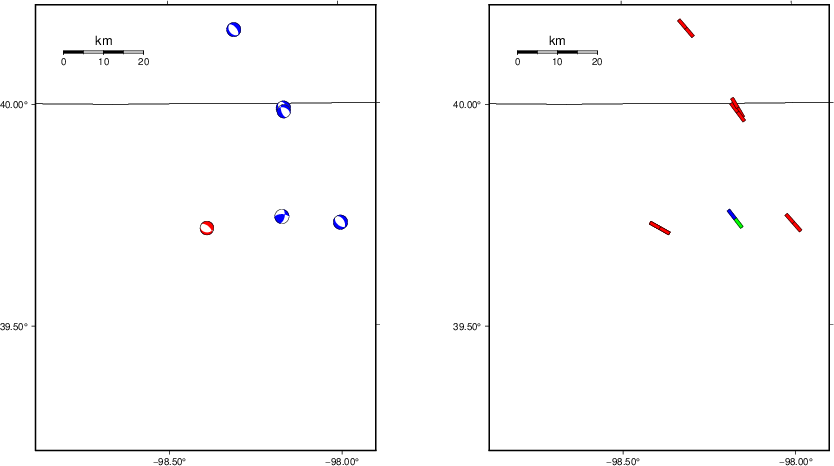

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

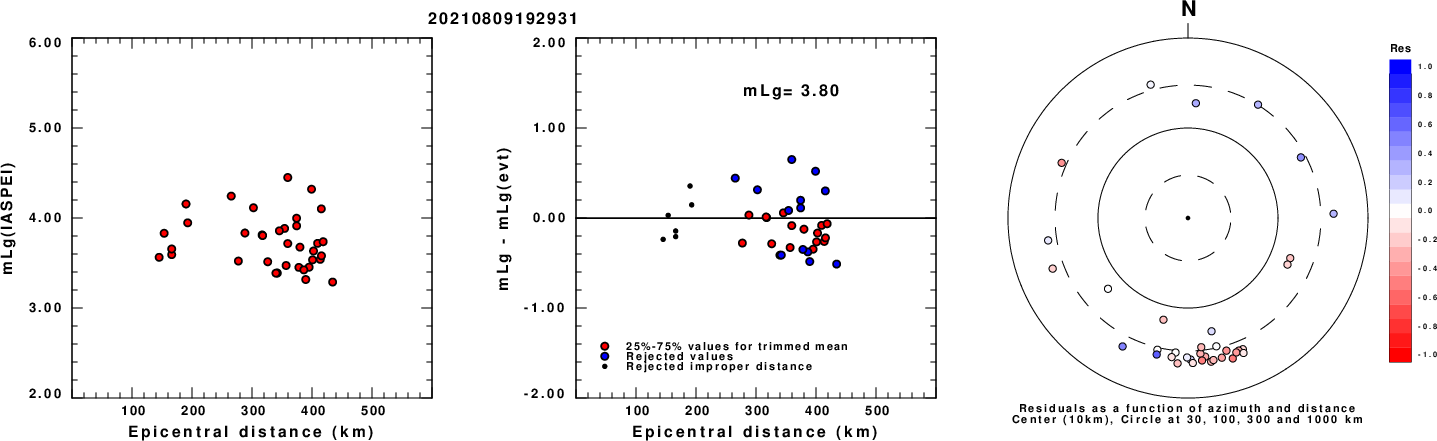

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

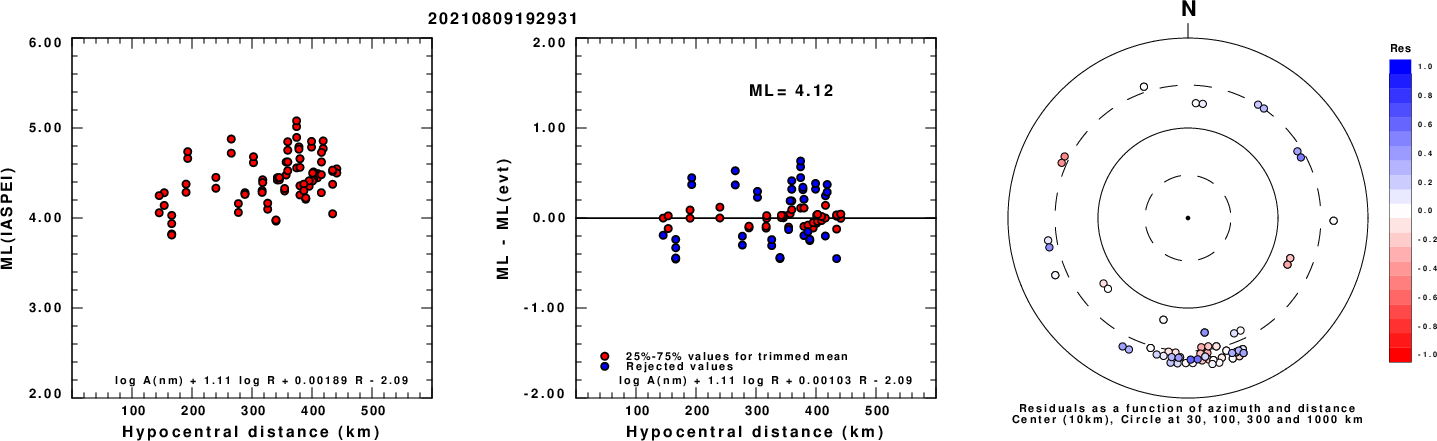

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

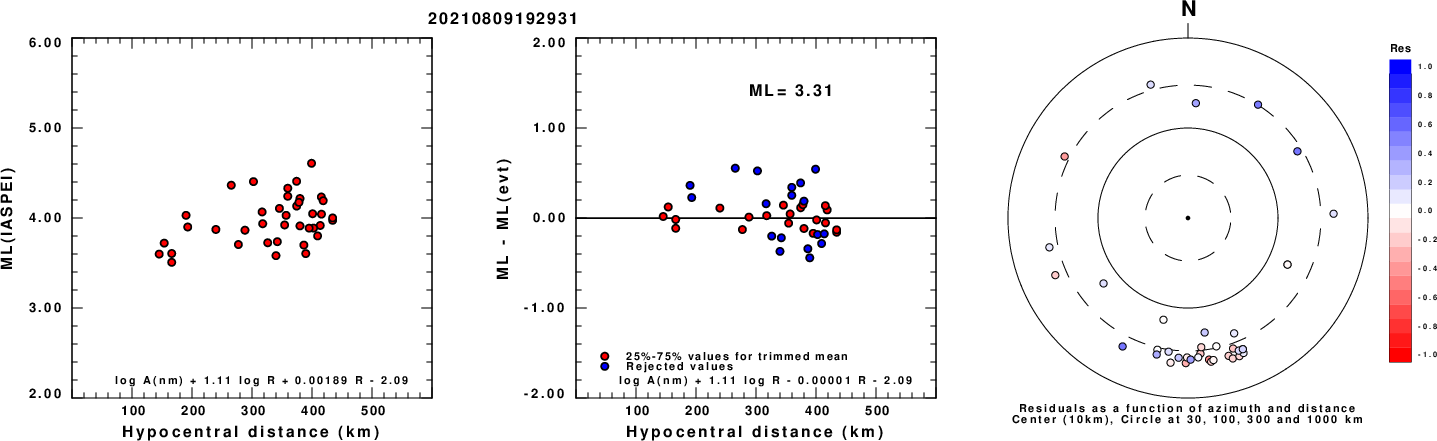

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

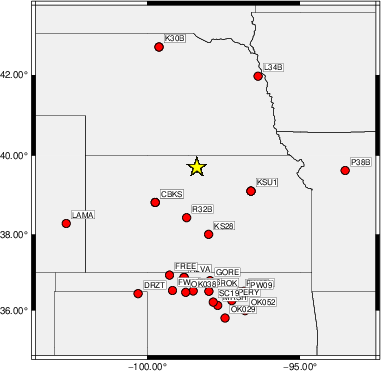

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 310 60 -70 3.28 0.5250
WVFGRD96 2.0 310 60 -70 3.39 0.6093
WVFGRD96 3.0 310 55 -70 3.44 0.5973
WVFGRD96 4.0 320 55 -50 3.42 0.4899
WVFGRD96 5.0 345 70 30 3.37 0.4316
WVFGRD96 6.0 345 65 25 3.39 0.4463
WVFGRD96 7.0 345 65 25 3.40 0.4509
WVFGRD96 8.0 345 65 25 3.41 0.4496
WVFGRD96 9.0 345 65 25 3.42 0.4438
WVFGRD96 10.0 340 70 25 3.44 0.4353
WVFGRD96 11.0 165 65 25 3.46 0.4320
WVFGRD96 12.0 165 65 25 3.47 0.4244
WVFGRD96 13.0 165 60 25 3.47 0.4149
WVFGRD96 14.0 165 60 25 3.48 0.4046
WVFGRD96 15.0 165 60 25 3.49 0.3925
WVFGRD96 16.0 165 60 25 3.50 0.3788
WVFGRD96 17.0 295 35 85 3.46 0.3691
WVFGRD96 18.0 120 55 95 3.47 0.3683
WVFGRD96 19.0 120 55 95 3.48 0.3656
The best solution is
WVFGRD96 2.0 310 60 -70 3.39 0.6093
The mechanism corresponding to the best fit is
|
|
|

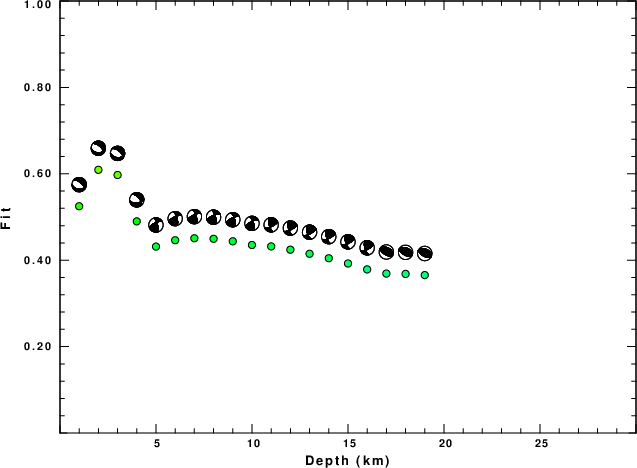

The best fit as a function of depth is given in the following figure:
|
|
|

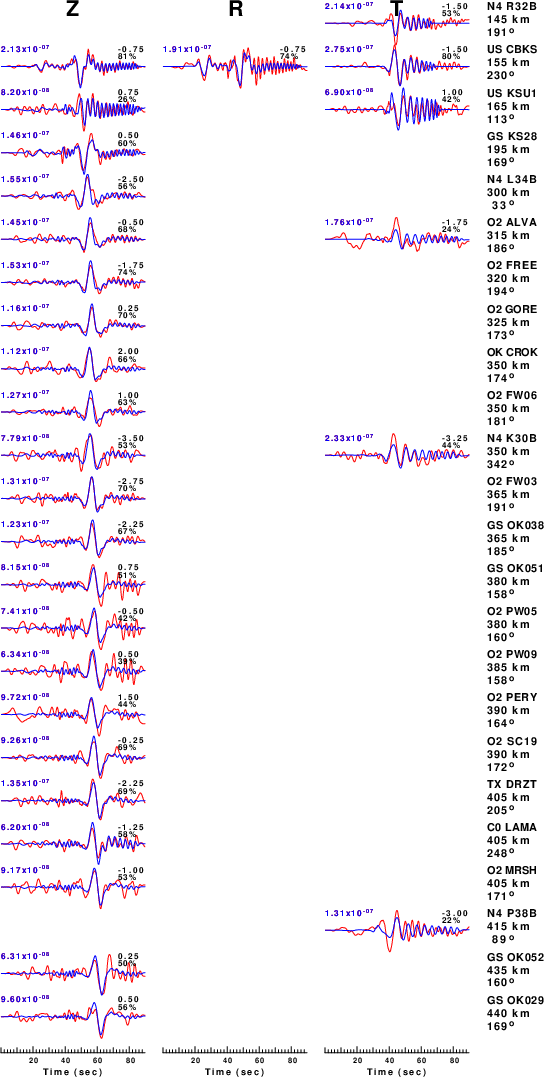

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

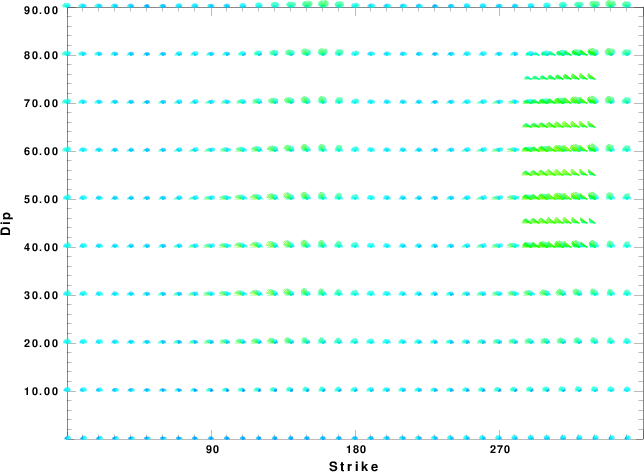

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

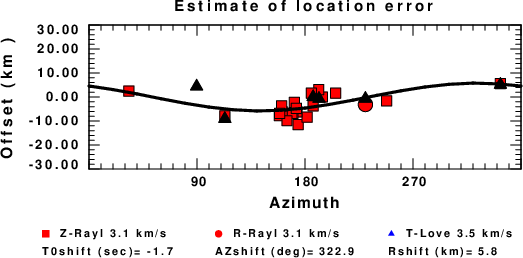

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The GSKAN.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
