The ANSS event ID is ak0219sja0eh and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0219sja0eh/executive.

2021/08/01 16:47:28 61.606 -146.136 25.8 3.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2021/08/01 16:47:28:0  61.61 -146.14  25.8 3.5 Alaska

 Stations used:
   AK.BMR AK.DHY AK.DIV AK.EYAK AK.FID AK.GLB AK.GLI AK.HIN
   AK.KLU AK.MCAR AK.RC01 AK.SCM AK.VRDI AT.PMR

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 2.75e+21 dyne-cm
  Mw = 3.56
  Z  = 42 km
  Plane   Strike  Dip  Rake
   NP1      225    85   -55
   NP2      322    35   -171
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.75e+21     31     287
    N   0.00e+00     35      41
    P  -2.75e+21     40     167

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.38e+21
       Mxy    -1.96e+20
       Mxz     1.67e+21
       Myy     1.77e+21
       Myz    -1.47e+21
       Mzz    -3.92e+20




                     --------------
                 ----------------------
              ###############-------------
             ####################---------#
           ########################----######
          ####################################
         ##########################----########
        #####   #################-------########
        ##### T ###############----------#######
       ######   #############-------------#######
       ####################----------------######
       ##################------------------######
       ################--------------------######
        ##############----------------------####
        ############------------------------####
         #########--------------------------###
          #######------------   -----------###
           ####-------------- P -----------##
             #---------------   ----------#
              ---------------------------#
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.92e+20   1.67e+21   1.47e+21
  1.67e+21  -1.38e+21   1.96e+20
  1.47e+21   1.96e+20   1.77e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210801164728/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 225
      DIP = 85
     RAKE = -55
       MW = 3.56
       HS = 42.0

The NDK file is 20210801164728.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

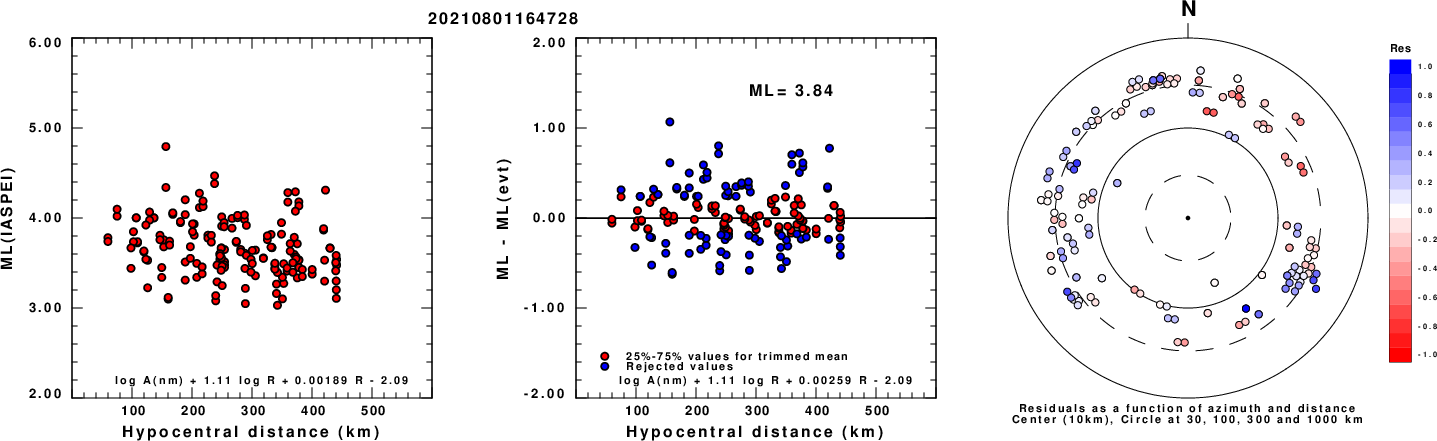

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

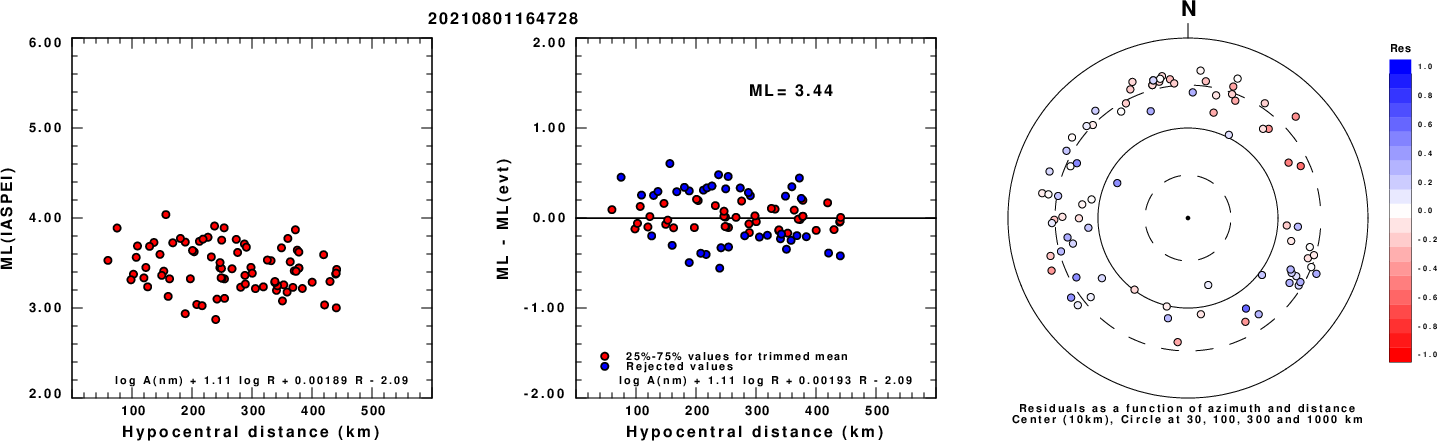

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

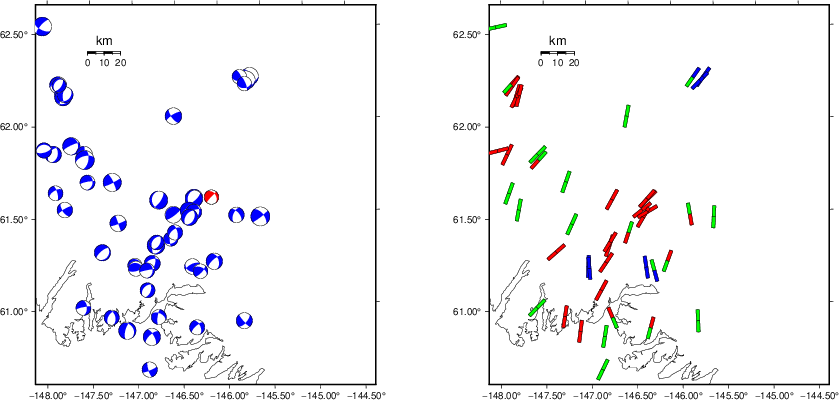

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

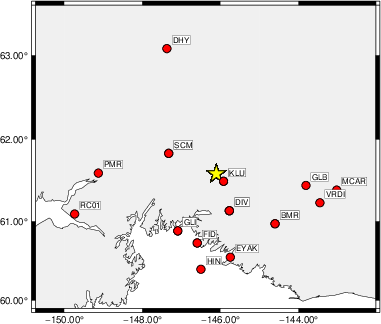

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    55    40   -90   2.77 0.2363
WVFGRD96    2.0    55    40   -90   2.92 0.3259
WVFGRD96    3.0    50    35   -95   2.99 0.3286
WVFGRD96    4.0   310    40   -25   2.97 0.3552
WVFGRD96    5.0   315    40   -15   2.99 0.3831
WVFGRD96    6.0   320    40     0   3.01 0.4074
WVFGRD96    7.0   320    45     0   3.02 0.4231
WVFGRD96    8.0   325    40    10   3.09 0.4326
WVFGRD96    9.0   325    40    15   3.10 0.4368
WVFGRD96   10.0   325    45    15   3.11 0.4389
WVFGRD96   11.0   325    45    20   3.13 0.4394
WVFGRD96   12.0   325    45    20   3.14 0.4377
WVFGRD96   13.0   240    70    40   3.15 0.4348
WVFGRD96   14.0   240    65    35   3.17 0.4430
WVFGRD96   15.0   240    65    35   3.18 0.4506
WVFGRD96   16.0   240    65    35   3.19 0.4569
WVFGRD96   17.0   215    60   -40   3.23 0.4642
WVFGRD96   18.0   215    60   -40   3.24 0.4763
WVFGRD96   19.0   215    60   -40   3.26 0.4879
WVFGRD96   20.0   215    60   -40   3.27 0.4980
WVFGRD96   21.0   220    65   -40   3.28 0.5078
WVFGRD96   22.0   220    65   -40   3.29 0.5205
WVFGRD96   23.0   220    65   -40   3.31 0.5316
WVFGRD96   24.0    50    90    40   3.29 0.5409
WVFGRD96   25.0    50    90    40   3.30 0.5598
WVFGRD96   26.0   225    80   -45   3.32 0.5785
WVFGRD96   27.0   225    80   -45   3.34 0.5969
WVFGRD96   28.0   225    80   -45   3.35 0.6135
WVFGRD96   29.0   225    80   -45   3.36 0.6301
WVFGRD96   30.0   225    80   -45   3.37 0.6450
WVFGRD96   31.0   225    80   -45   3.38 0.6592
WVFGRD96   32.0   225    80   -45   3.39 0.6723
WVFGRD96   33.0   225    80   -45   3.40 0.6829
WVFGRD96   34.0   225    80   -45   3.41 0.6906
WVFGRD96   35.0   225    80   -45   3.42 0.6959
WVFGRD96   36.0   225    80   -45   3.43 0.6996
WVFGRD96   37.0   225    80   -45   3.44 0.7026
WVFGRD96   38.0   225    80   -40   3.44 0.7019
WVFGRD96   39.0   225    80   -40   3.45 0.7040
WVFGRD96   40.0   225    85   -55   3.54 0.7058
WVFGRD96   41.0   225    85   -55   3.55 0.7086
WVFGRD96   42.0   225    85   -55   3.56 0.7090
WVFGRD96   43.0   225    85   -50   3.56 0.7087
WVFGRD96   44.0   225    85   -50   3.57 0.7077
WVFGRD96   45.0    50    90    50   3.57 0.7000
WVFGRD96   46.0   225    85   -50   3.58 0.7047
WVFGRD96   47.0   225    85   -50   3.59 0.7028
WVFGRD96   48.0   225    85   -50   3.59 0.7009
WVFGRD96   49.0   225    85   -50   3.60 0.6971
WVFGRD96   50.0   225    85   -50   3.61 0.6948
WVFGRD96   51.0   225    85   -50   3.61 0.6926
WVFGRD96   52.0   225    85   -50   3.62 0.6888
WVFGRD96   53.0   225    85   -50   3.62 0.6862
WVFGRD96   54.0   225    85   -50   3.63 0.6846
WVFGRD96   55.0   225    85   -50   3.63 0.6816
WVFGRD96   56.0   225    90   -50   3.63 0.6781
WVFGRD96   57.0   225    90   -50   3.63 0.6772
WVFGRD96   58.0   225    90   -50   3.64 0.6746
WVFGRD96   59.0   225    90   -50   3.64 0.6730

The best solution is

WVFGRD96   42.0   225    85   -55   3.56 0.7090

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

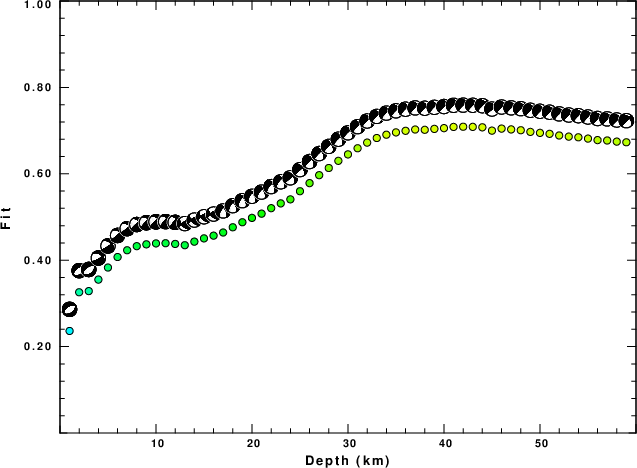

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

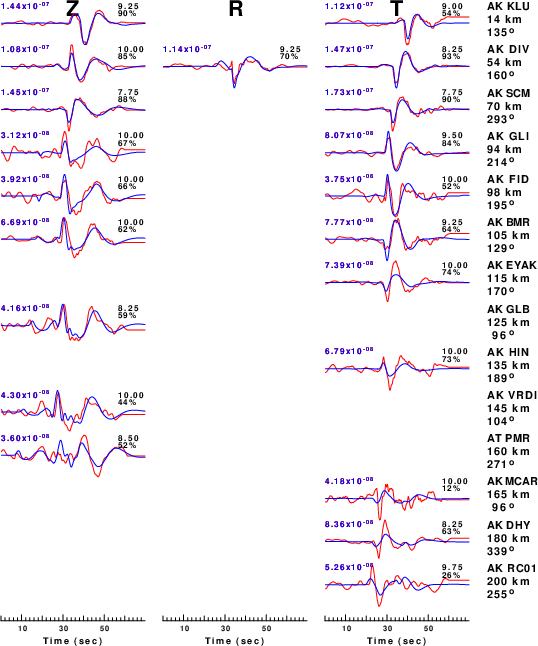

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

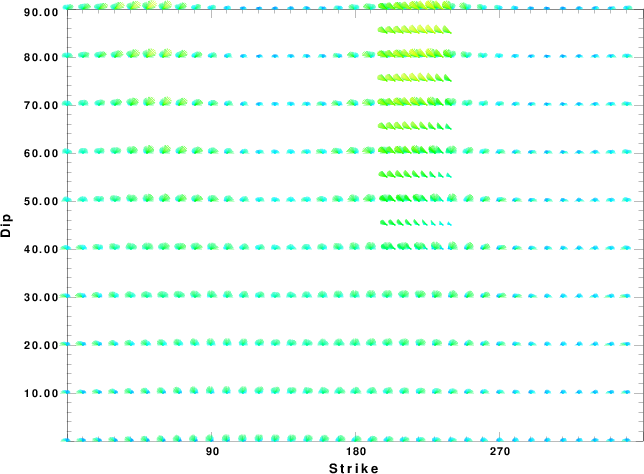

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

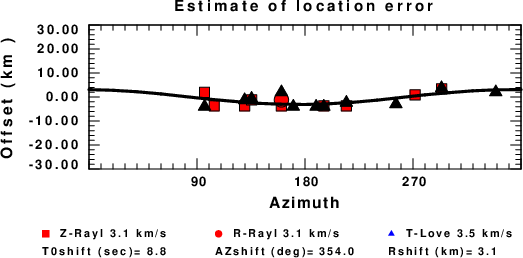

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 12:55:12 AM CDT 2024
