Location

Location ANSS

The ANSS event ID is ak0218n94m2m and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0218n94m2m/executive.

2021/07/07 20:31:25 60.903 -146.339 6.5 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2021/07/07 20:31:25:0  60.90 -146.34   6.5 3.7 Alaska

 Stations used:
   AK.BMR AK.BRLK AK.CNP AK.DHY AK.DIV AK.EYAK AK.GHO AK.GLB
   AK.GLI AK.HIN AK.K24K AK.KLU AK.KNK AK.M26K AK.M27K AK.MCAR
   AK.MCK AK.PPLA AK.PWL AK.RAG AK.RC01 AK.RND AK.SAW AK.SCM
   AK.VRDI AT.PMR AV.STLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 5.50e+21 dyne-cm
  Mw = 3.76
  Z  = 27 km
  Plane   Strike  Dip  Rake
   NP1      230    70   -40
   NP2      336    53   -155
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.50e+21     11     287
    N   0.00e+00     46      28
    P  -5.50e+21     42     187

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.56e+21
       Mxy    -1.80e+21
       Mxz     3.00e+21
       Myy     4.83e+21
       Myz    -6.36e+20
       Mzz    -2.27e+21




                     --------------
                 #######---------------
              #############---------------
             ################--------------
           ####################-------#######
          #######################-############
         ######################---#############
           #################-------#############
         T ###############----------############
       #   ############--------------############
       ##############-----------------###########
       #############------------------###########
       ###########---------------------##########
        #########----------------------#########
        #######------------------------#########
         #####-------------------------########
          ###------------   -----------#######
           #------------- P -----------######
             ------------   -----------####
              ------------------------####
                 --------------------##
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.27e+21   3.00e+21   6.36e+20
  3.00e+21  -2.56e+21   1.80e+21
  6.36e+20   1.80e+21   4.83e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210707203125/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 230
      DIP = 70
     RAKE = -40
       MW = 3.76
       HS = 27.0

The NDK file is 20210707203125.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

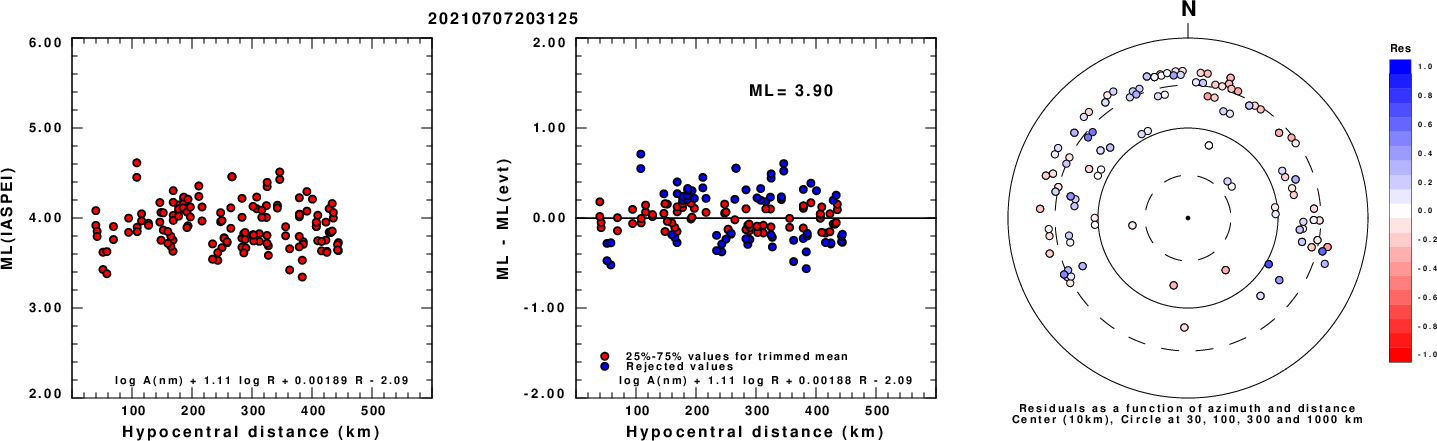

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

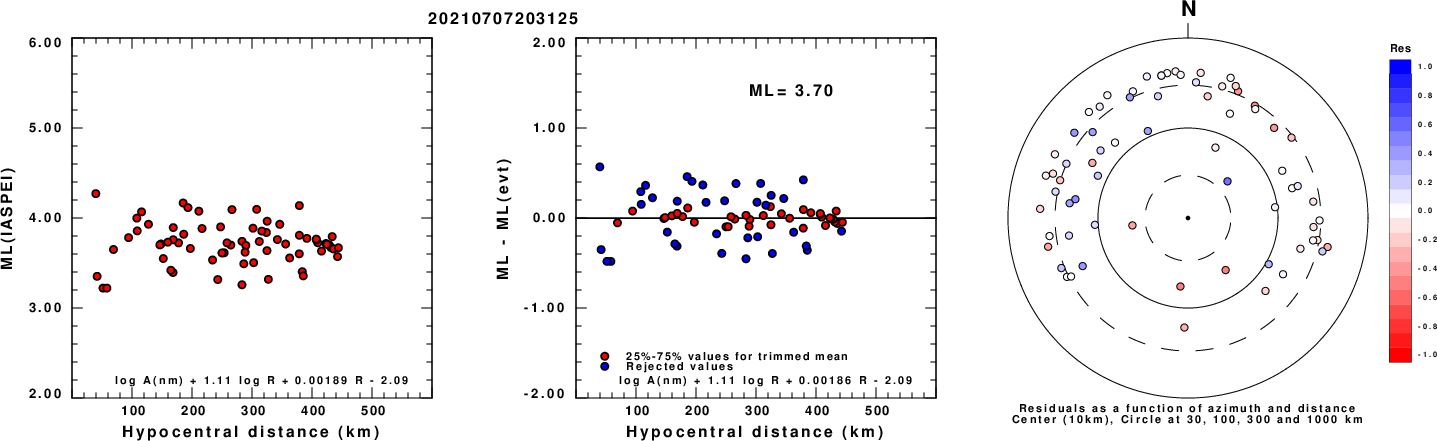

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

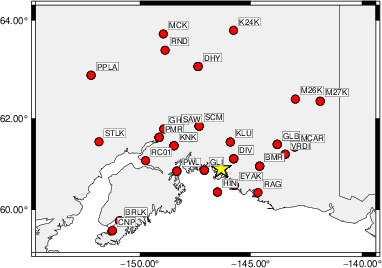

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   195    45    90   3.25 0.2689
WVFGRD96    2.0   195    45    90   3.37 0.3532
WVFGRD96    3.0    10    45    80   3.43 0.3381
WVFGRD96    4.0   235    70   -25   3.38 0.3342
WVFGRD96    5.0   235    70   -30   3.41 0.3529
WVFGRD96    6.0   240    65    35   3.45 0.3735
WVFGRD96    7.0   240    65    30   3.47 0.4007
WVFGRD96    8.0   245    60    40   3.54 0.4228
WVFGRD96    9.0    65    75    40   3.54 0.4439
WVFGRD96   10.0    70    70    45   3.56 0.4678
WVFGRD96   11.0   240    90   -40   3.57 0.4890
WVFGRD96   12.0   235    80   -40   3.59 0.5155
WVFGRD96   13.0   235    80   -40   3.60 0.5431
WVFGRD96   14.0   235    75   -40   3.62 0.5712
WVFGRD96   15.0   235    75   -40   3.63 0.5966
WVFGRD96   16.0   230    70   -45   3.64 0.6198
WVFGRD96   17.0   230    70   -40   3.66 0.6404
WVFGRD96   18.0   230    70   -40   3.67 0.6585
WVFGRD96   19.0   230    70   -40   3.68 0.6739
WVFGRD96   20.0   230    70   -40   3.69 0.6871
WVFGRD96   21.0   230    70   -40   3.71 0.6974
WVFGRD96   22.0   230    70   -40   3.72 0.7064
WVFGRD96   23.0   230    70   -40   3.73 0.7138
WVFGRD96   24.0   230    70   -40   3.73 0.7197
WVFGRD96   25.0   230    70   -40   3.74 0.7232
WVFGRD96   26.0   230    70   -40   3.75 0.7259
WVFGRD96   27.0   230    70   -40   3.76 0.7261
WVFGRD96   28.0   230    70   -40   3.77 0.7254
WVFGRD96   29.0   230    65   -40   3.77 0.7225
WVFGRD96   30.0   230    65   -40   3.78 0.7189
WVFGRD96   31.0   230    65   -40   3.79 0.7127
WVFGRD96   32.0   230    65   -40   3.79 0.7056
WVFGRD96   33.0   230    65   -40   3.80 0.6954
WVFGRD96   34.0   230    65   -40   3.80 0.6840
WVFGRD96   35.0   230    70   -40   3.81 0.6723
WVFGRD96   36.0   235    70   -35   3.82 0.6607
WVFGRD96   37.0   230    70   -35   3.83 0.6499
WVFGRD96   38.0   230    70   -35   3.84 0.6397
WVFGRD96   39.0   230    70   -35   3.85 0.6314
WVFGRD96   40.0   230    70   -45   3.92 0.6131
WVFGRD96   41.0   230    70   -45   3.93 0.6112
WVFGRD96   42.0   230    70   -45   3.93 0.6066
WVFGRD96   43.0   230    70   -45   3.94 0.6006
WVFGRD96   44.0   230    70   -40   3.95 0.5933
WVFGRD96   45.0   230    70   -40   3.95 0.5861
WVFGRD96   46.0   230    70   -40   3.96 0.5777
WVFGRD96   47.0   230    70   -40   3.96 0.5695
WVFGRD96   48.0   235    70   -35   3.96 0.5619
WVFGRD96   49.0   235    70   -35   3.97 0.5552

The best solution is

WVFGRD96   27.0   230    70   -40   3.76 0.7261

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

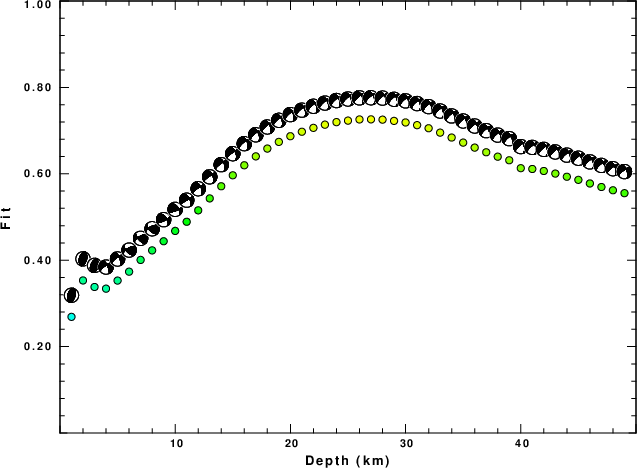

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

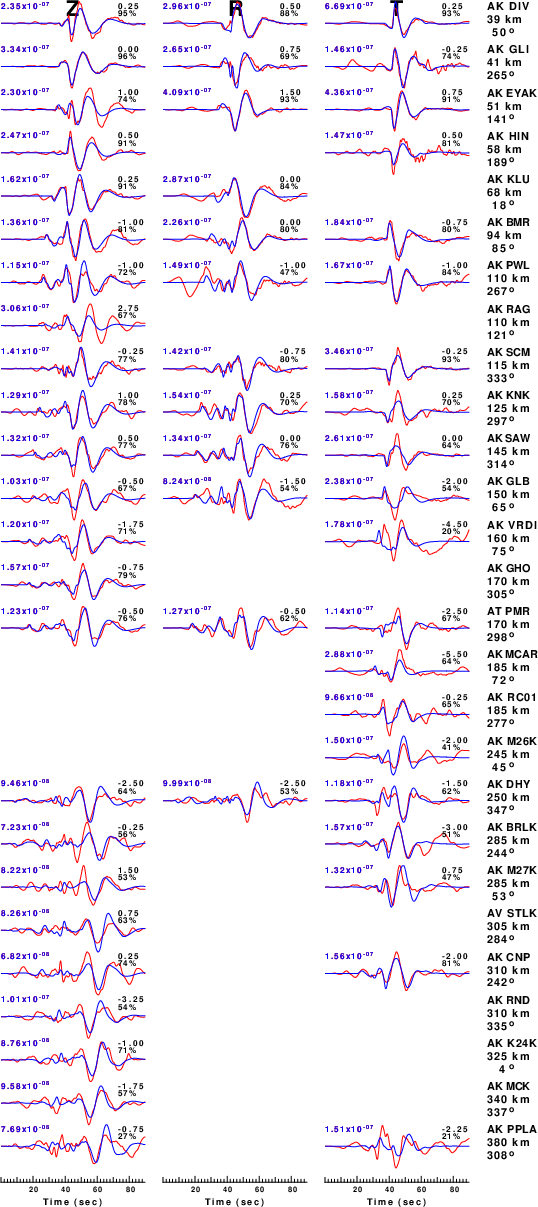

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

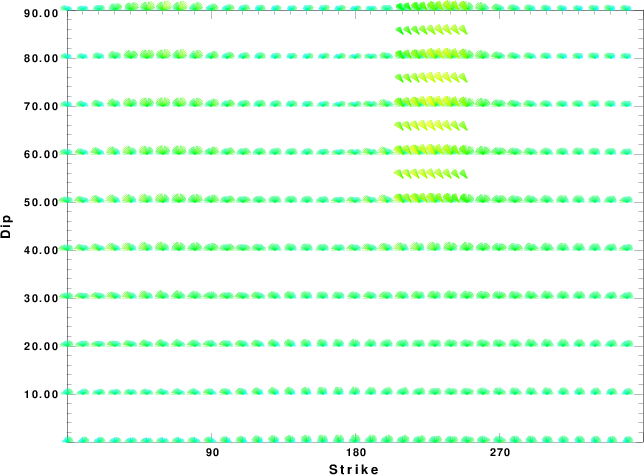

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

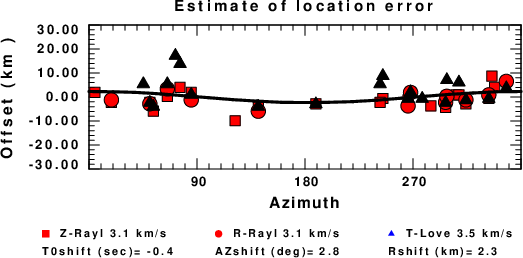

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
