Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is tx2021milw and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2021milw/executive.

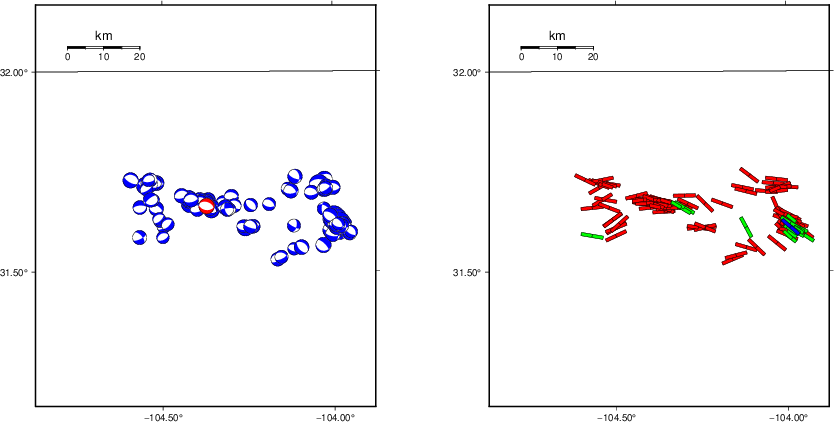

2021/06/25 09:30:15 31.664 -104.371 6.1 4.4 Texas
USGS/SLU Moment Tensor Solution
ENS 2021/06/25 09:30:15:0 31.66 -104.37 6.1 4.4 Texas
Stations used:
EP.KIDD GM.NMP02 GM.NMP25 GM.NMP41 GM.NMP44 IM.TX31 IU.ANMO
N4.MSTX SC.121A SC.Y22A TX.ALPN TX.APMT TX.DKNS TX.MB01
TX.MB04 TX.MB05 TX.MB06 TX.MB09 TX.ODSA TX.PB01 TX.PB05
TX.PB07 TX.PB11 TX.PB17 TX.PB28 TX.PECS TX.POST TX.SAND
TX.SGCY TX.SN07 TX.SN08 TX.VHRN US.MNTX
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.04e+21 dyne-cm
Mw = 3.87
Z = 7 km
Plane Strike Dip Rake
NP1 96 46 -100
NP2 290 45 -80
Principal Axes:
Axis Value Plunge Azimuth
T 8.04e+21 0 193
N 0.00e+00 7 103
P -8.04e+21 83 286
Moment Tensor: (dyne-cm)
Component Value
Mxx 7.62e+21
Mxy 1.79e+21
Mxz -3.37e+20
Myy 2.91e+20
Myz 9.27e+20
Mzz -7.91e+21
##############
######################
############################
##############################
########-------###################
###--------------------#############
#---------------------------##########
-------------------------------#########
---------------------------------#######
----------------- ----------------######
#---------------- P ------------------####
##--------------- -------------------###
###------------------------------------##-
####------------------------------------
######-------------------------------##-
#########------------------------#####
#############--------------#########
##################################
##############################
############################
##### ##############
# T ##########
Global CMT Convention Moment Tensor:
R T P
-7.91e+21 -3.37e+20 -9.27e+20
-3.37e+20 7.62e+21 -1.79e+21
-9.27e+20 -1.79e+21 2.91e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210625093015/index.html
|
STK = 290
DIP = 45
RAKE = -80
MW = 3.87
HS = 7.0
The NDK file is 20210625093015.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

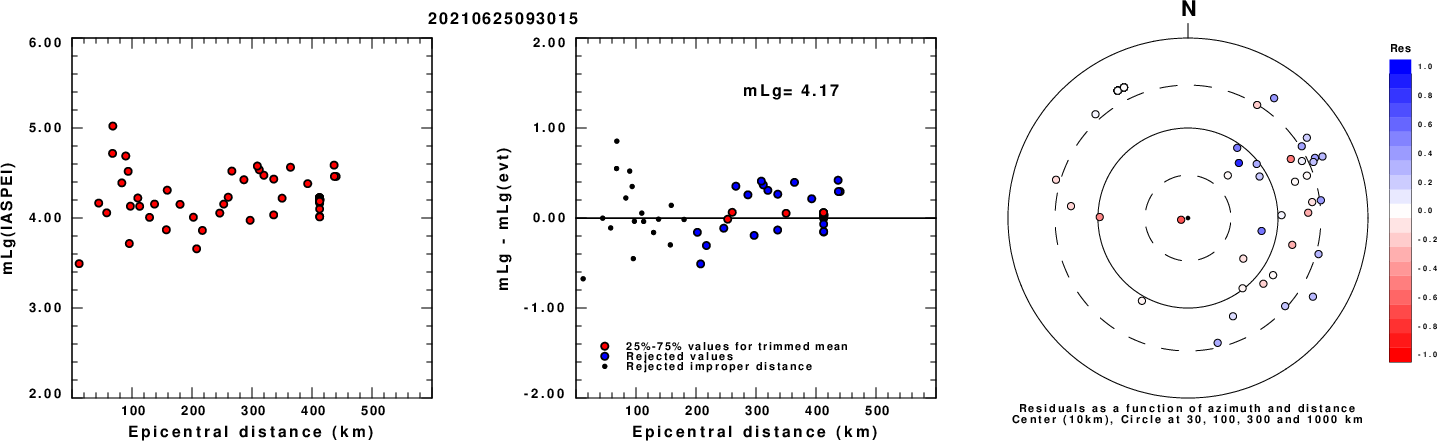

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

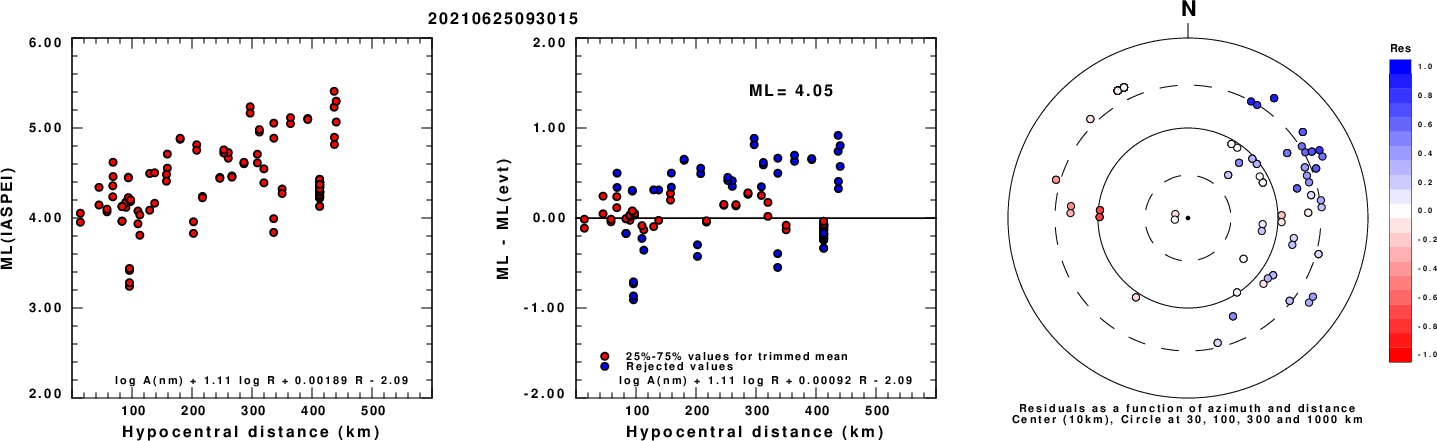

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

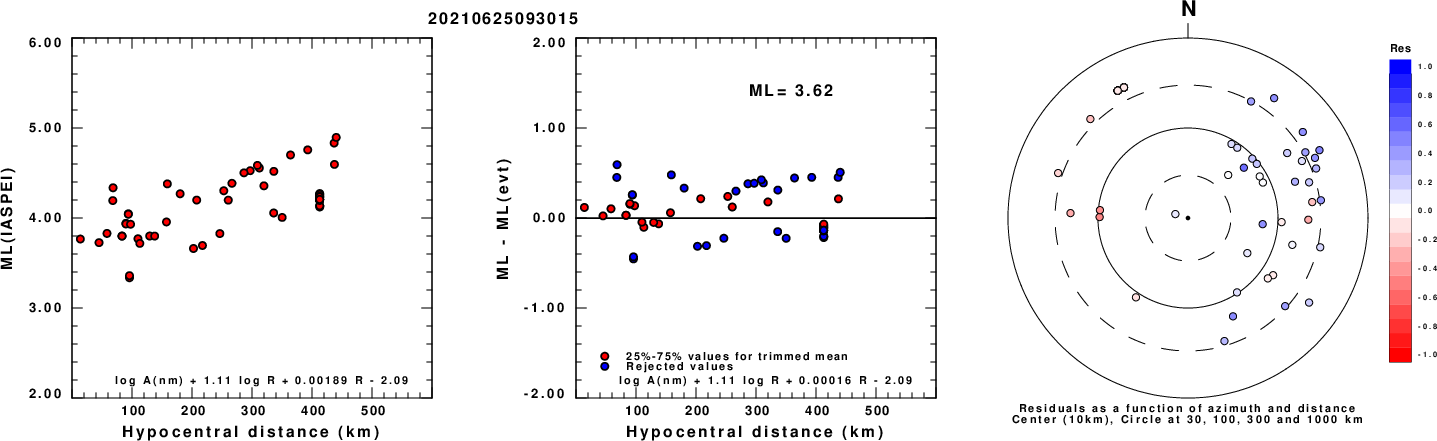

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

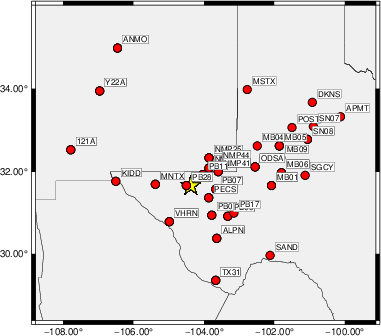

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 250 70 10 3.44 0.2414
WVFGRD96 2.0 255 35 35 3.67 0.2859
WVFGRD96 3.0 255 20 45 3.78 0.4184
WVFGRD96 4.0 265 25 65 3.80 0.4951
WVFGRD96 5.0 275 30 80 3.82 0.5282
WVFGRD96 6.0 285 50 -85 3.85 0.5701
WVFGRD96 7.0 290 45 -80 3.87 0.5828
WVFGRD96 8.0 290 45 -80 3.94 0.5812
WVFGRD96 9.0 290 45 -80 3.94 0.5694
WVFGRD96 10.0 290 45 -80 3.94 0.5423
WVFGRD96 11.0 290 40 -80 3.94 0.5081
WVFGRD96 12.0 290 40 -80 3.94 0.4718
WVFGRD96 13.0 290 40 -80 3.94 0.4352
WVFGRD96 14.0 335 75 30 3.92 0.4152
WVFGRD96 15.0 335 75 30 3.93 0.3994
WVFGRD96 16.0 335 75 30 3.94 0.3826
WVFGRD96 17.0 335 75 30 3.94 0.3658
WVFGRD96 18.0 330 80 35 3.94 0.3512
WVFGRD96 19.0 330 80 35 3.95 0.3382
WVFGRD96 20.0 330 80 40 3.95 0.3264
WVFGRD96 21.0 330 80 40 3.96 0.3152
WVFGRD96 22.0 330 80 40 3.97 0.3049
WVFGRD96 23.0 330 80 40 3.98 0.2952
WVFGRD96 24.0 330 85 40 3.98 0.2871
WVFGRD96 25.0 330 85 40 3.99 0.2795
WVFGRD96 26.0 330 85 40 3.99 0.2719
WVFGRD96 27.0 330 85 40 4.00 0.2650
WVFGRD96 28.0 330 85 40 4.00 0.2579
WVFGRD96 29.0 330 85 35 4.00 0.2527
The best solution is
WVFGRD96 7.0 290 45 -80 3.87 0.5828
The mechanism corresponding to the best fit is
|
|
|

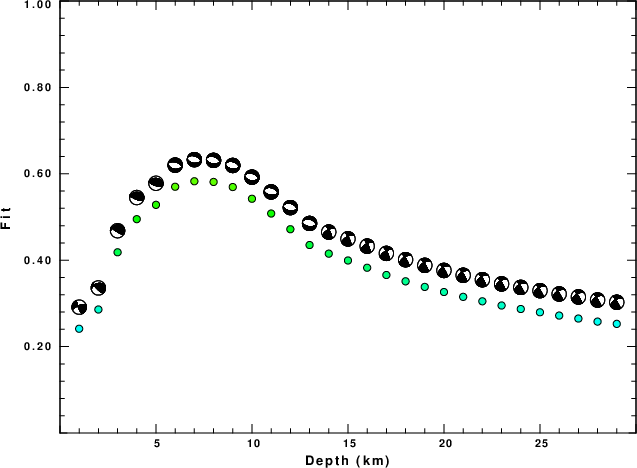

The best fit as a function of depth is given in the following figure:
|
|
|

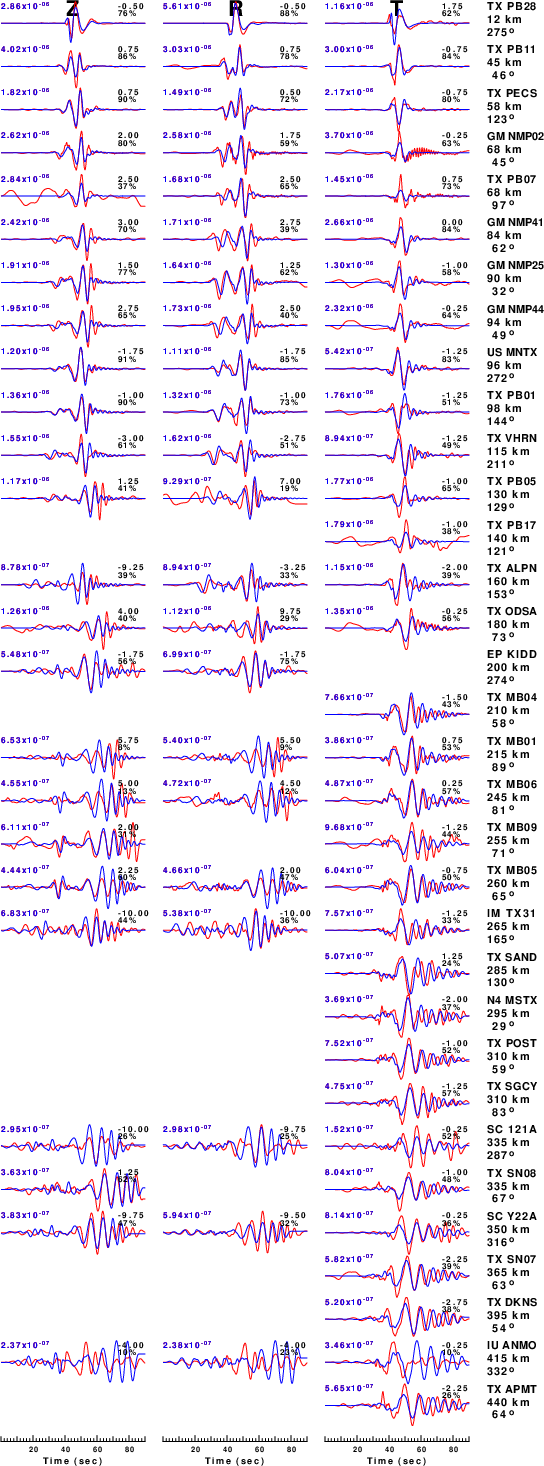

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

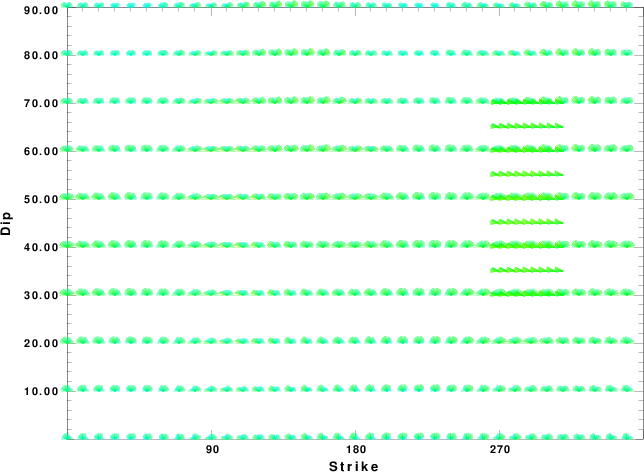

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

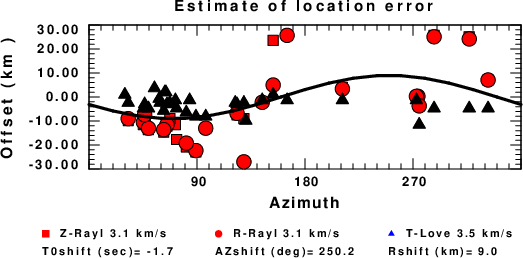

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
