Location

Location ANSS

The ANSS event ID is ak02177xtoen and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak02177xtoen/executive.

2021/06/06 17:55:16 62.467 -148.243 42.0 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2021/06/06 17:55:16:0  62.47 -148.24  42.0 4.0 Alaska

 Stations used:
   AK.CAST AK.CCB AK.CUT AK.DHY AK.DIV AK.GHO AK.GLB AK.GLI
   AK.HDA AK.J25K AK.K24K AK.KLU AK.KNK AK.L20K AK.MCK AK.PAX
   AK.POKR AK.PPLA AK.PWL AK.RC01 AK.RND AK.SAW AK.SCM AK.SKN
   AK.SLK AK.TRF AT.PMR AV.SPCP IM.IL31

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.66e+22 dyne-cm
  Mw = 4.08
  Z  = 54 km
  Plane   Strike  Dip  Rake
   NP1       44    47   -105
   NP2      245    45   -75
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.66e+22      1     144
    N   0.00e+00     11      54
    P  -1.66e+22     79     240

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.08e+22
       Mxy    -8.09e+21
       Mxz     1.28e+21
       Myy     5.19e+21
       Myz     2.75e+21
       Mzz    -1.60e+22




                     ##############
                 ######################
              ############################
             ##############################
           #################------------###--
          #############--------------------##-
         ###########-----------------------####
        #########--------------------------#####
        #######----------------------------#####
       #######----------------------------#######
       #####-------------   -------------########
       ####-------------- P -------------########
       ###---------------   -----------##########
        ##----------------------------##########
        #----------------------------###########
         --------------------------############
          -----------------------#############
           -------------------###############
             -------------#################
              #######################   ##
                 #################### T
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.60e+22   1.28e+21  -2.75e+21
  1.28e+21   1.08e+22   8.09e+21
 -2.75e+21   8.09e+21   5.19e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210606175516/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 245
      DIP = 45
     RAKE = -75
       MW = 4.08
       HS = 54.0

The NDK file is 20210606175516.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

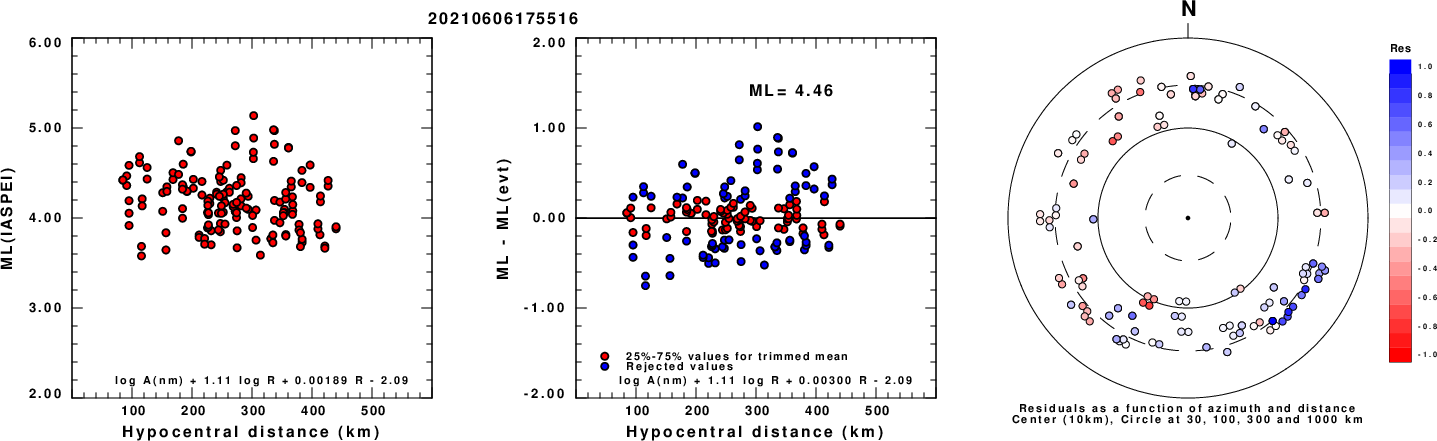

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

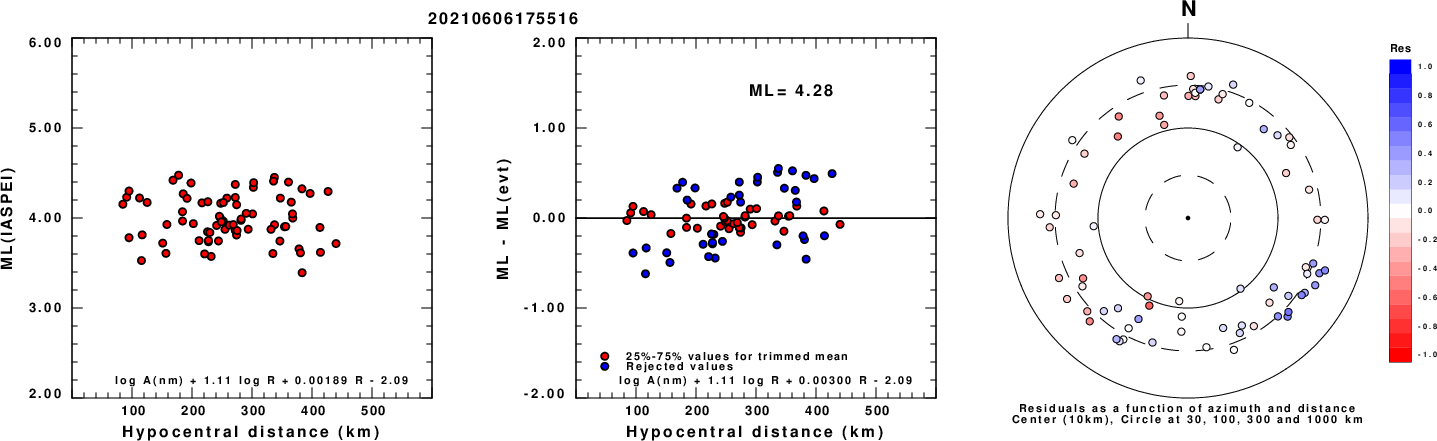

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

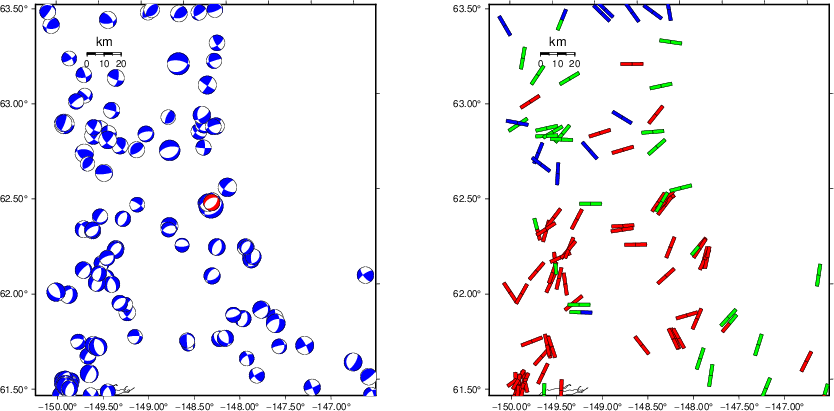

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

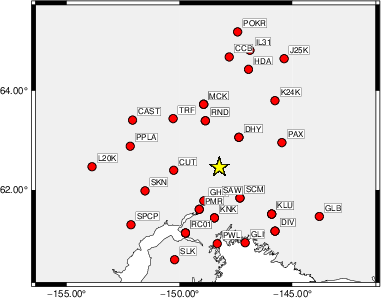

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   235    45    85   3.27 0.2291
WVFGRD96    4.0   185    45   -10   3.28 0.2391
WVFGRD96    6.0    40    65    75   3.38 0.2755
WVFGRD96    8.0    40    65    75   3.47 0.2983
WVFGRD96   10.0    30    70    60   3.49 0.2906
WVFGRD96   12.0   270    45   -40   3.51 0.2912
WVFGRD96   14.0   270    55   -35   3.54 0.2993
WVFGRD96   16.0   270    55   -30   3.57 0.3121
WVFGRD96   18.0   275    60   -25   3.60 0.3225
WVFGRD96   20.0   275    65   -20   3.63 0.3316
WVFGRD96   22.0   275    65   -20   3.65 0.3428
WVFGRD96   24.0   275    70   -20   3.67 0.3552
WVFGRD96   26.0   275    70   -20   3.69 0.3641
WVFGRD96   28.0   275    70   -20   3.71 0.3773
WVFGRD96   30.0   275    75   -25   3.73 0.3985
WVFGRD96   32.0   275    70   -25   3.75 0.4201
WVFGRD96   34.0   275    70   -25   3.77 0.4369
WVFGRD96   36.0   275    60   -20   3.80 0.4567
WVFGRD96   38.0   275    45   -25   3.85 0.4760
WVFGRD96   40.0   265    40   -40   3.95 0.5151
WVFGRD96   42.0   265    40   -40   3.98 0.5258
WVFGRD96   44.0   255    35   -55   4.02 0.5385
WVFGRD96   46.0   255    40   -55   4.03 0.5539
WVFGRD96   48.0   245    40   -70   4.05 0.5654
WVFGRD96   50.0   245    40   -70   4.06 0.5743
WVFGRD96   52.0   245    40   -70   4.07 0.5777
WVFGRD96   54.0   245    45   -75   4.08 0.5797
WVFGRD96   56.0   245    45   -75   4.08 0.5776
WVFGRD96   58.0   250    45   -70   4.08 0.5724
WVFGRD96   60.0   250    45   -70   4.08 0.5684
WVFGRD96   62.0   260    50   -55   4.08 0.5637
WVFGRD96   64.0   255    50   -60   4.09 0.5604
WVFGRD96   66.0   265    55   -50   4.09 0.5576
WVFGRD96   68.0   265    55   -50   4.09 0.5539
WVFGRD96   70.0   270    60   -45   4.09 0.5523
WVFGRD96   72.0   270    60   -45   4.09 0.5511
WVFGRD96   74.0   270    60   -45   4.09 0.5478
WVFGRD96   76.0   265    60   -50   4.10 0.5434
WVFGRD96   78.0   265    60   -50   4.10 0.5407
WVFGRD96   80.0   265    60   -50   4.10 0.5371
WVFGRD96   82.0   265    60   -50   4.10 0.5332
WVFGRD96   84.0   275    70   -35   4.10 0.5315
WVFGRD96   86.0   280    75   -25   4.09 0.5302
WVFGRD96   88.0   280    75   -25   4.09 0.5292
WVFGRD96   90.0   280    75   -25   4.09 0.5282
WVFGRD96   92.0   280    75   -25   4.10 0.5265
WVFGRD96   94.0   280    75   -25   4.10 0.5250
WVFGRD96   96.0   280    80   -25   4.10 0.5240
WVFGRD96   98.0   280    80   -25   4.10 0.5224

The best solution is

WVFGRD96   54.0   245    45   -75   4.08 0.5797

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

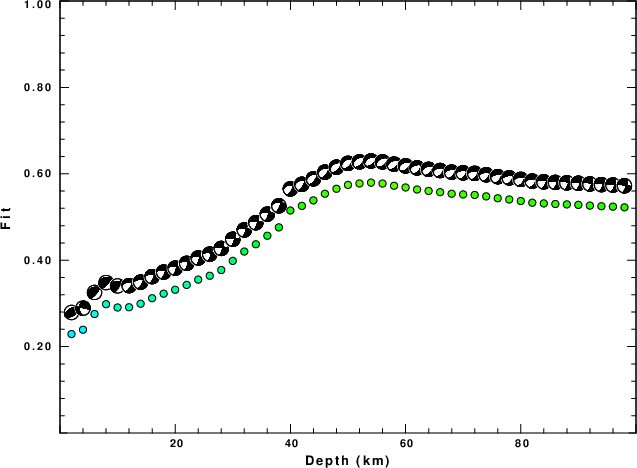

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

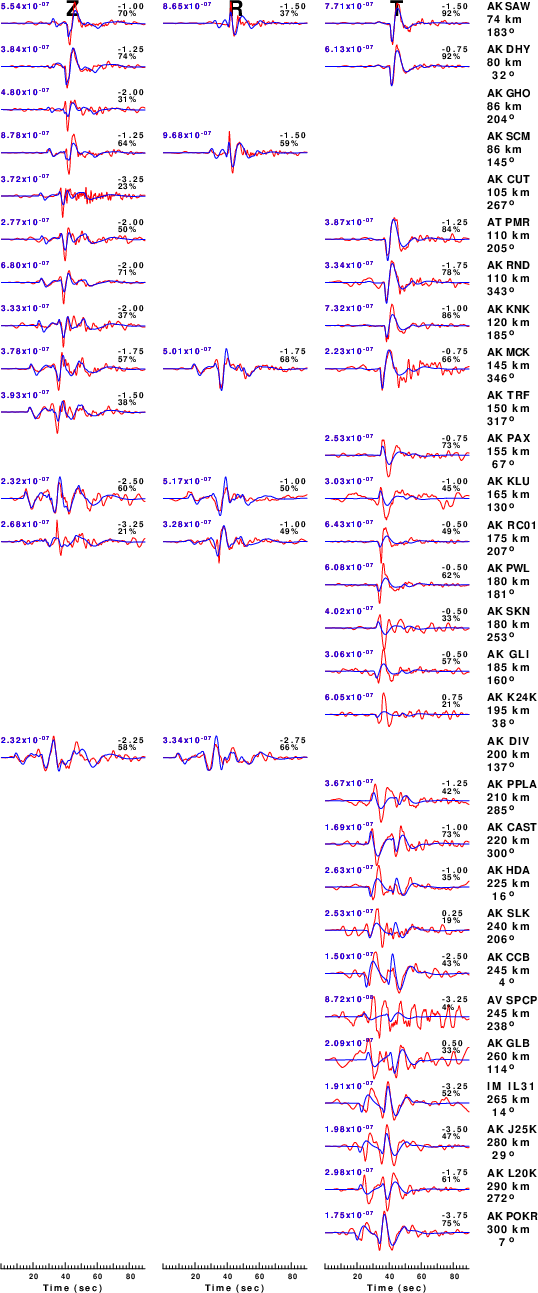

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

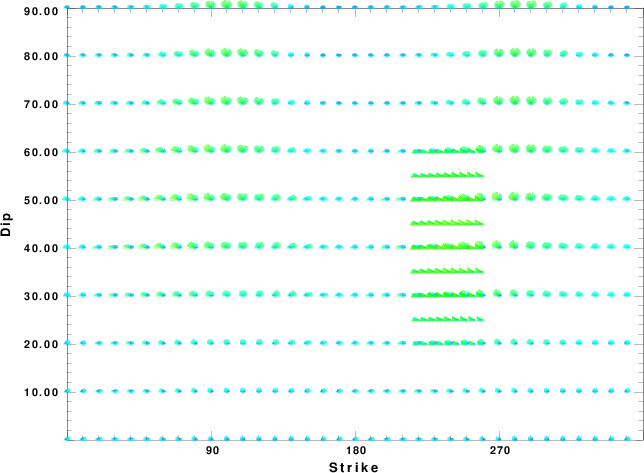

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

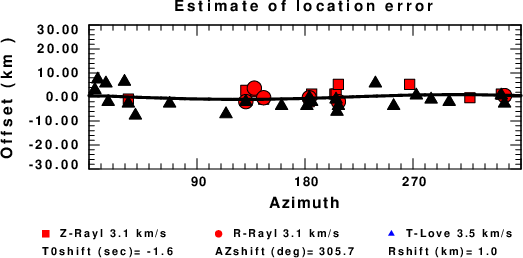

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Wed Apr 24 11:19:48 PM CDT 2024
