Location

Location ANSS

The ANSS event ID is ak0216xxdp9j and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0216xxdp9j/executive.

2021/05/31 12:14:44 62.467 -148.283 44.1 4.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2021/05/31 12:14:44:0  62.47 -148.28  44.1 4.6 Alaska

 Stations used:
   AK.BARN AK.CCB AK.CRQ AK.CUT AK.DHY AK.DIV AK.DOT AK.EYAK
   AK.FID AK.FIRE AK.GLI AK.HDA AK.K24K AK.KLU AK.L19K AK.L20K
   AK.M20K AK.MCK AK.MLY AK.N19K AK.NEA2 AK.P23K AK.PAX
   AK.POKR AK.PPLA AK.PWL AK.RC01 AK.RIDG AK.RND AK.SAW AK.SCM
   AK.SCRK AK.SKN AK.SLK AK.TRF AT.MENT AT.PMR AV.STLK IM.IL31
   IU.COLA

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.56e+22 dyne-cm
  Mw = 4.43
  Z  = 60 km
  Plane   Strike  Dip  Rake
   NP1      250    65   -30
   NP2      354    63   -152
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.56e+22      1     302
    N   0.00e+00     52      34
    P  -5.56e+22     38     211

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -9.24e+21
       Mxy    -4.03e+22
       Mxz     2.37e+22
       Myy     3.05e+22
       Myz     1.30e+22
       Mzz    -2.13e+22




                     ######--------
                 ############----------
              ################------------
             ##################------------
            ####################-------------
          T #####################-------------
            #####################---#######----
        ###################-------##############
        ###############-----------##############
       ############----------------##############
       #########-------------------##############
       #######---------------------##############
       #####-----------------------##############
        ##-------------------------#############
        #--------------------------#############
         -----------   ------------############
          ---------- P ------------###########
           ---------   -----------###########
             ---------------------#########
              -------------------#########
                 ---------------#######
                     ----------####



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.13e+22   2.37e+22  -1.30e+22
  2.37e+22  -9.24e+21   4.03e+22
 -1.30e+22   4.03e+22   3.05e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210531121444/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 250
      DIP = 65
     RAKE = -30
       MW = 4.43
       HS = 60.0

The NDK file is 20210531121444.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

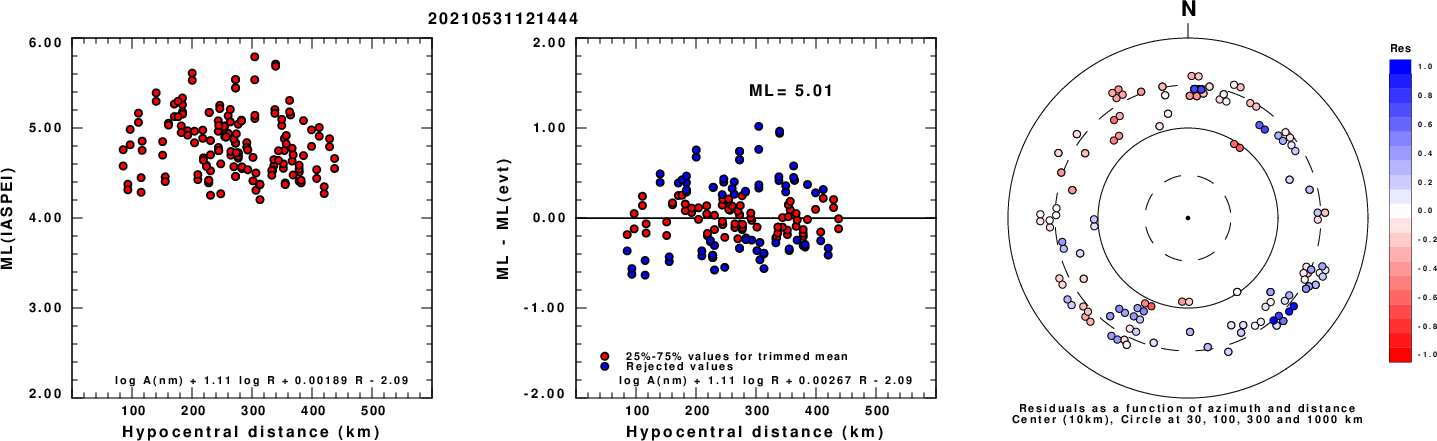

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

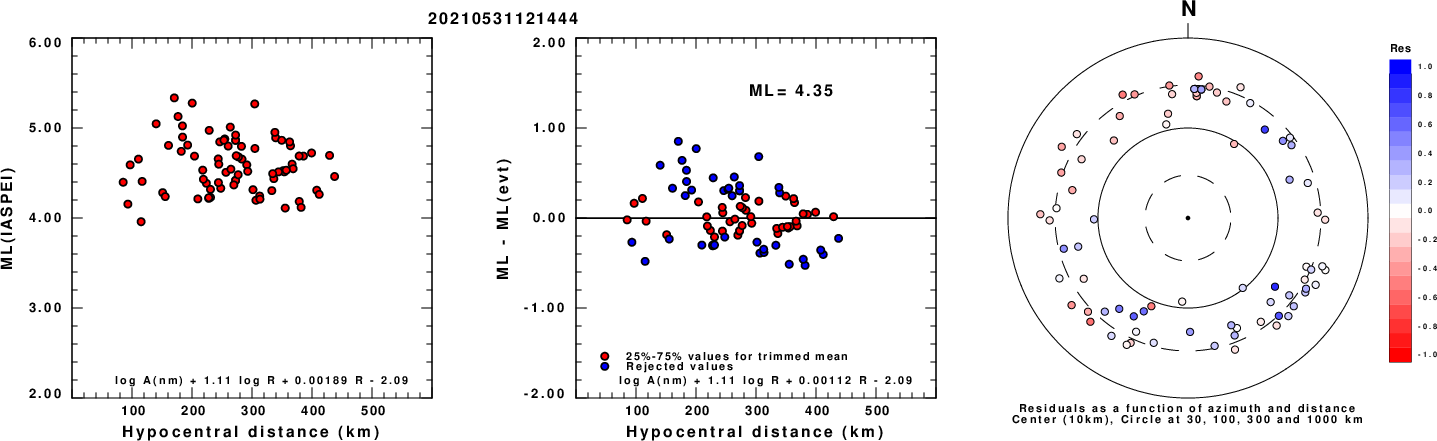

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

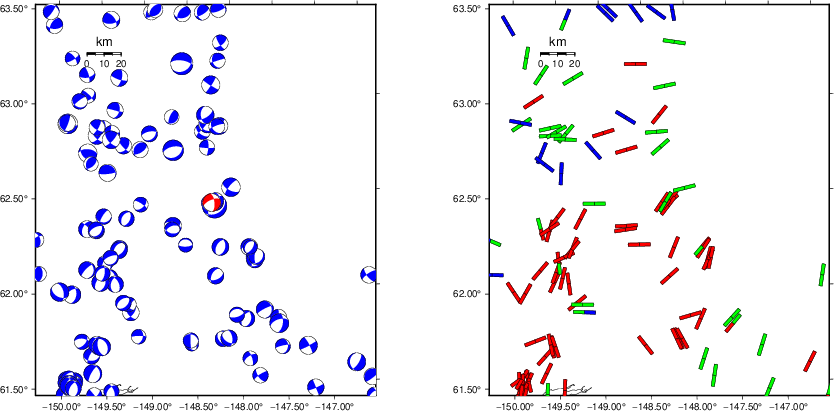

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

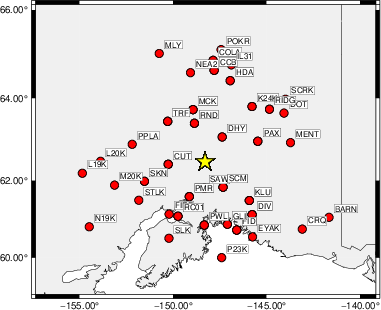

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   180    60    35   3.52 0.1581
WVFGRD96    4.0   165    65   -20   3.58 0.1877
WVFGRD96    6.0   350    65     5   3.64 0.2139
WVFGRD96    8.0   355    65    25   3.74 0.2387
WVFGRD96   10.0   355    70    20   3.79 0.2539
WVFGRD96   12.0   355    70    20   3.83 0.2596
WVFGRD96   14.0   255    80   -20   3.86 0.2709
WVFGRD96   16.0   255    80   -15   3.90 0.2893
WVFGRD96   18.0   255    80   -15   3.94 0.3088
WVFGRD96   20.0   255    80   -15   3.97 0.3298
WVFGRD96   22.0   255    75   -15   4.01 0.3547
WVFGRD96   24.0   255    75   -15   4.04 0.3778
WVFGRD96   26.0   255    75   -15   4.06 0.3974
WVFGRD96   28.0   255    70   -15   4.09 0.4176
WVFGRD96   30.0   255    70   -15   4.11 0.4372
WVFGRD96   32.0   255    70   -15   4.13 0.4536
WVFGRD96   34.0   250    65   -20   4.15 0.4685
WVFGRD96   36.0   250    65   -25   4.17 0.4823
WVFGRD96   38.0   255    65   -20   4.20 0.4913
WVFGRD96   40.0   250    55   -25   4.29 0.5139
WVFGRD96   42.0   250    55   -25   4.31 0.5204
WVFGRD96   44.0   250    60   -30   4.33 0.5301
WVFGRD96   46.0   250    60   -30   4.35 0.5422
WVFGRD96   48.0   250    60   -30   4.37 0.5514
WVFGRD96   50.0   250    60   -30   4.38 0.5603
WVFGRD96   52.0   250    60   -30   4.40 0.5661
WVFGRD96   54.0   250    65   -30   4.40 0.5703
WVFGRD96   56.0   250    65   -30   4.41 0.5749
WVFGRD96   58.0   250    65   -30   4.42 0.5782
WVFGRD96   60.0   250    65   -30   4.43 0.5799
WVFGRD96   62.0   250    65   -30   4.44 0.5791
WVFGRD96   64.0   250    65   -30   4.44 0.5788
WVFGRD96   66.0   250    65   -30   4.45 0.5761
WVFGRD96   68.0   250    65   -30   4.45 0.5752
WVFGRD96   70.0   250    65   -30   4.45 0.5732
WVFGRD96   72.0   250    70   -30   4.45 0.5704
WVFGRD96   74.0   250    70   -30   4.46 0.5679
WVFGRD96   76.0   250    70   -30   4.46 0.5656
WVFGRD96   78.0   250    70   -30   4.46 0.5600
WVFGRD96   80.0   250    70   -30   4.47 0.5561
WVFGRD96   82.0   250    70   -30   4.47 0.5510
WVFGRD96   84.0   250    70   -30   4.47 0.5462
WVFGRD96   86.0   250    70   -30   4.47 0.5407
WVFGRD96   88.0   255    75   -25   4.46 0.5367
WVFGRD96   90.0   255    75   -25   4.46 0.5328
WVFGRD96   92.0   255    80   -25   4.46 0.5295
WVFGRD96   94.0   255    80   -25   4.47 0.5269
WVFGRD96   96.0   255    80   -25   4.47 0.5241
WVFGRD96   98.0   255    80   -20   4.46 0.5210

The best solution is

WVFGRD96   60.0   250    65   -30   4.43 0.5799

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

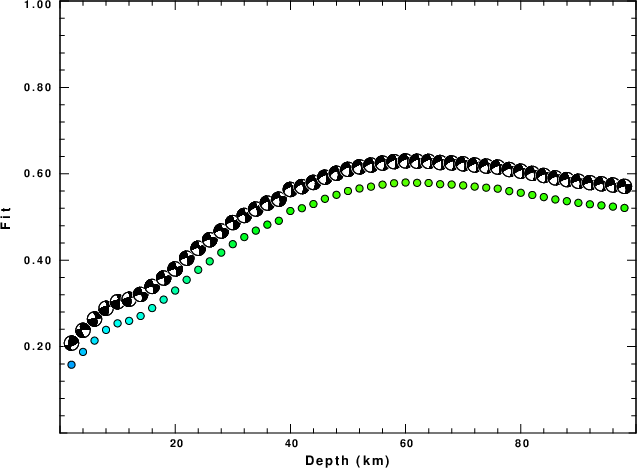

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

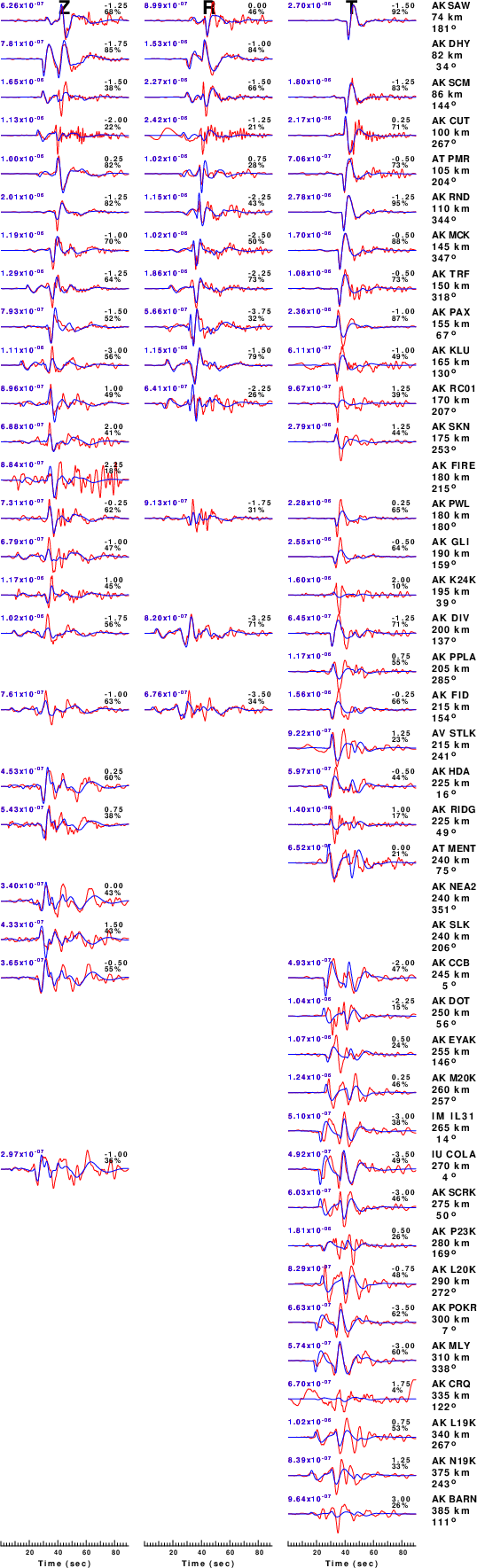

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

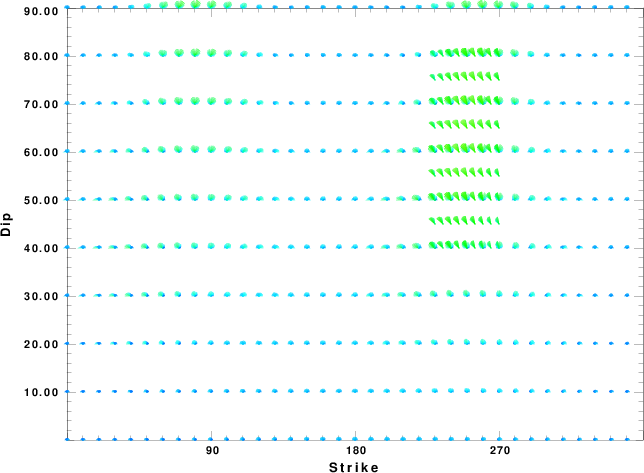

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

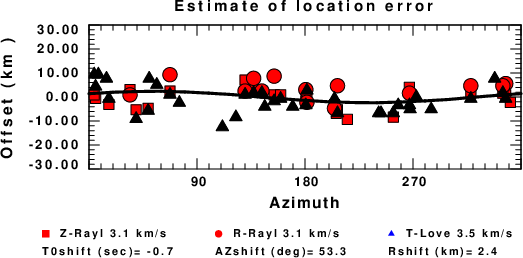

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Wed Apr 24 11:10:09 PM CDT 2024
