The ANSS event ID is ak0216xu2rod and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0216xu2rod/executive.

2021/05/31 06:59:54 62.449 -148.251 44.0 6.1 Idaho

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2021/05/31 06:59:54:0  62.45 -148.25  44.0 6.1 Idaho

 Stations used:
   AK.BARN AK.BMR AK.BPAW AK.CAST AK.CCB AK.DHY AK.DIV AK.DOT
   AK.FID AK.GLB AK.GLI AK.GRNC AK.H23K AK.H24K AK.HDA AK.I21K
   AK.I23K AK.J19K AK.J20K AK.J25K AK.K20K AK.KAI AK.KLU
   AK.L19K AK.L20K AK.LOGN AK.M26K AK.MCK AK.MLY AK.NEA2
   AK.O19K AK.PAX AK.POKR AK.PPD AK.PPLA AK.RIDG AK.RND
   AK.SCRK AK.SLK AK.TGL AK.TRF AK.VRDI AK.WRH AT.PMR AV.STLK
   IU.COLA

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.05 n 3

 Best Fitting Double Couple
  Mo = 1.60e+25 dyne-cm
  Mw = 6.07
  Z  = 58 km
  Plane   Strike  Dip  Rake
   NP1      210    59   -106
   NP2       60    35   -65
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.60e+25     12     312
    N   0.00e+00     14     219
    P  -1.60e+25     71      82

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     6.87e+24
       Mxy    -7.86e+24
       Mxz     1.53e+24
       Myy     6.78e+24
       Myz    -7.29e+24
       Mzz    -1.37e+25




                     ##############
                 ####################--
              ##################----------
                ##############-------------
           ## T ############-----------------
          ###   ##########--------------------
         ###############----------------------#
        ###############-----------------------##
        ##############------------------------##
       #############-----------   ------------###
       #############----------- P -----------####
       ############------------   -----------####
       ###########--------------------------#####
        #########--------------------------#####
        #########------------------------#######
         ########----------------------########
          #######--------------------#########
           -####------------------###########
             ---#-------------#############
              ---#########################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.37e+25   1.53e+24   7.29e+24
  1.53e+24   6.87e+24   7.86e+24
  7.29e+24   7.86e+24   6.78e+24


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210531065954/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 35
     RAKE = -65
       MW = 6.07
       HS = 58.0

The NDK file is 20210531065954.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

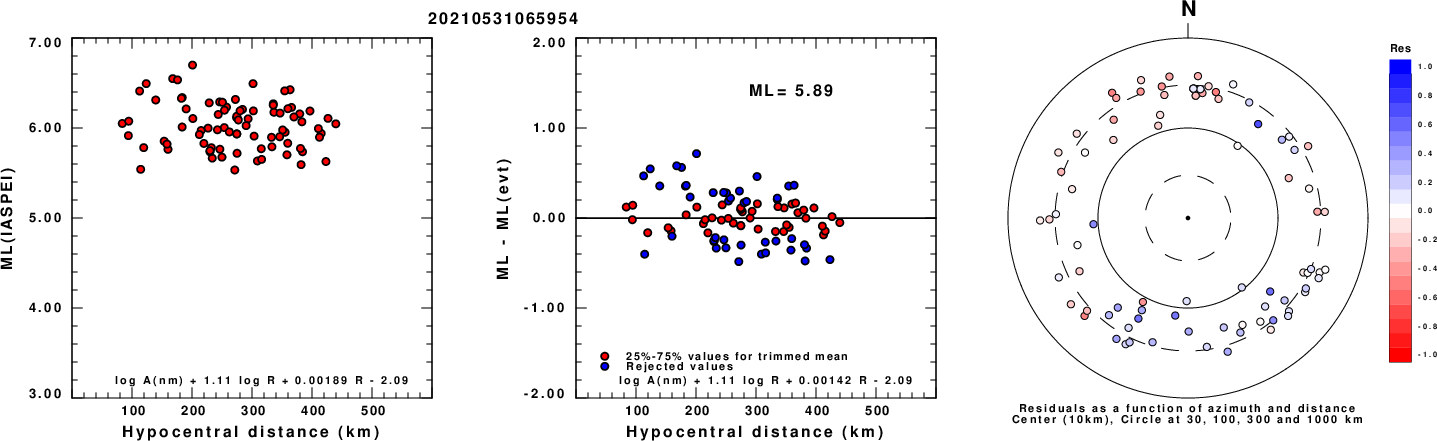

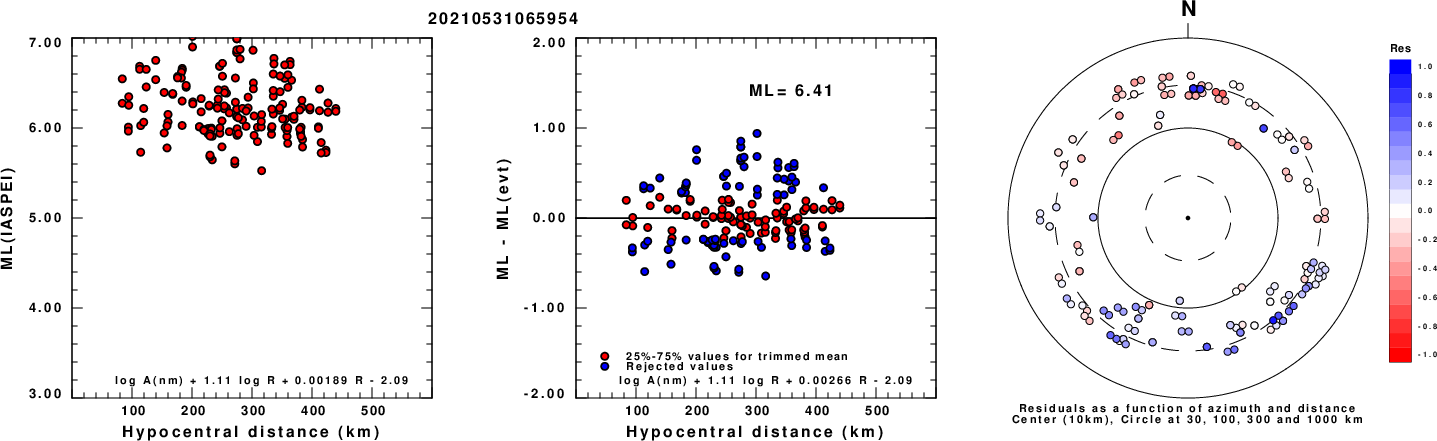

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

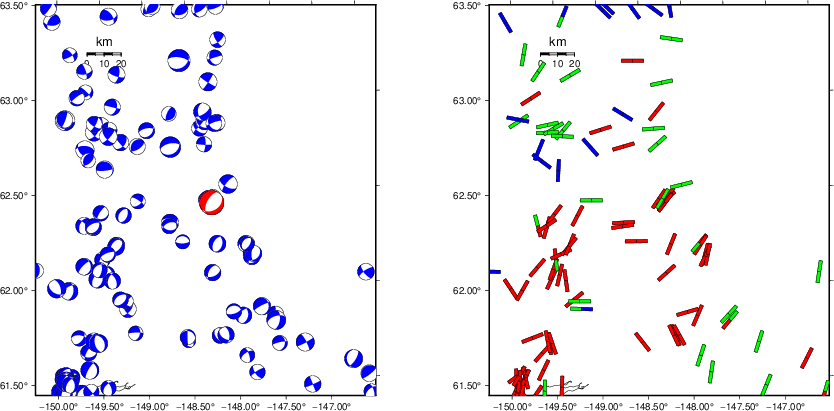

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

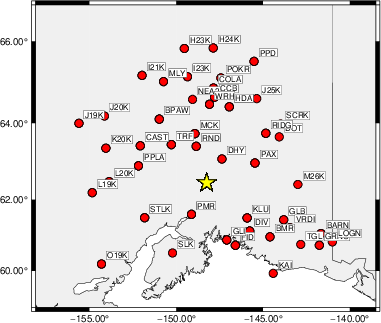

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.05 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    60    50   -65   5.41 0.3128
WVFGRD96    4.0    45    50   -90   5.52 0.3591
WVFGRD96    6.0    55    50   -75   5.53 0.3079
WVFGRD96    8.0   220    40   -95   5.60 0.3199
WVFGRD96   10.0   270    75    30   5.52 0.3282
WVFGRD96   12.0   100    60    35   5.56 0.3561
WVFGRD96   14.0    95    65    30   5.58 0.3808
WVFGRD96   16.0    95    65    30   5.60 0.4037
WVFGRD96   18.0    95    65    30   5.62 0.4237
WVFGRD96   20.0    90    75    30   5.63 0.4434
WVFGRD96   22.0    90    80    30   5.65 0.4618
WVFGRD96   24.0    90    80    30   5.68 0.4811
WVFGRD96   26.0    90    80    30   5.70 0.4993
WVFGRD96   28.0    90    80    30   5.72 0.5161
WVFGRD96   30.0    90    80    25   5.74 0.5330
WVFGRD96   32.0    90    80    25   5.76 0.5497
WVFGRD96   34.0    90    80    25   5.79 0.5666
WVFGRD96   36.0    90    75    20   5.82 0.5846
WVFGRD96   38.0    90    75    20   5.85 0.6101
WVFGRD96   40.0   260    75   -40   5.91 0.6145
WVFGRD96   42.0   260    70   -40   5.93 0.6345
WVFGRD96   44.0   260    70   -40   5.95 0.6533
WVFGRD96   46.0   255    65   -45   5.97 0.6694
WVFGRD96   48.0    70    35   -50   6.00 0.6927
WVFGRD96   50.0    65    35   -55   6.02 0.7098
WVFGRD96   52.0    65    35   -60   6.03 0.7239
WVFGRD96   54.0    60    35   -65   6.04 0.7342
WVFGRD96   56.0    60    35   -65   6.06 0.7405
WVFGRD96   58.0    60    35   -65   6.07 0.7425
WVFGRD96   60.0    70    40   -50   6.08 0.7411
WVFGRD96   62.0    70    40   -50   6.08 0.7380
WVFGRD96   64.0    70    40   -50   6.09 0.7321
WVFGRD96   66.0    70    40   -50   6.10 0.7231
WVFGRD96   68.0    70    40   -50   6.10 0.7117
WVFGRD96   70.0    70    40   -50   6.11 0.6977
WVFGRD96   72.0    70    40   -50   6.11 0.6822
WVFGRD96   74.0    80    45   -35   6.11 0.6677
WVFGRD96   76.0    80    50   -30   6.11 0.6539
WVFGRD96   78.0    80    50   -30   6.12 0.6416
WVFGRD96   80.0    85    55   -25   6.11 0.6288
WVFGRD96   82.0    85    55   -25   6.12 0.6173
WVFGRD96   84.0    85    55   -20   6.12 0.6059
WVFGRD96   86.0    85    55   -20   6.12 0.5941
WVFGRD96   88.0    85    60   -20   6.12 0.5844
WVFGRD96   90.0    85    60   -20   6.13 0.5761
WVFGRD96   92.0    85    60   -20   6.13 0.5678
WVFGRD96   94.0    85    65   -20   6.13 0.5606
WVFGRD96   96.0    85    65   -20   6.13 0.5561
WVFGRD96   98.0    85    65   -20   6.13 0.5521

The best solution is

WVFGRD96   58.0    60    35   -65   6.07 0.7425

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

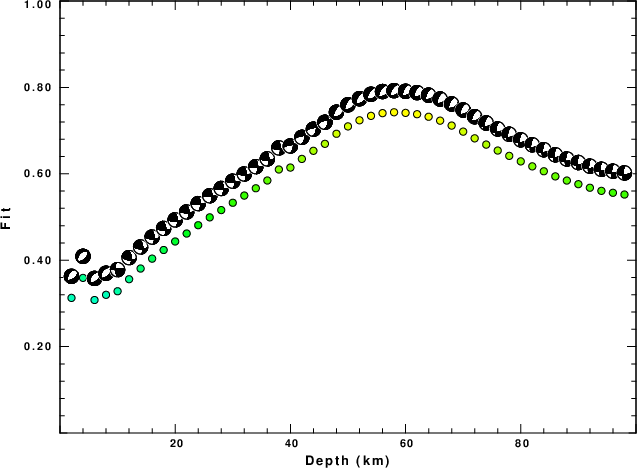

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

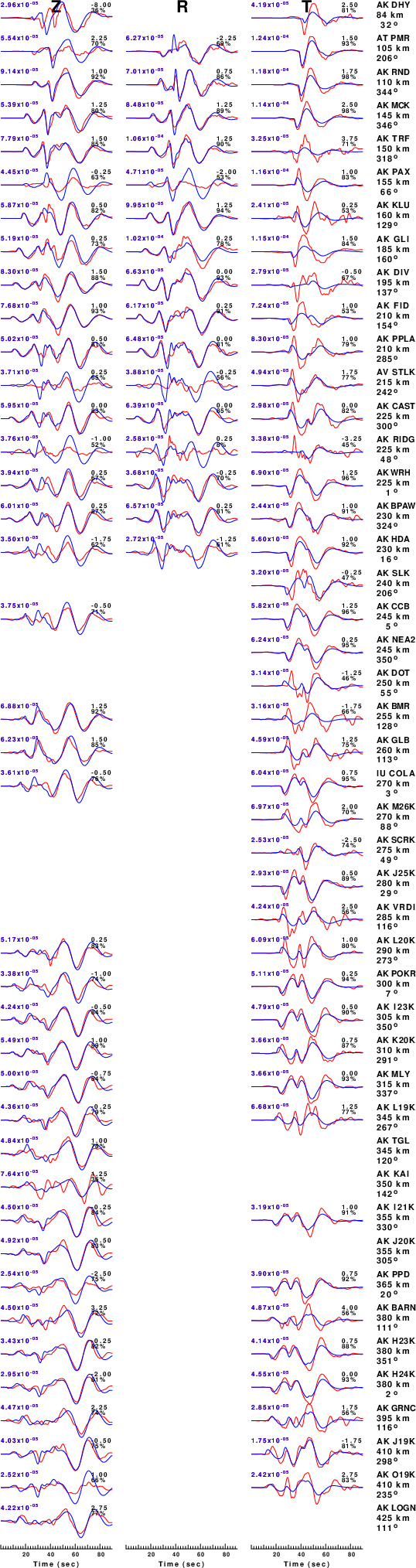

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.05 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

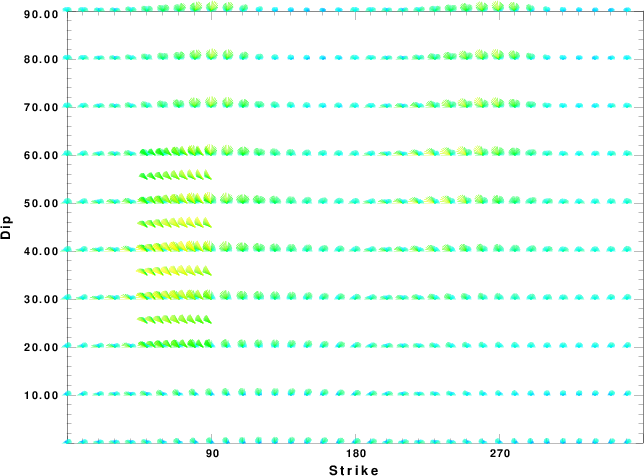

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

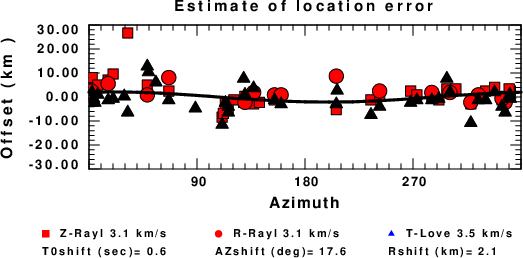

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
