2021/02/03 19:06:36 62.106 -149.534 60.5 3.6 Alaska
USGS/SLU Moment Tensor Solution ENS 2021/02/03 19:06:36:0 62.11 -149.53 60.5 3.6 Alaska Stations used: AK.BPAW AK.CAST AK.CUT AK.EYAK AK.GHO AK.HIN AK.KNK AK.MCAR AK.MCK AK.PWL AK.RC01 AK.SAW AK.SCM AK.SKN AK.SSN AK.TRF AT.PMR Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 7.50e+21 dyne-cm Mw = 3.85 Z = 60 km Plane Strike Dip Rake NP1 9 64 -114 NP2 235 35 -50 Principal Axes: Axis Value Plunge Azimuth T 7.50e+21 16 117 N 0.00e+00 22 20 P -7.50e+21 63 240 Moment Tensor: (dyne-cm) Component Value Mxx 1.02e+21 Mxy -3.48e+21 Mxz 6.55e+20 Myy 4.37e+21 Myz 4.36e+21 Mzz -5.40e+21 ###########--- ################------ ####################-------- ############---------########- ###########-------------########## #########----------------########### ########------------------############ #######--------------------############# ######---------------------############# ######----------------------############## #####-----------------------############## ####---------- -----------############## ####---------- P ----------############### ##----------- ----------############## ##-----------------------######### ### #-----------------------######### T ## #---------------------########## # --------------------############## -----------------############# ---------------############# -----------########### -----######### Global CMT Convention Moment Tensor: R T P -5.40e+21 6.55e+20 -4.36e+21 6.55e+20 1.02e+21 3.48e+21 -4.36e+21 3.48e+21 4.37e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210203190636/index.html |
STK = 235 DIP = 35 RAKE = -50 MW = 3.85 HS = 60.0
The NDK file is 20210203190636.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

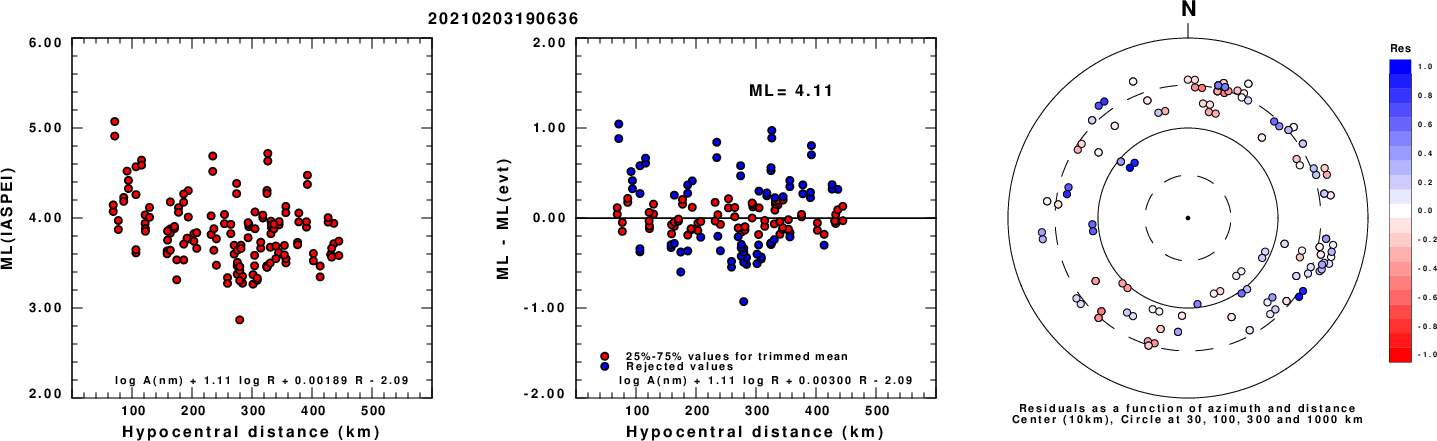

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

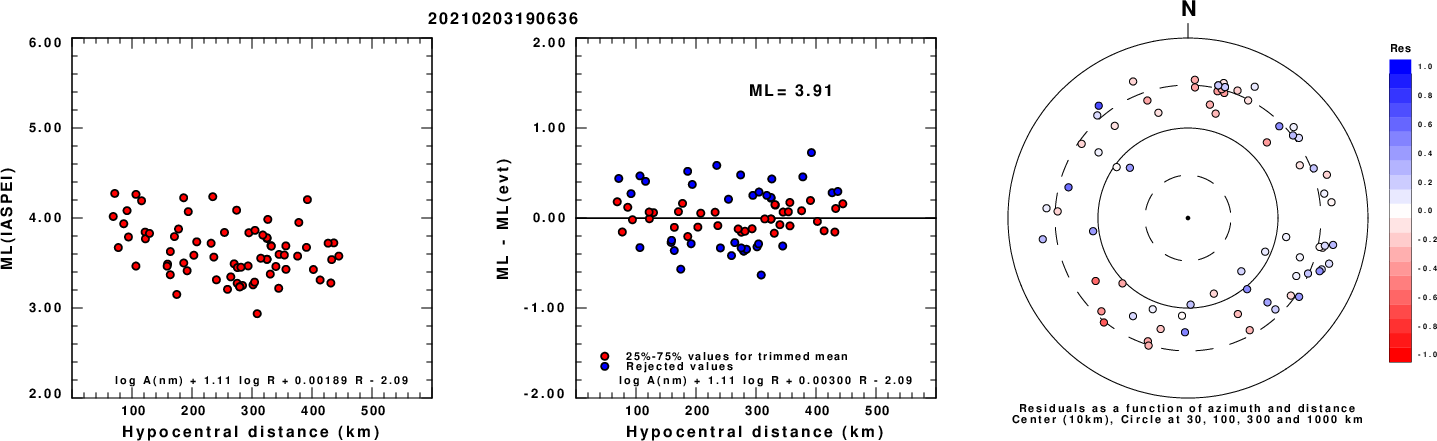

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

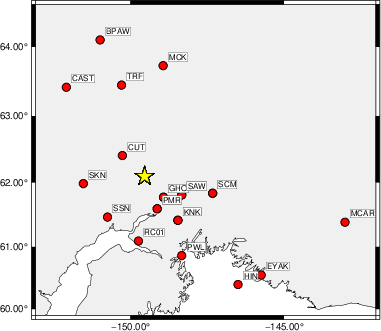

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 2.0 210 45 90 3.19 0.4344 WVFGRD96 4.0 345 25 15 3.26 0.3397 WVFGRD96 6.0 345 20 15 3.30 0.4881 WVFGRD96 8.0 345 20 20 3.36 0.5284 WVFGRD96 10.0 350 25 30 3.35 0.5429 WVFGRD96 12.0 340 30 10 3.35 0.5490 WVFGRD96 14.0 340 30 10 3.36 0.5511 WVFGRD96 16.0 330 35 0 3.38 0.5506 WVFGRD96 18.0 330 30 0 3.39 0.5495 WVFGRD96 20.0 325 35 -5 3.42 0.5458 WVFGRD96 22.0 325 30 0 3.44 0.5388 WVFGRD96 24.0 330 25 20 3.46 0.5298 WVFGRD96 26.0 325 30 15 3.48 0.5191 WVFGRD96 28.0 65 90 -55 3.54 0.5076 WVFGRD96 30.0 245 90 55 3.56 0.4923 WVFGRD96 32.0 305 25 25 3.59 0.4805 WVFGRD96 34.0 300 25 20 3.60 0.4699 WVFGRD96 36.0 295 25 15 3.61 0.4549 WVFGRD96 38.0 250 85 45 3.63 0.4507 WVFGRD96 40.0 220 30 -65 3.74 0.4886 WVFGRD96 42.0 230 25 -50 3.78 0.5221 WVFGRD96 44.0 230 25 -50 3.80 0.5608 WVFGRD96 46.0 235 30 -45 3.82 0.5878 WVFGRD96 48.0 235 30 -45 3.83 0.6081 WVFGRD96 50.0 235 30 -45 3.84 0.6233 WVFGRD96 52.0 230 30 -55 3.83 0.6310 WVFGRD96 54.0 230 30 -55 3.84 0.6374 WVFGRD96 56.0 235 35 -45 3.86 0.6405 WVFGRD96 58.0 235 35 -45 3.86 0.6426 WVFGRD96 60.0 235 35 -50 3.85 0.6426 WVFGRD96 62.0 235 35 -50 3.85 0.6415 WVFGRD96 64.0 230 35 -55 3.85 0.6398 WVFGRD96 66.0 230 35 -55 3.85 0.6356 WVFGRD96 68.0 230 35 -55 3.85 0.6298 WVFGRD96 70.0 235 40 -50 3.86 0.6247 WVFGRD96 72.0 230 40 -55 3.86 0.6196 WVFGRD96 74.0 230 40 -55 3.86 0.6125 WVFGRD96 76.0 230 40 -55 3.86 0.6067 WVFGRD96 78.0 230 40 -55 3.86 0.6028 WVFGRD96 80.0 230 40 -55 3.86 0.5982 WVFGRD96 82.0 230 40 -55 3.87 0.5921 WVFGRD96 84.0 225 40 -65 3.85 0.5872 WVFGRD96 86.0 230 40 -60 3.86 0.5807 WVFGRD96 88.0 225 40 -65 3.86 0.5776 WVFGRD96 90.0 225 40 -65 3.86 0.5734 WVFGRD96 92.0 225 40 -65 3.86 0.5685 WVFGRD96 94.0 215 40 -80 3.86 0.5630 WVFGRD96 96.0 25 50 -95 3.86 0.5601 WVFGRD96 98.0 215 40 -80 3.86 0.5549
The best solution is
WVFGRD96 60.0 235 35 -50 3.85 0.6426

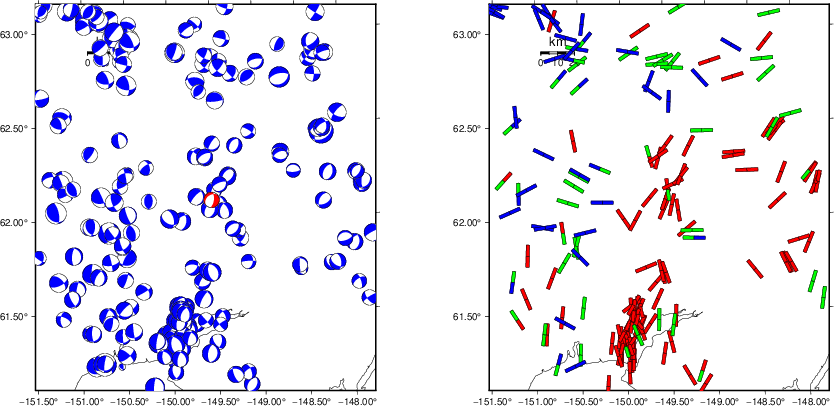

The mechanism corresponding to the best fit is
![]() |
|

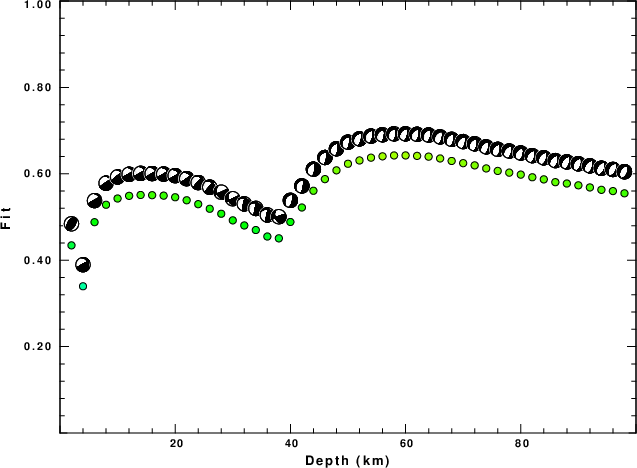

The best fit as a function of depth is given in the following figure:
![]() |
|

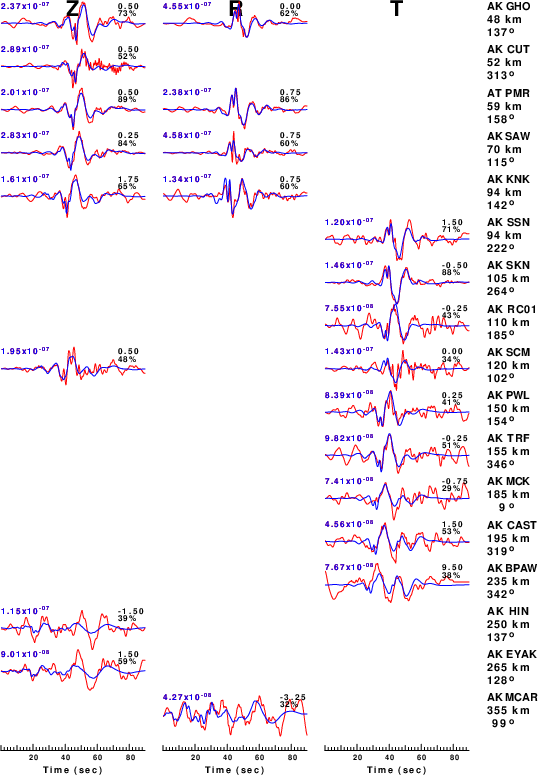

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

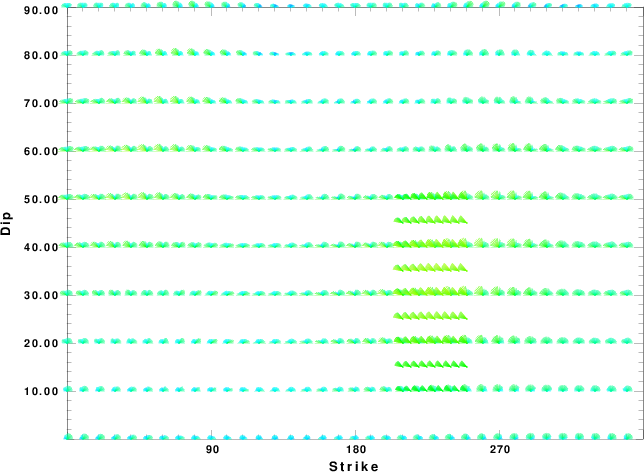

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

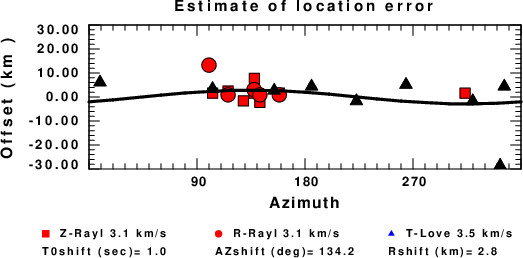

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
