Location

Location ANSS

The ANSS event ID is nn00787789 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00787789/executive.

2020/12/02 10:41:01 38.172 -118.080 4.1 3.7 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/12/02 10:41:01:0  38.17 -118.08   4.1 3.7 Nevada

 Stations used:
   GS.MCA04 IM.NV31 NN.MCA06

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 2.66e+21 dyne-cm
  Mw = 3.55
  Z  = 7 km
  Plane   Strike  Dip  Rake
   NP1       60    60   -45
   NP2      177    52   -141
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.66e+21      5     120
    N   0.00e+00     38     213
    P  -2.66e+21     52      24

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.89e+20
       Mxy    -1.52e+21
       Mxz    -1.29e+21
       Myy     1.82e+21
       Myz    -3.44e+20
       Mzz    -1.63e+21




                     ####----------
                 #######---------------
              ########--------------------
             ########----------------------
           #########-------------------------
          ##########----------   -------------
         ##########----------- P ------------##
        ###########-----------   ------------###
        ###########-------------------------####
       ###########-------------------------######
       ###########-----------------------########
       ############--------------------##########
       ############------------------############
        ###########----------------#############
        ###########-------------################
         ###########--------################
          ###########--##################### T
           ----------#######################
             ---------#####################
              ----------##################
                 --------##############
                     ------########



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.63e+21  -1.29e+21   3.44e+20
 -1.29e+21  -1.89e+20   1.52e+21
  3.44e+20   1.52e+21   1.82e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20201202104101/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 60
     RAKE = -45
       MW = 3.55
       HS = 7.0

The NDK file is 20201202104101.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

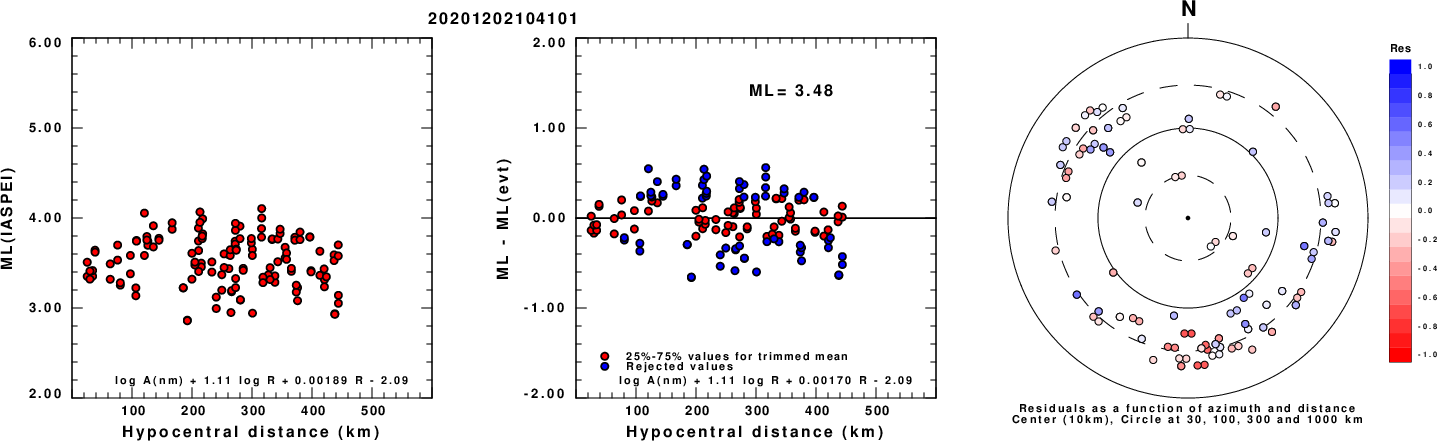

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

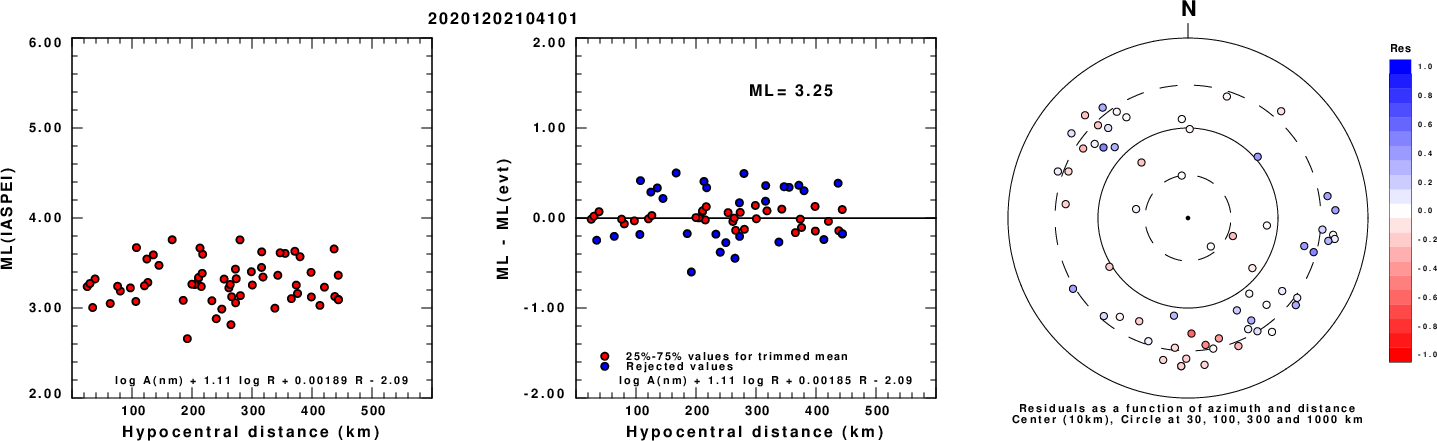

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

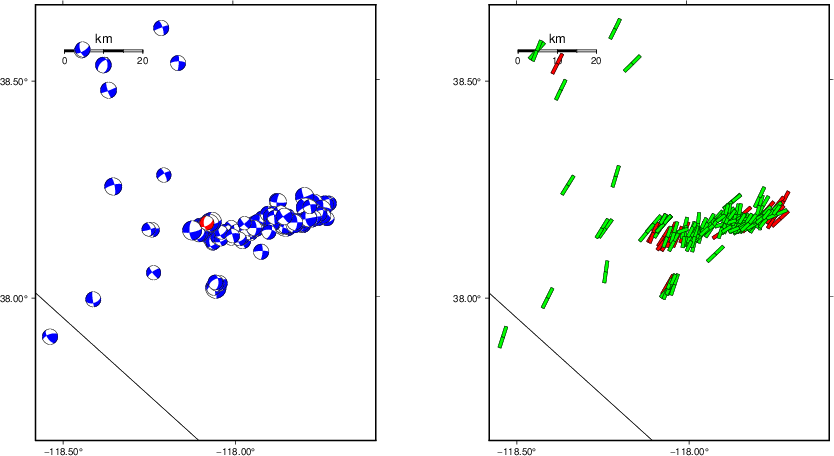

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

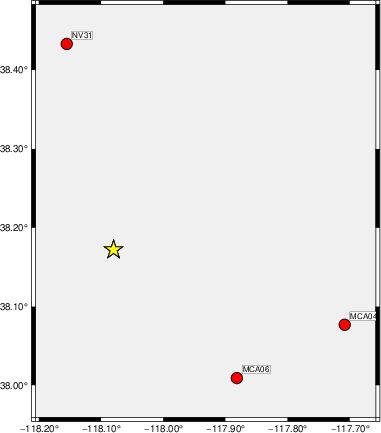

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   240    55   -45   3.19 0.4577
WVFGRD96    2.0   235    55   -50   3.37 0.6011
WVFGRD96    3.0    70    75   -35   3.37 0.6260
WVFGRD96    4.0    70    80   -40   3.43 0.6561
WVFGRD96    5.0    65    70   -40   3.47 0.6770
WVFGRD96    6.0    60    60   -45   3.52 0.6860
WVFGRD96    7.0    60    60   -45   3.55 0.6861
WVFGRD96    8.0    50    50   -60   3.63 0.6848
WVFGRD96    9.0    60    60   -45   3.60 0.6654
WVFGRD96   10.0    65    65   -35   3.60 0.6445
WVFGRD96   11.0   290    60    85   3.81 0.6541
WVFGRD96   12.0   125    25   100   3.85 0.6623
WVFGRD96   13.0   125    25   100   3.88 0.6637
WVFGRD96   14.0   130    25   105   3.90 0.6565
WVFGRD96   15.0   290    65    80   3.89 0.6421
WVFGRD96   16.0   295    70    80   3.96 0.6303
WVFGRD96   17.0   290    70    75   3.93 0.6084
WVFGRD96   18.0   285    70    70   3.89 0.5906
WVFGRD96   19.0   275    65    75   3.87 0.5711
WVFGRD96   20.0   280    60    80   3.88 0.5643
WVFGRD96   21.0   275    60    75   3.87 0.5595
WVFGRD96   22.0   275    60    75   3.87 0.5578
WVFGRD96   23.0   270    55    70   3.84 0.5549
WVFGRD96   24.0   270    60    70   3.86 0.5539
WVFGRD96   25.0   270    60    70   3.86 0.5537
WVFGRD96   26.0   270    60    70   3.86 0.5553
WVFGRD96   27.0   270    60    70   3.87 0.5569
WVFGRD96   28.0   275    65    70   3.91 0.5608
WVFGRD96   29.0   280    65    70   3.95 0.5733

The best solution is

WVFGRD96    7.0    60    60   -45   3.55 0.6861

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

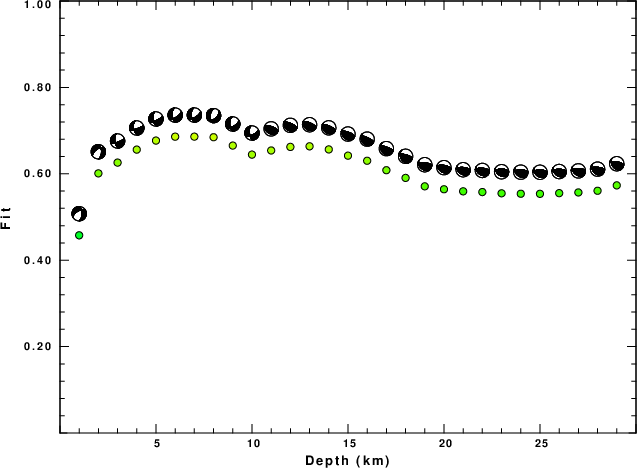

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

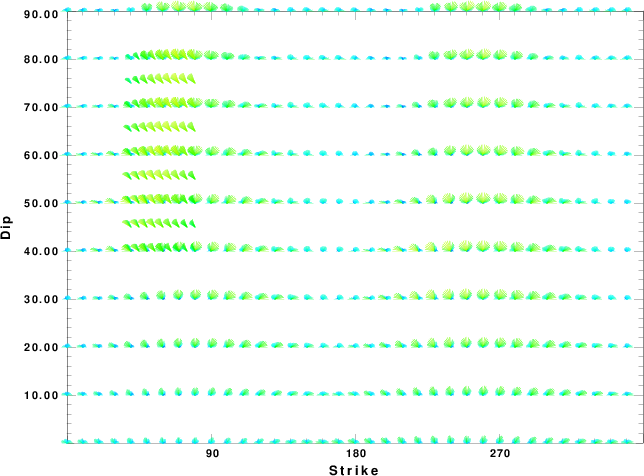

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

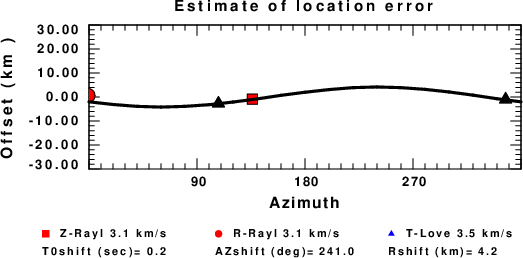

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
