Location

Location ANSS

The ANSS event ID is nn00782942 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00782942/executive.

2020/11/13 09:13:51 38.169 -117.853 4.8 5.3 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/11/13 09:13:51:0  38.17 -117.85   4.8 5.3 Nevada

 Stations used:
   BK.EAGL BK.HATC BK.KARE BK.SUTB BK.WELL CI.BFS CI.CCC
   CI.CLC CI.CWC CI.FUR CI.GRA CI.GSC CI.HAR CI.ISA CI.LRL
   CI.MTP CI.MWC CI.OSI CI.RAG CI.SHO CI.TIN CI.TPO CI.VES
   GS.CA07 GS.CA08 GS.CA09 GS.CA10 LB.BMN LB.TPH NC.AFD
   NC.MDPB NN.BEK NN.CMK6 NN.GMN NN.GWY NN.KVN NN.LHV NN.MCA06
   NN.MPK NN.MZPB NN.PAH NN.PIO NN.PNT NN.PRN NN.PYM2 NN.Q09A
   NN.REDF NN.S11A NN.SHP NN.UNVG NN.WAK NN.WDEM NN.WLDB
   NN.YER US.ELK US.TPNV UU.CCUT UU.FOR1 UU.LCMT UU.PSUT
   UU.SZCU UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 9.77e+23 dyne-cm
  Mw = 5.26
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1       75    80   -15
   NP2      168    75   -170
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.77e+23      3     122
    N   0.00e+00     72     222
    P  -9.77e+23     18      31

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.84e+23
       Mxy    -8.27e+23
       Mxz    -2.72e+23
       Myy     4.71e+23
       Myz    -9.68e+22
       Mzz    -8.65e+22




                     ##------------
                 ######------------   -
              #########------------ P ----
             ##########------------   -----
           ############----------------------
          #############-----------------------
         ##############------------------------
        ###############-------------------------
        ###############------------------------#
       #################-------------------######
       #################---------------##########
       #################----------###############
       ##################---#####################
        ###########------#######################
        ------------------######################
         -----------------##################
          -----------------################# T
           -----------------################
             ----------------##############
              ---------------#############
                 --------------########
                     -----------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.65e+22  -2.72e+23   9.68e+22
 -2.72e+23  -3.84e+23   8.27e+23
  9.68e+22   8.27e+23   4.71e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20201113091351/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 75
      DIP = 80
     RAKE = -15
       MW = 5.26
       HS = 12.0

The NDK file is 20201113091351.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSW
 USGS/SLU Moment Tensor Solution
 ENS  2020/11/13 09:13:51:0  38.17 -117.85   4.8 5.3 Nevada

 Stations used:
   BK.EAGL BK.HATC BK.KARE BK.SUTB BK.WELL CI.BFS CI.CCC
   CI.CLC CI.CWC CI.FUR CI.GRA CI.GSC CI.HAR CI.ISA CI.LRL
   CI.MTP CI.MWC CI.OSI CI.RAG CI.SHO CI.TIN CI.TPO CI.VES
   GS.CA07 GS.CA08 GS.CA09 GS.CA10 LB.BMN LB.TPH NC.AFD
   NC.MDPB NN.BEK NN.CMK6 NN.GMN NN.GWY NN.KVN NN.LHV NN.MCA06
   NN.MPK NN.MZPB NN.PAH NN.PIO NN.PNT NN.PRN NN.PYM2 NN.Q09A
   NN.REDF NN.S11A NN.SHP NN.UNVG NN.WAK NN.WDEM NN.WLDB
   NN.YER US.ELK US.TPNV UU.CCUT UU.FOR1 UU.LCMT UU.PSUT
   UU.SZCU UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 9.77e+23 dyne-cm
  Mw = 5.26
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1       75    80   -15
   NP2      168    75   -170
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.77e+23      3     122
    N   0.00e+00     72     222
    P  -9.77e+23     18      31

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.84e+23
       Mxy    -8.27e+23
       Mxz    -2.72e+23
       Myy     4.71e+23
       Myz    -9.68e+22
       Mzz    -8.65e+22




                     ##------------
                 ######------------   -
              #########------------ P ----
             ##########------------   -----
           ############----------------------
          #############-----------------------
         ##############------------------------
        ###############-------------------------
        ###############------------------------#
       #################-------------------######
       #################---------------##########
       #################----------###############
       ##################---#####################
        ###########------#######################
        ------------------######################
         -----------------##################
          -----------------################# T
           -----------------################
             ----------------##############
              ---------------#############
                 --------------########
                     -----------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.65e+22  -2.72e+23   9.68e+22
 -2.72e+23  -3.84e+23   8.27e+23
  9.68e+22   8.27e+23   4.71e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20201113091351/index.html

W-phase Moment Tensor (Mww)
Moment 1.394e+17 N-m
Magnitude 5.36 Mww
Depth 11.5 km
Percent DC 60%
Half Duration 1.24 s
Catalog US
Data Source US 2
Contributor US 2

Nodal Planes
Plane Strike Dip Rake
NP1 167 83 -171
NP2 76 81 -7

Principal Axes
Axis Value Plunge Azimuth
T 1.522e+17 N-m 1 302
N -0.307e+17 N-m 79 206
P -1.216e+17 N-m 11 32



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

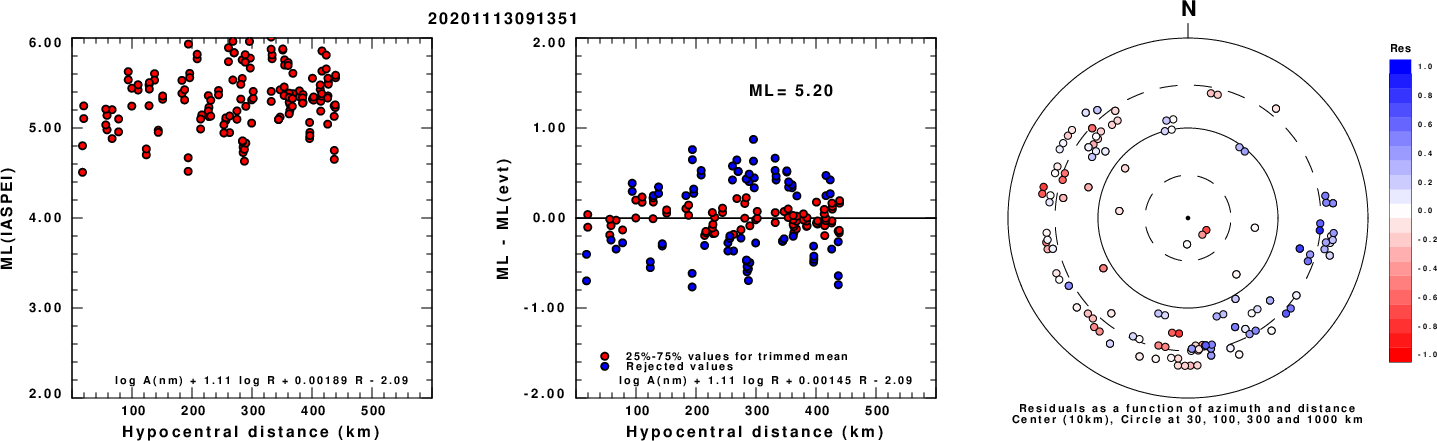

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

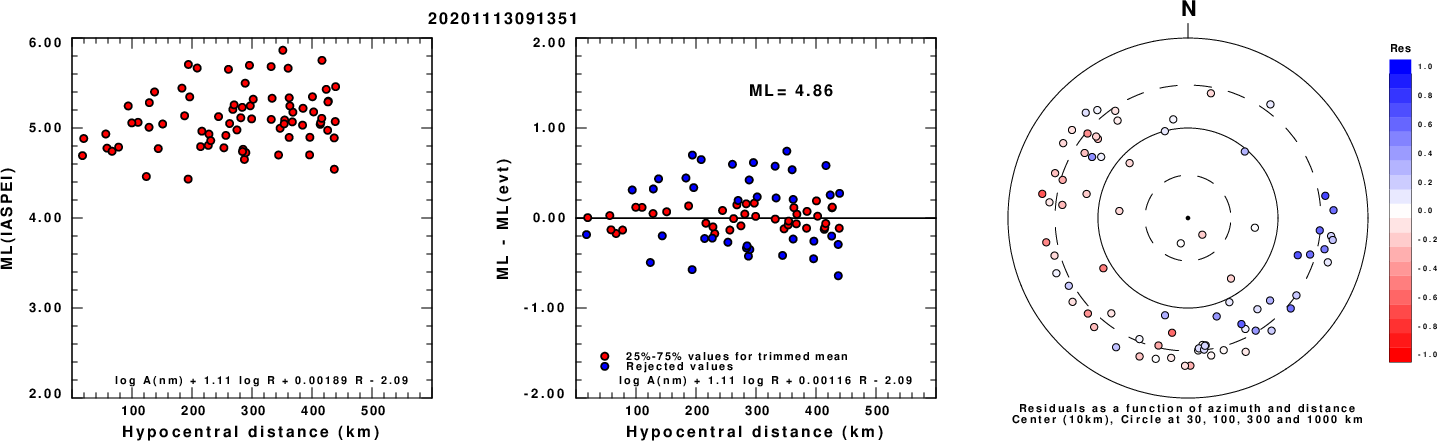

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

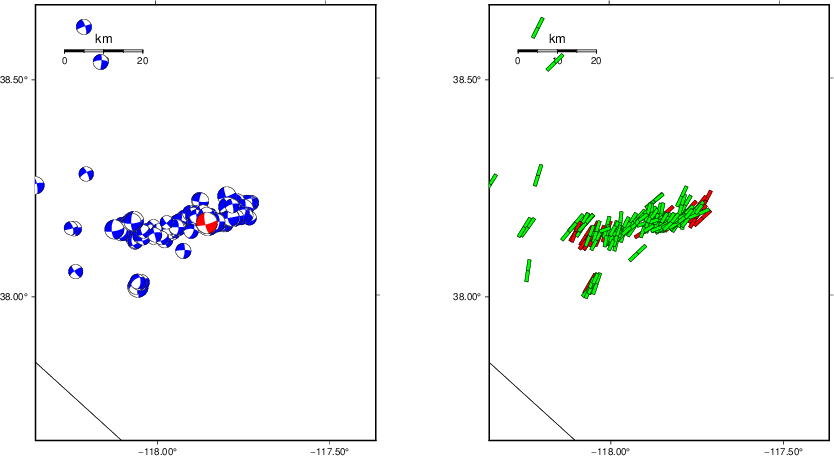

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

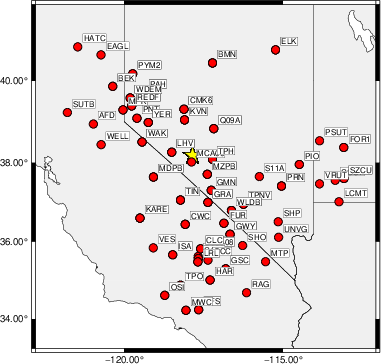

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   255    90     0   4.80 0.3325
WVFGRD96    2.0    80    85     5   4.92 0.4437
WVFGRD96    3.0   260    80    20   5.00 0.4991
WVFGRD96    4.0   260    85    20   5.04 0.5418
WVFGRD96    5.0    75    75   -20   5.08 0.5907
WVFGRD96    6.0    75    75   -20   5.11 0.6390
WVFGRD96    7.0    75    80   -15   5.15 0.6802
WVFGRD96    8.0    75    75   -20   5.19 0.7186
WVFGRD96    9.0    75    80   -15   5.21 0.7423
WVFGRD96   10.0    75    80   -15   5.23 0.7571
WVFGRD96   11.0   260    90    15   5.24 0.7516
WVFGRD96   12.0    75    80   -15   5.26 0.7614
WVFGRD96   13.0   260    90    10   5.27 0.7486
WVFGRD96   14.0   260    90    10   5.28 0.7411
WVFGRD96   15.0    75    80   -10   5.29 0.7364
WVFGRD96   16.0   260    90    10   5.30 0.7192
WVFGRD96   17.0    75    85   -10   5.31 0.7097
WVFGRD96   18.0   260    90    10   5.32 0.6918
WVFGRD96   19.0   260    90    10   5.32 0.6776
WVFGRD96   20.0    75    80   -10   5.33 0.6675
WVFGRD96   21.0   255    90    10   5.34 0.6508
WVFGRD96   22.0    75    80   -10   5.34 0.6414
WVFGRD96   23.0    75    80   -10   5.35 0.6284
WVFGRD96   24.0    75    80     5   5.35 0.6164
WVFGRD96   25.0    75    80     5   5.36 0.6051
WVFGRD96   26.0    75    80     5   5.36 0.5940
WVFGRD96   27.0    75    80    -5   5.37 0.5826
WVFGRD96   28.0    75    80    -5   5.37 0.5716
WVFGRD96   29.0    75    80    -5   5.38 0.5602

The best solution is

WVFGRD96   12.0    75    80   -15   5.26 0.7614

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

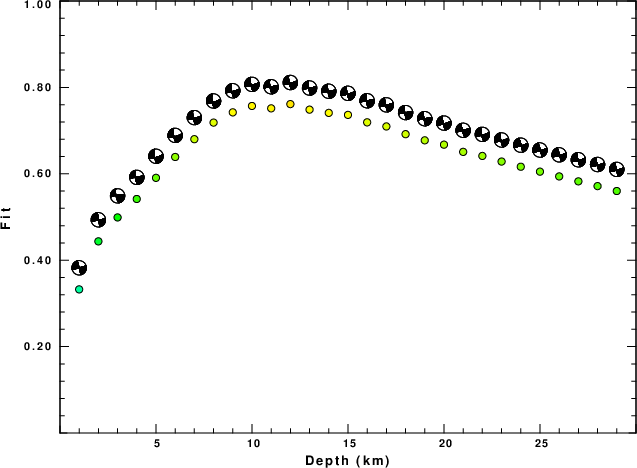

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

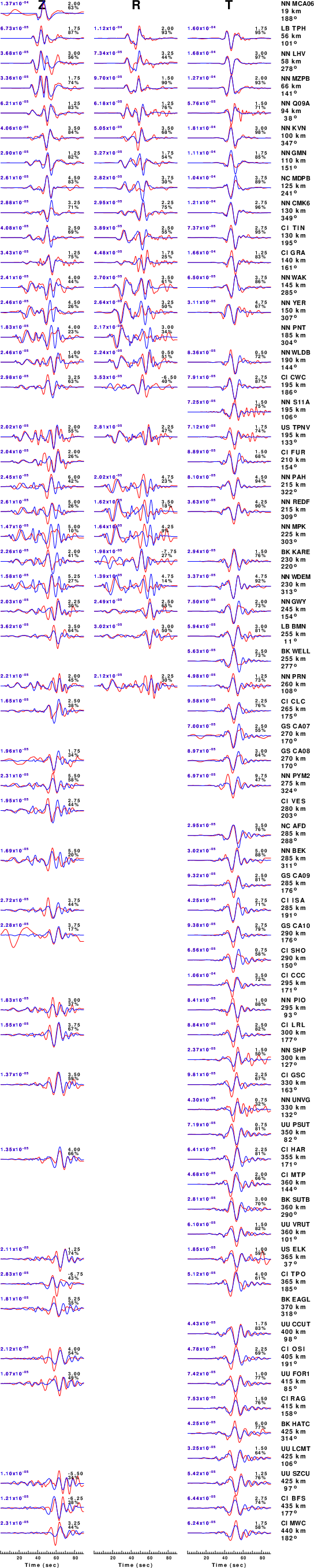

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

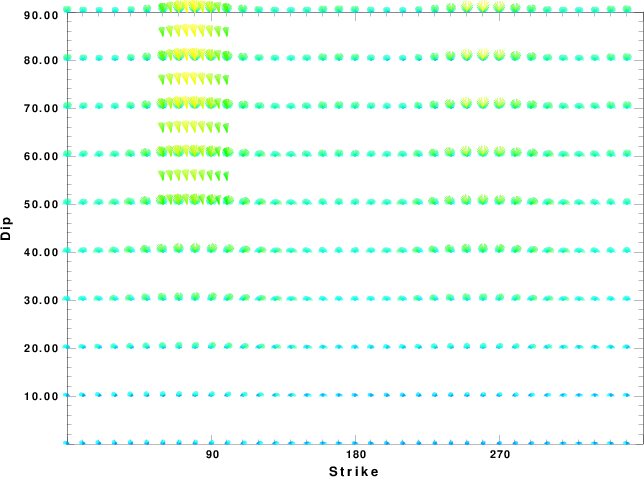

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

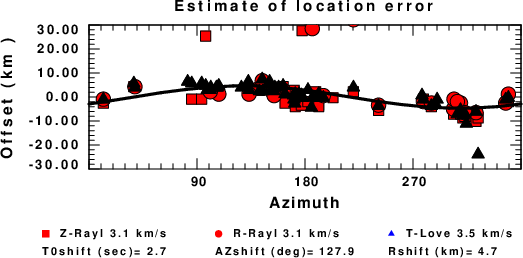

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 11:12:17 PM CDT 2024
