The ANSS event ID is ak020a78edo3 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak020a78edo3/executive.
2020/08/09 05:19:44 60.660 -143.025 7.8 3.9 Alaska

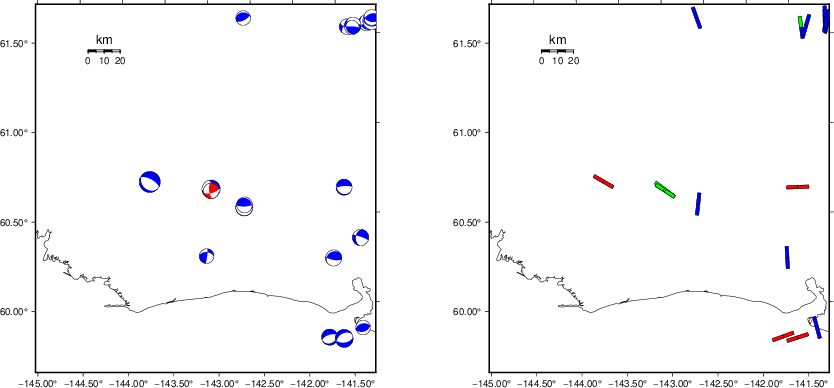

USGS/SLU Moment Tensor Solution
ENS 2020/08/09 05:19:44:0 60.66 -143.02 7.8 3.9 Alaska
Stations used:
AK.BARN AK.BERG AK.BMR AK.DHY AK.DIV AK.EYAK AK.FID AK.GLB
AK.GLI AK.GRNC AK.HIN AK.K27K AK.KLU AK.KNK AK.L26K AK.LOGN
AK.M26K AK.M27K AK.MCAR AK.PIN AK.PWL AK.RC01 AK.RIDG
AK.RND AK.SAW AK.SCM AK.SLK AK.SWD AK.TGL AK.VRDI AK.YAH
AT.MENT AT.PMR CN.DAWY CN.HYT TA.L27K TA.L29M TA.M22K
TA.M29M TA.M30M TA.N30M TA.N31M TA.O22K TA.O28M TA.O29M
TA.O30N TA.P29M TA.P30M
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.32e+21 dyne-cm
Mw = 3.88
Z = 15 km
Plane Strike Dip Rake
NP1 175 70 25
NP2 76 67 158
Principal Axes:
Axis Value Plunge Azimuth
T 8.32e+21 32 36
N 0.00e+00 58 211
P -8.32e+21 2 305
Moment Tensor: (dyne-cm)
Component Value
Mxx 1.21e+21
Mxy 6.78e+21
Mxz 2.80e+21
Myy -3.47e+21
Myz 2.46e+21
Mzz 2.26e+21
-----#########
--------##############
----------##################
-----------########### #####
P ----------############ T #######
----------############ ########
--------------########################
---------------#########################
---------------#########################
----------------#######################---
----------------#####################-----
----------------##################--------
----------------###############-----------
---------------##########---------------
####------------##----------------------
###############-----------------------
###############---------------------
##############--------------------
#############-----------------
#############---------------
###########-----------
########------
Global CMT Convention Moment Tensor:
R T P
2.26e+21 2.80e+21 -2.46e+21
2.80e+21 1.21e+21 -6.78e+21
-2.46e+21 -6.78e+21 -3.47e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200809051944/index.html
|
STK = 175
DIP = 70
RAKE = 25
MW = 3.88
HS = 15.0
The NDK file is 20200809051944.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

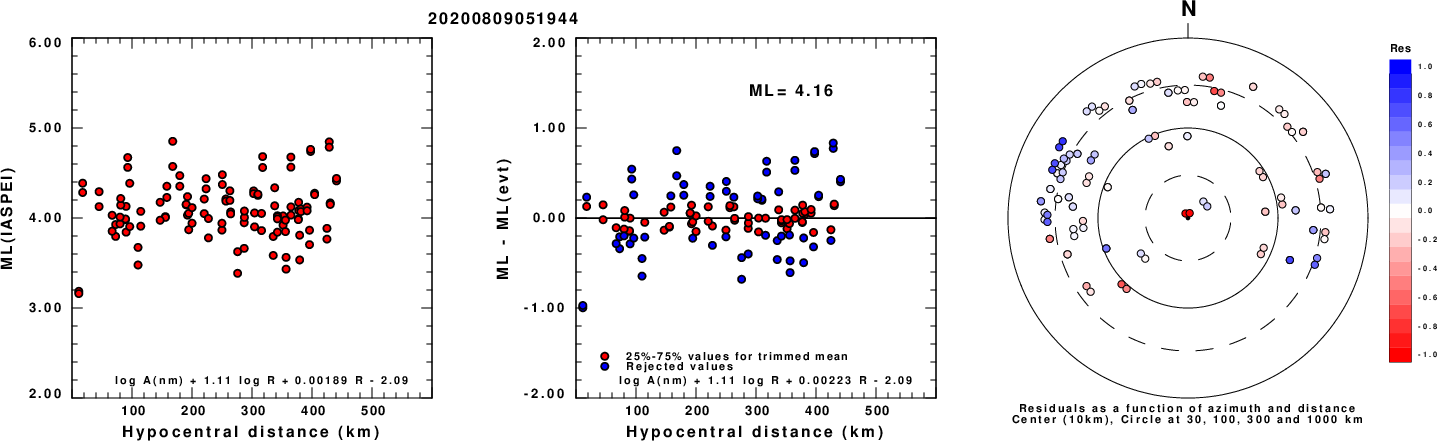

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

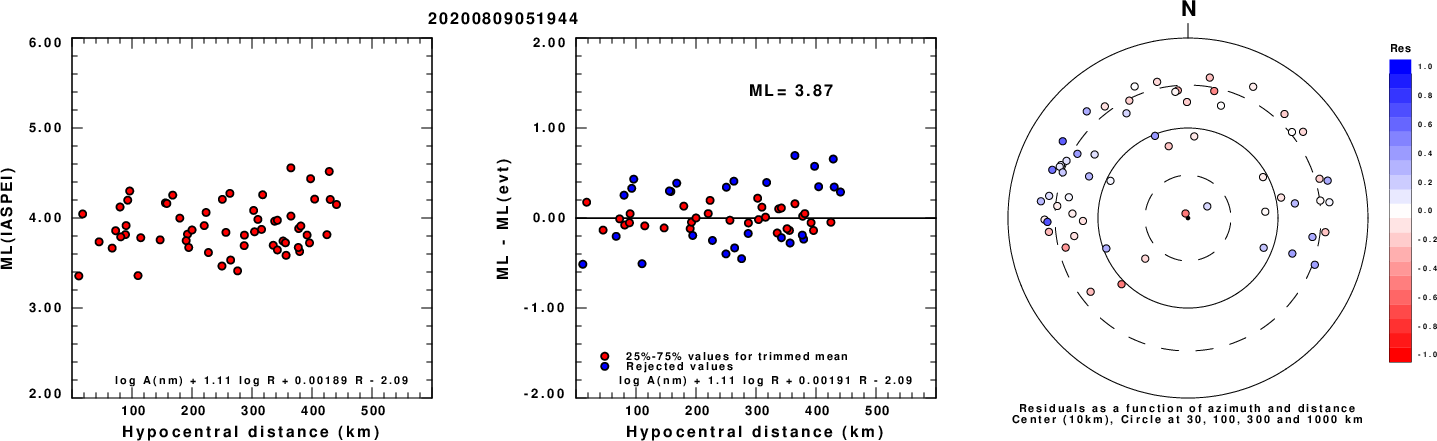

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

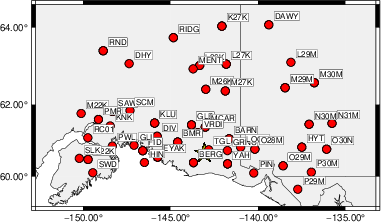

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 135 55 30 3.36 0.2237
WVFGRD96 2.0 210 40 80 3.57 0.3008
WVFGRD96 3.0 95 55 35 3.56 0.3136
WVFGRD96 4.0 95 55 35 3.60 0.3485
WVFGRD96 5.0 90 60 30 3.62 0.3734
WVFGRD96 6.0 345 70 -35 3.65 0.4106
WVFGRD96 7.0 350 75 -30 3.68 0.4474
WVFGRD96 8.0 345 70 -35 3.74 0.4758
WVFGRD96 9.0 345 70 -35 3.76 0.5014
WVFGRD96 10.0 345 70 -30 3.79 0.5198
WVFGRD96 11.0 345 70 -30 3.81 0.5341
WVFGRD96 12.0 175 70 25 3.83 0.5485
WVFGRD96 13.0 175 70 25 3.85 0.5598
WVFGRD96 14.0 175 70 25 3.86 0.5667
WVFGRD96 15.0 175 70 25 3.88 0.5699
WVFGRD96 16.0 175 70 25 3.89 0.5698
WVFGRD96 17.0 175 70 25 3.90 0.5670
WVFGRD96 18.0 175 70 25 3.91 0.5622
WVFGRD96 19.0 175 70 25 3.92 0.5555
WVFGRD96 20.0 175 70 20 3.94 0.5471
WVFGRD96 21.0 175 70 25 3.94 0.5376
WVFGRD96 22.0 175 65 20 3.95 0.5279
WVFGRD96 23.0 175 65 20 3.96 0.5177
WVFGRD96 24.0 175 65 20 3.97 0.5072
WVFGRD96 25.0 175 65 20 3.97 0.4968
WVFGRD96 26.0 175 65 20 3.98 0.4873
WVFGRD96 27.0 175 65 20 3.98 0.4789
WVFGRD96 28.0 175 65 20 3.99 0.4716
WVFGRD96 29.0 175 65 20 3.99 0.4651
The best solution is
WVFGRD96 15.0 175 70 25 3.88 0.5699
The mechanism corresponding to the best fit is
|
|
|

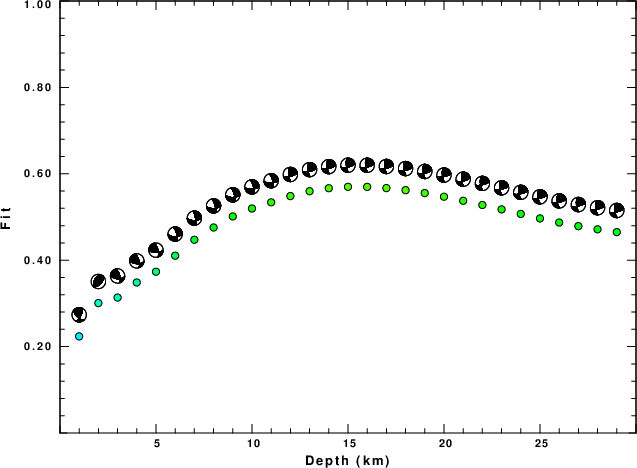

The best fit as a function of depth is given in the following figure:
|
|
|

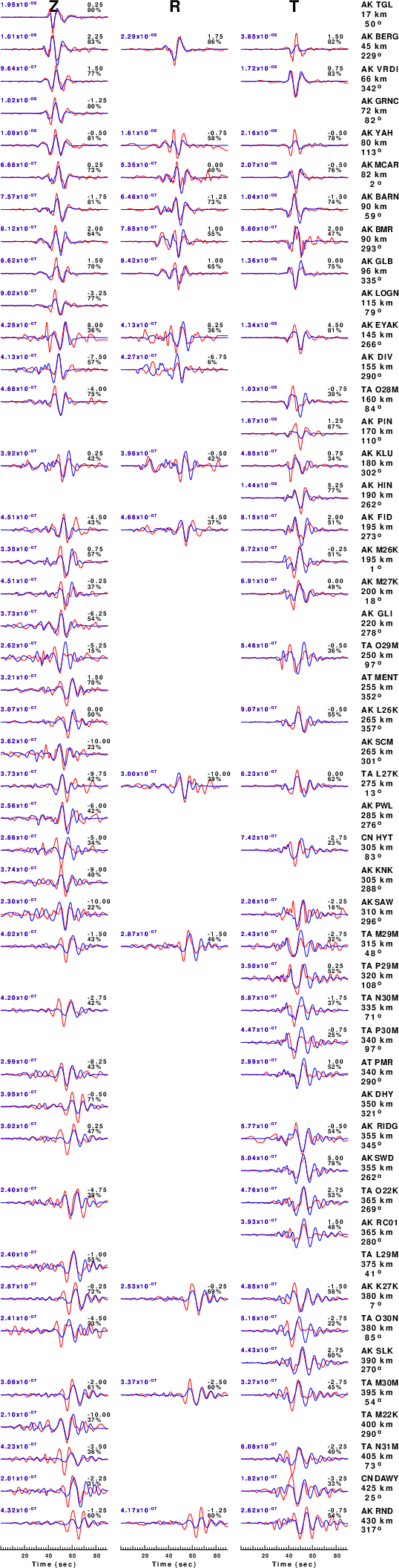

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

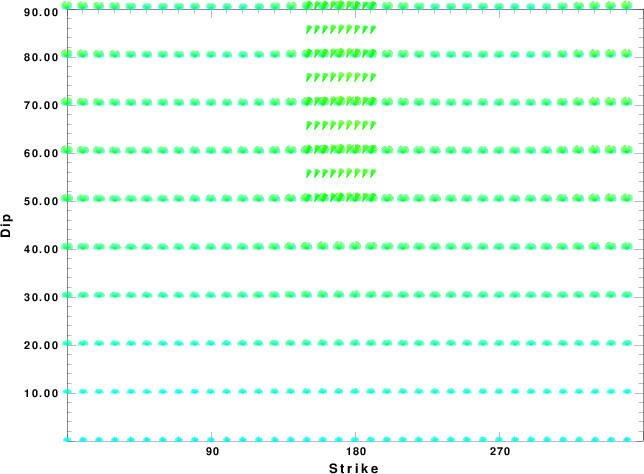

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

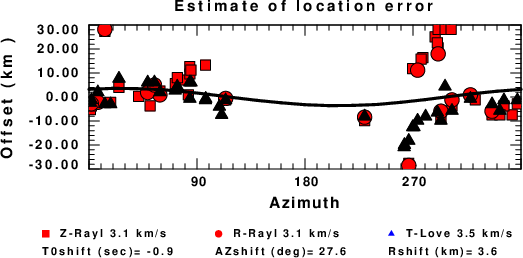

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
