The ANSS event ID is ak0208s5foz1 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0208s5foz1/executive.

2020/07/09 16:44:19 62.331 -148.740 19.1 3.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/07/09 16:44:19:0  62.33 -148.74  19.1 3.6 Alaska

 Stations used:
   AK.CUT AK.DHY AK.DIV AK.EYAK AK.FID AK.GHO AK.GLB AK.GLI
   AK.K24K AK.KLU AK.KNK AK.L22K AK.RC01 AK.RND AK.SAW AK.SCM
   AK.SLK AK.TRF AT.PMR TA.M22K TA.M24K

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.13e+21 dyne-cm
  Mw = 3.74
  Z  = 51 km
  Plane   Strike  Dip  Rake
   NP1      246    52   -117
   NP2      105    45   -60
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.13e+21      4     354
    N   0.00e+00     21     263
    P  -5.13e+21     69      94

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     5.05e+21
       Mxy    -4.60e+20
       Mxz     4.69e+20
       Myy    -6.09e+20
       Myz    -1.75e+21
       Mzz    -4.44e+21




                     ### T ########
                 #######   ############
              ############################
             ##############################
           ##################################
          ##################----------------##
         ##############------------------------
        ############----------------------------
        #########-------------------------------
       --######----------------------------------
       ---####------------------   --------------
       ----#-------------------- P --------------
       ----#--------------------   --------------
        --####----------------------------------
        --######-------------------------------#
         ##########--------------------------##
          #############------------------#####
           ##################################
             ##############################
              ############################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.44e+21   4.69e+20   1.75e+21
  4.69e+20   5.05e+21   4.60e+20
  1.75e+21   4.60e+20  -6.09e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200709164419/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 105
      DIP = 45
     RAKE = -60
       MW = 3.74
       HS = 51.0

The NDK file is 20200709164419.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

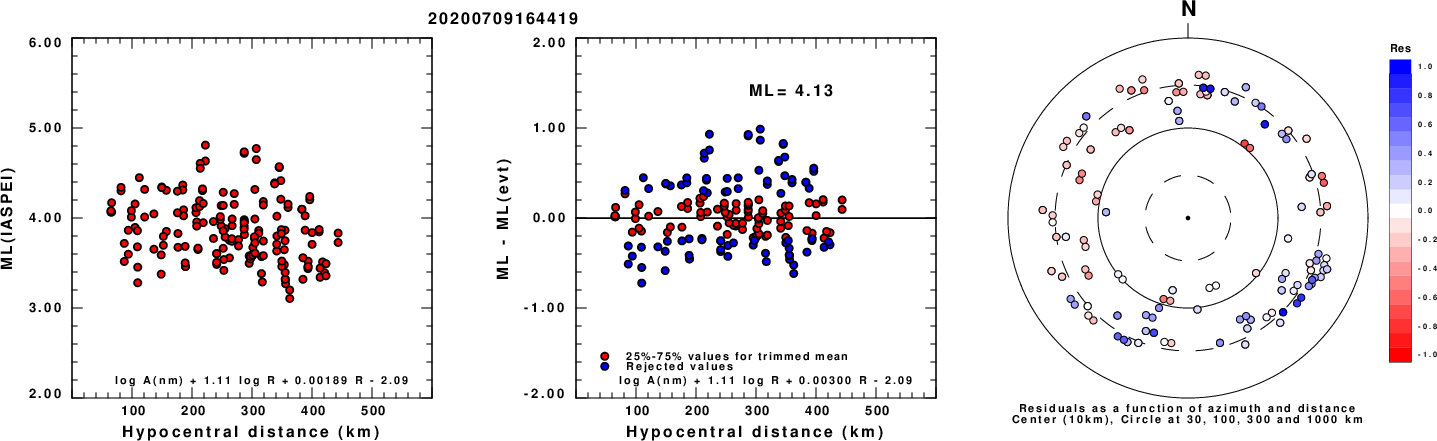

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

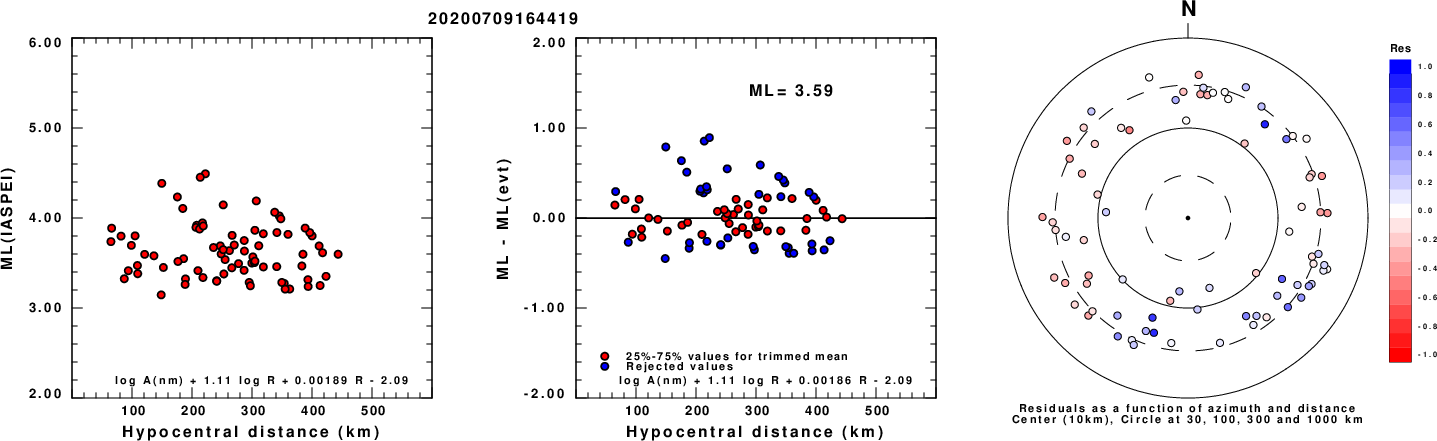

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

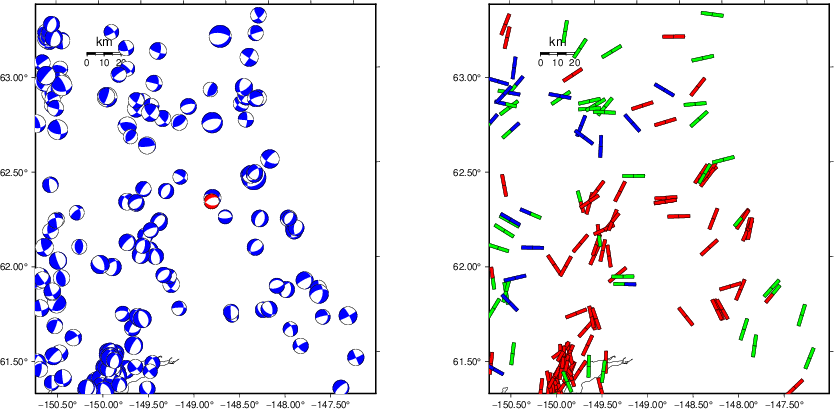

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

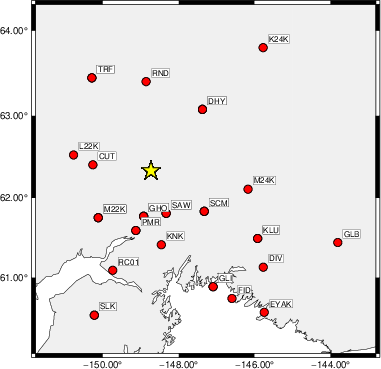

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   255    45    95   2.82 0.1467
WVFGRD96    2.0    70    45    90   2.97 0.1861
WVFGRD96    3.0   265    65    50   3.06 0.1963
WVFGRD96    4.0   260    65    45   3.07 0.2093
WVFGRD96    5.0    70    90    55   3.07 0.2232
WVFGRD96    6.0    75    85    50   3.10 0.2412
WVFGRD96    7.0   235    60    75   3.10 0.2556
WVFGRD96    8.0    80    80    50   3.19 0.2627
WVFGRD96    9.0    75    60    95   3.20 0.2729
WVFGRD96   10.0   240    35    75   3.21 0.2805
WVFGRD96   11.0   240    35    75   3.22 0.2841
WVFGRD96   12.0   240    35    75   3.23 0.2835
WVFGRD96   13.0   240    35    75   3.24 0.2803
WVFGRD96   14.0    65    60    80   3.25 0.2761
WVFGRD96   15.0    65    60    80   3.26 0.2718
WVFGRD96   16.0    65    60    80   3.27 0.2684
WVFGRD96   17.0    65    60    80   3.28 0.2638
WVFGRD96   18.0   290    55   -35   3.29 0.2645
WVFGRD96   19.0   285    55   -40   3.31 0.2739
WVFGRD96   20.0   285    55   -40   3.33 0.2828
WVFGRD96   21.0   285    55   -40   3.35 0.2913
WVFGRD96   22.0   285    55   -40   3.36 0.2990
WVFGRD96   23.0   285    60   -40   3.37 0.3061
WVFGRD96   24.0   285    60   -40   3.39 0.3127
WVFGRD96   25.0   285    60   -40   3.40 0.3172
WVFGRD96   26.0   285    60   -40   3.41 0.3203
WVFGRD96   27.0   120    50   -20   3.42 0.3203
WVFGRD96   28.0   120    50   -20   3.43 0.3212
WVFGRD96   29.0   280    50   -45   3.44 0.3216
WVFGRD96   30.0   115    70   -35   3.45 0.3403
WVFGRD96   31.0   115    70   -40   3.47 0.3557
WVFGRD96   32.0   115    65   -40   3.48 0.3727
WVFGRD96   33.0   115    65   -40   3.49 0.3907
WVFGRD96   34.0   100    55   -60   3.51 0.4094
WVFGRD96   35.0   100    55   -60   3.52 0.4280
WVFGRD96   36.0   105    55   -55   3.53 0.4459
WVFGRD96   37.0   105    55   -55   3.54 0.4596
WVFGRD96   38.0   100    50   -55   3.55 0.4699
WVFGRD96   39.0   100    50   -60   3.57 0.4770
WVFGRD96   40.0   100    50   -60   3.64 0.4864
WVFGRD96   41.0   100    50   -60   3.66 0.4899
WVFGRD96   42.0   100    50   -60   3.67 0.4918
WVFGRD96   43.0   105    50   -60   3.69 0.4963
WVFGRD96   44.0   105    50   -60   3.70 0.5003
WVFGRD96   45.0    95    45   -65   3.71 0.5058
WVFGRD96   46.0    95    45   -65   3.72 0.5092
WVFGRD96   47.0   100    45   -65   3.73 0.5134
WVFGRD96   48.0   100    45   -65   3.73 0.5144
WVFGRD96   49.0   100    45   -60   3.73 0.5166
WVFGRD96   50.0   100    45   -60   3.74 0.5161
WVFGRD96   51.0   105    45   -60   3.74 0.5166
WVFGRD96   52.0    95    40   -65   3.75 0.5151
WVFGRD96   53.0    95    40   -65   3.75 0.5138
WVFGRD96   54.0    95    40   -65   3.75 0.5118
WVFGRD96   55.0   100    40   -60   3.75 0.5086
WVFGRD96   56.0   100    40   -60   3.76 0.5077
WVFGRD96   57.0   100    40   -60   3.76 0.5043
WVFGRD96   58.0   100    40   -60   3.76 0.5013
WVFGRD96   59.0   100    40   -60   3.76 0.4982

The best solution is

WVFGRD96   51.0   105    45   -60   3.74 0.5166

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

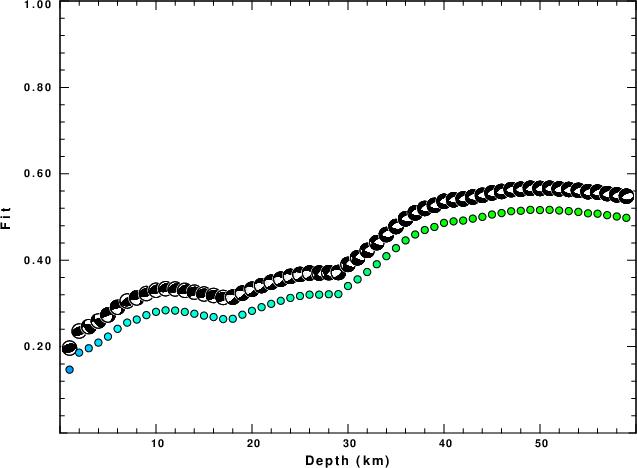

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

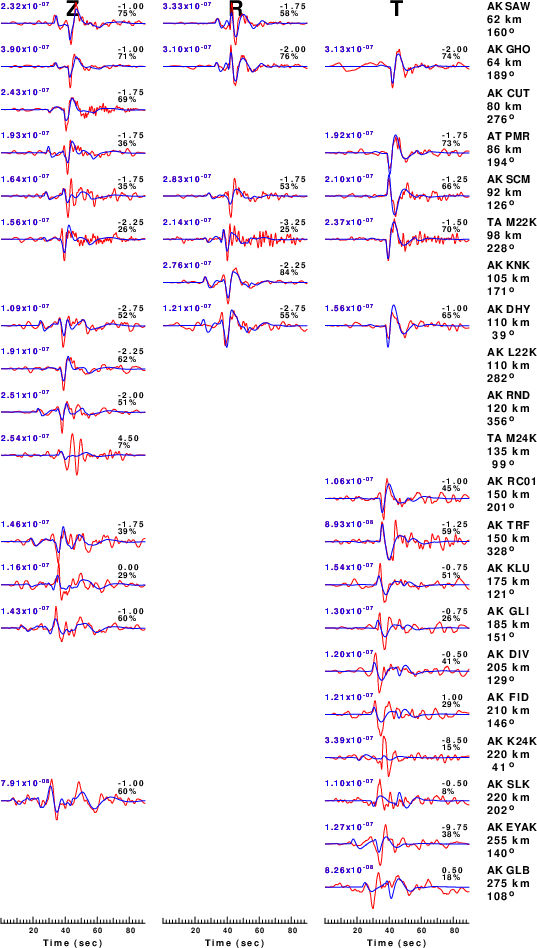

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

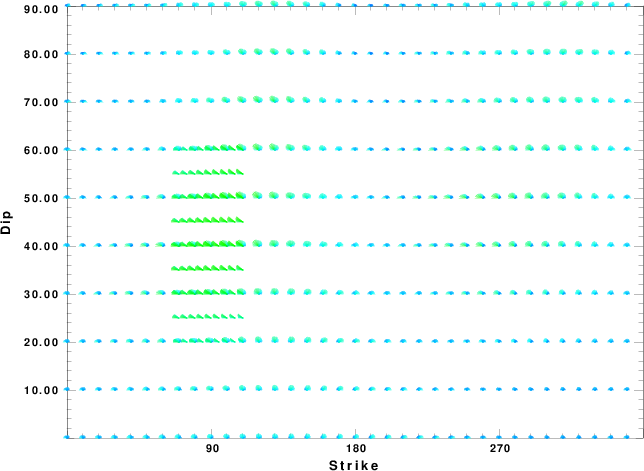

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

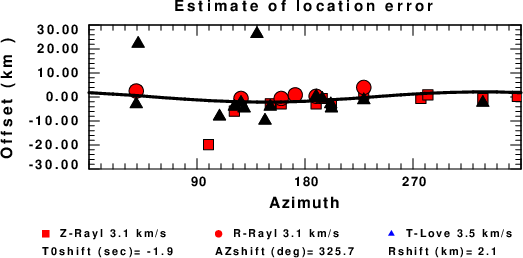

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
