The ANSS event ID is us7000aanf and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us7000aanf/executive.

2020/06/25 05:20:59 44.399 -115.181 7.5 4.6 Idaho

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2020/06/25 05:20:59:0 44.40 -115.18 7.5 4.6 Idaho Stations used: GS.ID11 IE.BCYI IW.DLMT IW.FLWY IW.FXWY IW.LOHW IW.MFID IW.MOOW IW.PLID IW.SNOW MB.BUT US.AHID US.BMO US.BOZ US.ELK US.HAWA US.HLID US.HWUT US.LKWY US.MSO US.WVOR UU.BGU UU.HVU UU.SPU UW.BRAN UW.CCRK UW.DDRF UW.IZEE UW.KENT UW.LNO UW.PHIN UW.TUCA UW.UMAT UW.WA2 UW.WOLL UW.YPT WY.YFT WY.YHL WY.YNE Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 9.02e+22 dyne-cm Mw = 4.57 Z = 14 km Plane Strike Dip Rake NP1 145 65 -45 NP2 258 50 -147 Principal Axes: Axis Value Plunge Azimuth T 9.02e+22 9 205 N 0.00e+00 40 302 P -9.02e+22 49 104 Moment Tensor: (dyne-cm) Component Value Mxx 7.04e+22 Mxy 4.27e+22 Mxz -1.43e+21 Myy -2.15e+22 Myz -4.90e+22 Mzz -4.88e+22 ############## ###################### --########################## ---########################### -----############################# ------############--------########## --------####----------------------#### ---------#----------------------------## ------####------------------------------ -----#######------------------------------ ----#########----------------------------- --############---------------- --------- -##############--------------- P --------- ###############-------------- -------- #################----------------------- ##################-------------------- ##################------------------ ###################--------------- ####################---------- ##### ##############------ ## T ################# ############# Global CMT Convention Moment Tensor: R T P -4.88e+22 -1.43e+21 4.90e+22 -1.43e+21 7.04e+22 -4.27e+22 4.90e+22 -4.27e+22 -2.15e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200625052059/index.html

Preferred Solution

      STK = 145
      DIP = 65
     RAKE = -45
       MW = 4.57
       HS = 14.0

The NDK file is 20200625052059.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

USGSMWR

USGS/SLU Moment Tensor Solution ENS 2020/06/25 05:20:59:0 44.40 -115.18 7.5 4.6 Idaho Stations used: GS.ID11 IE.BCYI IW.DLMT IW.FLWY IW.FXWY IW.LOHW IW.MFID IW.MOOW IW.PLID IW.SNOW MB.BUT US.AHID US.BMO US.BOZ US.ELK US.HAWA US.HLID US.HWUT US.LKWY US.MSO US.WVOR UU.BGU UU.HVU UU.SPU UW.BRAN UW.CCRK UW.DDRF UW.IZEE UW.KENT UW.LNO UW.PHIN UW.TUCA UW.UMAT UW.WA2 UW.WOLL UW.YPT WY.YFT WY.YHL WY.YNE Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 9.02e+22 dyne-cm Mw = 4.57 Z = 14 km Plane Strike Dip Rake NP1 145 65 -45 NP2 258 50 -147 Principal Axes: Axis Value Plunge Azimuth T 9.02e+22 9 205 N 0.00e+00 40 302 P -9.02e+22 49 104 Moment Tensor: (dyne-cm) Component Value Mxx 7.04e+22 Mxy 4.27e+22 Mxz -1.43e+21 Myy -2.15e+22 Myz -4.90e+22 Mzz -4.88e+22 ############## ###################### --########################## ---########################### -----############################# ------############--------########## --------####----------------------#### ---------#----------------------------## ------####------------------------------ -----#######------------------------------ ----#########----------------------------- --############---------------- --------- -##############--------------- P --------- ###############-------------- -------- #################----------------------- ##################-------------------- ##################------------------ ###################--------------- ####################---------- ##### ##############------ ## T ################# ############# Global CMT Convention Moment Tensor: R T P -4.88e+22 -1.43e+21 4.90e+22 -1.43e+21 7.04e+22 -4.27e+22 4.90e+22 -4.27e+22 -2.15e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200625052059/index.html

Regional Moment Tensor (Mwr) Moment 9.412e+15 N-m Magnitude 4.58 Mwr Depth 15.0 km Percent DC 96% Half Duration - Catalog US Data Source US 2 Contributor US 2 Nodal Planes Plane Strike Dip Rake NP1 253 57 -160 NP2 152 74 -34 Principal Axes Axis Value Plunge Azimuth T 9.514e+15 N-m 10 206 N -0.209e+15 N-m 52 309 P -9.306e+15 N-m 36 108

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

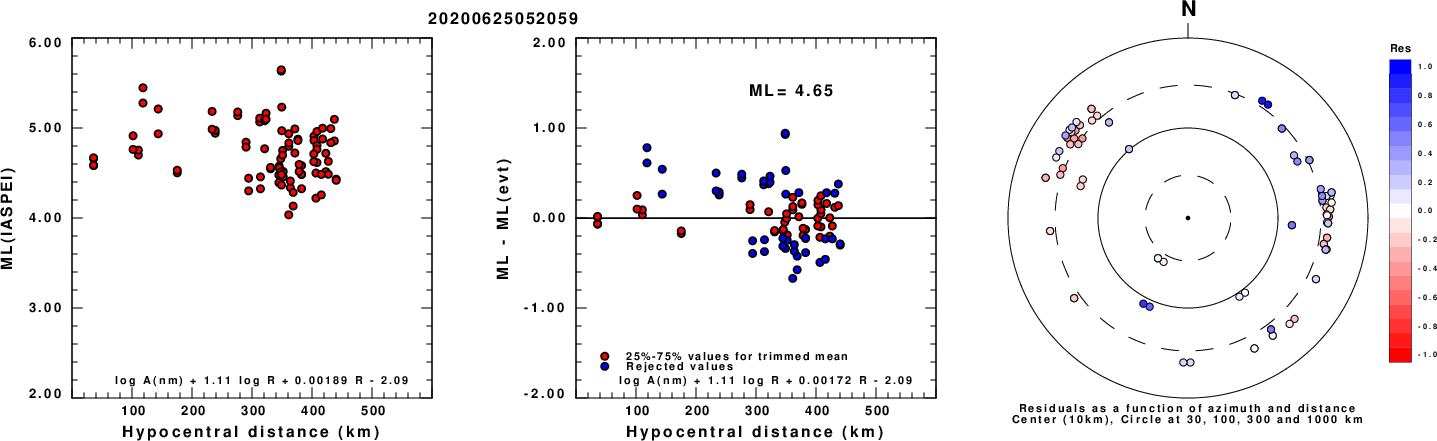

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

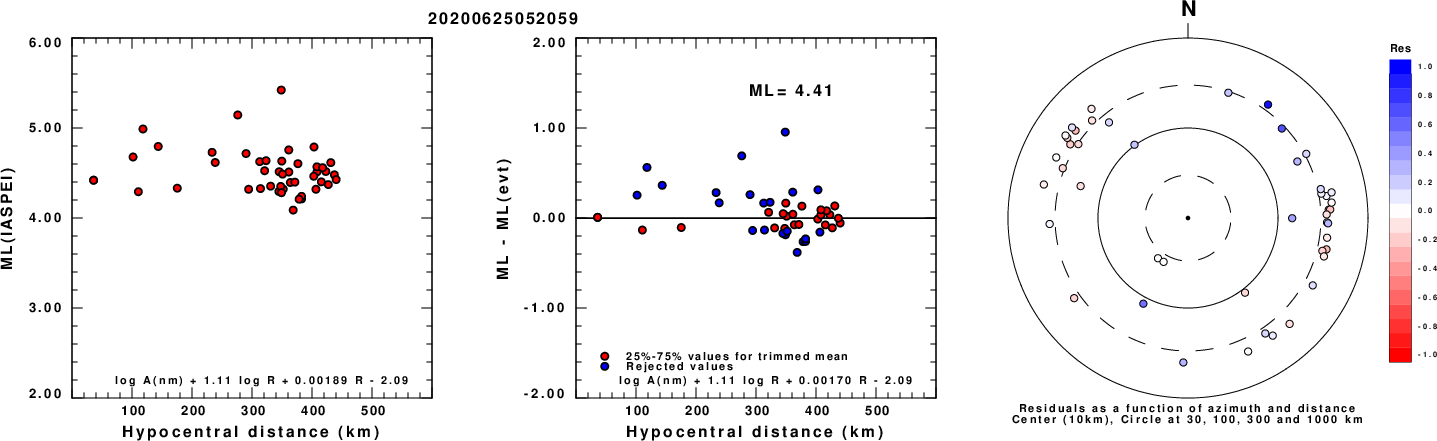

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

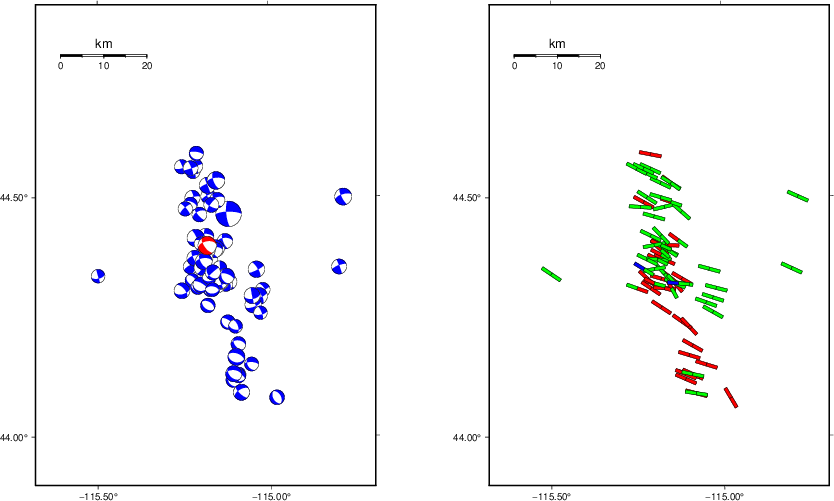

Context

Waveform Inversion using wvfgrd96

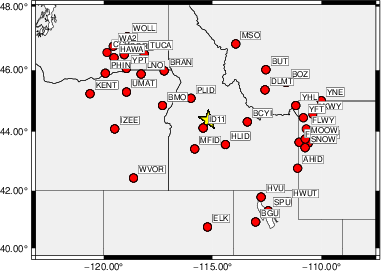

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   165    85   -10   4.07 0.2910
WVFGRD96    2.0   165    80     5   4.19 0.3529
WVFGRD96    3.0   165    80    25   4.26 0.3774
WVFGRD96    4.0   160    90    45   4.31 0.4109
WVFGRD96    5.0   340    90   -50   4.34 0.4638
WVFGRD96    6.0   160    90    50   4.36 0.5093
WVFGRD96    7.0   335    85   -45   4.37 0.5471
WVFGRD96    8.0   335    80   -45   4.44 0.5734
WVFGRD96    9.0   165    70    60   4.47 0.5940
WVFGRD96   10.0   145    65   -50   4.51 0.6254
WVFGRD96   11.0   145    65   -50   4.53 0.6534
WVFGRD96   12.0   145    65   -45   4.54 0.6714
WVFGRD96   13.0   145    65   -45   4.56 0.6829
WVFGRD96   14.0   145    65   -45   4.57 0.6871
WVFGRD96   15.0   150    65   -40   4.59 0.6863
WVFGRD96   16.0   150    65   -40   4.60 0.6821
WVFGRD96   17.0   150    65   -40   4.62 0.6710
WVFGRD96   18.0   150    65   -40   4.63 0.6552
WVFGRD96   19.0   155    65   -35   4.64 0.6385
WVFGRD96   20.0   155    65   -35   4.64 0.6192
WVFGRD96   21.0   155    65   -35   4.66 0.5974
WVFGRD96   22.0   155    65   -30   4.66 0.5759
WVFGRD96   23.0   335    90    55   4.65 0.5533
WVFGRD96   24.0   155    90   -55   4.66 0.5412
WVFGRD96   25.0   340    85    55   4.67 0.5282
WVFGRD96   26.0   160    90   -55   4.68 0.5150
WVFGRD96   27.0   340    90    55   4.68 0.5004
WVFGRD96   28.0   160    90   -55   4.69 0.4855
WVFGRD96   29.0   160    90   -55   4.70 0.4701

The best solution is

WVFGRD96   14.0   145    65   -45   4.57 0.6871

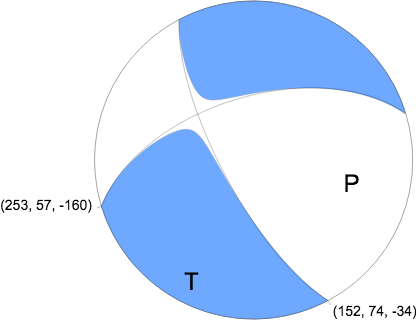

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

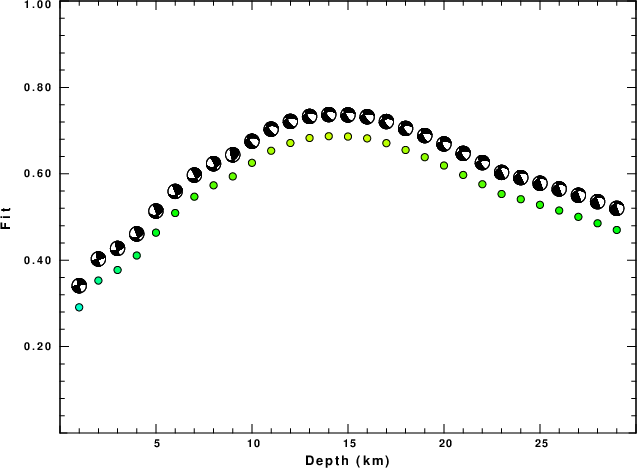

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

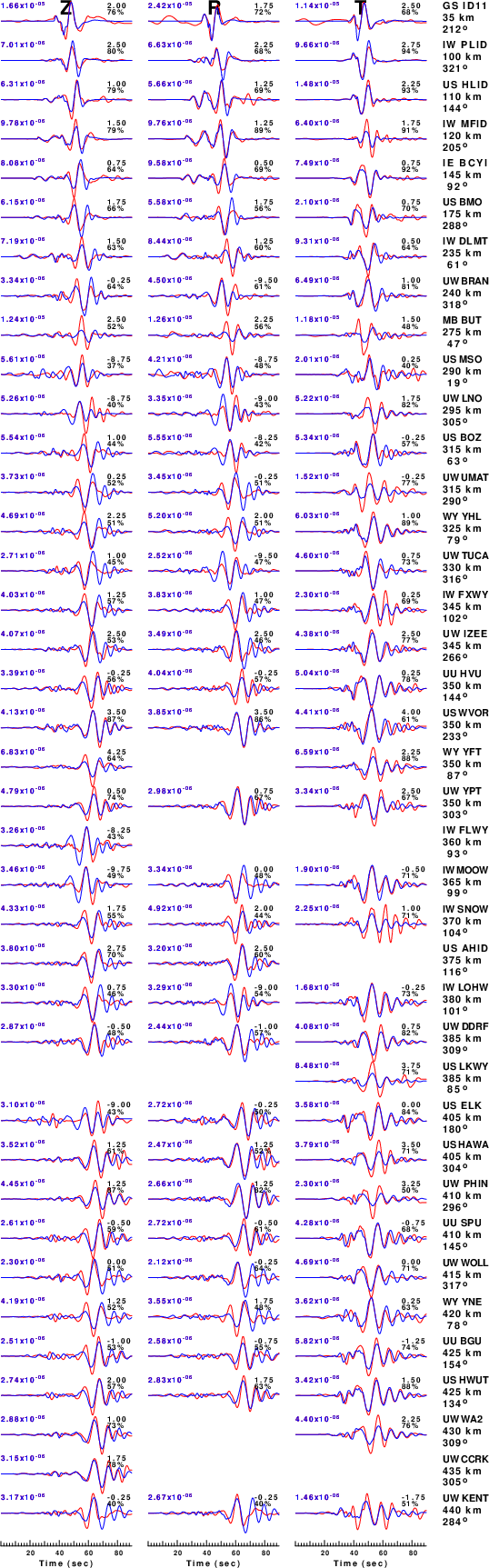

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

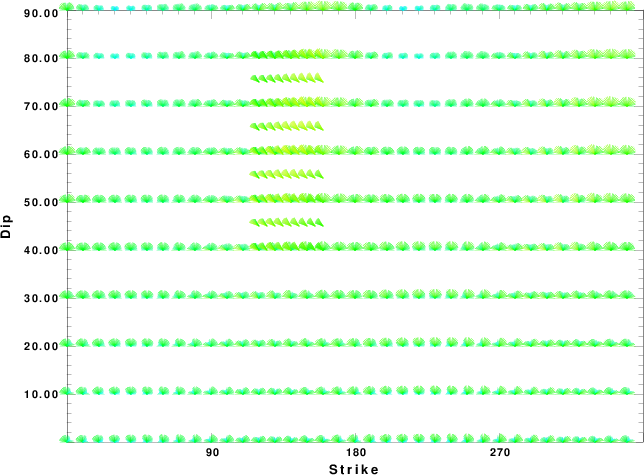

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

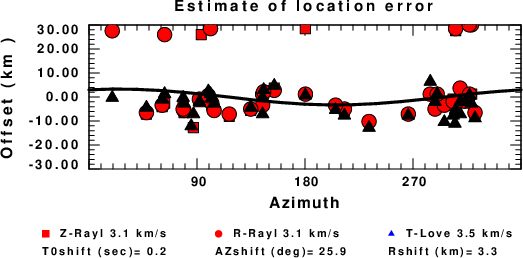

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
