Location

Location ANSS

The ANSS event ID is us6000a6ri and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us6000a6ri/executive.

2020/06/05 18:36:43 44.484 -115.168 13.3 3.8 Idaho

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/06/05 18:36:43:0  44.48 -115.17  13.3 3.8 Idaho

 Stations used:
   IE.BCYI IW.DLMT IW.FLWY IW.LOHW IW.MFID IW.PLID US.BMO
   US.BOZ US.HAWA US.HLID US.HWUT US.MSO US.WVOR UU.BGU
   UW.BRAN UW.CCRK UW.DAVN UW.KENT UW.LNO UW.PHIN UW.UMAT
   UW.WA2 UW.WOLL UW.YPT WY.YHB WY.YNR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 4.95e+21 dyne-cm
  Mw = 3.73
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1      215    76   -159
   NP2      120    70   -15
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.95e+21      4     347
    N   0.00e+00     65     248
    P  -4.95e+21     24      79

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.51e+21
       Mxy    -1.89e+21
       Mxz    -3.23e+19
       Myy    -3.69e+21
       Myz    -1.91e+21
       Mzz    -8.24e+20




                     # T ##########
                 #####   ##############
              ########################----
             #######################-------
           ######################------------
          ######################--------------
         --###################-----------------
        ----################--------------------
        ------#############---------------   ---
       ---------##########---------------- P ----
       -----------######------------------   ----
       -------------###--------------------------
       ---------------#--------------------------
        -------------#####----------------------
        ------------#########-------------------
         ----------###############-------------
          --------#######################-----
           ------############################
             ----##########################
              --##########################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.24e+20  -3.23e+19   1.91e+21
 -3.23e+19   4.51e+21   1.89e+21
  1.91e+21   1.89e+21  -3.69e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200605183643/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 120
      DIP = 70
     RAKE = -15
       MW = 3.73
       HS = 14.0

The NDK file is 20200605183643.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

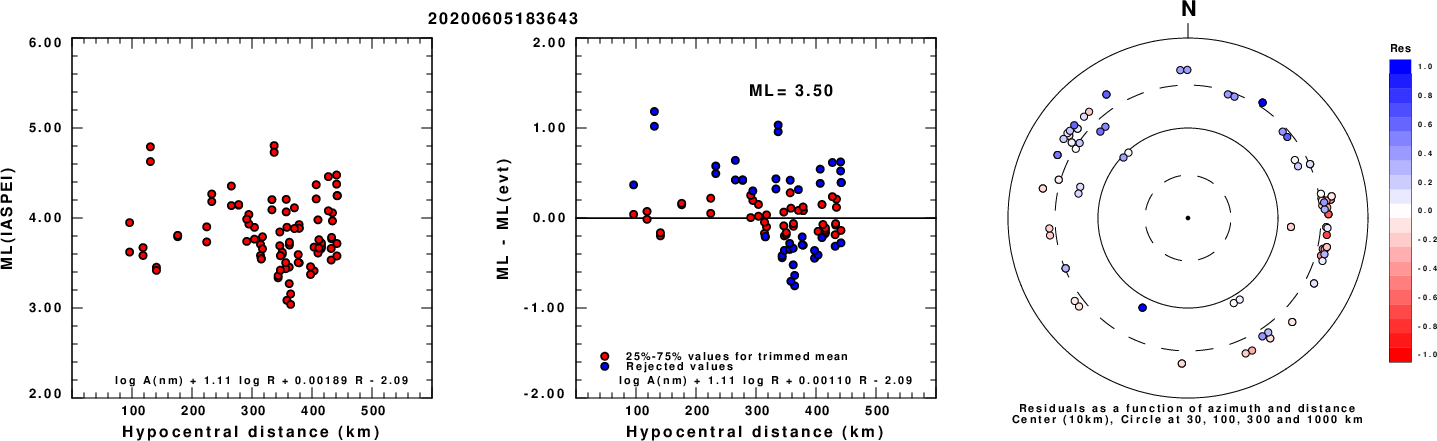

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

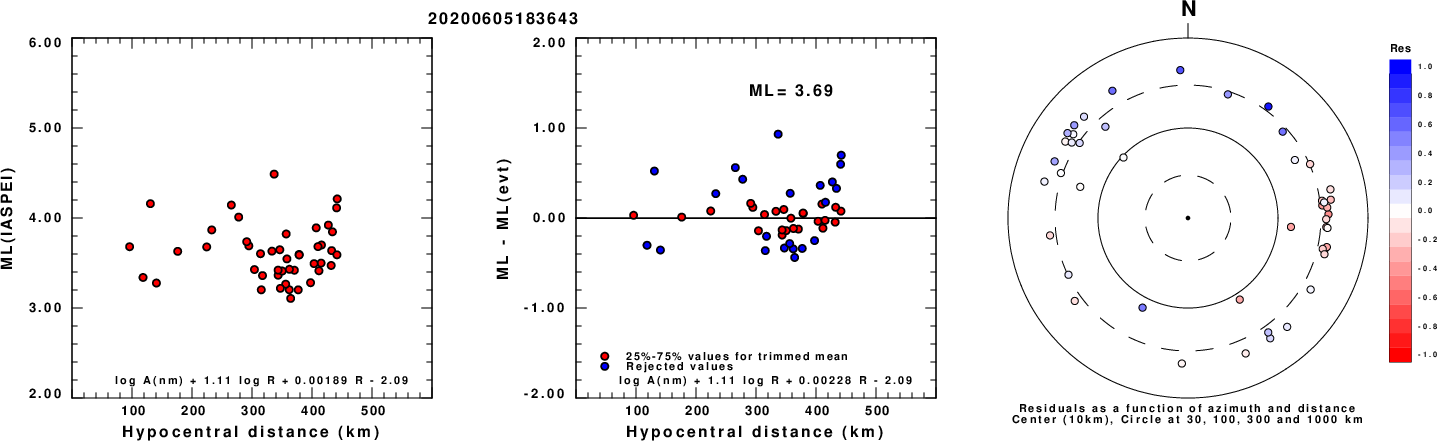

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

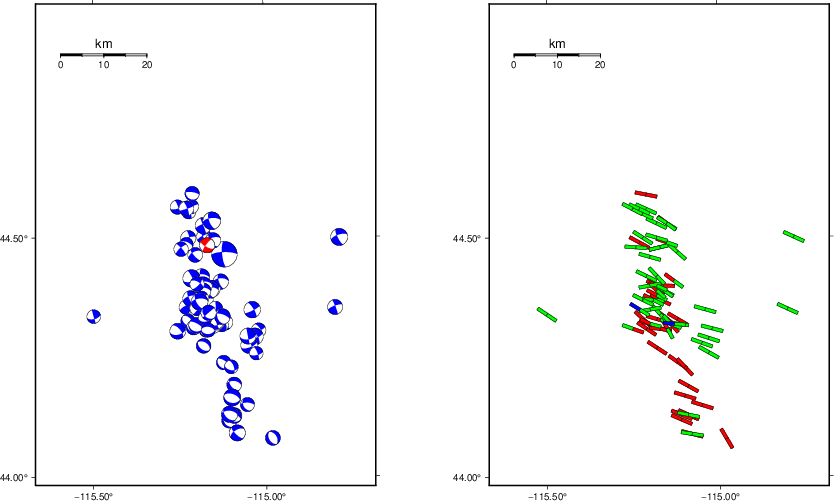

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

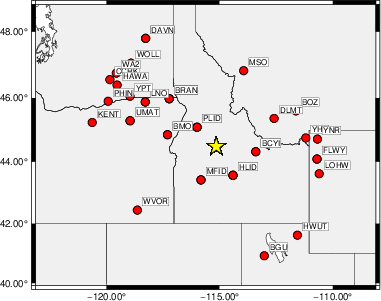

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   120    80   -10   3.28 0.3729
WVFGRD96    2.0   120    75   -15   3.40 0.4828
WVFGRD96    3.0   310    60    20   3.48 0.5168
WVFGRD96    4.0   310    65    20   3.50 0.5591
WVFGRD96    5.0   310    60    15   3.53 0.5916
WVFGRD96    6.0   310    65    15   3.56 0.6183
WVFGRD96    7.0   310    65    10   3.58 0.6394
WVFGRD96    8.0   310    65    15   3.62 0.6595
WVFGRD96    9.0   125    65     0   3.64 0.6733
WVFGRD96   10.0   125    65     0   3.66 0.6867
WVFGRD96   11.0   120    65   -15   3.68 0.6970
WVFGRD96   12.0   125    70    -5   3.69 0.7037
WVFGRD96   13.0   120    70   -15   3.72 0.7070
WVFGRD96   14.0   120    70   -15   3.73 0.7078
WVFGRD96   15.0   120    70   -15   3.74 0.7049
WVFGRD96   16.0   120    70   -15   3.76 0.6988
WVFGRD96   17.0   120    70   -15   3.77 0.6897
WVFGRD96   18.0   120    70   -15   3.78 0.6787
WVFGRD96   19.0   120    70   -15   3.78 0.6665
WVFGRD96   20.0   120    70   -15   3.79 0.6522
WVFGRD96   21.0   120    70   -15   3.80 0.6363
WVFGRD96   22.0   120    70   -15   3.81 0.6199
WVFGRD96   23.0   120    70   -15   3.81 0.6025
WVFGRD96   24.0   120    70   -15   3.82 0.5842
WVFGRD96   25.0   120    70   -15   3.82 0.5657
WVFGRD96   26.0   120    70   -15   3.82 0.5470
WVFGRD96   27.0   120    75   -20   3.83 0.5279
WVFGRD96   28.0   120    75   -25   3.84 0.5098
WVFGRD96   29.0   120    75   -25   3.84 0.4914

The best solution is

WVFGRD96   14.0   120    70   -15   3.73 0.7078

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

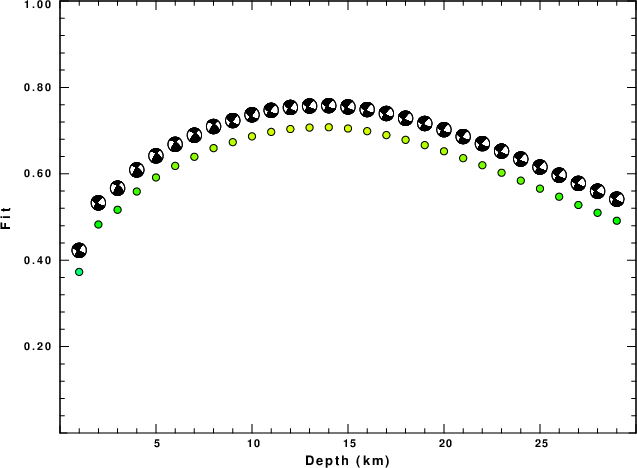

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

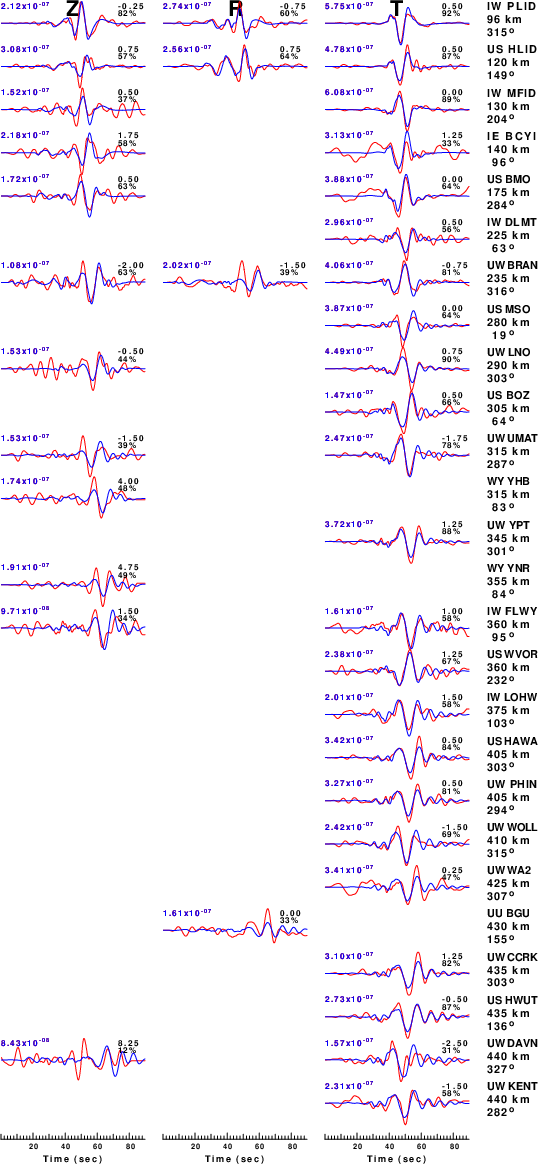

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

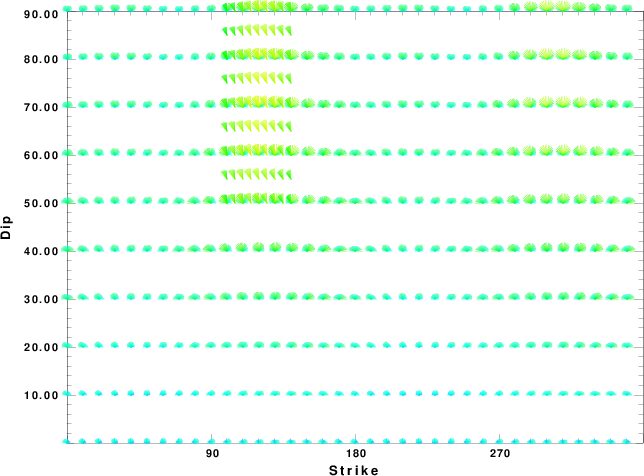

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

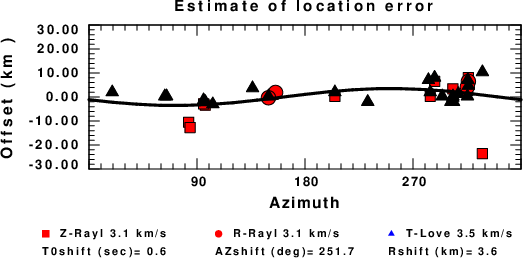

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 05:26:39 PM CDT 2024
