Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is ok2020kefy and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ok2020kefy/executive.
2020/05/24 14:53:59 36.364 -98.159 7.9 3.87 Oklahoma

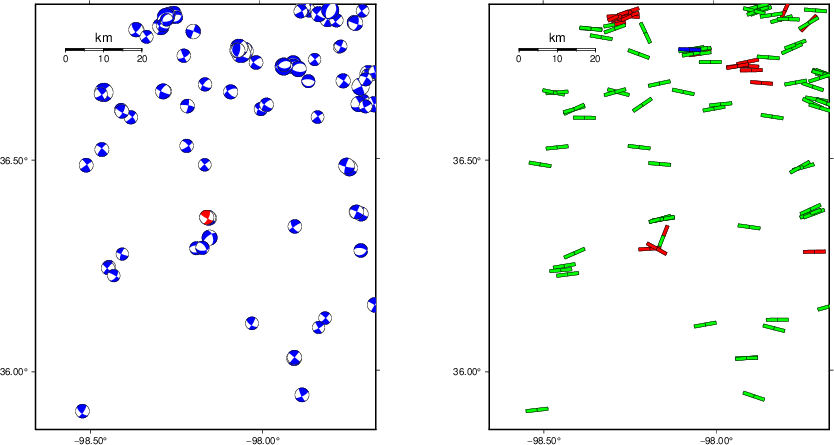

USGS/SLU Moment Tensor Solution
ENS 2020/05/24 14:53:59:0 36.36 -98.16 7.9 3.9 Oklahoma
Stations used:
GS.OK038 GS.OK052 N4.T35B N4.TUL3 N4.U38B O2.ARC2 O2.CALT
O2.CHAN O2.CRES O2.DRUM O2.DUST O2.ERNS O2.FW03 O2.FW06
O2.MRSH O2.PERK O2.PERY O2.SC15 O2.SC16 O2.SC19 O2.SC20
O2.SMNL O2.STIG OK.CROK OK.CSTR OK.FNO OK.HTCH OK.NOKA
OK.W35A TX.APMT TX.DKNS TX.DRZT TX.PLPT TX.RTBA US.CBKS
US.KSU1 US.WMOK
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.85e+21 dyne-cm
Mw = 3.57
Z = 5 km
Plane Strike Dip Rake
NP1 120 80 20
NP2 26 70 169
Principal Axes:
Axis Value Plunge Azimuth
T 2.85e+21 21 345
N 0.00e+00 68 146
P -2.85e+21 7 252
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.03e+21
Mxy -1.46e+21
Mxz 1.03e+21
Myy -2.37e+21
Myz 5.53e+19
Mzz 3.34e+20
##############
##### ############--
######## T ############-----
######### ############------
##########################--------
###########################---------
---########################-----------
------######################------------
--------###################-------------
------------################--------------
---------------############---------------
------------------########----------------
---------------------####-----------------
-------------------------------------
P -------------------#####-------------
------------------##########--------
------------------#################-
---------------###################
------------##################
---------###################
---###################
##############
Global CMT Convention Moment Tensor:
R T P
3.34e+20 1.03e+21 -5.53e+19
1.03e+21 2.03e+21 1.46e+21
-5.53e+19 1.46e+21 -2.37e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200524145359/index.html
|
STK = 120
DIP = 80
RAKE = 20
MW = 3.57
HS = 5.0
The NDK file is 20200524145359.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

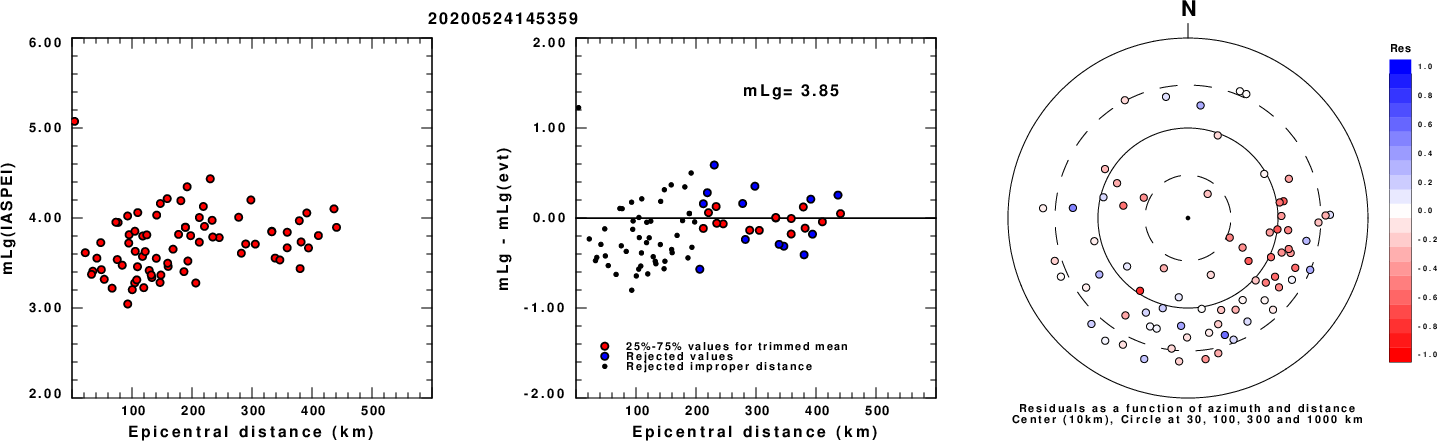

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

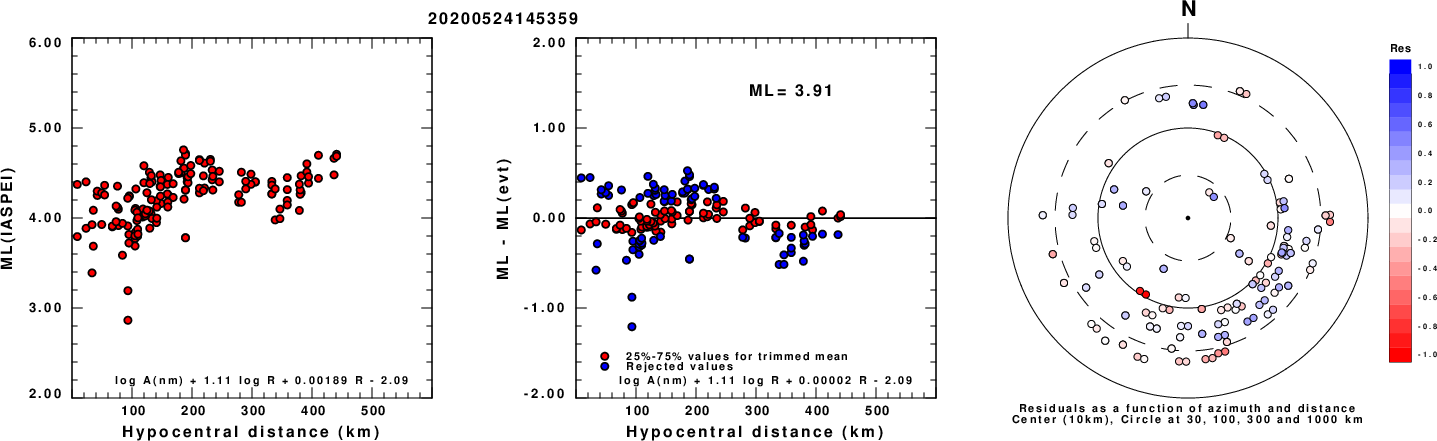

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

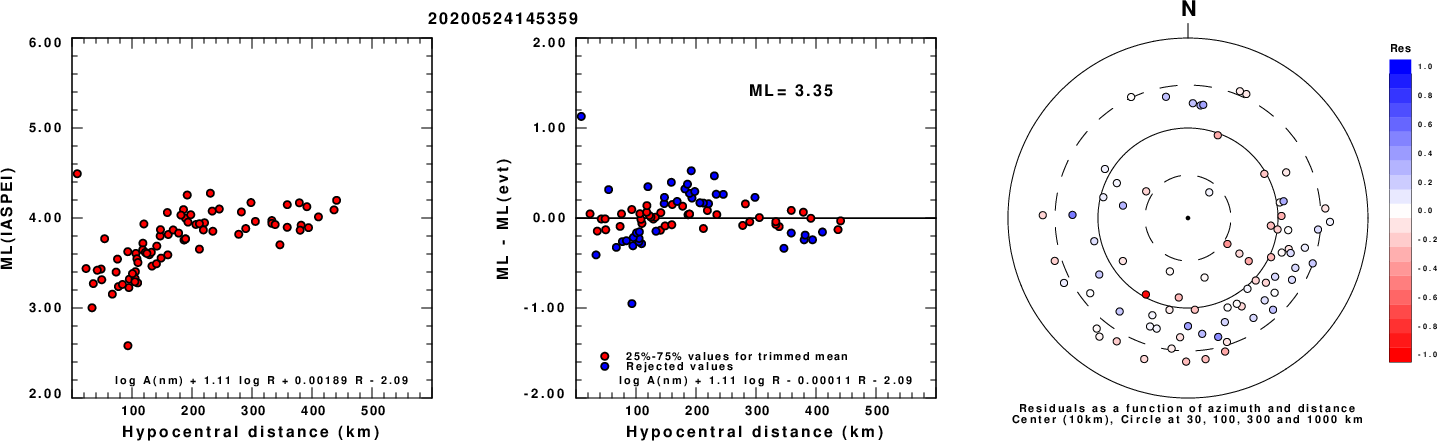

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

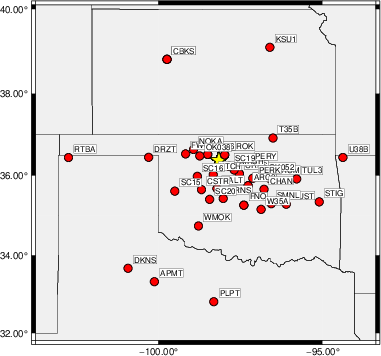

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 115 85 -5 3.28 0.4052
WVFGRD96 2.0 115 80 -10 3.43 0.5149
WVFGRD96 3.0 115 90 20 3.49 0.5464
WVFGRD96 4.0 120 80 20 3.54 0.5608
WVFGRD96 5.0 120 80 20 3.57 0.5669
WVFGRD96 6.0 120 80 25 3.62 0.5647
WVFGRD96 7.0 120 80 30 3.66 0.5563
WVFGRD96 8.0 120 80 35 3.70 0.5411
WVFGRD96 9.0 120 80 40 3.74 0.5242
WVFGRD96 10.0 120 80 40 3.76 0.5060
WVFGRD96 11.0 125 75 45 3.80 0.4872
WVFGRD96 12.0 120 80 30 3.77 0.4677
WVFGRD96 13.0 120 80 30 3.78 0.4486
WVFGRD96 14.0 120 80 30 3.79 0.4299
WVFGRD96 15.0 295 75 -20 3.78 0.4145
WVFGRD96 16.0 295 75 -20 3.79 0.3984
WVFGRD96 17.0 295 75 -20 3.80 0.3825
WVFGRD96 18.0 295 75 -10 3.79 0.3682
WVFGRD96 19.0 295 70 -10 3.80 0.3547
WVFGRD96 20.0 300 75 5 3.80 0.3426
WVFGRD96 21.0 300 70 5 3.81 0.3327
WVFGRD96 22.0 300 70 10 3.82 0.3242
WVFGRD96 23.0 300 70 10 3.82 0.3164
WVFGRD96 24.0 300 70 10 3.82 0.3102
WVFGRD96 25.0 205 75 -15 3.83 0.3124
WVFGRD96 26.0 205 75 -15 3.84 0.3177
WVFGRD96 27.0 205 75 -15 3.84 0.3220
WVFGRD96 28.0 210 75 5 3.85 0.3269
WVFGRD96 29.0 210 80 5 3.85 0.3306
The best solution is
WVFGRD96 5.0 120 80 20 3.57 0.5669
The mechanism corresponding to the best fit is
|
|
|

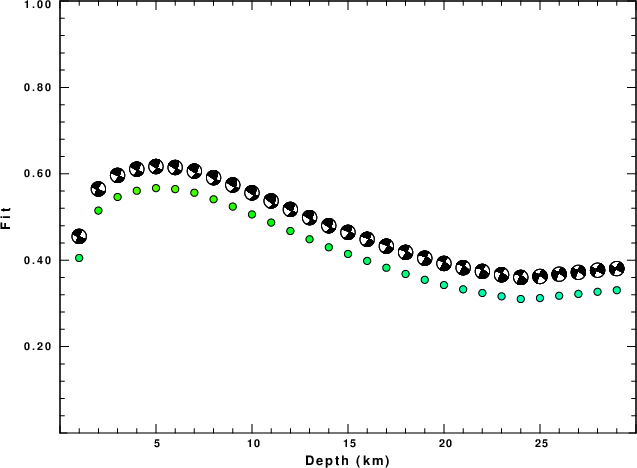

The best fit as a function of depth is given in the following figure:
|
|
|

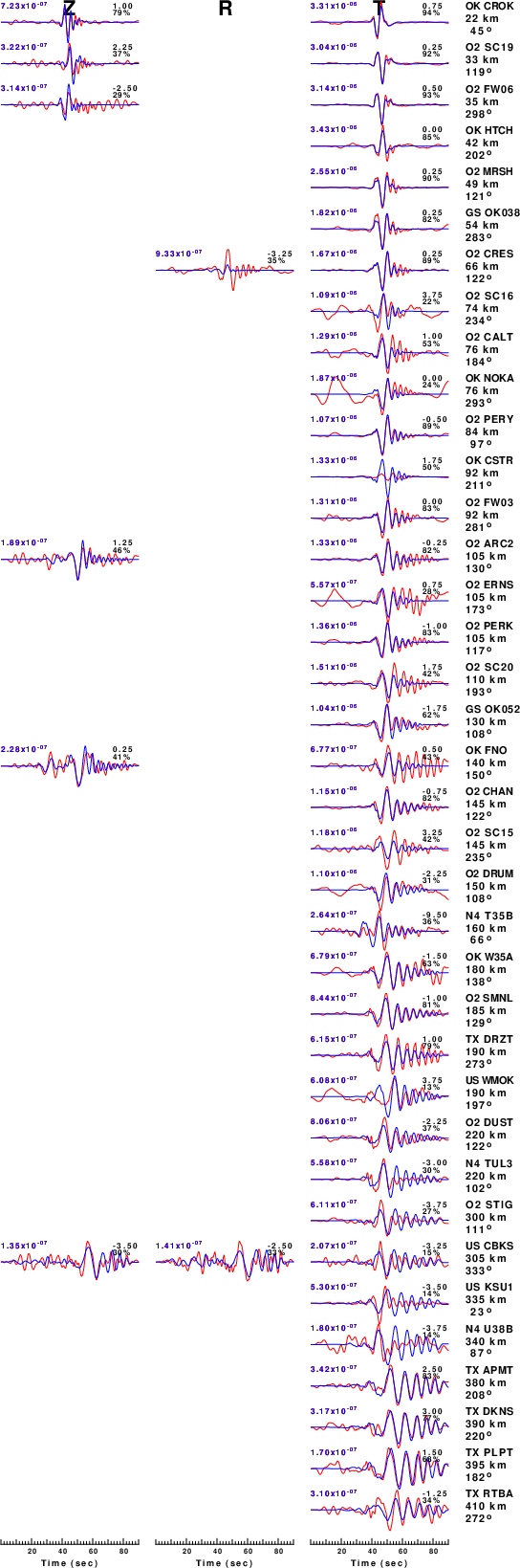

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

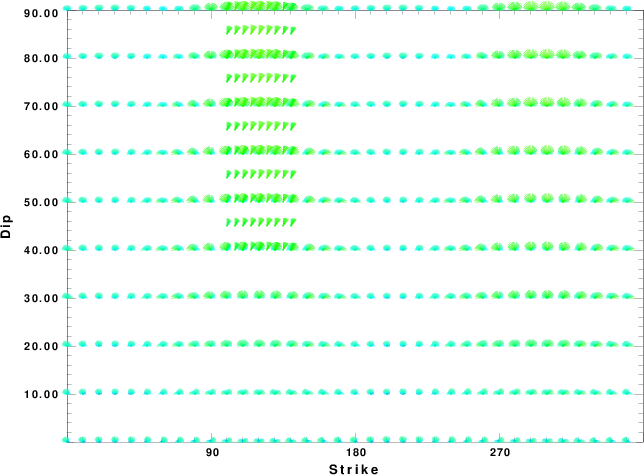

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

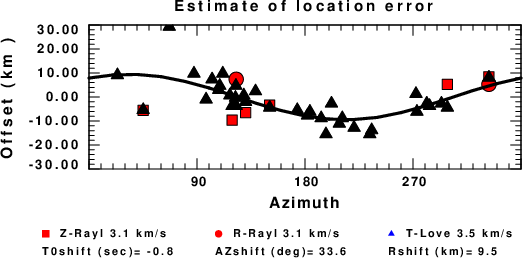

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
