The ANSS event ID is nn00728546 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00728546/executive.

2020/05/19 09:08:33 38.178 -117.802 10.5 4.3 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/05/19 09:08:33:0  38.18 -117.80  10.5 4.3 Nevada

 Stations used:
   BK.OVRO BK.WELL CI.BFS CI.CCC CI.CLC CI.FUR CI.GRA CI.GSC
   CI.HAR CI.ISA CI.LRL CI.LUC2 CI.OSI CI.RAG CI.TPO GS.MCA04
   IM.NV31 LB.TPH NC.MDPB NN.BEK NN.CMK6 NN.DSP NN.GMN NN.KVN
   NN.LHV NN.MPK NN.PAH NN.PIO NN.PNT NN.Q09A NN.REDF NN.SHP
   NN.WAK NN.WDEM NN.WLDB SN.HEL US.ELK US.TPNV UU.LCMT
   UU.PSUT UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 9.55e+21 dyne-cm
  Mw = 3.92
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1      255    80   -15
   NP2      348    75   -170
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.55e+21      3     302
    N   0.00e+00     72      42
    P  -9.55e+21     18     211

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.75e+21
       Mxy    -8.08e+21
       Mxz     2.66e+21
       Myy     4.60e+21
       Myz     9.46e+20
       Mzz    -8.45e+20




                     ###-----------
                 ########--------------
              #############---------------
             ##############----------------
            ################-----------------
          T #################-----------------
            ##################-----------------
        ######################------------------
        #######################------###########
       #####################---##################
       ###############----------#################
       ##########---------------#################
       ######-------------------#################
        #------------------------###############
        -------------------------###############
         ------------------------##############
          -----------------------#############
           ----------------------############
             -----   ------------##########
              ---- P ------------#########
                 -   ------------######
                     ------------##



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.45e+20   2.66e+21  -9.46e+20
  2.66e+21  -3.75e+21   8.08e+21
 -9.46e+20   8.08e+21   4.60e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200519090833/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 255
      DIP = 80
     RAKE = -15
       MW = 3.92
       HS = 13.0

The NDK file is 20200519090833.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

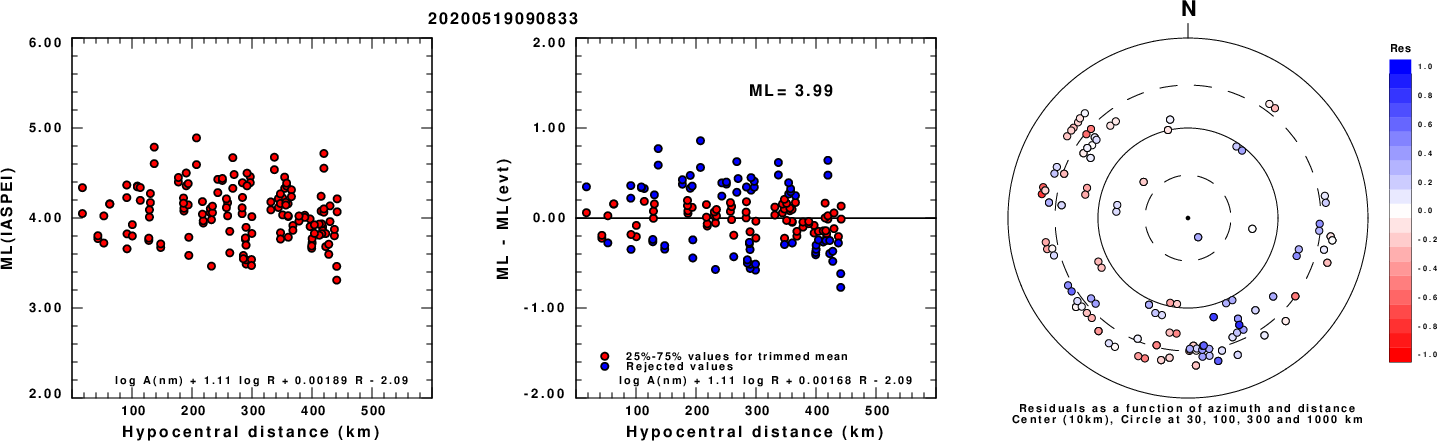

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

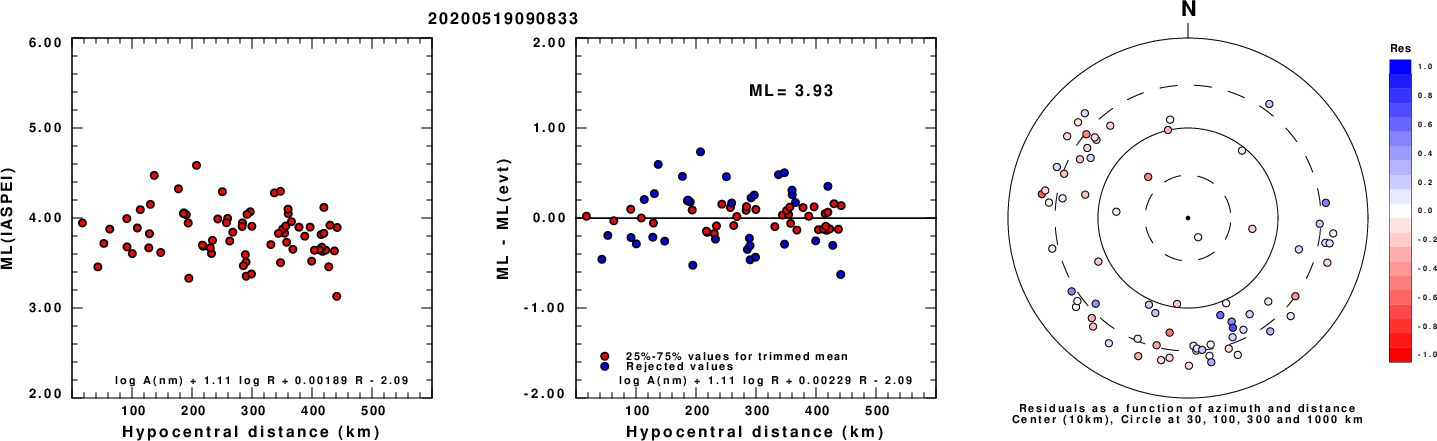

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

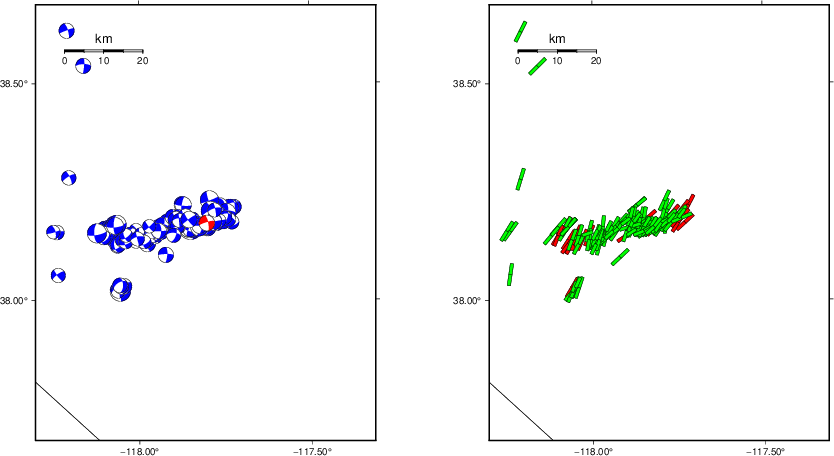

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

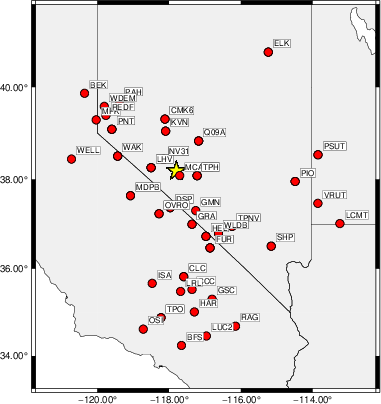

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    75    90     5   3.43 0.2770
WVFGRD96    2.0    80    85    15   3.57 0.3663
WVFGRD96    3.0   260    75    20   3.63 0.4017
WVFGRD96    4.0   265    70    30   3.69 0.4359
WVFGRD96    5.0   255    85   -35   3.73 0.4784
WVFGRD96    6.0   255    80   -30   3.75 0.5257
WVFGRD96    7.0   255    75   -25   3.79 0.5689
WVFGRD96    8.0   250    70   -30   3.84 0.6064
WVFGRD96    9.0   255    75   -25   3.86 0.6362
WVFGRD96   10.0   255    75   -20   3.87 0.6569
WVFGRD96   11.0   255    80   -20   3.89 0.6711
WVFGRD96   12.0   255    80   -20   3.90 0.6784
WVFGRD96   13.0   255    80   -15   3.92 0.6808
WVFGRD96   14.0    75    90    15   3.93 0.6750
WVFGRD96   15.0    75    90    15   3.94 0.6706
WVFGRD96   16.0    75    90    10   3.95 0.6634
WVFGRD96   17.0   255    85   -15   3.96 0.6570
WVFGRD96   18.0   255    85   -15   3.97 0.6463
WVFGRD96   19.0    75    90    10   3.97 0.6315
WVFGRD96   20.0    75    90    10   3.98 0.6187
WVFGRD96   21.0    75    90    10   3.99 0.6049
WVFGRD96   22.0    75    90    10   3.99 0.5911
WVFGRD96   23.0    75    90    10   4.00 0.5774
WVFGRD96   24.0    75    90    10   4.00 0.5639
WVFGRD96   25.0    75    90    10   4.01 0.5504
WVFGRD96   26.0   255    90   -10   4.01 0.5364
WVFGRD96   27.0    75    90    10   4.01 0.5223
WVFGRD96   28.0    80    85    10   4.02 0.5093
WVFGRD96   29.0    80    85    10   4.02 0.4959

The best solution is

WVFGRD96   13.0   255    80   -15   3.92 0.6808

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

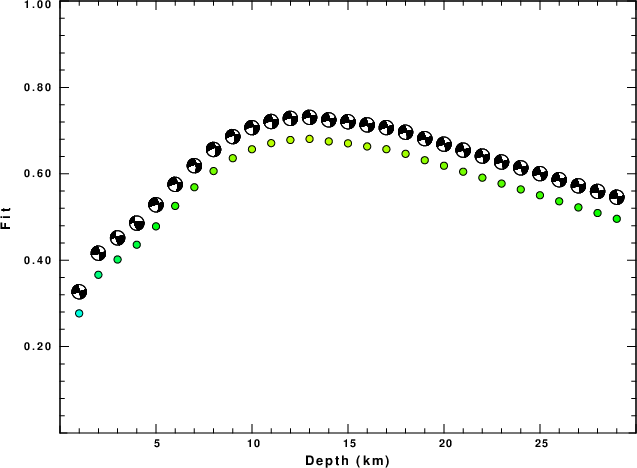

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

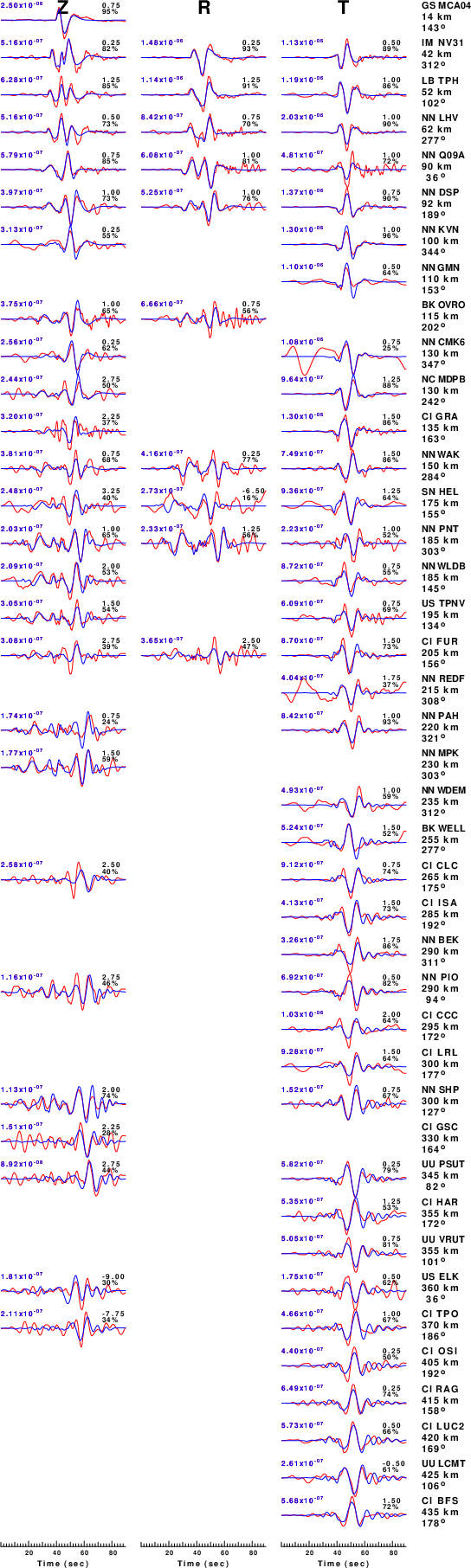

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

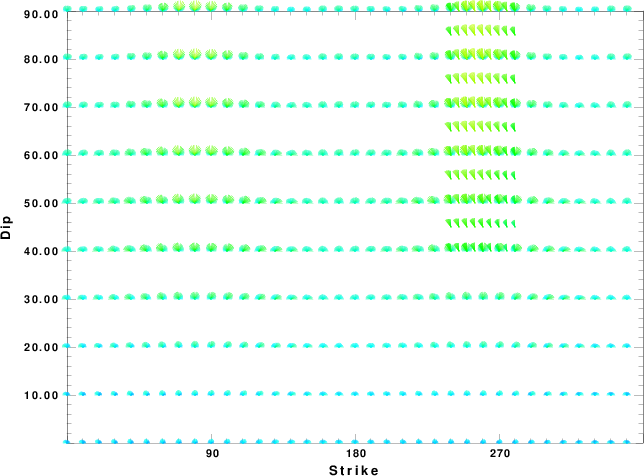

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

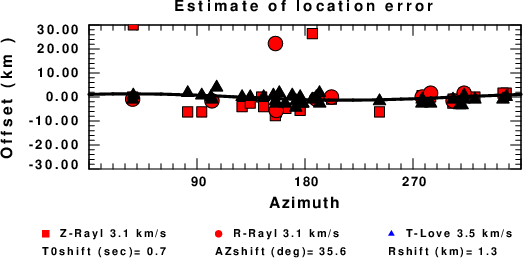

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 04:12:27 PM CDT 2024
