Location ANSS

The ANSS event ID is ak020lj73yv and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak020lj73yv/executive.

2020/01/13 02:03:42 61.641 -147.909 25.8 3.8 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/01/13 02:03:42:0  61.64 -147.91  25.8 3.8 Alaska

 Stations used:
   AK.CUT AK.EYAK AK.GHO AK.GLI AK.HIN AK.KLU AK.KNK AK.L22K
   AK.PAX AK.RC01 AK.SAW AK.SCM AK.SKN AK.SSN AT.PMR TA.M22K
   TA.M24K TA.N25K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 4.47e+21 dyne-cm
  Mw = 3.70
  Z  = 30 km
  Plane   Strike  Dip  Rake
   NP1      343    69   -148
   NP2      240    60   -25
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.47e+21      5     110
    N   0.00e+00     52      13
    P  -4.47e+21     38     204

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.81e+21
       Mxy    -2.46e+21
       Mxz     1.83e+21
       Myy     3.44e+21
       Myz     1.28e+21
       Mzz    -1.63e+21




                     ##------------
                 ########--------------
              ############----------------
             ###############---------------
           ##################----------------
          ####################---#############
         ###################---################
        ################-------#################
        #############-----------################
       ############--------------################
       ##########----------------################
       ########-------------------###############
       ######---------------------###############
        ####-----------------------##########
        ###------------------------########## T
         ##------------------------##########
          -----------   -----------###########
           ---------- P -----------##########
             --------   -----------########
              ---------------------#######
                 ------------------####
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.63e+21   1.83e+21  -1.28e+21
  1.83e+21  -1.81e+21   2.46e+21
 -1.28e+21   2.46e+21   3.44e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200113020342/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 240
      DIP = 60
     RAKE = -25
       MW = 3.70
       HS = 30.0

The NDK file is 20200113020342.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

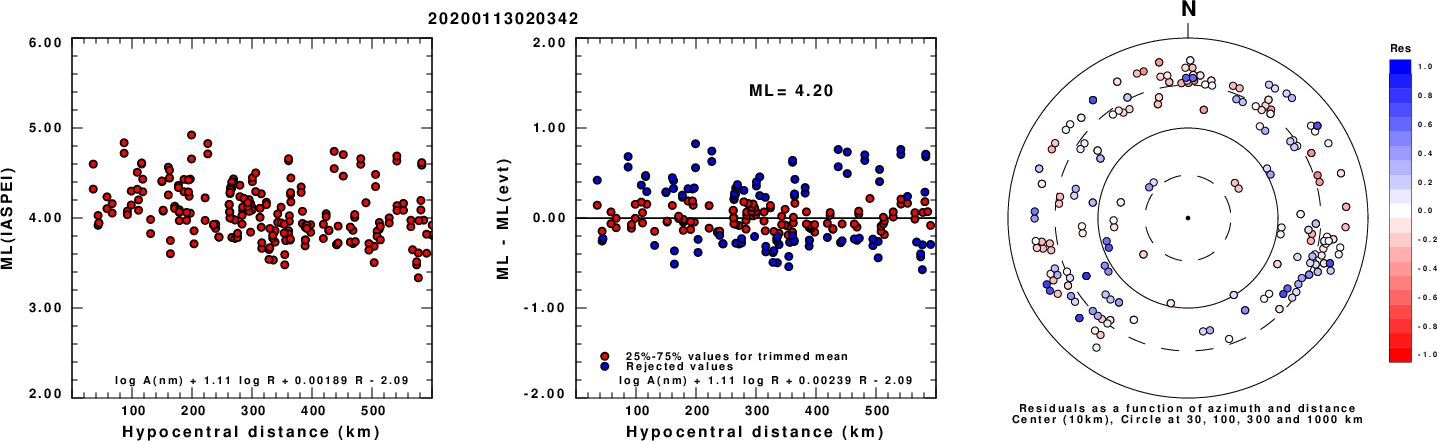

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

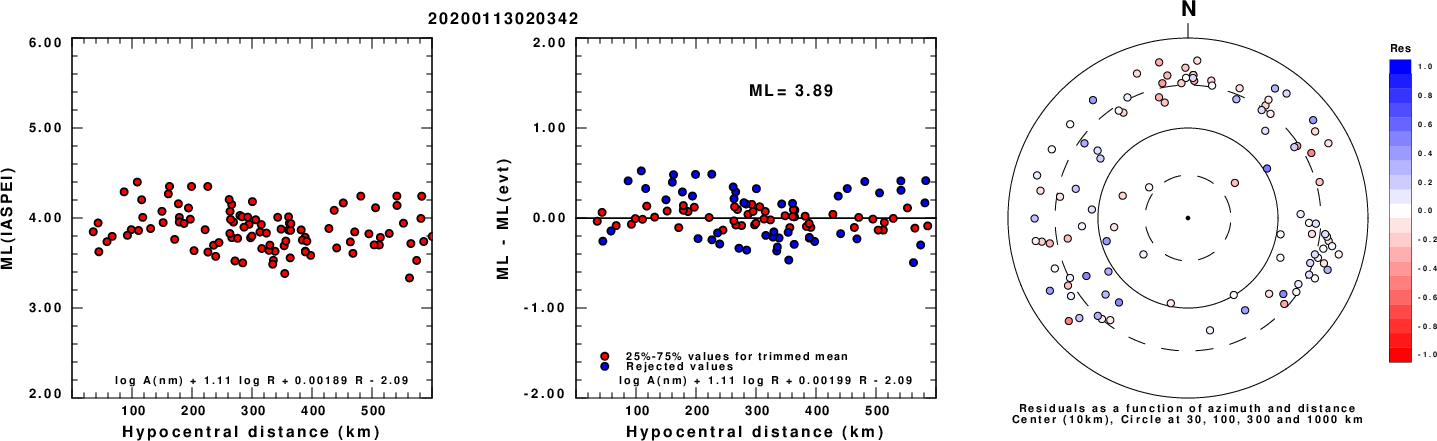

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   250    80     0   3.22 0.3970
WVFGRD96    4.0   245    70   -10   3.34 0.5032
WVFGRD96    6.0   245    60    10   3.40 0.5524
WVFGRD96    8.0   260    50    50   3.53 0.5968
WVFGRD96   10.0   255    50    45   3.53 0.6084
WVFGRD96   12.0   240    65   -25   3.53 0.6144
WVFGRD96   14.0   240    65   -20   3.55 0.6292
WVFGRD96   16.0   240    65   -20   3.57 0.6392
WVFGRD96   18.0   240    65   -20   3.59 0.6485
WVFGRD96   20.0   240    60   -20   3.60 0.6560
WVFGRD96   22.0   240    60   -20   3.63 0.6633
WVFGRD96   24.0   240    60   -15   3.64 0.6704
WVFGRD96   26.0   240    65   -25   3.67 0.6762
WVFGRD96   28.0   240    60   -25   3.68 0.6863
WVFGRD96   30.0   240    60   -25   3.70 0.6936
WVFGRD96   32.0   240    60   -25   3.72 0.6930
WVFGRD96   34.0   240    60   -20   3.73 0.6875
WVFGRD96   36.0   240    55   -20   3.74 0.6828
WVFGRD96   38.0   245    60   -20   3.77 0.6802
WVFGRD96   40.0   240    50   -20   3.85 0.6893
WVFGRD96   42.0   240    50   -20   3.87 0.6910
WVFGRD96   44.0   240    50   -20   3.89 0.6892
WVFGRD96   46.0   240    50   -20   3.90 0.6855
WVFGRD96   48.0   240    50   -20   3.92 0.6805
WVFGRD96   50.0   240    50   -20   3.93 0.6753
WVFGRD96   52.0   240    50   -20   3.94 0.6695
WVFGRD96   54.0   240    50   -20   3.96 0.6609
WVFGRD96   56.0   240    50   -20   3.97 0.6540
WVFGRD96   58.0   240    50   -20   3.98 0.6474
WVFGRD96   60.0   240    50   -20   3.99 0.6402
WVFGRD96   62.0   245    55   -10   3.99 0.6344
WVFGRD96   64.0   245    55    -5   3.99 0.6289
WVFGRD96   66.0   245    55    -5   4.00 0.6245
WVFGRD96   68.0   245    55     0   4.01 0.6194
WVFGRD96   70.0   245    55     0   4.02 0.6167
WVFGRD96   72.0   245    60     0   4.02 0.6136
WVFGRD96   74.0   245    60     0   4.02 0.6115
WVFGRD96   76.0   245    60     0   4.03 0.6076
WVFGRD96   78.0   245    60     0   4.04 0.6018
WVFGRD96   80.0   245    60    -5   4.04 0.5967
WVFGRD96   82.0   245    65    -5   4.04 0.5878
WVFGRD96   84.0   245    65    -5   4.05 0.5769
WVFGRD96   86.0   240    65    -5   4.04 0.5527
WVFGRD96   88.0   245    70    -5   4.04 0.5249
WVFGRD96   90.0   245    75    -5   4.04 0.5100
WVFGRD96   92.0   245    75    -5   4.04 0.4967
WVFGRD96   94.0   245    80    -5   4.04 0.4830
WVFGRD96   96.0   245    80    -5   4.04 0.4632
WVFGRD96   98.0    85    50    30   4.05 0.4526

The best solution is

WVFGRD96   30.0   240    60   -25   3.70 0.6936

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

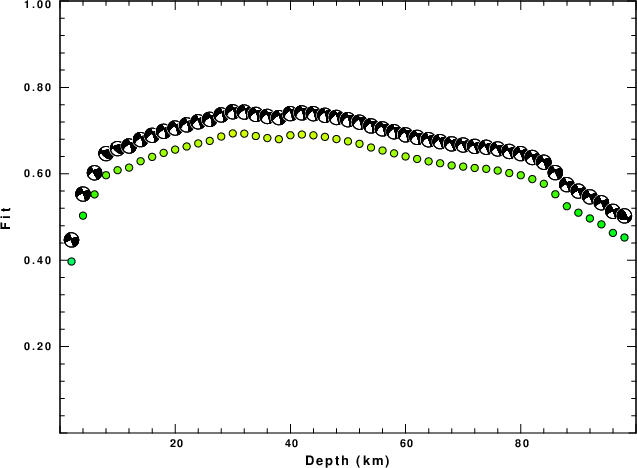

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

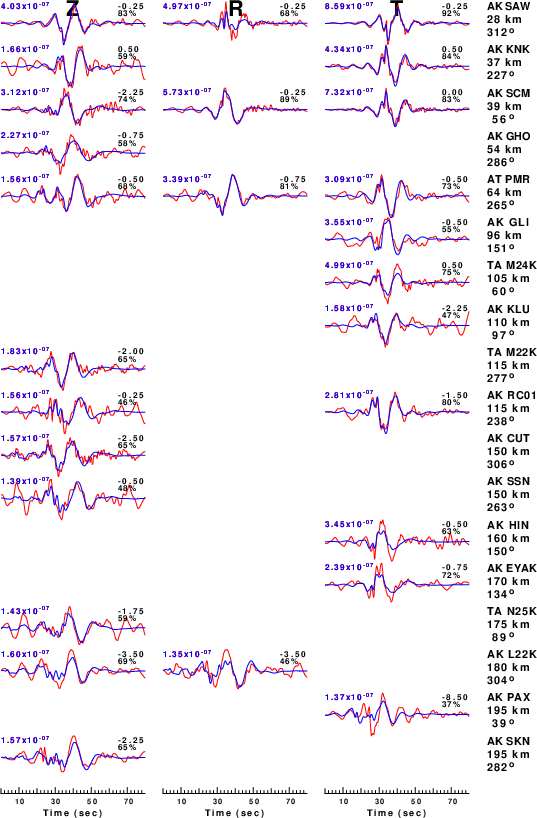

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

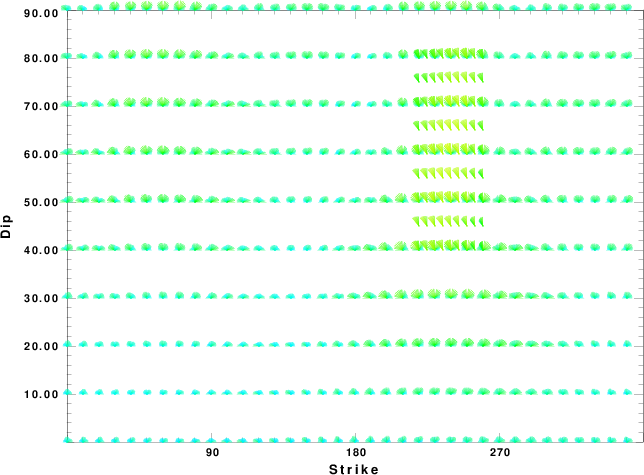

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

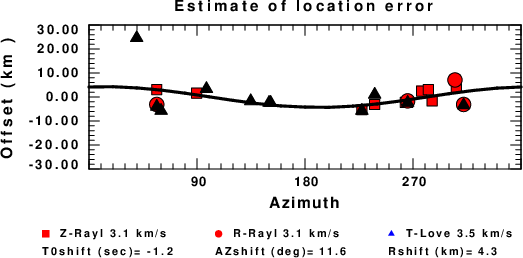

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 08:51:53 AM CDT 2024
