The ANSS event ID is pr2020012002 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/pr2020012002/executive.

2020/01/12 02:28:32 17.942 -66.834 7.0 3.81 Puerto Rico

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2020/01/12 02:28:32:0  17.94  -66.83   7.0 3.8 Puerto Rico

 Stations used:
   GS.PR04 IU.SJG PR.CRPR PR.ECPR PR.MLPR PR.OBIP PR.PRSN

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 8.61e+21 dyne-cm
  Mw = 3.89
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1      105    85   -15
   NP2      196    75   -175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.61e+21      7     152
    N   0.00e+00     74     267
    P  -8.61e+21     14      60

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.50e+21
       Mxy    -7.08e+21
       Mxz    -1.93e+21
       Myy    -4.12e+21
       Myz    -1.27e+21
       Mzz    -3.87e+20




                     ############--
                 ###############-------
              #################-----------
             #################-------------
           ##################----------------
          ##################--------------   -
         ##################--------------- P --
        ##################----------------   ---
        --###############-----------------------
       -------###########------------------------
       -------------####-------------------------
       -----------------###----------------------
       ----------------###########---------------
        ---------------####################-----
        ---------------#########################
         -------------#########################
          ------------########################
           -----------#######################
             ---------#####################
              --------##############   ###
                 -----############## T
                     -#############



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.87e+20  -1.93e+21   1.27e+21
 -1.93e+21   4.50e+21   7.08e+21
  1.27e+21   7.08e+21  -4.12e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200112022832/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 105
      DIP = 85
     RAKE = -15
       MW = 3.89
       HS = 14.0

The NDK file is 20200112022832.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

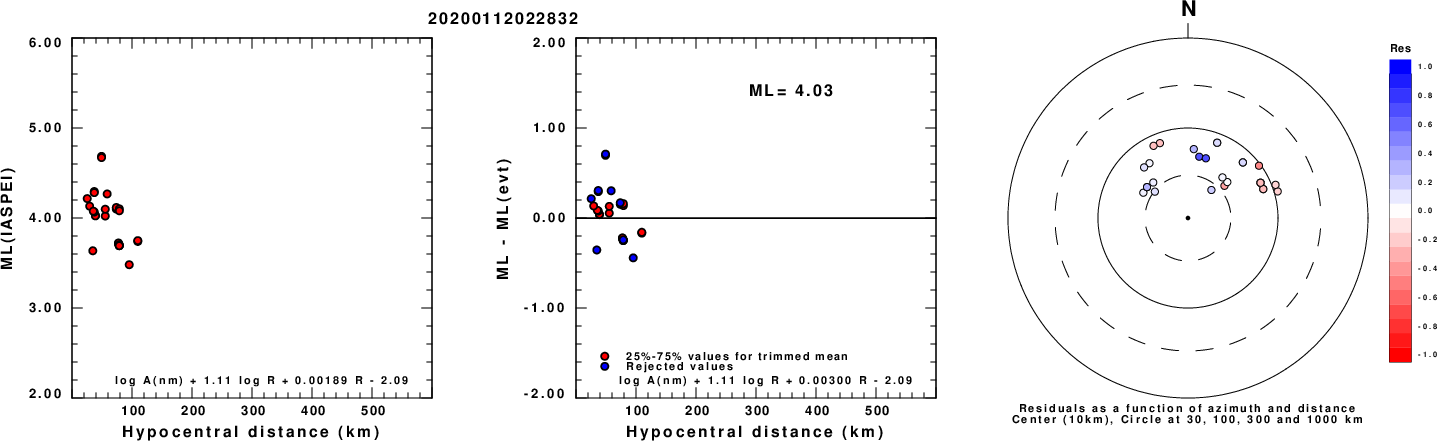

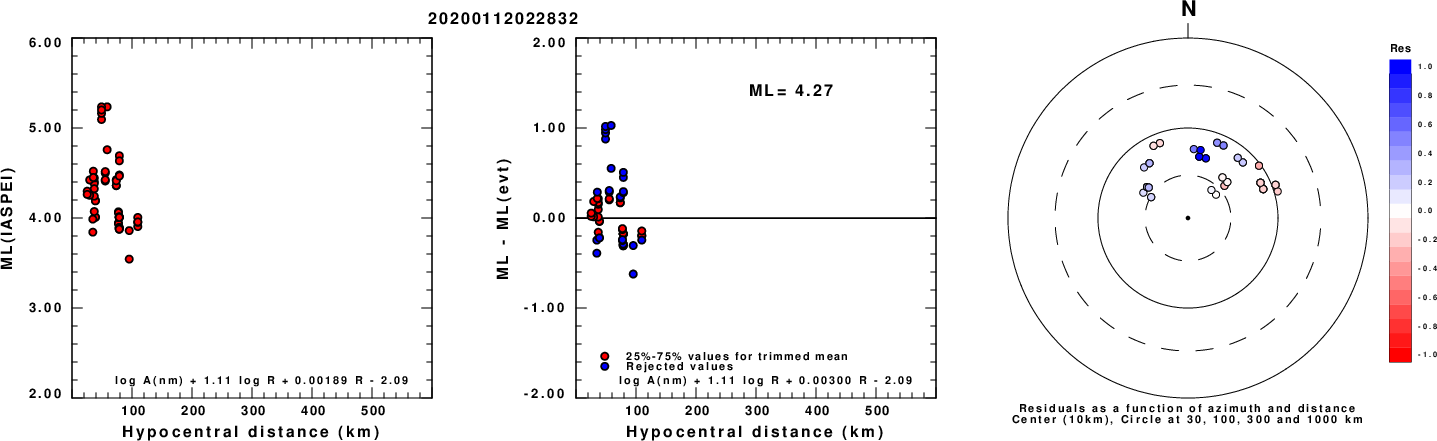

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

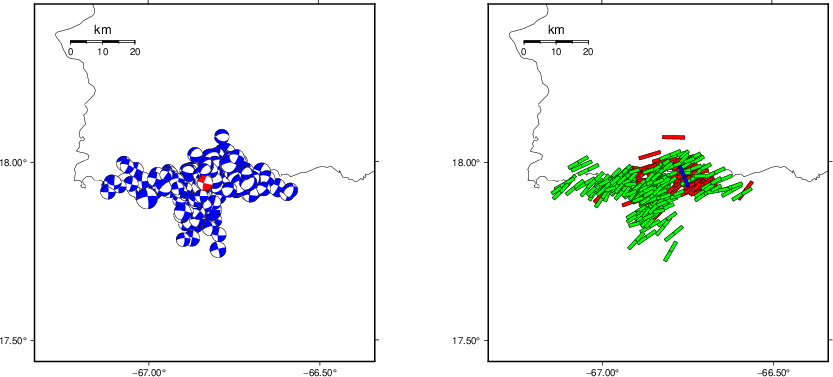

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

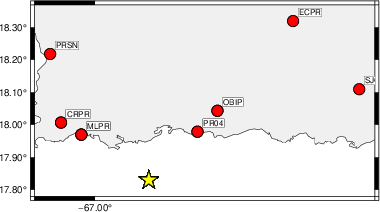

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   280    75    -5   3.35 0.2606
WVFGRD96    2.0   280    75    -5   3.53 0.3920
WVFGRD96    3.0   280    80    -5   3.61 0.4681
WVFGRD96    4.0   280    80    -5   3.66 0.5132
WVFGRD96    5.0   100    90    -5   3.71 0.5322
WVFGRD96    6.0   100    80   -10   3.74 0.5532
WVFGRD96    7.0   100    80   -10   3.78 0.5764
WVFGRD96    8.0   100    75   -10   3.82 0.6031
WVFGRD96    9.0   100    75   -10   3.84 0.6141
WVFGRD96   10.0   100    80   -15   3.86 0.6193
WVFGRD96   11.0   100    80   -15   3.87 0.6239
WVFGRD96   12.0   100    80   -15   3.89 0.6258
WVFGRD96   13.0   105    85   -15   3.88 0.6276
WVFGRD96   14.0   105    85   -15   3.89 0.6278
WVFGRD96   15.0   120    55    20   3.89 0.6238
WVFGRD96   16.0   120    55    20   3.90 0.6217
WVFGRD96   17.0   120    55    20   3.91 0.6172
WVFGRD96   18.0   120    55    20   3.93 0.6135
WVFGRD96   19.0   120    55    20   3.94 0.6084
WVFGRD96   20.0   120    55    20   3.95 0.6038
WVFGRD96   21.0   120    55    20   3.96 0.5964
WVFGRD96   22.0   120    55    20   3.97 0.5897
WVFGRD96   23.0   120    55    20   3.98 0.5796
WVFGRD96   24.0   115    60    15   3.99 0.5739
WVFGRD96   25.0   285    80    15   3.97 0.5757
WVFGRD96   26.0   285    80    20   3.98 0.5700
WVFGRD96   27.0   285    80    20   3.98 0.5667
WVFGRD96   28.0   285    80    15   3.99 0.5656
WVFGRD96   29.0   310    65    45   3.93 0.5571

The best solution is

WVFGRD96   14.0   105    85   -15   3.89 0.6278

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

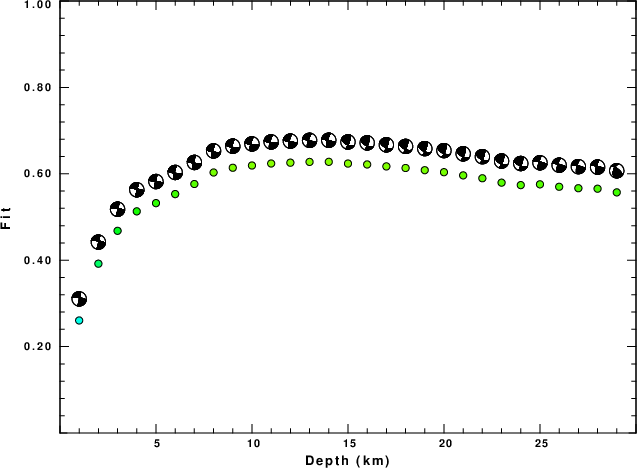

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

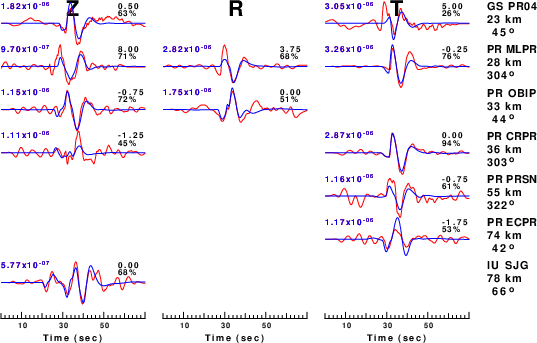

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

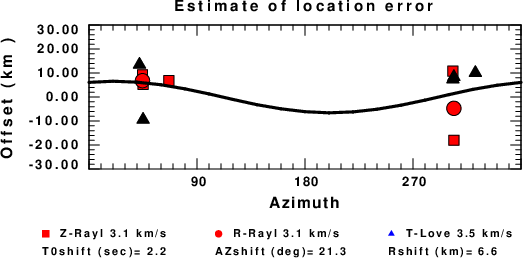

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
