Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is ak0206vaxyu and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0206vaxyu/executive.
2020/01/04 15:37:58 60.015 -139.210 3.1 3.5 Yukon
USGS/SLU Moment Tensor Solution
ENS 2020/01/04 15:37:58:0 60.01 -139.21 3.1 3.5 Yukon
Stations used:
AK.BARN AK.BCP AK.BESE AK.CTG AK.GLB AK.L26K AK.M26K
AK.M27K AK.MCAR AK.PIN AK.S31K AK.SSP AT.SKAG AT.YKU2
CN.HYT CN.WHY TA.L27K TA.L29M TA.M31M TA.N30M TA.N31M
TA.O28M TA.O29M TA.O30N TA.P32M TA.P33M
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 3.76e+21 dyne-cm
Mw = 3.65
Z = 9 km
Plane Strike Dip Rake
NP1 295 45 90
NP2 115 45 90
Principal Axes:
Axis Value Plunge Azimuth
T 3.76e+21 90 260
N 0.00e+00 -0 115
P -3.76e+21 -0 25
Moment Tensor: (dyne-cm)
Component Value
Mxx -3.09e+21
Mxy -1.44e+21
Mxz 9.98e+13
Myy -6.71e+20
Myz 1.75e+14
Mzz 3.76e+21
--------------
-------------------- P
----------------------- --
------------------------------
-----############-----------------
-######################-------------
###########################-----------
-##############################---------
--###############################-------
---################################-------
----############ ##################-----
-----########### T ###################----
-------######### ####################---
-------###############################--
---------##############################-
-----------###########################
-------------######################-
-----------------############-----
------------------------------
----------------------------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
3.76e+21 9.98e+13 -1.75e+14
9.98e+13 -3.09e+21 1.44e+21
-1.75e+14 1.44e+21 -6.71e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20200104153758/index.html
|
STK = 115
DIP = 45
RAKE = 90
MW = 3.65
HS = 9.0
The NDK file is 20200104153758.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

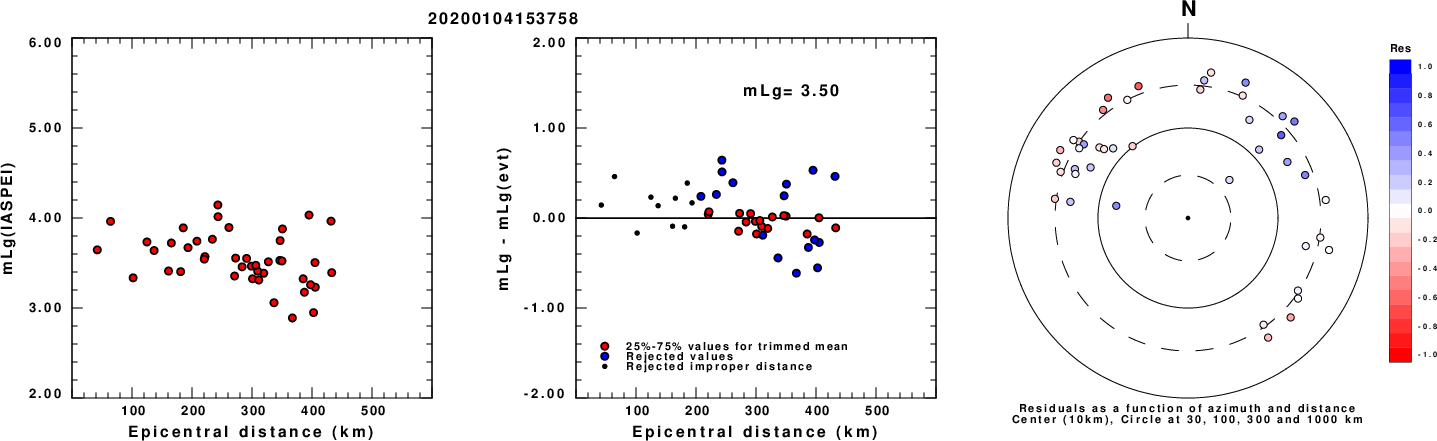

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

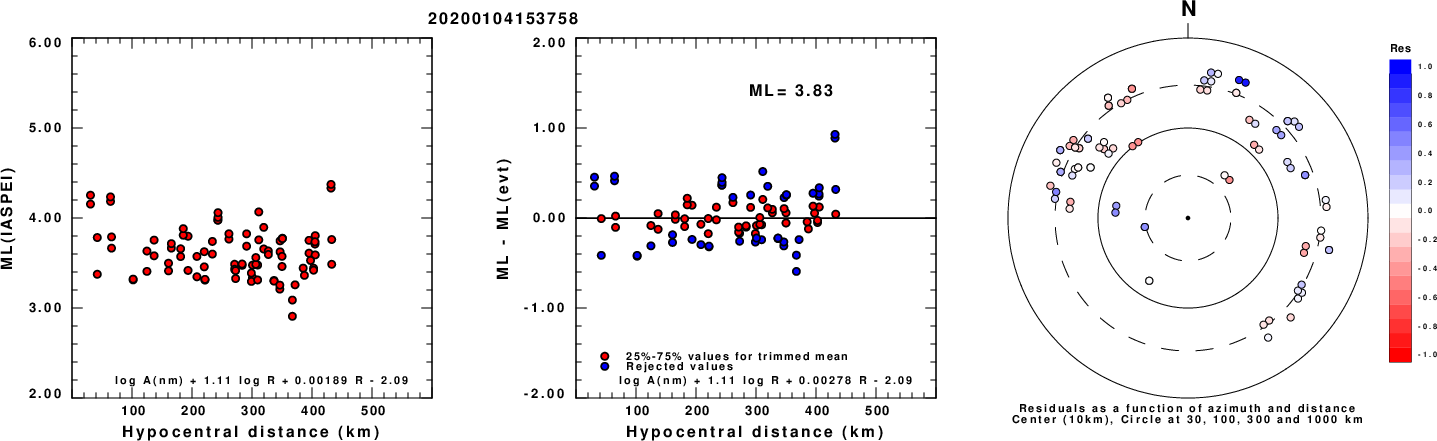

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

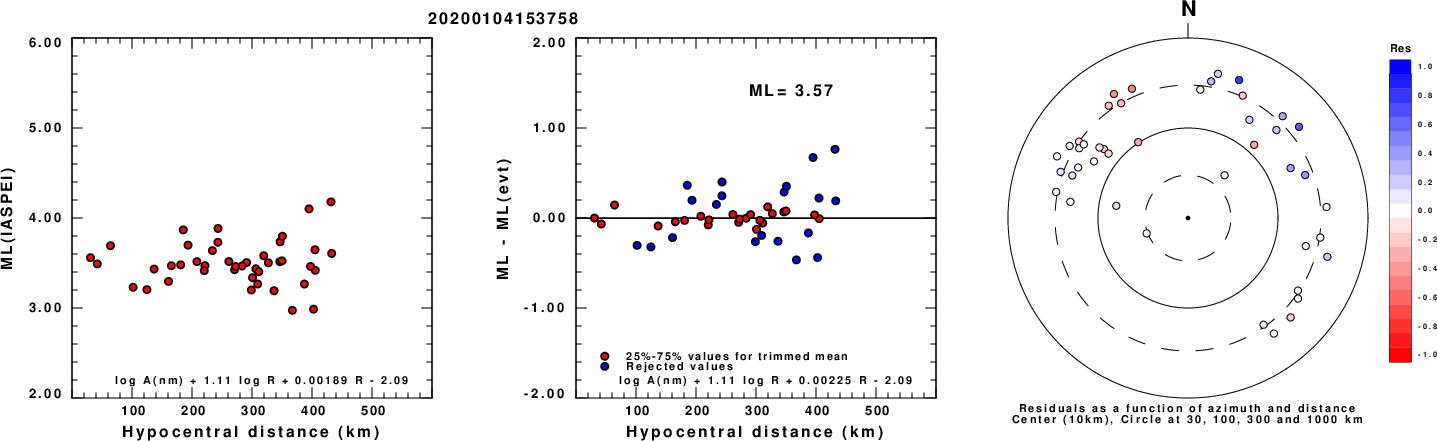

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

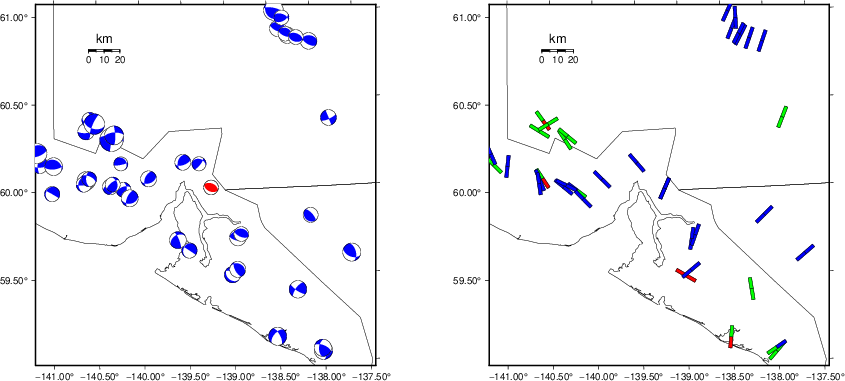

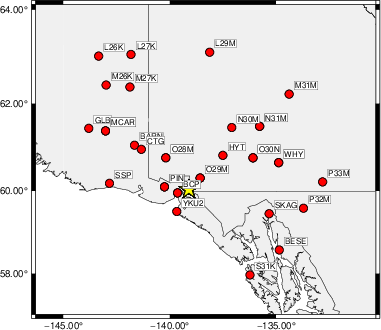

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 235 70 -40 3.10 0.2353
WVFGRD96 2.0 65 90 0 3.24 0.3909
WVFGRD96 3.0 65 70 -15 3.32 0.4286
WVFGRD96 4.0 245 55 -15 3.40 0.4619
WVFGRD96 5.0 70 45 5 3.44 0.5019
WVFGRD96 6.0 75 45 15 3.47 0.5361
WVFGRD96 7.0 290 50 90 3.58 0.5607
WVFGRD96 8.0 120 45 100 3.63 0.5820
WVFGRD96 9.0 115 45 90 3.65 0.6046
WVFGRD96 10.0 290 45 85 3.65 0.6037
WVFGRD96 11.0 260 60 40 3.57 0.5977
WVFGRD96 12.0 260 65 35 3.58 0.5976
WVFGRD96 13.0 260 65 35 3.59 0.5946
WVFGRD96 14.0 255 70 30 3.58 0.5901
WVFGRD96 15.0 255 70 25 3.59 0.5857
WVFGRD96 16.0 255 60 20 3.60 0.5811
WVFGRD96 17.0 255 60 20 3.61 0.5766
WVFGRD96 18.0 255 60 20 3.62 0.5704
WVFGRD96 19.0 255 60 20 3.63 0.5633
WVFGRD96 20.0 255 60 20 3.64 0.5535
WVFGRD96 21.0 255 60 20 3.65 0.5445
WVFGRD96 22.0 255 60 20 3.65 0.5333
WVFGRD96 23.0 250 60 5 3.65 0.5238
WVFGRD96 24.0 250 55 5 3.66 0.5138
WVFGRD96 25.0 250 55 5 3.67 0.5045
WVFGRD96 26.0 250 55 5 3.67 0.4948
WVFGRD96 27.0 250 55 0 3.68 0.4857
WVFGRD96 28.0 245 55 -10 3.69 0.4797
WVFGRD96 29.0 245 55 -10 3.69 0.4735
The best solution is
WVFGRD96 9.0 115 45 90 3.65 0.6046
The mechanism corresponding to the best fit is
|
|
|

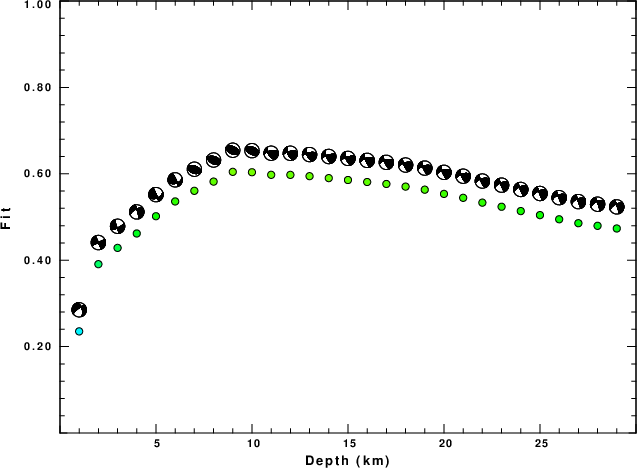

The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
|

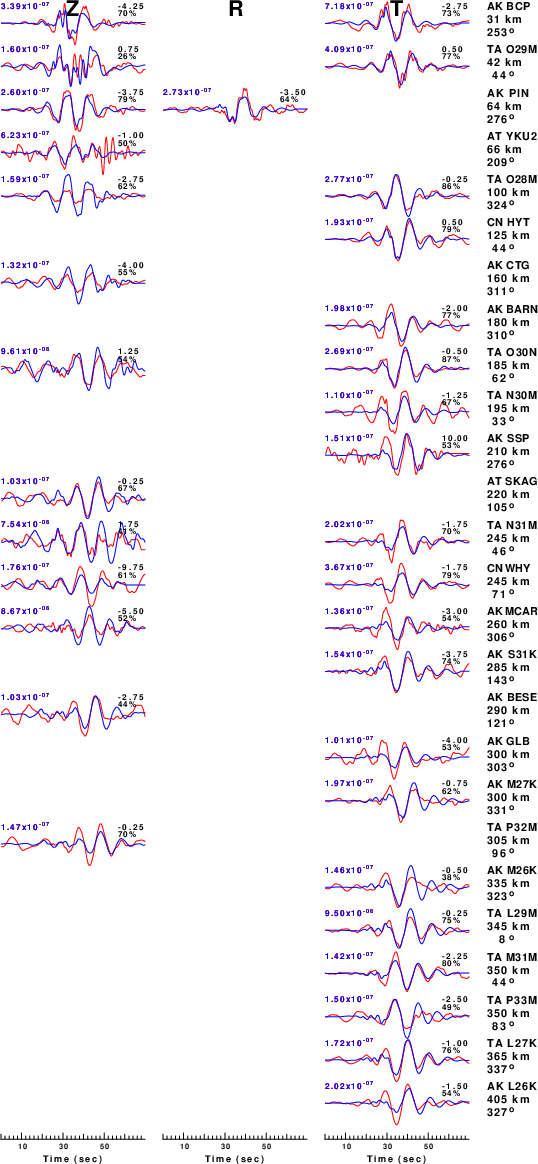

| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

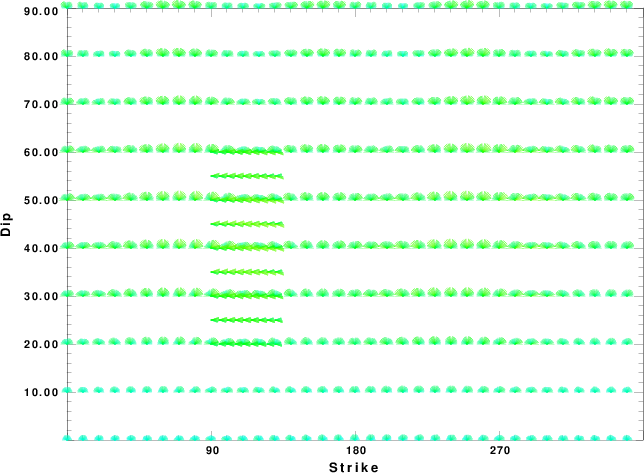

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:

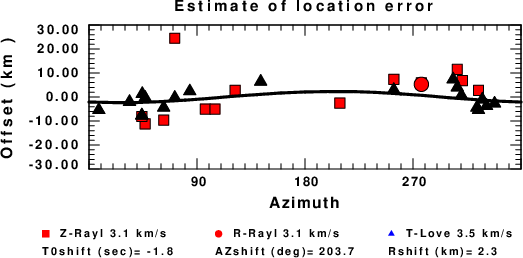

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
