Location

Location ANSS

The ANSS event ID is ak019f5wxnfc and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak019f5wxnfc/executive.

2019/11/26 09:38:36 62.922 -150.512 86.6 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/11/26 09:38:36:0  62.92 -150.51  86.6 4.0 Alaska

 Stations used:
   AK.CCB AK.CUT AK.DHY AK.GHO AK.J20K AK.K24K AK.KLU AK.KNK
   AK.L19K AK.L20K AK.MCK AK.PPLA AK.RND AK.SAW AK.SCM AK.SKN
   AK.SSN AK.TRF AT.PMR AV.STLK IU.COLA TA.M22K

 Filtering commands used:
   cut o DIST/3.4 -40 o DIST/3.4 +45
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 2.11e+22 dyne-cm
  Mw = 4.15
  Z  = 98 km
  Plane   Strike  Dip  Rake
   NP1       43    62   139
   NP2      155    55    35
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.11e+22     48       6
    N   0.00e+00     42     194
    P  -2.11e+22      4     100

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     8.83e+21
       Mxy     4.75e+21
       Mxz     1.08e+22
       Myy    -2.02e+22
       Myz    -4.39e+20
       Mzz     1.14e+22




                     ##############
                 --####################
              ----########################
             ----#########################-
           ------###########   ###########---
          -------########### T ###########----
         --------###########   ##########------
        ---------########################-------
        ---------#######################--------
       -----------#####################----------
       -----------####################-----------
       ------------#################-------------
       -------------###############-----------
        ------------#############------------- P
        -------------###########--------------
         --------------#######-----------------
          --------------###-------------------
           -------------#--------------------
             -------#######----------------
              ################------------
                 ################------
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  1.14e+22   1.08e+22   4.39e+20
  1.08e+22   8.83e+21  -4.75e+21
  4.39e+20  -4.75e+21  -2.02e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20191126093836/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 155
      DIP = 55
     RAKE = 35
       MW = 4.15
       HS = 98.0

The NDK file is 20191126093836.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

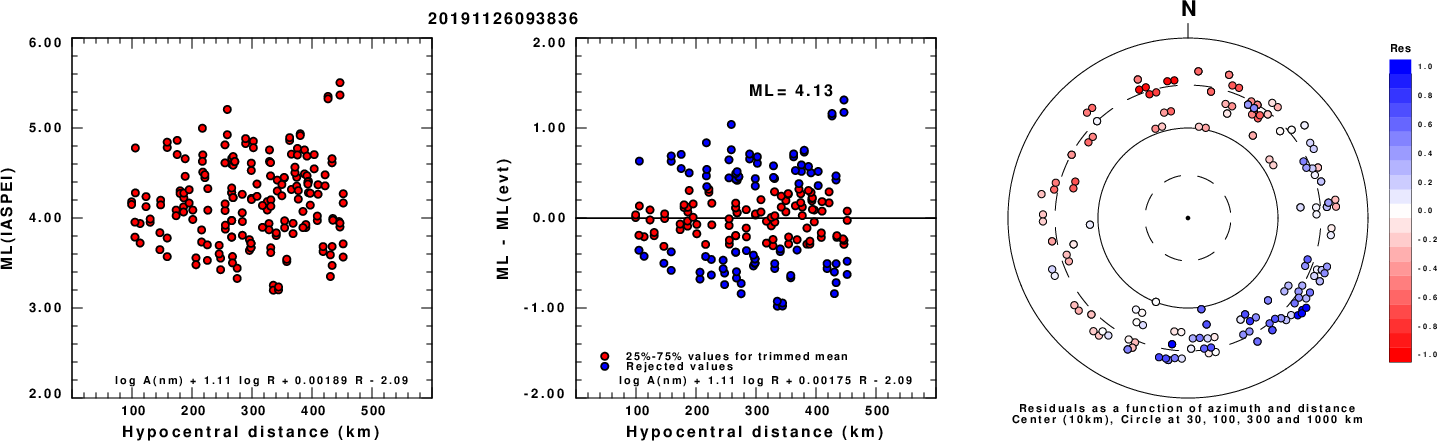

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

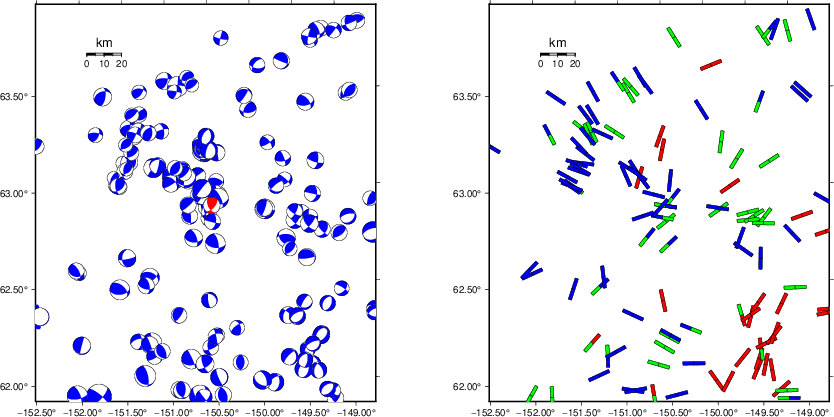

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

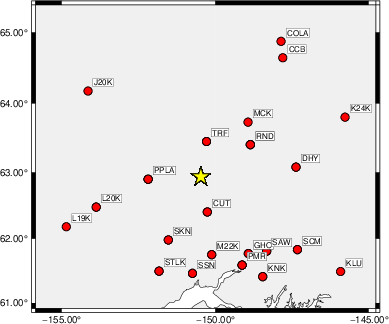

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.4 -40 o DIST/3.4 +45
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   195    45   -90   3.35 0.2441
WVFGRD96    4.0   220    45   -50   3.37 0.2263
WVFGRD96    6.0   245    50    15   3.36 0.2478
WVFGRD96    8.0   250    45    20   3.44 0.2681
WVFGRD96   10.0   250    50    30   3.48 0.2845
WVFGRD96   12.0   250    50    30   3.51 0.2935
WVFGRD96   14.0   250    55    30   3.53 0.2932
WVFGRD96   16.0   345    55    45   3.57 0.2953
WVFGRD96   18.0   345    65    45   3.59 0.3027
WVFGRD96   20.0   345    65    45   3.61 0.3092
WVFGRD96   22.0   340    70    40   3.63 0.3159
WVFGRD96   24.0   340    65    35   3.66 0.3218
WVFGRD96   26.0   340    65    35   3.68 0.3257
WVFGRD96   28.0   335    75    35   3.70 0.3331
WVFGRD96   30.0   335    75    35   3.72 0.3418
WVFGRD96   32.0   335    75    35   3.74 0.3486
WVFGRD96   34.0   335    75    35   3.76 0.3535
WVFGRD96   36.0   335    75    35   3.78 0.3565
WVFGRD96   38.0   335    75    30   3.80 0.3561
WVFGRD96   40.0   340    70    45   3.89 0.3608
WVFGRD96   42.0   340    65    40   3.90 0.3548
WVFGRD96   44.0   340    65    40   3.92 0.3477
WVFGRD96   46.0   150    50    20   3.94 0.3393
WVFGRD96   48.0   150    50    20   3.96 0.3502
WVFGRD96   50.0   150    50    20   3.98 0.3622
WVFGRD96   52.0   155    55    30   3.98 0.3768
WVFGRD96   54.0   155    55    35   4.01 0.3954
WVFGRD96   56.0   155    55    35   4.02 0.4154
WVFGRD96   58.0   155    55    35   4.04 0.4348
WVFGRD96   60.0   155    55    35   4.05 0.4532
WVFGRD96   62.0   155    55    35   4.06 0.4707
WVFGRD96   64.0   160    50    40   4.08 0.4887
WVFGRD96   66.0   160    50    45   4.09 0.5074
WVFGRD96   68.0   160    50    45   4.10 0.5253
WVFGRD96   70.0   160    50    45   4.11 0.5406
WVFGRD96   72.0   160    50    45   4.11 0.5552
WVFGRD96   74.0   160    50    45   4.12 0.5670
WVFGRD96   76.0   160    50    45   4.12 0.5776
WVFGRD96   78.0   160    50    40   4.12 0.5864
WVFGRD96   80.0   160    50    40   4.13 0.5941
WVFGRD96   82.0   160    50    40   4.13 0.6003
WVFGRD96   84.0   160    50    40   4.13 0.6053
WVFGRD96   86.0   160    50    40   4.14 0.6093
WVFGRD96   88.0   160    50    40   4.14 0.6124
WVFGRD96   90.0   160    50    40   4.14 0.6150
WVFGRD96   92.0   155    55    35   4.14 0.6172
WVFGRD96   94.0   155    55    35   4.14 0.6189
WVFGRD96   96.0   155    55    35   4.14 0.6202
WVFGRD96   98.0   155    55    35   4.15 0.6211
WVFGRD96  100.0   155    55    35   4.15 0.6205
WVFGRD96  102.0   155    55    35   4.15 0.6203
WVFGRD96  104.0   155    55    35   4.15 0.6195
WVFGRD96  106.0   155    55    35   4.15 0.6193
WVFGRD96  108.0   155    55    35   4.15 0.6179
WVFGRD96  110.0   155    55    35   4.16 0.6157
WVFGRD96  112.0   155    60    45   4.15 0.6144
WVFGRD96  114.0   155    60    45   4.15 0.6133
WVFGRD96  116.0   155    60    45   4.15 0.6119
WVFGRD96  118.0   155    60    45   4.15 0.6099

The best solution is

WVFGRD96   98.0   155    55    35   4.15 0.6211

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

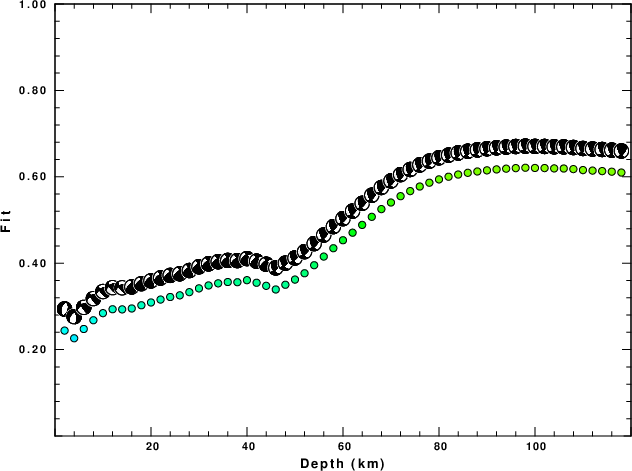

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.4 -40 o DIST/3.4 +45
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

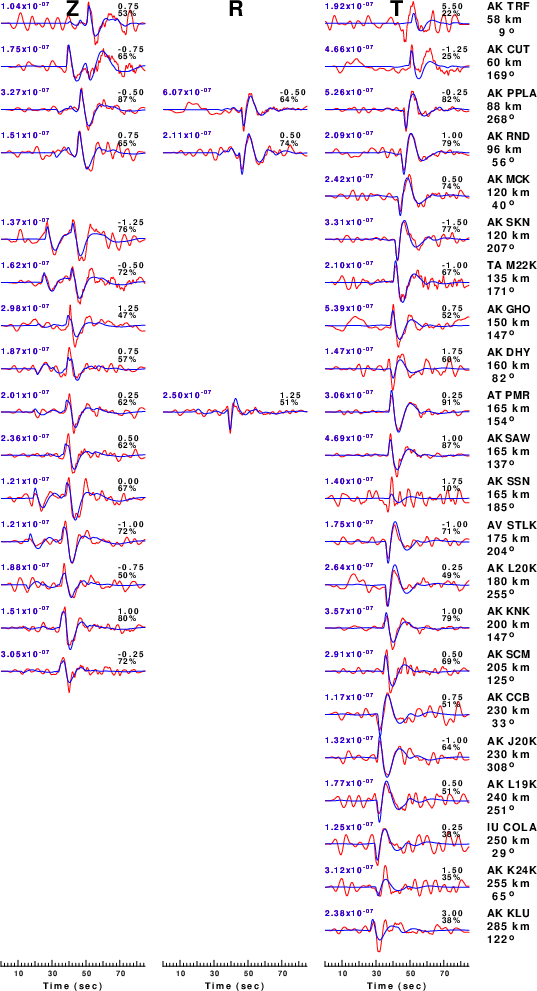

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

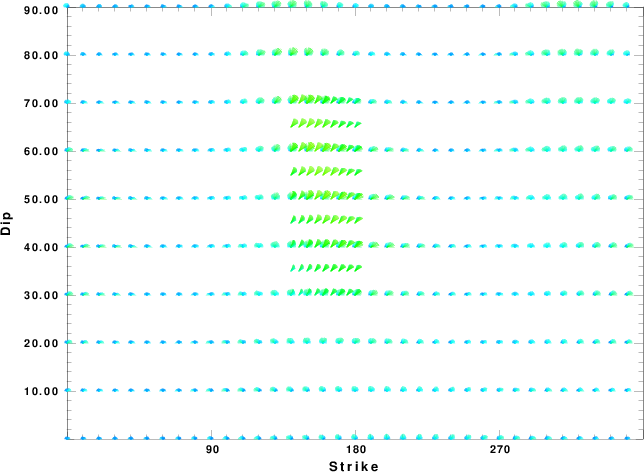

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

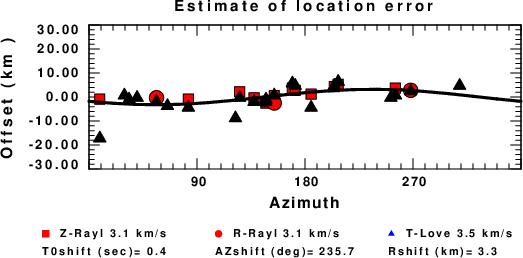

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
