Location

Location ANSS

The ANSS event ID is ak019ez5u73j and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak019ez5u73j/executive.

2019/11/22 01:07:58 61.334 -149.981 46.6 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/11/22 01:07:58:0  61.33 -149.98  46.6 4.0 Alaska

 Stations used:
   AK.FIRE AK.GHO AK.PWL AK.RC01 AK.SAW AK.SKN AK.SSN AT.PMR
   AV.STLK TA.M22K

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.15 n 3

 Best Fitting Double Couple
  Mo = 9.89e+21 dyne-cm
  Mw = 3.93
  Z  = 38 km
  Plane   Strike  Dip  Rake
   NP1      190    85   -80
   NP2      306    11   -153
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.89e+21     39     271
    N   0.00e+00     10       9
    P  -9.89e+21     49     111

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.34e+20
       Mxy     1.32e+21
       Mxz     1.81e+21
       Myy     2.22e+21
       Myz    -9.42e+21
       Mzz    -1.69e+21




                     ----------####
                 --############---#####
              -###############--------####
             #################----------###
           ##################-------------###
          ###################---------------##
         ###################-----------------##
        ####################------------------##
        ####################-------------------#
       #######   ##########--------------------##
       ####### T ##########--------------------##
       #######   ##########---------   ---------#
       ###################---------- P ---------#
        ##################----------   --------#
        ##################---------------------#
         ################----------------------
          ###############---------------------
           ##############--------------------
             ############------------------
              ###########-----------------
                 #######---------------
                     ###-----------



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.69e+21   1.81e+21   9.42e+21
  1.81e+21  -5.34e+20  -1.32e+21
  9.42e+21  -1.32e+21   2.22e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20191122010758/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 190
      DIP = 85
     RAKE = -80
       MW = 3.93
       HS = 38.0

The NDK file is 20191122010758.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

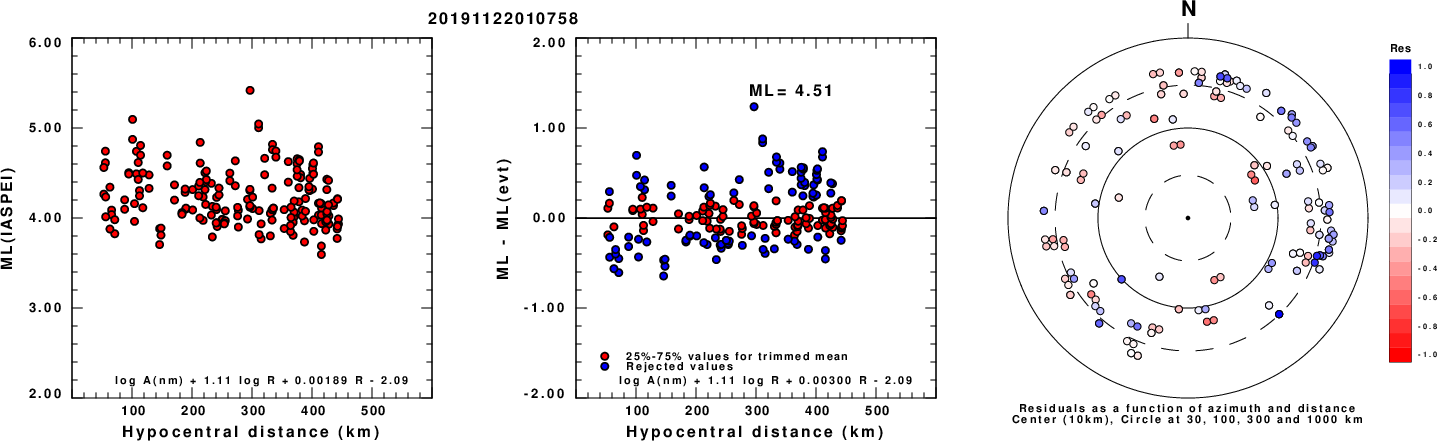

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

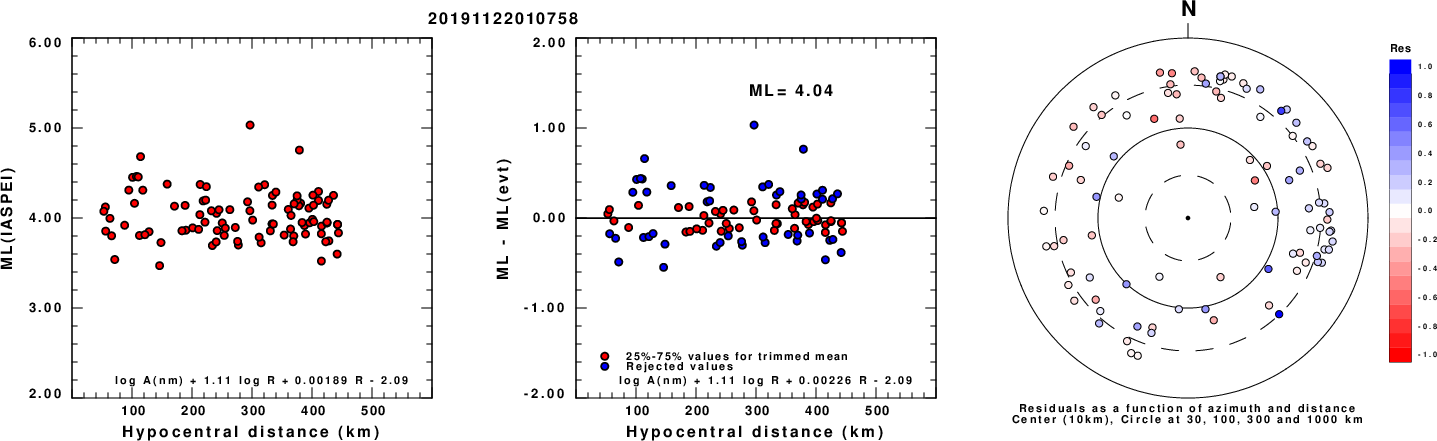

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

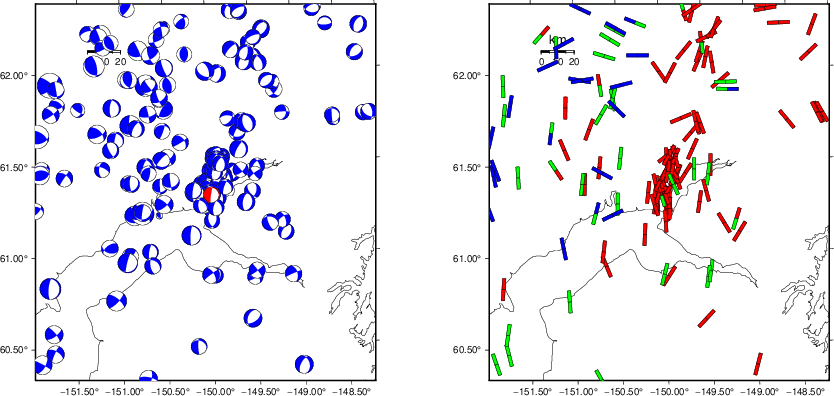

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

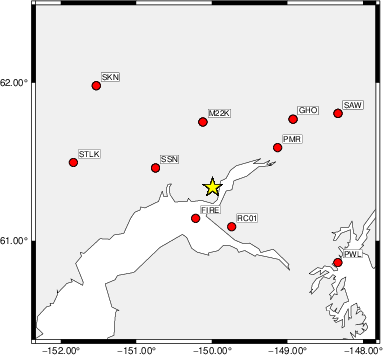

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.15 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    10    70    30   3.31 0.1637
WVFGRD96    4.0     5    85   -40   3.42 0.1857
WVFGRD96    6.0   275    60    -5   3.52 0.2267
WVFGRD96    8.0   280    65    10   3.66 0.2675
WVFGRD96   10.0   275    65     0   3.73 0.2902
WVFGRD96   12.0   280    70    10   3.79 0.2909
WVFGRD96   14.0   100    60    15   3.80 0.2874
WVFGRD96   16.0   100    55    10   3.82 0.2854
WVFGRD96   18.0   100    50    10   3.83 0.2822
WVFGRD96   20.0   105    45    15   3.85 0.2807
WVFGRD96   22.0   110    45    25   3.87 0.2829
WVFGRD96   24.0   145    15    50   3.88 0.2908
WVFGRD96   26.0     5    80    95   3.90 0.3059
WVFGRD96   28.0     5    80    95   3.91 0.3151
WVFGRD96   30.0     5    80    95   3.92 0.3164
WVFGRD96   32.0   150    10    50   3.93 0.3280
WVFGRD96   34.0   140    10    40   3.94 0.3481
WVFGRD96   36.0   195    90   -80   3.95 0.3596
WVFGRD96   38.0   190    85   -80   3.93 0.3616
WVFGRD96   40.0    65     5   -35   4.05 0.3538
WVFGRD96   42.0   190    85   -85   4.06 0.3555
WVFGRD96   44.0   185    80   -85   4.06 0.3536
WVFGRD96   46.0   185    80   -85   4.07 0.3556
WVFGRD96   48.0   -15    10  -110   4.07 0.3567
WVFGRD96   50.0    -5    10   -95   4.08 0.3538
WVFGRD96   52.0     0    10   -90   4.09 0.3550
WVFGRD96   54.0   -10    15   -95   4.10 0.3508
WVFGRD96   56.0     0    15   -85   4.11 0.3469
WVFGRD96   58.0    85    30   -25   4.13 0.3423
WVFGRD96   60.0    85    30   -30   4.14 0.3393
WVFGRD96   62.0    85    30   -30   4.15 0.3374
WVFGRD96   64.0   175    70   -85   4.14 0.3321
WVFGRD96   66.0   175    70   -90   4.14 0.3284
WVFGRD96   68.0   170    70   -90   4.15 0.3249
WVFGRD96   70.0     5    20   -80   4.15 0.3212
WVFGRD96   72.0    80    35   -45   4.21 0.3199
WVFGRD96   74.0    80    35   -45   4.21 0.3172
WVFGRD96   76.0    80    35   -45   4.22 0.3138
WVFGRD96   78.0    80    40   -40   4.23 0.3102
WVFGRD96   80.0    80    40   -40   4.23 0.3058
WVFGRD96   82.0    80    40   -45   4.25 0.3027
WVFGRD96   84.0   110    30    10   4.18 0.3010
WVFGRD96   86.0   110    30    10   4.18 0.2986
WVFGRD96   88.0   110    30    10   4.18 0.2981
WVFGRD96   90.0   110    30    10   4.18 0.2930
WVFGRD96   92.0   110    30    10   4.19 0.2937
WVFGRD96   94.0   100    10    15   4.17 0.2909
WVFGRD96   96.0    55    10   -30   4.17 0.2827
WVFGRD96   98.0    75    40   -50   4.28 0.2760

The best solution is

WVFGRD96   38.0   190    85   -80   3.93 0.3616

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

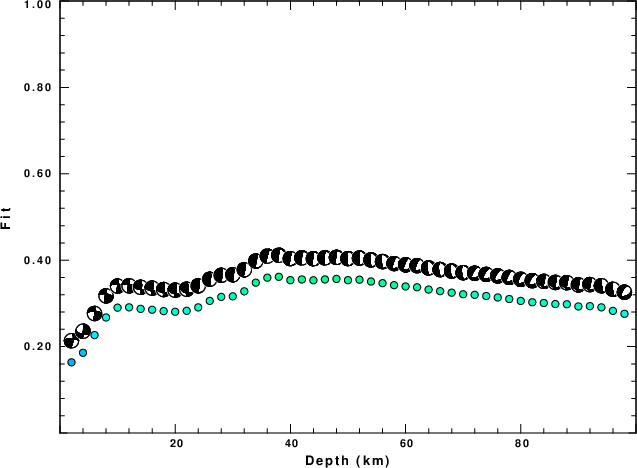

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.15 n 3

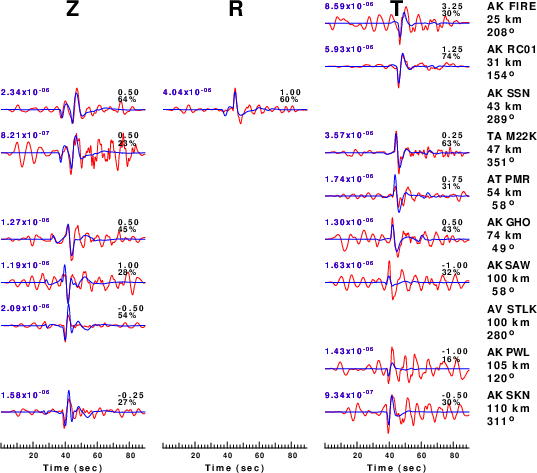

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

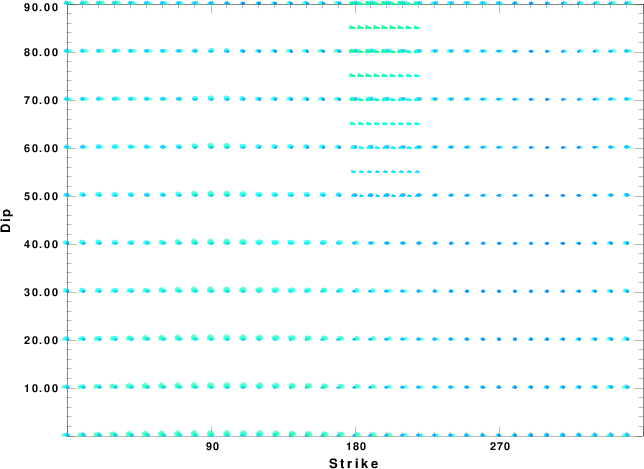

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

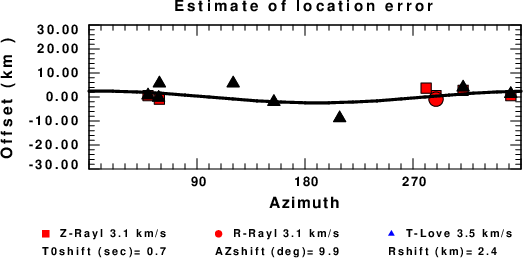

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 05:36:36 PM CDT 2024
