Location

Location ANSS

The ANSS event ID is ak019ecbo7vz and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak019ecbo7vz/executive.

2019/11/08 20:15:26 61.300 -149.936 42.5 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/11/08 20:15:26:0  61.30 -149.94  42.5 4.0 Alaska

 Stations used:
   AK.FIRE AK.GHO AK.GLI AK.PWL AK.RC01 AK.RND AK.SAW AK.SCM
   AK.SKN AK.SLK AK.SSN AT.PMR AV.ILSW AV.SPU AV.STLK TA.M22K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.22e+22 dyne-cm
  Mw = 3.99
  Z  = 54 km
  Plane   Strike  Dip  Rake
   NP1      175    70   -75
   NP2      317    25   -125
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.22e+22     24     253
    N   0.00e+00     14     350
    P  -1.22e+22     62     108

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     5.71e+20
       Mxy     3.57e+21
       Mxz     2.88e+20
       Myy     6.98e+21
       Myz    -9.06e+21
       Mzz    -7.55e+21




                     -----#########
                 ----####--############
              -#########---------#########
             ###########------------#######
           ############---------------#######
          #############-----------------######
         ##############-------------------#####
        ###############--------------------#####
        ###############---------------------####
       ################---------------------#####
       ################----------------------####
       ################----------   ---------####
       ####   #########---------- P ---------####
        ### T #########----------   ----------##
        ###   ##########---------------------###
         ###############---------------------##
          ###############--------------------#
           ##############-------------------#
             #############-----------------
              #############---------------
                 ###########-----------
                     ########------



 Global CMT Convention Moment Tensor:
      R          T          P
 -7.55e+21   2.88e+20   9.06e+21
  2.88e+20   5.71e+20  -3.57e+21
  9.06e+21  -3.57e+21   6.98e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20191108201526/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 175
      DIP = 70
     RAKE = -75
       MW = 3.99
       HS = 54.0

The NDK file is 20191108201526.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

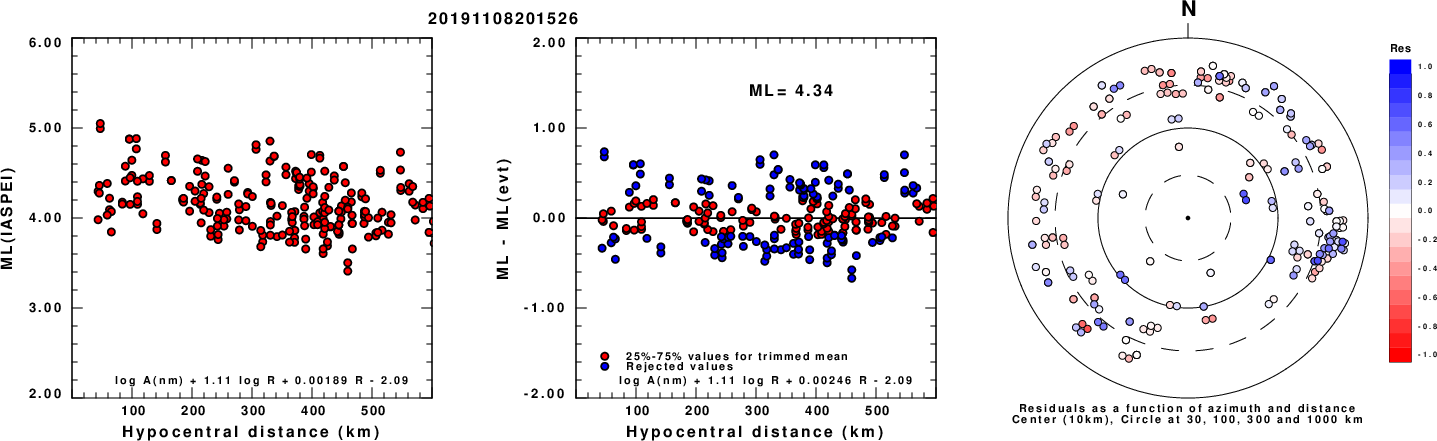

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

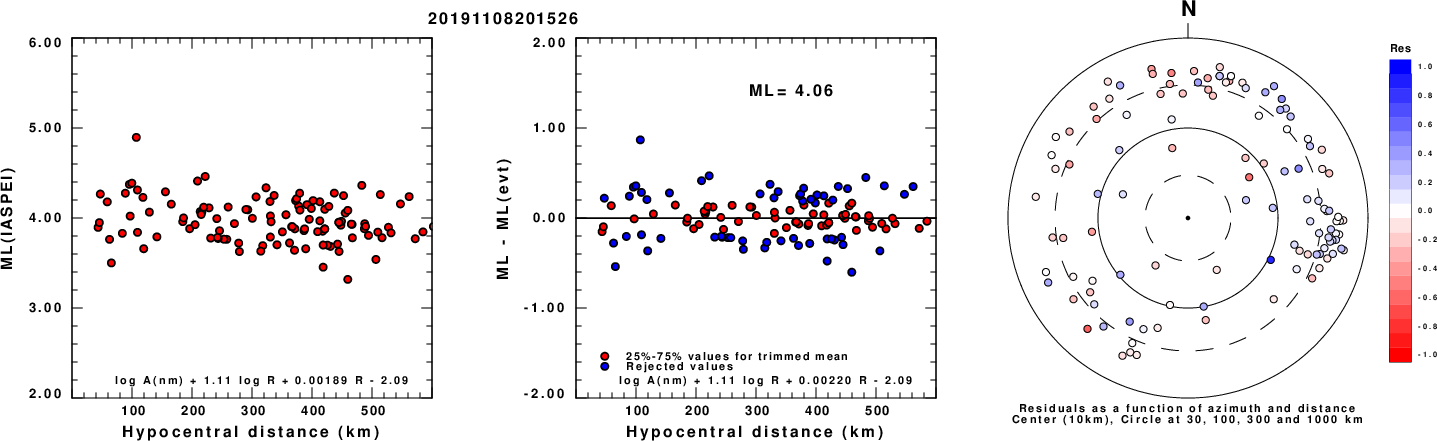

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

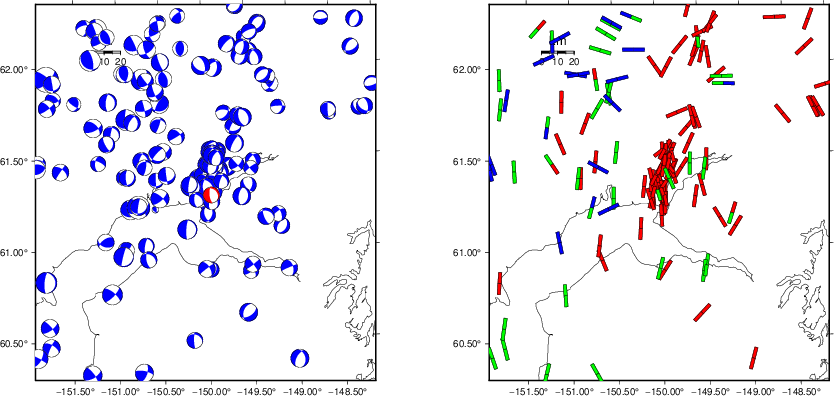

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

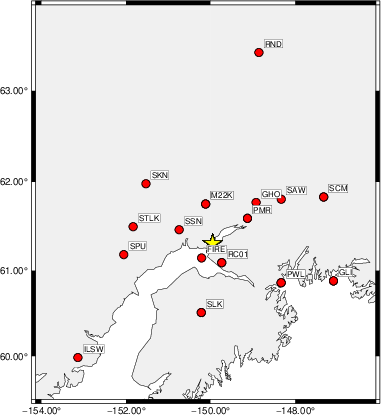

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    -5    55    85   3.27 0.2723
WVFGRD96    4.0   130    65   -20   3.24 0.2981
WVFGRD96    6.0   125    60   -25   3.34 0.3346
WVFGRD96    8.0   305    60   -35   3.43 0.3608
WVFGRD96   10.0   305    60   -35   3.48 0.3696
WVFGRD96   12.0   130    60   -25   3.50 0.3653
WVFGRD96   14.0   130    60   -30   3.53 0.3565
WVFGRD96   16.0   130    60   -30   3.55 0.3456
WVFGRD96   18.0    40    65   -40   3.57 0.3513
WVFGRD96   20.0    40    65   -35   3.60 0.3652
WVFGRD96   22.0    40    65   -40   3.62 0.3730
WVFGRD96   24.0    40    65   -35   3.64 0.3748
WVFGRD96   26.0    35    60   -40   3.67 0.3787
WVFGRD96   28.0    35    50   -30   3.69 0.3861
WVFGRD96   30.0    15    40   -40   3.76 0.4084
WVFGRD96   32.0   195    85   -70   3.76 0.4308
WVFGRD96   34.0   195    85   -70   3.78 0.4662
WVFGRD96   36.0   190    80   -70   3.79 0.4975
WVFGRD96   38.0   180    75   -70   3.80 0.5169
WVFGRD96   40.0   180    80   -80   3.93 0.5223
WVFGRD96   42.0   180    75   -75   3.94 0.5262
WVFGRD96   44.0   180    75   -75   3.95 0.5286
WVFGRD96   46.0   180    75   -75   3.95 0.5313
WVFGRD96   48.0   175    70   -75   3.97 0.5358
WVFGRD96   50.0   175    70   -75   3.98 0.5376
WVFGRD96   52.0   175    70   -75   3.99 0.5383
WVFGRD96   54.0   175    70   -75   3.99 0.5389
WVFGRD96   56.0   175    70   -75   4.00 0.5371
WVFGRD96   58.0   175    70   -75   4.00 0.5357
WVFGRD96   60.0   175    70   -75   4.00 0.5318
WVFGRD96   62.0   175    75   -80   4.00 0.5297
WVFGRD96   64.0   175    75   -80   4.00 0.5265
WVFGRD96   66.0   175    75   -80   4.00 0.5240
WVFGRD96   68.0   175    75   -80   4.01 0.5204
WVFGRD96   70.0   175    75   -80   4.01 0.5186
WVFGRD96   72.0   175    75   -80   4.01 0.5144
WVFGRD96   74.0   175    75   -80   4.02 0.5097
WVFGRD96   76.0   175    75   -80   4.02 0.5070
WVFGRD96   78.0   175    75   -80   4.02 0.5027
WVFGRD96   80.0   175    75   -80   4.02 0.4968
WVFGRD96   82.0   175    75   -75   4.03 0.4936
WVFGRD96   84.0   175    75   -75   4.03 0.4886
WVFGRD96   86.0   175    75   -75   4.03 0.4828
WVFGRD96   88.0   175    75   -75   4.04 0.4782
WVFGRD96   90.0   175    80   -75   4.04 0.4716
WVFGRD96   92.0   175    80   -75   4.04 0.4672
WVFGRD96   94.0   175    80   -70   4.05 0.4601
WVFGRD96   96.0   170    70   -80   4.06 0.4555
WVFGRD96   98.0   170    70   -80   4.06 0.4514

The best solution is

WVFGRD96   54.0   175    70   -75   3.99 0.5389

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

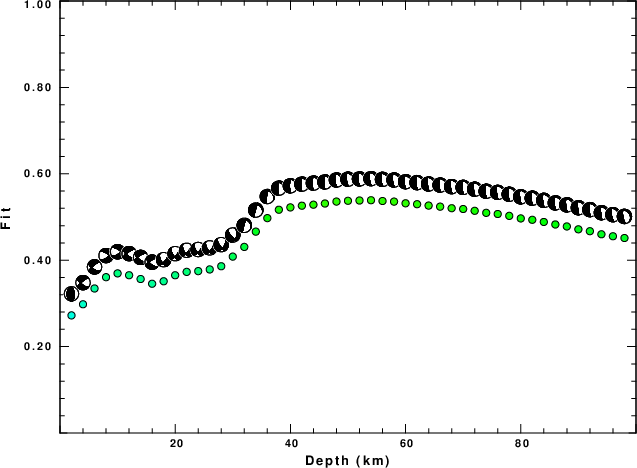

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

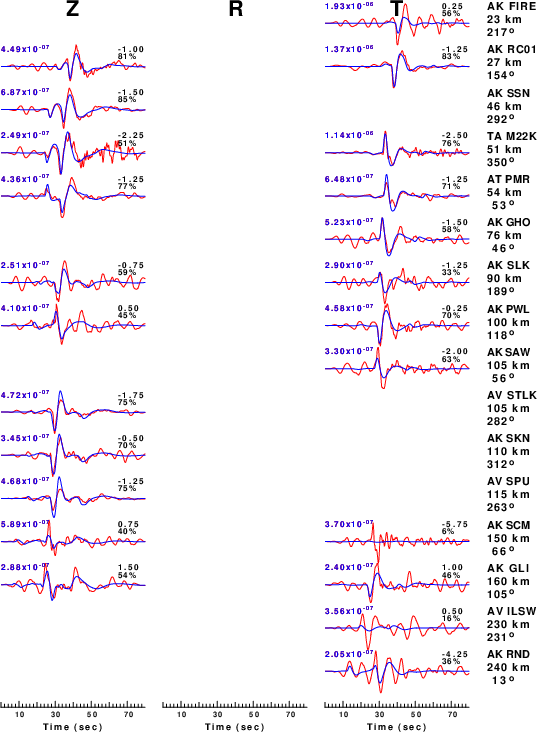

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

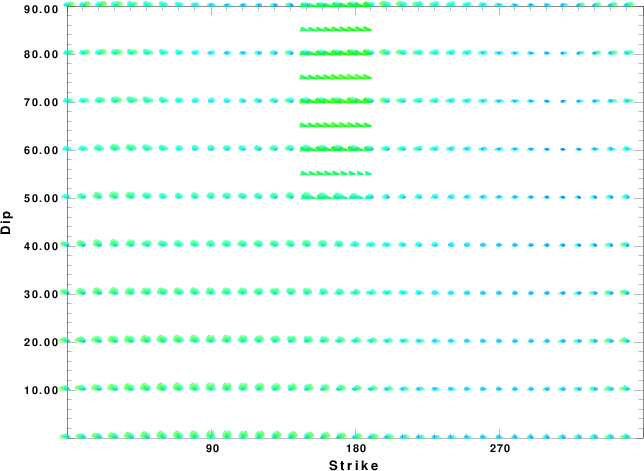

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

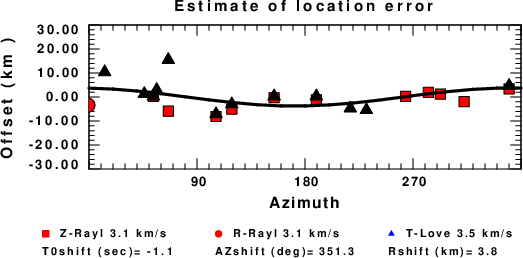

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 05:21:09 PM CDT 2024
