Location

Location ANSS

The ANSS event ID is nm60286226 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nm60286226/executive.

2019/09/12 06:42:22 36.128 -92.406 17.6 3.7 Arkansas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/09/12 06:42:22:0  36.13  -92.41  17.6 3.7 Arkansas

 Stations used:
   AG.LCAR AG.WHAR AG.WLAR AG.X40A GM.IWM01 GS.OK052 IU.CCM
   IU.WVT N4.143B N4.P38B N4.R40B N4.S44A N4.T45B N4.TUL3
   N4.U38B NM.CGM3 NM.FFIL NM.FVM NM.GLAT NM.GNAR NM.HALT
   NM.HBAR NM.HICK NM.LPAR NM.MPH NM.PARM NM.PBMO NM.PEBM
   NM.PLAL NM.PVMO NM.SIUC NM.SLM NM.UALR NM.UTMT O2.PERK
   O2.PERY US.MIAR US.OXF

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 4.62e+21 dyne-cm
  Mw = 3.71
  Z  = 17 km
  Plane   Strike  Dip  Rake
   NP1        2    77   149
   NP2      100    60    15
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.62e+21     31     317
    N   0.00e+00     57     162
    P  -4.62e+21     11      54

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.18e+20
       Mxy    -3.81e+21
       Mxz     9.77e+20
       Myy    -1.35e+21
       Myz    -2.10e+21
       Mzz     1.04e+21




                     ########------
                 #############---------
              ################------------
             ##################------------
           ######   ###########-----------
          ####### T ###########----------- P -
         ########   ###########-----------   --
        #######################-----------------
        #######################-----------------
       -#######################------------------
       ---#####################------------------
       -----###################------------------
       -------#################------------------
        ---------##############----------------#
        --------------#########------------#####
         ----------------------################
          --------------------################
           -------------------###############
             -----------------#############
              ---------------#############
                 -----------###########
                     -------#######



 Global CMT Convention Moment Tensor:
      R          T          P
  1.04e+21   9.77e+20   2.10e+21
  9.77e+20   3.18e+20   3.81e+21
  2.10e+21   3.81e+21  -1.35e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190912064222/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 100
      DIP = 60
     RAKE = 15
       MW = 3.71
       HS = 17.0

The NDK file is 20190912064222.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2019/09/12 06:42:22:0  36.13  -92.41  17.6 3.7 Arkansas

 Stations used:
   AG.LCAR AG.WHAR AG.WLAR AG.X40A GM.IWM01 GS.OK052 IU.CCM
   IU.WVT N4.143B N4.P38B N4.R40B N4.S44A N4.T45B N4.TUL3
   N4.U38B NM.CGM3 NM.FFIL NM.FVM NM.GLAT NM.GNAR NM.HALT
   NM.HBAR NM.HICK NM.LPAR NM.MPH NM.PARM NM.PBMO NM.PEBM
   NM.PLAL NM.PVMO NM.SIUC NM.SLM NM.UALR NM.UTMT O2.PERK
   O2.PERY US.MIAR US.OXF

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 4.62e+21 dyne-cm
  Mw = 3.71
  Z  = 17 km
  Plane   Strike  Dip  Rake
   NP1        2    77   149
   NP2      100    60    15
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.62e+21     31     317
    N   0.00e+00     57     162
    P  -4.62e+21     11      54

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.18e+20
       Mxy    -3.81e+21
       Mxz     9.77e+20
       Myy    -1.35e+21
       Myz    -2.10e+21
       Mzz     1.04e+21




                     ########------
                 #############---------
              ################------------
             ##################------------
           ######   ###########-----------
          ####### T ###########----------- P -
         ########   ###########-----------   --
        #######################-----------------
        #######################-----------------
       -#######################------------------
       ---#####################------------------
       -----###################------------------
       -------#################------------------
        ---------##############----------------#
        --------------#########------------#####
         ----------------------################
          --------------------################
           -------------------###############
             -----------------#############
              ---------------#############
                 -----------###########
                     -------#######



 Global CMT Convention Moment Tensor:
      R          T          P
  1.04e+21   9.77e+20   2.10e+21
  9.77e+20   3.18e+20   3.81e+21
  2.10e+21   3.81e+21  -1.35e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190912064222/index.html

Regional Moment Tensor (Mwr)
Moment 4.716e+14 N-m
Magnitude 3.72 Mwr
Depth 19.0 km
Percent DC 96%
Half Duration -
Catalog US
Data Source US 2
Contributor US 2

Nodal Planes
Plane Strike Dip Rake
NP1 2 77 146
NP2 101 57 16

Principal Axes
Axis Value Plunge Azimuth
T 4.663e+14 N-m 33 317
N 0.104e+14 N-m 53 164
P -4.767e+14 N-m 13 56



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

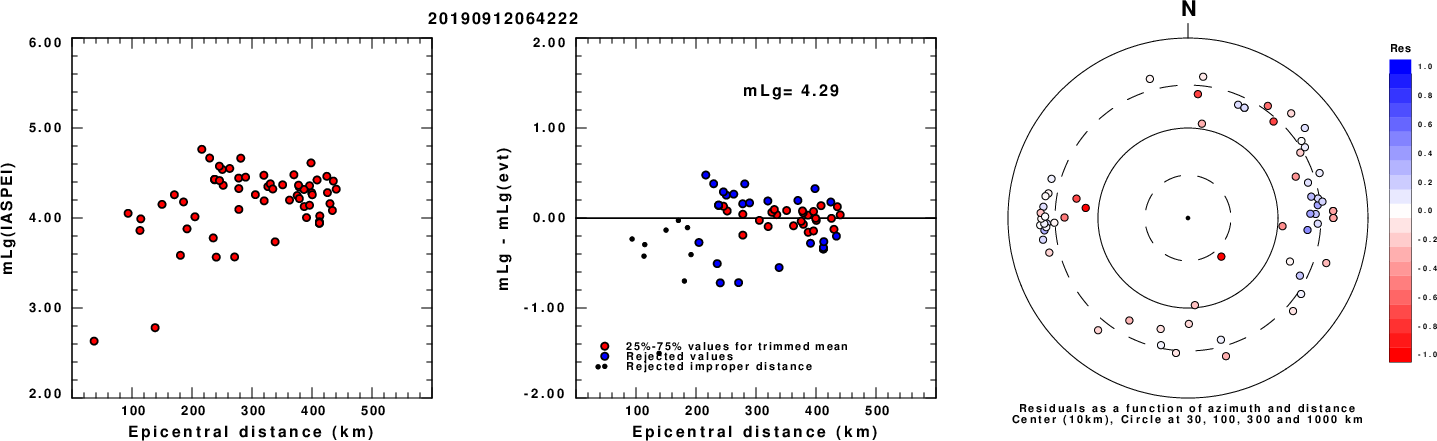

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

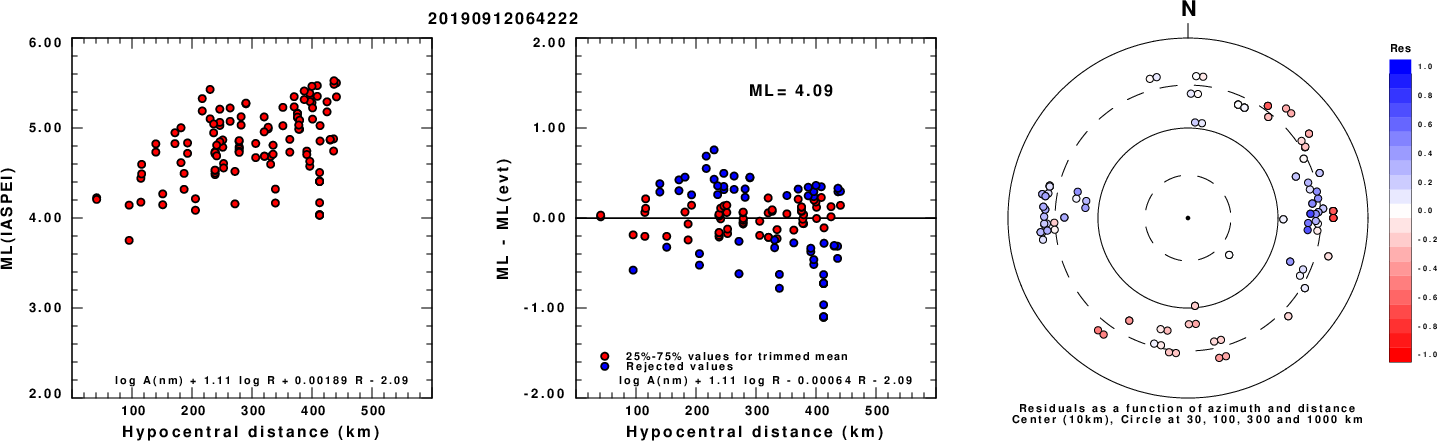

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

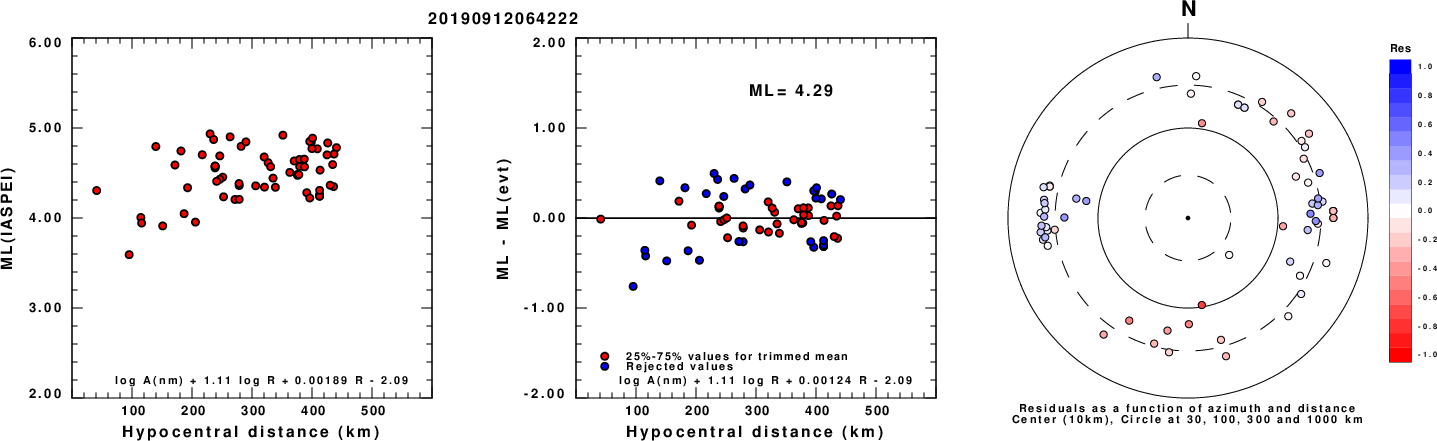

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

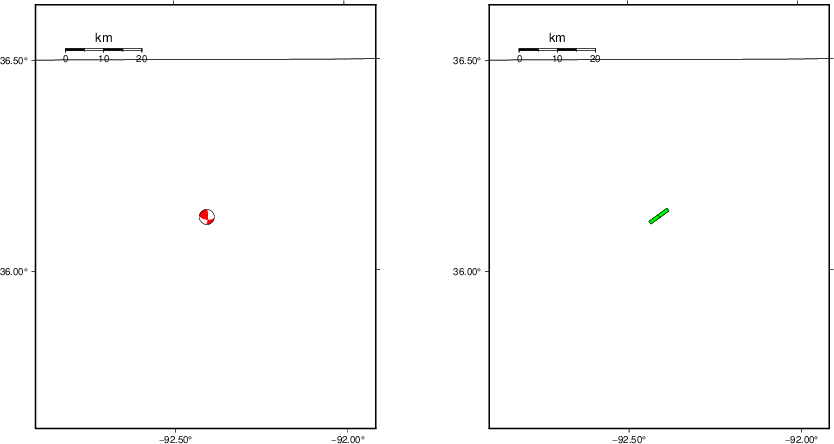

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

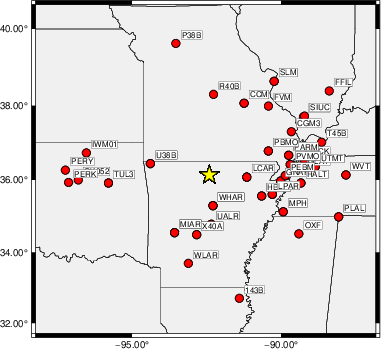

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   260    55   -25   3.51 0.4774
WVFGRD96    2.0   300    50    55   3.58 0.5010
WVFGRD96    3.0   100    55    20   3.53 0.4927
WVFGRD96    4.0   100    55    15   3.53 0.5075
WVFGRD96    5.0    95    55    10   3.54 0.5261
WVFGRD96    6.0    95    60    10   3.55 0.5455
WVFGRD96    7.0    95    60    10   3.56 0.5646
WVFGRD96    8.0    95    60    10   3.57 0.5822
WVFGRD96    9.0   100    60    15   3.59 0.5991
WVFGRD96   10.0   100    60    15   3.61 0.6132
WVFGRD96   11.0   100    60    15   3.63 0.6269
WVFGRD96   12.0   100    60    15   3.64 0.6382
WVFGRD96   13.0   100    60    15   3.65 0.6472
WVFGRD96   14.0   100    60    15   3.67 0.6541
WVFGRD96   15.0   100    60    15   3.68 0.6597
WVFGRD96   16.0   100    60    15   3.69 0.6631
WVFGRD96   17.0   100    60    15   3.71 0.6649
WVFGRD96   18.0   100    60    15   3.72 0.6643
WVFGRD96   19.0   100    60    15   3.73 0.6618
WVFGRD96   20.0   105    55    15   3.75 0.6563
WVFGRD96   21.0   105    55    15   3.76 0.6501
WVFGRD96   22.0   105    55    20   3.77 0.6422
WVFGRD96   23.0   105    55    20   3.78 0.6326
WVFGRD96   24.0   105    55    20   3.79 0.6209
WVFGRD96   25.0   105    55    20   3.79 0.6079
WVFGRD96   26.0   105    55    20   3.80 0.5935
WVFGRD96   27.0   105    55    20   3.81 0.5797
WVFGRD96   28.0   105    55    20   3.81 0.5656
WVFGRD96   29.0   110    55    25   3.82 0.5527

The best solution is

WVFGRD96   17.0   100    60    15   3.71 0.6649

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

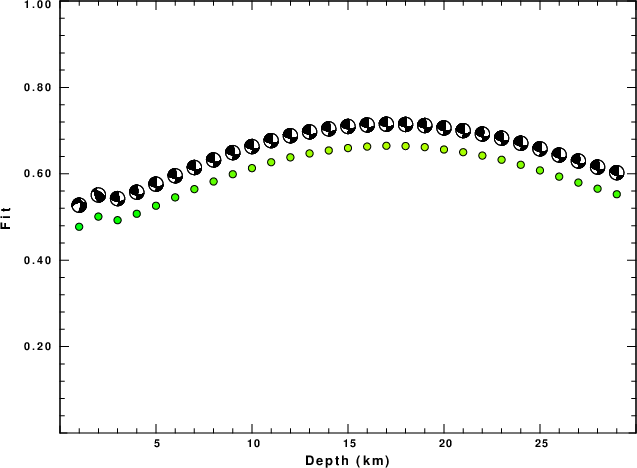

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

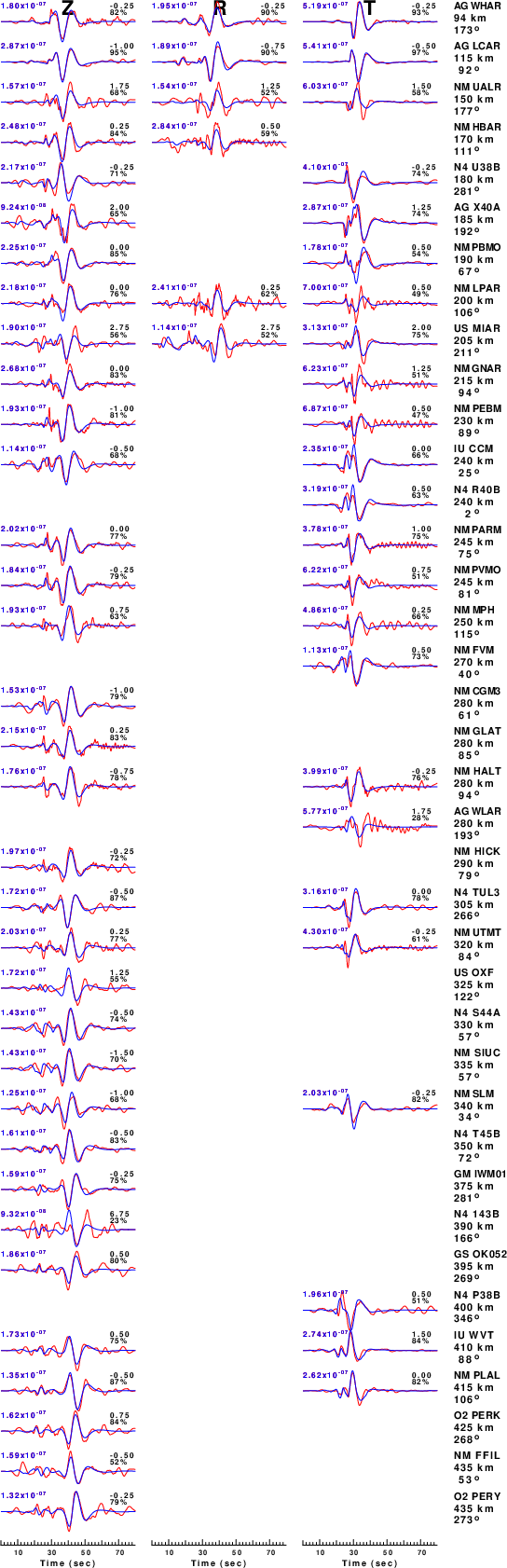

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

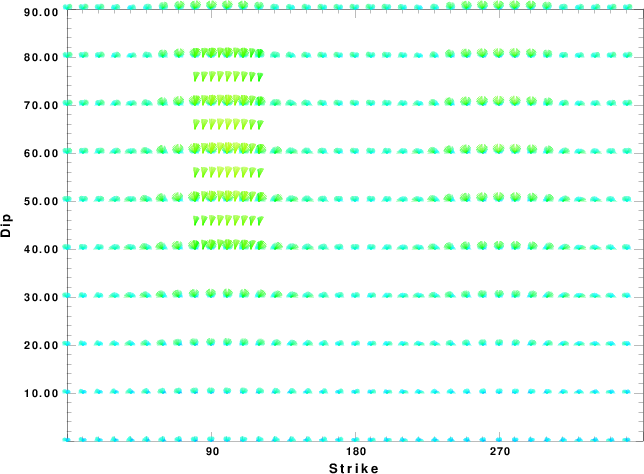

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

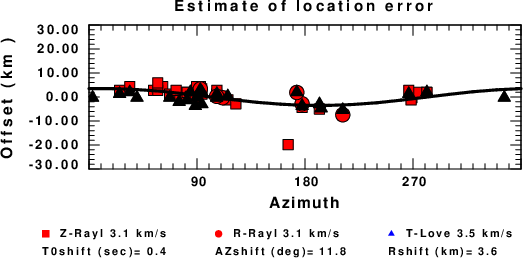

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 04:25:57 PM CDT 2024
