The ANSS event ID is nn00703188 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00703188/executive.

2019/09/10 04:25:55 39.542 -116.560 9.1 4.6 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/09/10 04:25:55:0  39.54 -116.56   9.1 4.6 Nevada

 Stations used:
   BK.HATC BK.WELL CI.CWC CI.FUR CI.MPM CI.SHO CI.TIN GS.CA01
   GS.CA03 GS.CA05 IW.MFID LB.TPH NC.AFD NC.LDH NC.MDPB NN.BEK
   NN.LHV NN.PAH NN.PIO NN.PRN NN.R11B NN.RYN NN.S11A NN.SHP
   NN.SPR3 NN.WAK NN.WDEM NN.WLDB SN.HEL US.ELK US.TPNV
   US.WVOR UU.BGU UU.CCUT UU.CTU UU.KNB UU.LCMT UU.MPU UU.MTPU
   UU.NLU UU.PSUT UU.SZCU UU.TCRU UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.14e+22 dyne-cm
  Mw = 3.97
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      221    47   -75
   NP2       20    45   -105
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.14e+22      1     301
    N   0.00e+00     11      31
    P  -1.14e+22     79     205

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.62e+21
       Mxy    -5.11e+21
       Mxz     1.95e+21
       Myy     8.35e+21
       Myz     7.10e+20
       Mzz    -1.10e+22




                     ##############
                 ####################--
              ####################----####
             ################----------####
            #############--------------######
          T ###########-----------------######
            #########-------------------#######
        ###########---------------------########
        ##########----------------------########
       ##########-----------------------#########
       #########------------------------#########
       ########----------   -----------##########
       #######----------- P -----------##########
        ######-----------   ----------##########
        #####------------------------###########
         ####-----------------------###########
          ###----------------------###########
           ##---------------------###########
             #------------------###########
              ----------------############
                 ----------############
                     -#############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.10e+22   1.95e+21  -7.10e+20
  1.95e+21   2.62e+21   5.11e+21
 -7.10e+20   5.11e+21   8.35e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190910042555/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 20
      DIP = 45
     RAKE = -105
       MW = 3.97
       HS = 3.0

The NDK file is 20190910042555.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2019/09/10 04:25:55:0  39.54 -116.56   9.1 4.6 Nevada

 Stations used:
   BK.HATC BK.WELL CI.CWC CI.FUR CI.MPM CI.SHO CI.TIN GS.CA01
   GS.CA03 GS.CA05 IW.MFID LB.TPH NC.AFD NC.LDH NC.MDPB NN.BEK
   NN.LHV NN.PAH NN.PIO NN.PRN NN.R11B NN.RYN NN.S11A NN.SHP
   NN.SPR3 NN.WAK NN.WDEM NN.WLDB SN.HEL US.ELK US.TPNV
   US.WVOR UU.BGU UU.CCUT UU.CTU UU.KNB UU.LCMT UU.MPU UU.MTPU
   UU.NLU UU.PSUT UU.SZCU UU.TCRU UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.14e+22 dyne-cm
  Mw = 3.97
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      221    47   -75
   NP2       20    45   -105
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.14e+22      1     301
    N   0.00e+00     11      31
    P  -1.14e+22     79     205

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.62e+21
       Mxy    -5.11e+21
       Mxz     1.95e+21
       Myy     8.35e+21
       Myz     7.10e+20
       Mzz    -1.10e+22




                     ##############
                 ####################--
              ####################----####
             ################----------####
            #############--------------######
          T ###########-----------------######
            #########-------------------#######
        ###########---------------------########
        ##########----------------------########
       ##########-----------------------#########
       #########------------------------#########
       ########----------   -----------##########
       #######----------- P -----------##########
        ######-----------   ----------##########
        #####------------------------###########
         ####-----------------------###########
          ###----------------------###########
           ##---------------------###########
             #------------------###########
              ----------------############
                 ----------############
                     -#############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.10e+22   1.95e+21  -7.10e+20
  1.95e+21   2.62e+21   5.11e+21
 -7.10e+20   5.11e+21   8.35e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190910042555/index.html


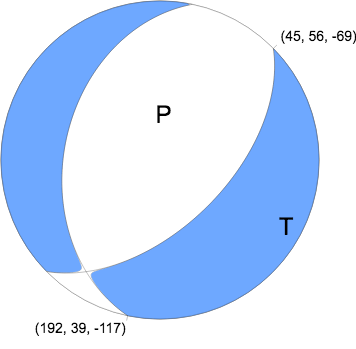

Regional Moment Tensor (Mwr)
Moment 1.653e+15 N-m
Magnitude 4.08 Mwr
Depth 8.0 km
Percent DC 100%
Half Duration -
Catalog NN
Data Source NN 1
Contributor NN 1

Nodal Planes
Plane Strike Dip Rake
NP1 45 56 -69
NP2 192 39 -117

Principal Axes
Axis Value Plunge Azimuth
T 1.654e+15 N-m 8 121
N -0.003e+15 N-m 17 213
P -1.651e+15 N-m 71 5



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

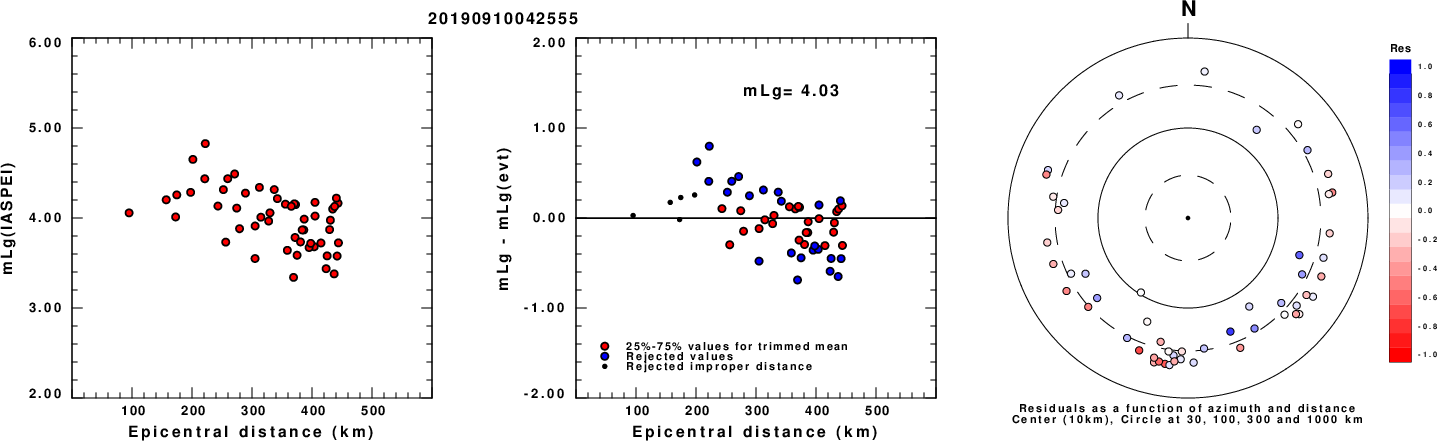

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

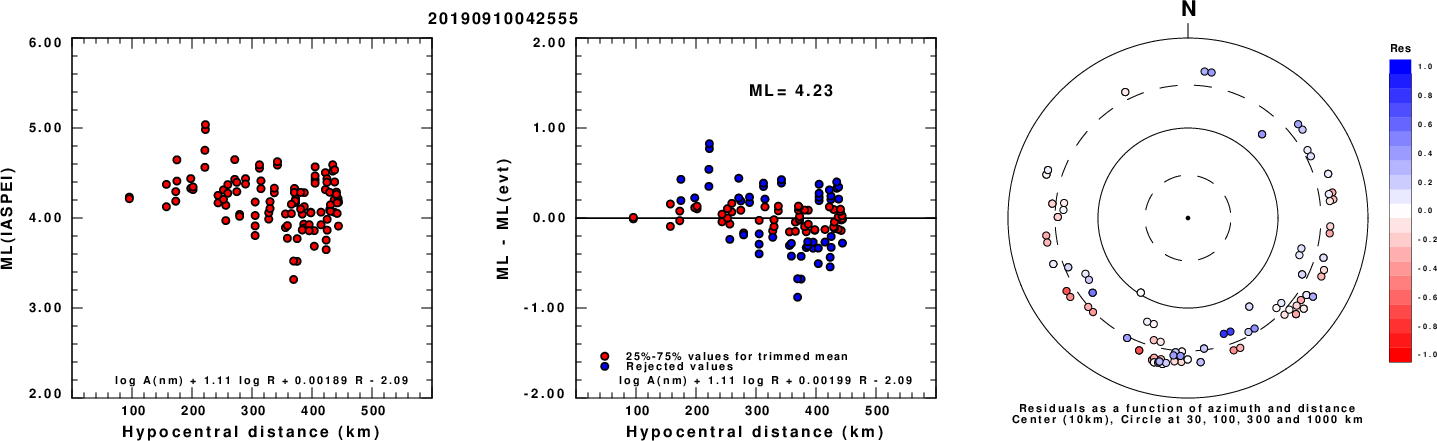

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

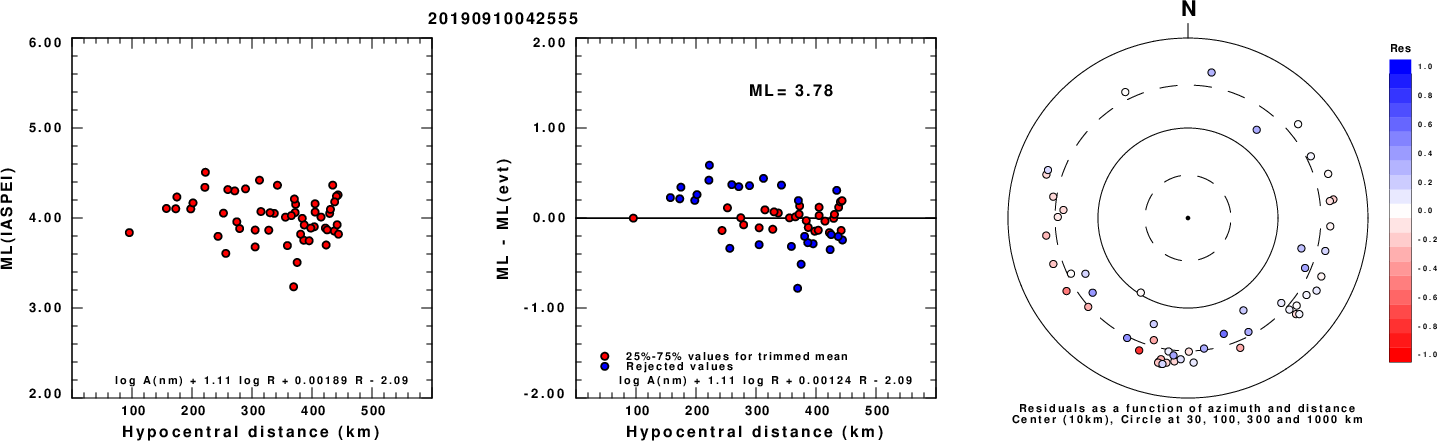

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

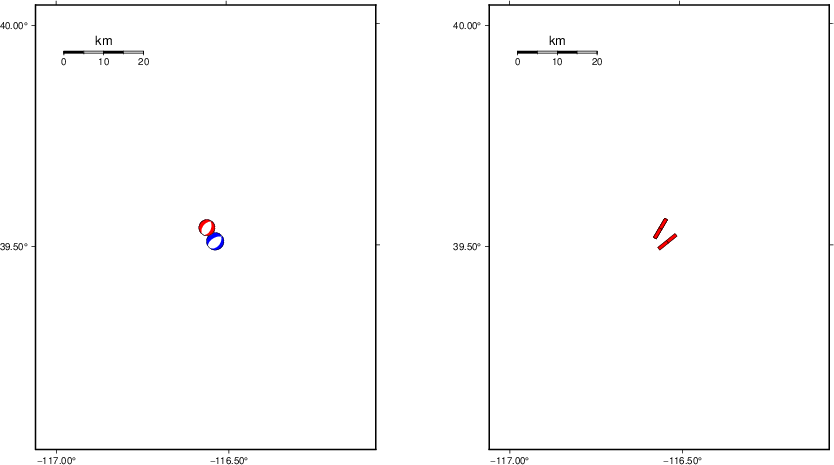

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

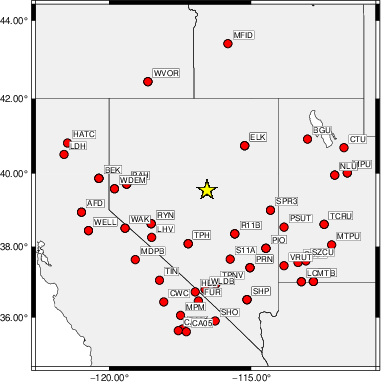

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    65    55   -35   3.77 0.4561
WVFGRD96    2.0    65    55   -35   3.86 0.5471
WVFGRD96    3.0    20    45  -105   3.97 0.6096
WVFGRD96    4.0   210    45   -90   4.01 0.6031
WVFGRD96    5.0    70    70   -25   3.90 0.5813
WVFGRD96    6.0    75    80   -15   3.90 0.5833
WVFGRD96    7.0   255    85    15   3.92 0.5858
WVFGRD96    8.0   255    90    20   3.95 0.5898
WVFGRD96    9.0   260    75    25   3.98 0.5887
WVFGRD96   10.0   260    70    20   3.99 0.5898
WVFGRD96   11.0   260    70    20   4.00 0.5885
WVFGRD96   12.0   260    70    20   4.02 0.5850
WVFGRD96   13.0   260    70    20   4.03 0.5794
WVFGRD96   14.0   260    70    20   4.04 0.5734
WVFGRD96   15.0   260    70    20   4.04 0.5664
WVFGRD96   16.0   260    70    20   4.05 0.5579
WVFGRD96   17.0    75    70    20   4.06 0.5497
WVFGRD96   18.0    75    75    25   4.07 0.5396
WVFGRD96   19.0    75    75    25   4.08 0.5291
WVFGRD96   20.0    75    75    25   4.09 0.5185
WVFGRD96   21.0    75    75    25   4.10 0.5061
WVFGRD96   22.0    75    75    25   4.10 0.4942
WVFGRD96   23.0    75    75    25   4.11 0.4820
WVFGRD96   24.0    75    75    30   4.12 0.4697
WVFGRD96   25.0   250    70   -25   4.12 0.4591
WVFGRD96   26.0   250    70   -30   4.13 0.4506
WVFGRD96   27.0   250    70   -30   4.14 0.4420
WVFGRD96   28.0   250    70   -30   4.15 0.4331
WVFGRD96   29.0   245    70   -35   4.15 0.4240

The best solution is

WVFGRD96    3.0    20    45  -105   3.97 0.6096

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

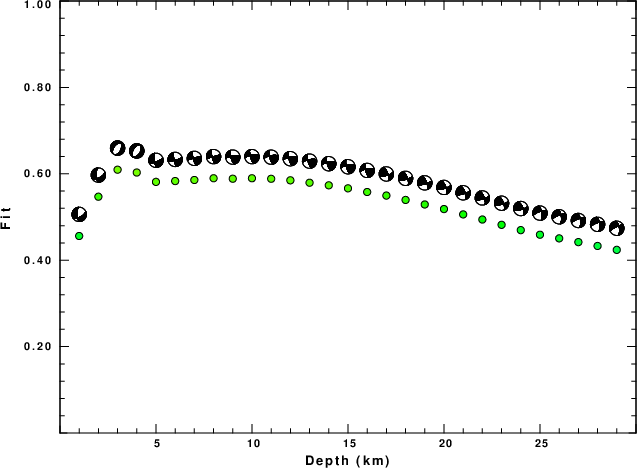

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

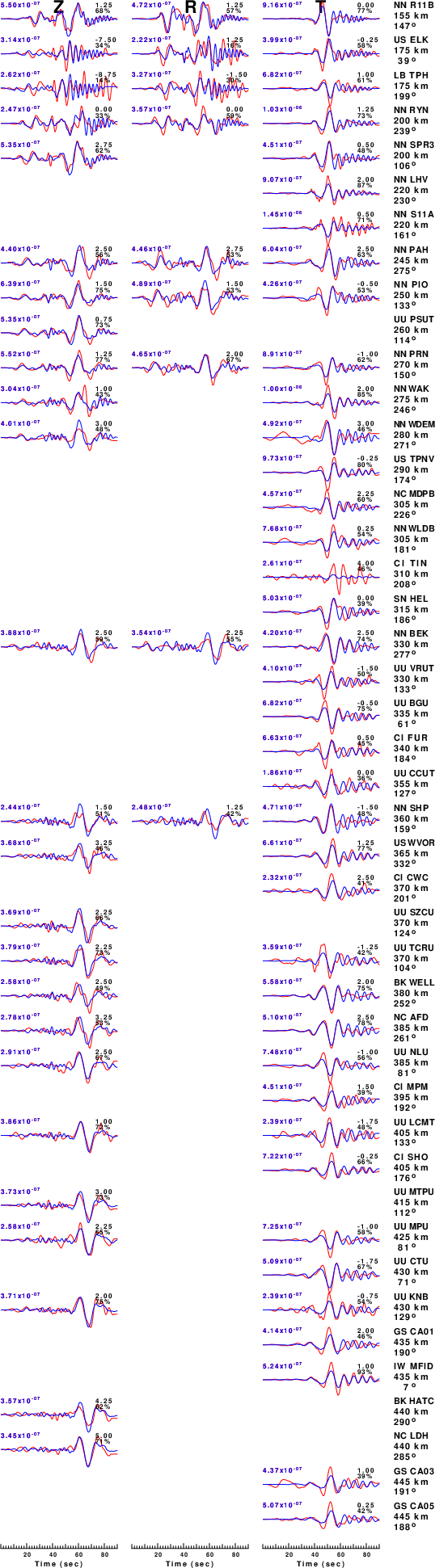

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

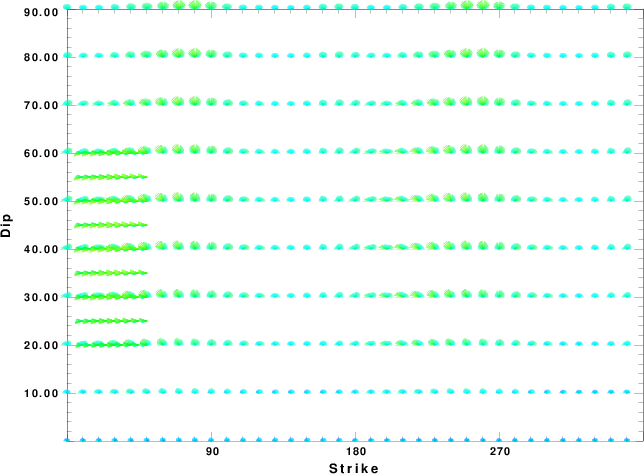

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

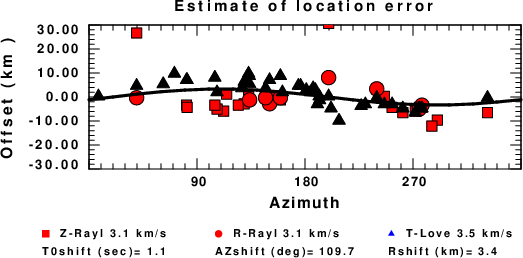

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
