Location
SLU Location
To check the ANSS location or to compare the observed P-wave first motions to the moment tensor solution, P- and S-wave first arrival times were manually read together with the P-wave first motions. The subsequent output of the program elocate is given in the file elocate.txt. The first motion plot is shown below.
Location ANSS
The ANSS event ID is us600055xa and the event page is at
https://earthquake.usgs.gov/earthquakes/eventpage/us600055xa/executive.
2019/08/16 12:59:10 38.025 -97.983 5.0 4.2 Kansas
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2019/08/16 12:59:10:0 38.03 -97.98 5.0 4.2 Kansas
Stations used:
AG.HHAR C0.LAMA GM.IWM01 GS.KAN14 GS.OK029 GS.OK038
GS.OK052 N4.BGNE N4.KSCO N4.N35B N4.P38B N4.R32B N4.T35B
N4.TUL3 O2.ARCA O2.CHAN O2.CRES O2.DRUM O2.KS01 O2.MRSH
O2.PERK O2.PERY O2.POCA O2.SC04 O2.SC11 O2.SC15 O2.SMNL
OK.AMES OK.BLOK OK.CHOK OK.CROK OK.CSTR OK.MOOR OK.NOKA
US.CBKS US.WMOK
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 3.31e+22 dyne-cm
Mw = 4.28
Z = 5 km
Plane Strike Dip Rake
NP1 213 80 170
NP2 305 80 10
Principal Axes:
Axis Value Plunge Azimuth
T 3.31e+22 14 169
N 0.00e+00 76 350
P -3.31e+22 0 259
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.89e+22
Mxy -1.19e+22
Mxz -7.67e+21
Myy -3.08e+22
Myz 1.54e+21
Mzz 1.97e+21
##############
######################
#######################-----
#######################-------
#######################-----------
------################--------------
----------############----------------
---------------######-------------------
------------------##--------------------
--------------------#---------------------
-------------------#####------------------
---------------##########---------------
P --------------#############-------------
-------------################----------
-------------###################--------
-----------######################-----
---------#########################--
-------###########################
-----#########################
---############# #########
############# T ######
######### ##
Global CMT Convention Moment Tensor:
R T P
1.97e+21 -7.67e+21 -1.54e+21
-7.67e+21 2.89e+22 1.19e+22
-1.54e+21 1.19e+22 -3.08e+22
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190816125910/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is
STK = 305
DIP = 80
RAKE = 10
MW = 4.28
HS = 5.0
The NDK file is 20190816125910.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
| SLU |
USGSMWR |
SLUFM |
USGS/SLU Moment Tensor Solution
ENS 2019/08/16 12:59:10:0 38.03 -97.98 5.0 4.2 Kansas
Stations used:
AG.HHAR C0.LAMA GM.IWM01 GS.KAN14 GS.OK029 GS.OK038
GS.OK052 N4.BGNE N4.KSCO N4.N35B N4.P38B N4.R32B N4.T35B
N4.TUL3 O2.ARCA O2.CHAN O2.CRES O2.DRUM O2.KS01 O2.MRSH
O2.PERK O2.PERY O2.POCA O2.SC04 O2.SC11 O2.SC15 O2.SMNL
OK.AMES OK.BLOK OK.CHOK OK.CROK OK.CSTR OK.MOOR OK.NOKA
US.CBKS US.WMOK
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 3.31e+22 dyne-cm
Mw = 4.28
Z = 5 km
Plane Strike Dip Rake
NP1 213 80 170
NP2 305 80 10
Principal Axes:
Axis Value Plunge Azimuth
T 3.31e+22 14 169
N 0.00e+00 76 350
P -3.31e+22 0 259
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.89e+22
Mxy -1.19e+22
Mxz -7.67e+21
Myy -3.08e+22
Myz 1.54e+21
Mzz 1.97e+21
##############
######################
#######################-----
#######################-------
#######################-----------
------################--------------
----------############----------------
---------------######-------------------
------------------##--------------------
--------------------#---------------------
-------------------#####------------------
---------------##########---------------
P --------------#############-------------
-------------################----------
-------------###################--------
-----------######################-----
---------#########################--
-------###########################
-----#########################
---############# #########
############# T ######
######### ##
Global CMT Convention Moment Tensor:
R T P
1.97e+21 -7.67e+21 -1.54e+21
-7.67e+21 2.89e+22 1.19e+22
-1.54e+21 1.19e+22 -3.08e+22
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190816125910/index.html
|

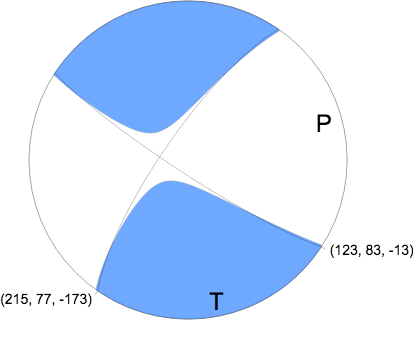

Regional Moment Tensor (Mwr)
Moment 2.835e+15 N-m
Magnitude 4.24 Mwr
Depth 3.0 km
Percent DC 90%
Half Duration -
Catalog US
Data Source US 1
Contributor US 1
Nodal Planes
Plane Strike Dip Rake
NP1 123 83 -13
NP2 215 77 -173
Principal Axes
Axis Value Plunge Azimuth
T 2.906e+15 N-m 4 169
N -0.148e+15 N-m 75 276
P -2.758e+15 N-m 14 78
|

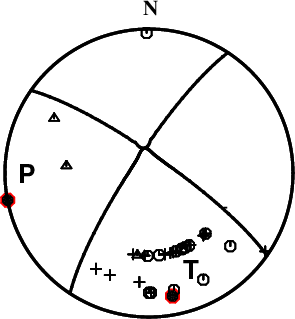

First motions and takeoff angles from an elocate run.
|
Magnitudes
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula
for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
mLg Magnitude

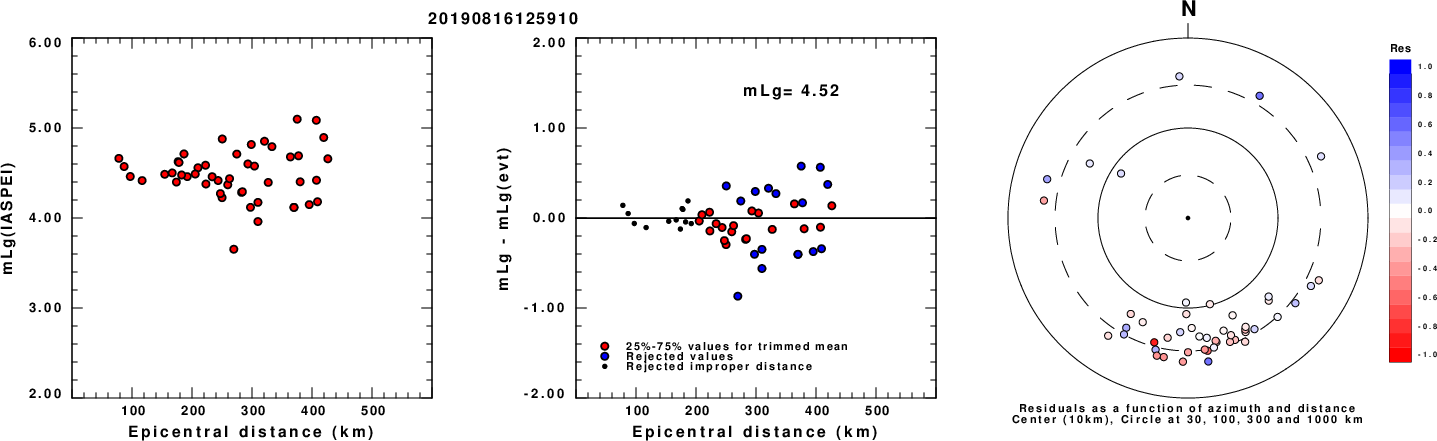

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.
ML Magnitude

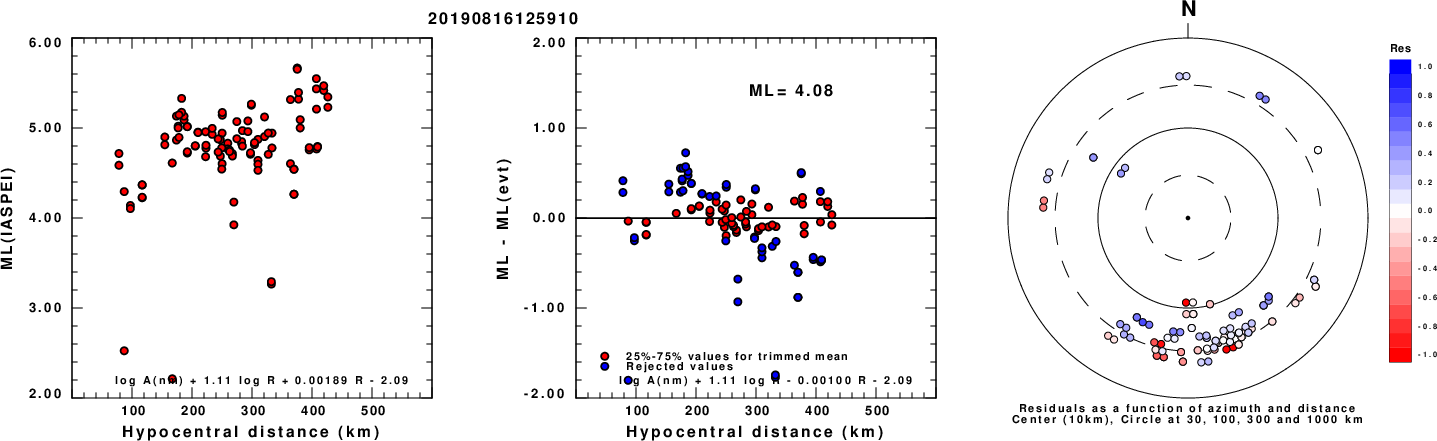

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

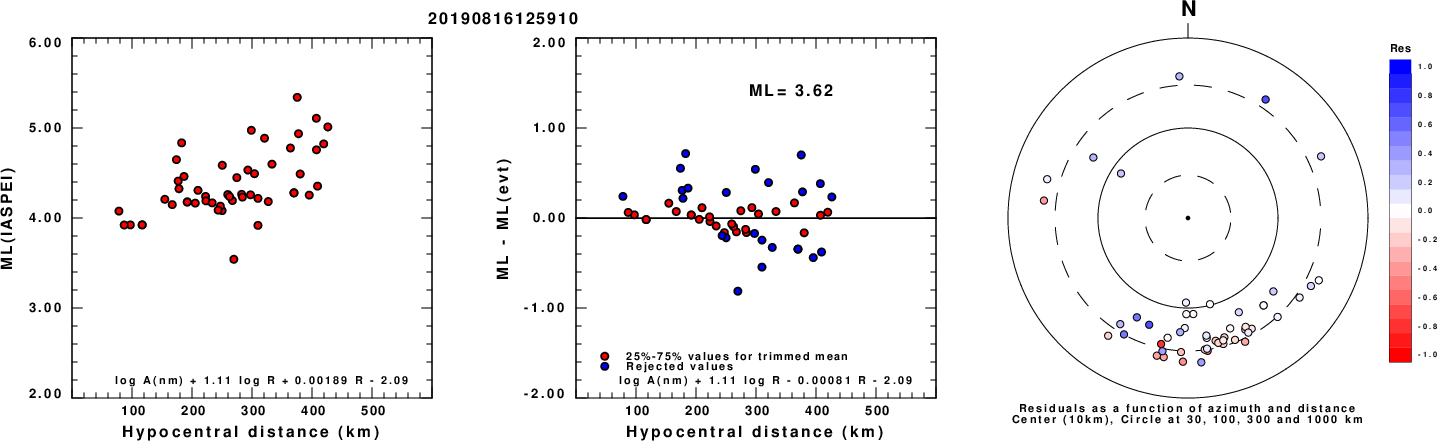

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Context

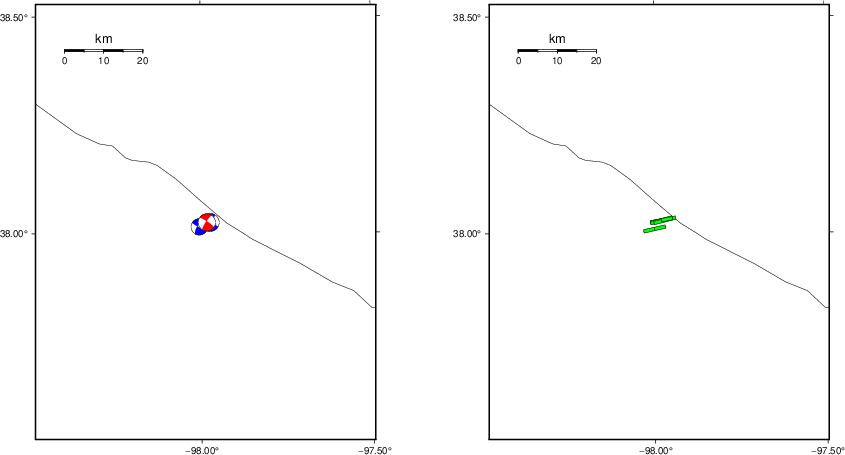

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.
Waveform Inversion using wvfgrd96
The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the
stations used for (red) the waveform inversion are shown in the next figure.
|
|

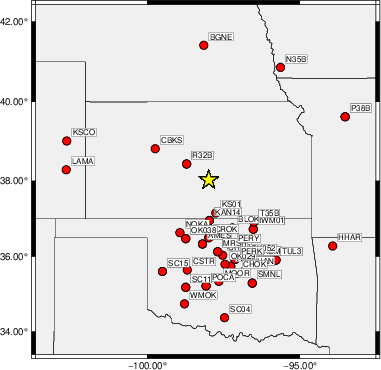

Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 310 65 30 4.25 0.4038
WVFGRD96 2.0 125 90 -5 4.21 0.4333
WVFGRD96 3.0 125 90 -5 4.24 0.4504
WVFGRD96 4.0 125 90 -10 4.26 0.4516
WVFGRD96 5.0 305 80 10 4.28 0.4525
WVFGRD96 6.0 305 80 10 4.29 0.4511
WVFGRD96 7.0 305 80 10 4.30 0.4488
WVFGRD96 8.0 305 80 10 4.31 0.4452
WVFGRD96 9.0 305 80 10 4.32 0.4399
WVFGRD96 10.0 305 80 10 4.34 0.4336
WVFGRD96 11.0 125 85 15 4.35 0.4252
WVFGRD96 12.0 125 85 15 4.36 0.4155
WVFGRD96 13.0 125 85 15 4.37 0.4033
WVFGRD96 14.0 125 85 15 4.37 0.3899
WVFGRD96 15.0 300 90 -15 4.38 0.3721
WVFGRD96 16.0 125 85 15 4.38 0.3586
WVFGRD96 17.0 305 90 -20 4.39 0.3404
WVFGRD96 18.0 125 85 15 4.39 0.3252
WVFGRD96 19.0 215 85 -15 4.40 0.3203
WVFGRD96 20.0 210 75 -20 4.42 0.3187
WVFGRD96 21.0 210 75 -15 4.43 0.3180
WVFGRD96 22.0 210 70 -15 4.44 0.3177
WVFGRD96 23.0 210 75 -15 4.45 0.3165
WVFGRD96 24.0 210 70 -15 4.46 0.3168
WVFGRD96 25.0 210 70 -15 4.47 0.3156
WVFGRD96 26.0 210 70 -15 4.47 0.3151
WVFGRD96 27.0 215 90 -10 4.47 0.3146
WVFGRD96 28.0 215 90 -10 4.48 0.3145
WVFGRD96 29.0 215 90 -10 4.49 0.3159
The best solution is
WVFGRD96 5.0 305 80 10 4.28 0.4525
The mechanism corresponding to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

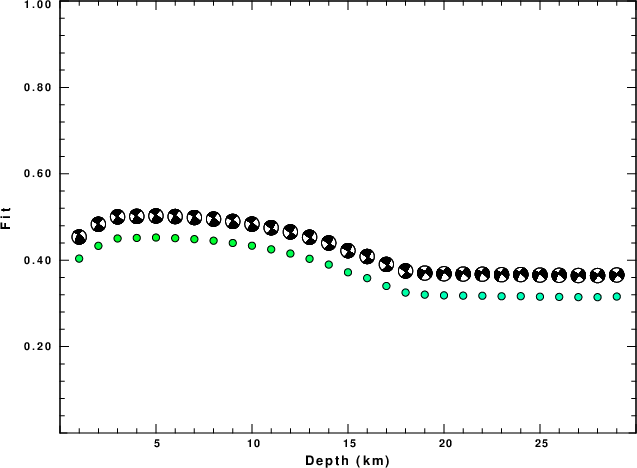

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
|
|

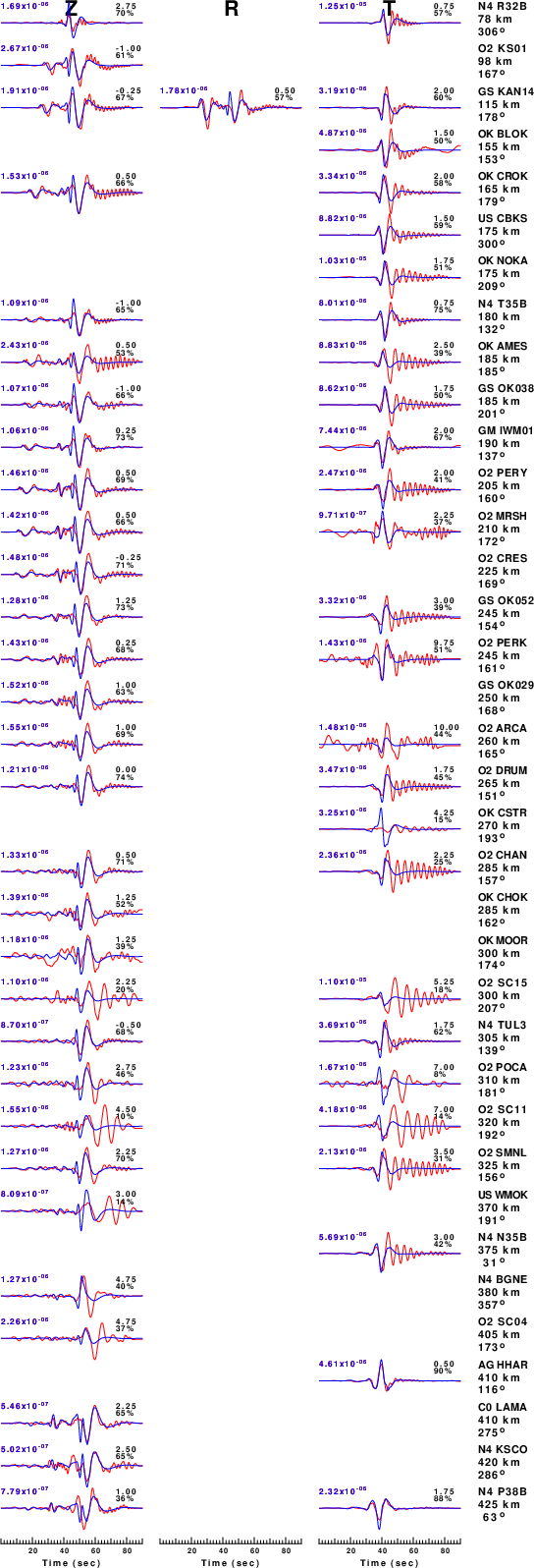

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.
|
|
|

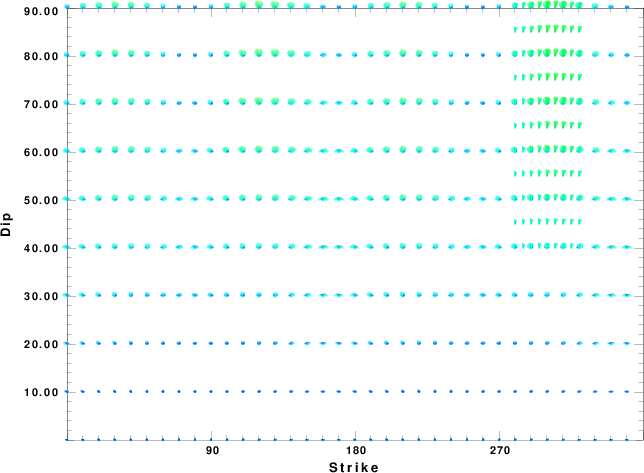

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

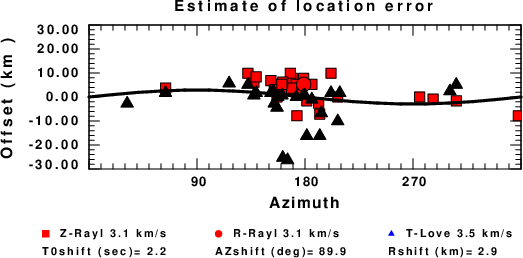

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Velocity Model
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows
(The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00
9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00
10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00
20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00
0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
Last Changed Thu Apr 25 03:35:48 PM CDT 2024
