Location

Location ANSS

The ANSS event ID is ak0198x7hh8o and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0198x7hh8o/executive.

2019/07/13 22:21:52 69.120 -144.664 11.9 3.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/07/13 22:21:52:0  69.12 -144.66  11.9 3.6 Alaska

 Stations used:
   TA.C26K TA.C27K TA.D23K TA.D24K TA.D25K TA.D27M TA.E24K
   TA.E25K TA.E27K TA.E28M TA.E29M TA.F24K TA.F25K TA.F26K
   TA.F28M TA.G23K TA.G24K TA.G26K TA.G27K TA.G29M TA.G30M
   TA.H23K TA.H24K TA.H27K

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.75e+21 dyne-cm
  Mw = 3.56
  Z  = 10 km
  Plane   Strike  Dip  Rake
   NP1      190    80   -20
   NP2      284    70   -169
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.75e+21      7     238
    N   0.00e+00     68     344
    P  -2.75e+21     21     145

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -8.62e+20
       Mxy     2.34e+21
       Mxz     5.96e+20
       Myy     1.18e+21
       Myz    -7.94e+20
       Mzz    -3.22e+20




                     ----------####
                 -------------#########
              ---------------#############
             ----------------##############
           -----------------#################
          ------------------##################
         ------------------####################
        -------------------#####################
        ##################----##################
       ###################----------#############
       ###################--------------#########
       ##################------------------######
       ##################---------------------###
        #################-----------------------
        ################------------------------
         #   ###########-----------------------
           T ###########----------------------
             ###########------------   ------
             ###########------------ P ----
              ##########------------   ---
                 #######---------------
                     ###-----------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.22e+20   5.96e+20   7.94e+20
  5.96e+20  -8.62e+20  -2.34e+21
  7.94e+20  -2.34e+21   1.18e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190713222152/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 190
      DIP = 80
     RAKE = -20
       MW = 3.56
       HS = 10.0

The NDK file is 20190713222152.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

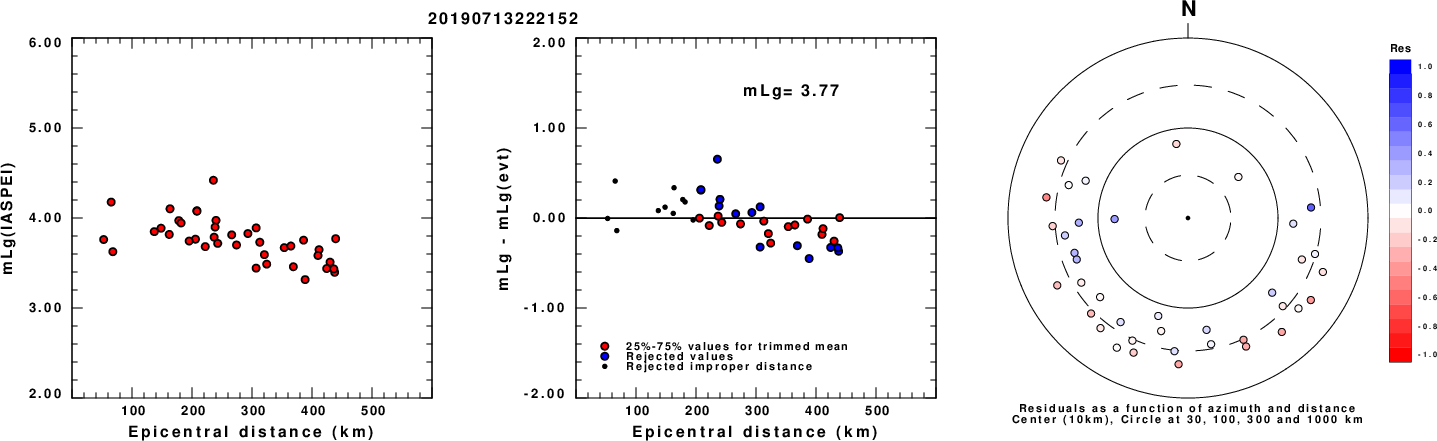

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

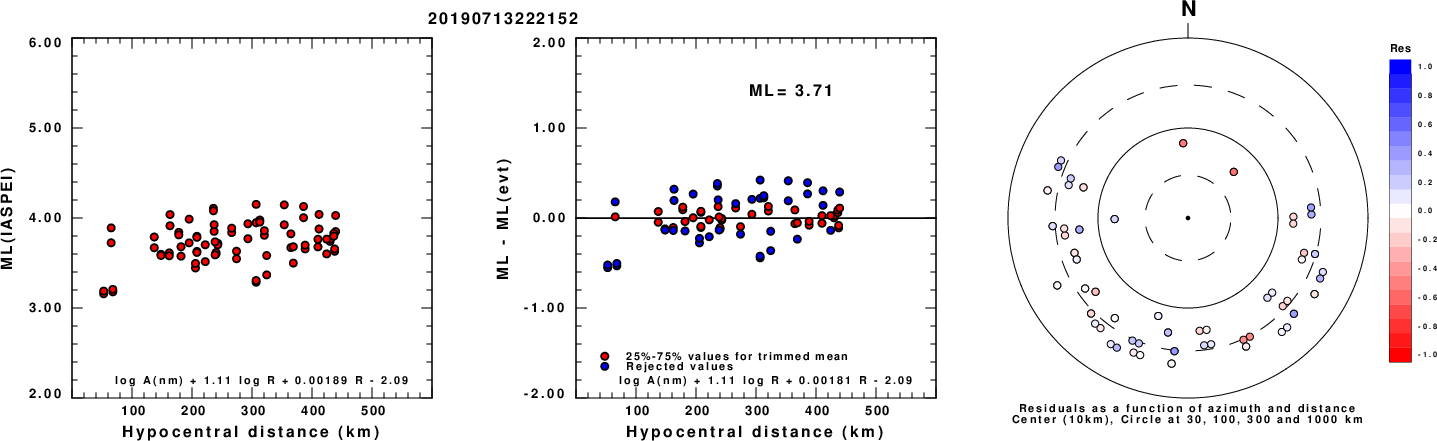

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

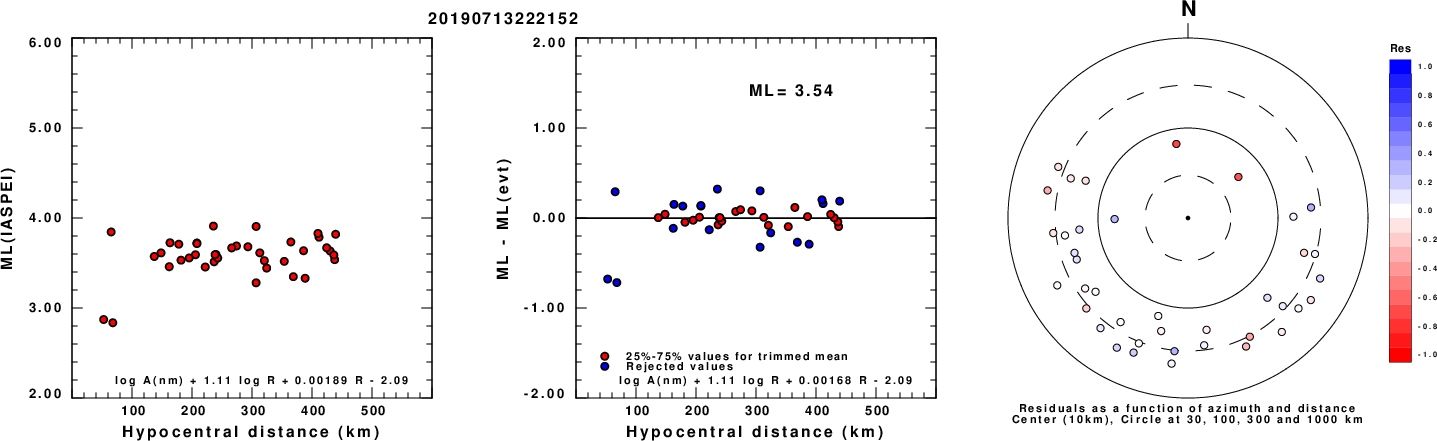

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

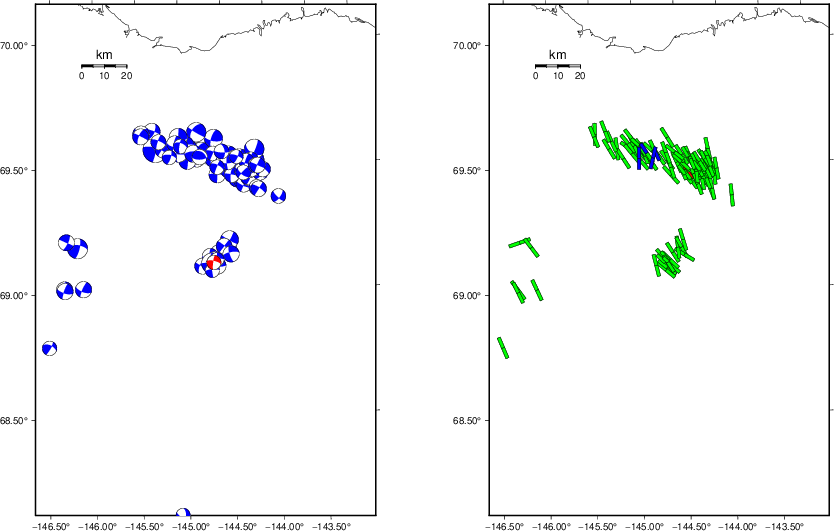

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

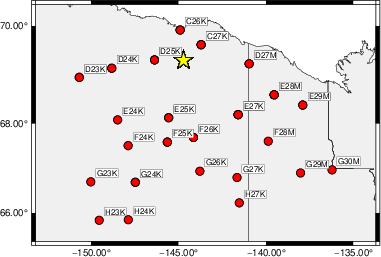

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   345    85     0   3.10 0.2946
WVFGRD96    2.0   345    80     0   3.25 0.4065
WVFGRD96    3.0   345    85    25   3.33 0.4460
WVFGRD96    4.0   345    85    20   3.37 0.4791
WVFGRD96    5.0   345    85    20   3.41 0.5029
WVFGRD96    6.0   345    90    20   3.44 0.5203
WVFGRD96    7.0   165    80   -15   3.48 0.5364
WVFGRD96    8.0   165    75   -20   3.52 0.5491
WVFGRD96    9.0   190    80   -25   3.54 0.5494
WVFGRD96   10.0   190    80   -20   3.56 0.5501
WVFGRD96   11.0   195    90   -20   3.58 0.5479
WVFGRD96   12.0   195    90   -15   3.60 0.5432
WVFGRD96   13.0   195    90   -15   3.61 0.5361
WVFGRD96   14.0   195    85   -15   3.63 0.5275
WVFGRD96   15.0   195    80    15   3.64 0.5231
WVFGRD96   16.0   170    80    20   3.66 0.5056
WVFGRD96   17.0   170    80    20   3.67 0.4979
WVFGRD96   18.0   170    80    20   3.68 0.4891
WVFGRD96   19.0   170    80    20   3.69 0.4800
WVFGRD96   20.0   195    80    15   3.70 0.4796
WVFGRD96   21.0   195    75    10   3.70 0.4725
WVFGRD96   22.0   195    75    10   3.71 0.4666
WVFGRD96   23.0   195    75    10   3.72 0.4618
WVFGRD96   24.0   195    75    15   3.73 0.4585
WVFGRD96   25.0   195    75    15   3.74 0.4563
WVFGRD96   26.0   195    75    15   3.74 0.4549
WVFGRD96   27.0   195    75    10   3.75 0.4538
WVFGRD96   28.0   195    75    10   3.75 0.4529
WVFGRD96   29.0   195    80    15   3.76 0.4538

The best solution is

WVFGRD96   10.0   190    80   -20   3.56 0.5501

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

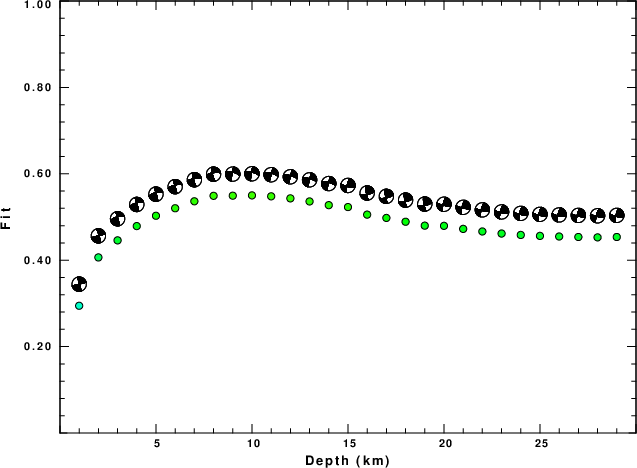

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

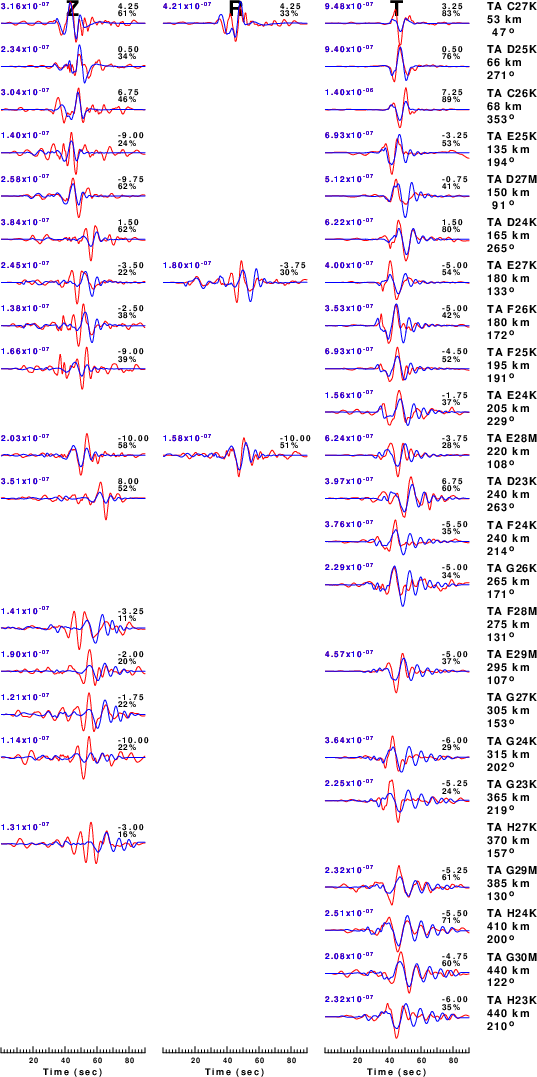

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

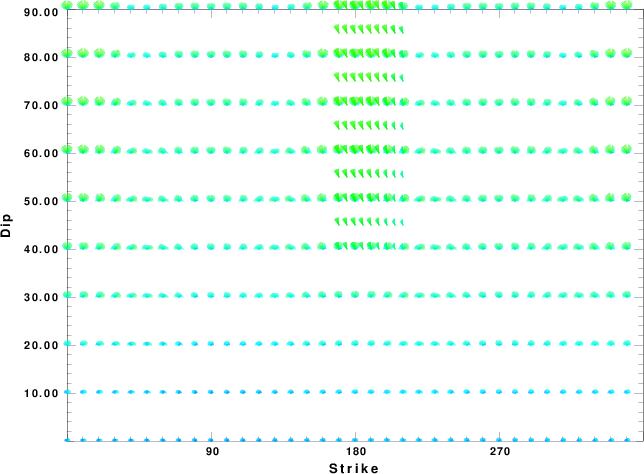

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

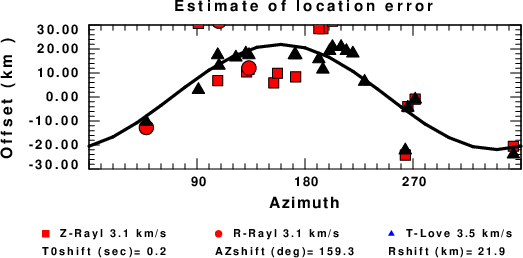

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 02:53:29 PM CDT 2024
