Location

Location ANSS

The ANSS event ID is ak0198ddkciq and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0198ddkciq/executive.

2019/07/01 23:10:34 61.217 -146.884 20.0 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/07/01 23:10:34:0  61.22 -146.88  20.0 3.7 Alaska

 Stations used:
   AK.BARN AK.BRLK AK.CAST AK.CNP AK.CRQ AK.CUT AK.DHY AK.DIV
   AK.DOT AK.EYAK AK.FID AK.FIRE AK.GLB AK.GLI AK.HDA AK.HIN
   AK.HMT AK.KLU AK.KNK AK.KTH AK.MCAR AK.MCK AK.PAX AK.PPLA
   AK.RC01 AK.RIDG AK.SCM AK.SKN AK.SLK AK.SUCK AK.SWD AK.TRF
   AK.WAX AK.YAH AT.MENT AT.PMR AV.STLK IU.COLA TA.J25K
   TA.J26L TA.K24K TA.K27K TA.L26K TA.L27K TA.M22K TA.M24K
   TA.M27K TA.N25K TA.O22K TA.P23K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 5.50e+21 dyne-cm
  Mw = 3.76
  Z  = 32 km
  Plane   Strike  Dip  Rake
   NP1      260    85   -65
   NP2        1    25   -168
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.50e+21     35     329
    N   0.00e+00     25      78
    P  -5.50e+21     44     195

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.75e+19
       Mxy    -2.32e+21
       Mxz     4.87e+21
       Myy     8.17e+20
       Myz    -6.52e+20
       Mzz    -8.65e+20




                     ###########---
                 ##################----
              #######################-----
             ######   #################----
           ######## T ##################-----
          #########   ###################-----
         #################################-----
        ###################################-----
        ###################################-----
       ###############################------#####
       ###################------------------#####
       ##########---------------------------#####
       ###---------------------------------######
        -----------------------------------#####
        -----------------------------------#####
         ---------------   ---------------#####
          -------------- P --------------#####
           -------------   -------------#####
             --------------------------####
              -----------------------#####
                 ------------------####
                     -----------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.65e+20   4.87e+21   6.52e+20
  4.87e+21   4.75e+19   2.32e+21
  6.52e+20   2.32e+21   8.17e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190701231034/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 260
      DIP = 85
     RAKE = -65
       MW = 3.76
       HS = 32.0

The NDK file is 20190701231034.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

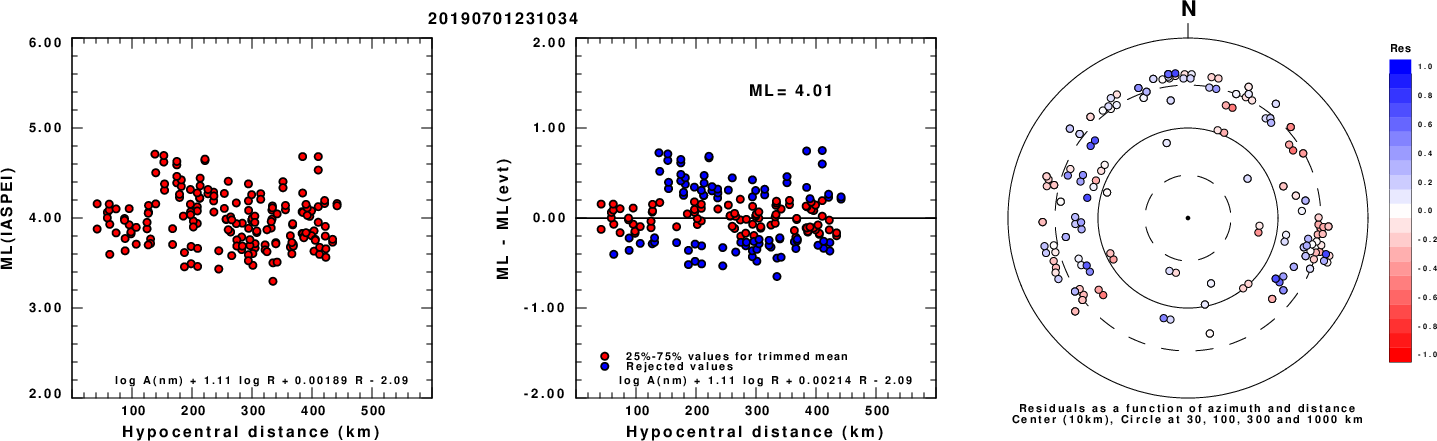

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

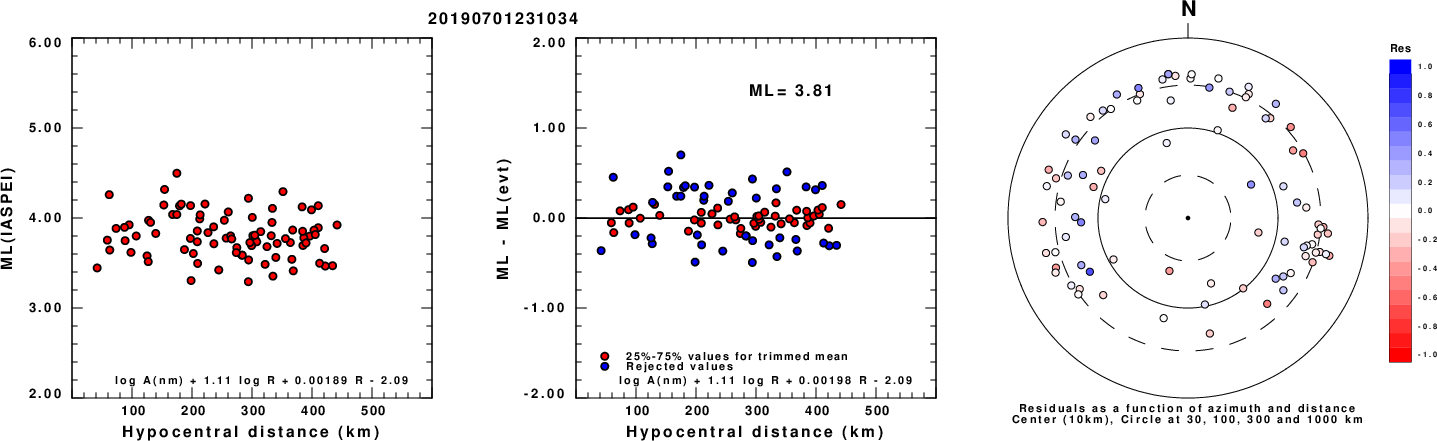

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

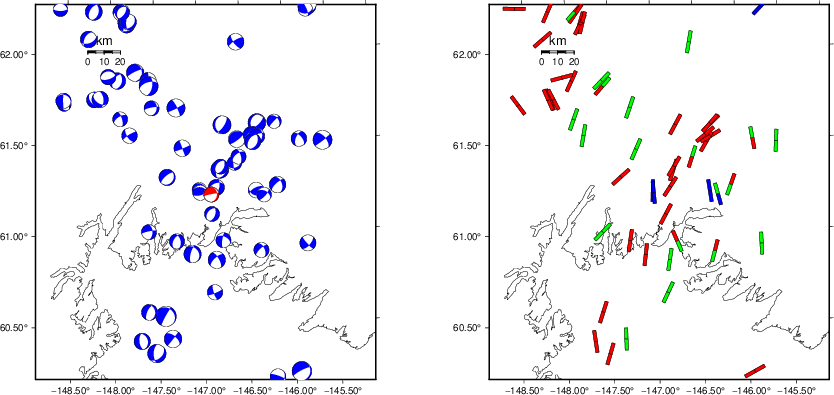

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

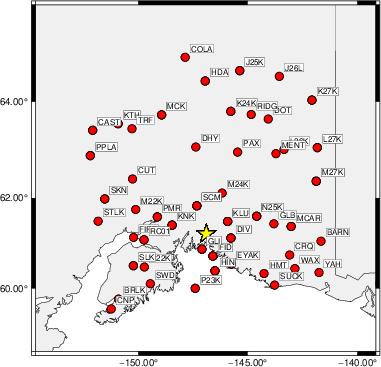

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    90    40    90   3.24 0.2429
WVFGRD96    2.0    95    40    95   3.38 0.3343
WVFGRD96    3.0   265    45    90   3.44 0.3260
WVFGRD96    4.0    40    75    15   3.38 0.2869
WVFGRD96    5.0    40    80    15   3.41 0.2869
WVFGRD96    6.0    35    70   -15   3.43 0.2956
WVFGRD96    7.0   260    90   -55   3.41 0.3219
WVFGRD96    8.0   260    90   -60   3.48 0.3467
WVFGRD96    9.0    85    85    65   3.50 0.3819
WVFGRD96   10.0    85    85    65   3.51 0.4127
WVFGRD96   11.0    90    80    65   3.53 0.4414
WVFGRD96   12.0    90    80    65   3.54 0.4680
WVFGRD96   13.0    90    80    65   3.55 0.4923
WVFGRD96   14.0    90    80    65   3.57 0.5151
WVFGRD96   15.0    90    80    65   3.58 0.5362
WVFGRD96   16.0    85    85    60   3.59 0.5557
WVFGRD96   17.0   260    85   -60   3.60 0.5738
WVFGRD96   18.0    85    85    65   3.61 0.5919
WVFGRD96   19.0   260    85   -60   3.63 0.6094
WVFGRD96   20.0    80    90    60   3.64 0.6242
WVFGRD96   21.0    80    90    65   3.65 0.6393
WVFGRD96   22.0   260    85   -65   3.67 0.6552
WVFGRD96   23.0    80    90    65   3.68 0.6682
WVFGRD96   24.0    80    90    65   3.69 0.6810
WVFGRD96   25.0   260    85   -65   3.70 0.6953
WVFGRD96   26.0    80    90    65   3.71 0.7023
WVFGRD96   27.0   260    85   -65   3.72 0.7156
WVFGRD96   28.0    80    90    65   3.73 0.7181
WVFGRD96   29.0   260    85   -65   3.74 0.7292
WVFGRD96   30.0    80    90    65   3.75 0.7273
WVFGRD96   31.0    80    90    65   3.76 0.7301
WVFGRD96   32.0   260    85   -65   3.76 0.7362
WVFGRD96   33.0   260    85   -65   3.77 0.7355
WVFGRD96   34.0    80    90    65   3.77 0.7294
WVFGRD96   35.0   255    85   -65   3.78 0.7307
WVFGRD96   36.0    80    90    65   3.78 0.7241
WVFGRD96   37.0   255    85   -65   3.79 0.7230
WVFGRD96   38.0    80    90    65   3.79 0.7162
WVFGRD96   39.0   260    85   -65   3.79 0.7141
WVFGRD96   40.0    80    90    75   3.93 0.7061
WVFGRD96   41.0   260    90   -75   3.93 0.7020
WVFGRD96   42.0    80    90    75   3.94 0.6972
WVFGRD96   43.0   260    90   -75   3.94 0.6923
WVFGRD96   44.0    80    90    75   3.95 0.6867
WVFGRD96   45.0    85    85    75   3.95 0.6810
WVFGRD96   46.0    85    85    75   3.95 0.6753
WVFGRD96   47.0   260    90   -75   3.96 0.6678
WVFGRD96   48.0    85    85    75   3.96 0.6627
WVFGRD96   49.0    85    85    75   3.97 0.6562
WVFGRD96   50.0    85    85    75   3.97 0.6497
WVFGRD96   51.0    85    85    75   3.97 0.6429
WVFGRD96   52.0    85    85    75   3.98 0.6357
WVFGRD96   53.0   260    90   -75   3.98 0.6256
WVFGRD96   54.0   265    90   -80   3.99 0.6187
WVFGRD96   55.0    85    80    75   3.99 0.6153
WVFGRD96   56.0   170   -10    -5   4.00 0.6050
WVFGRD96   57.0   160    10   -15   4.01 0.5990
WVFGRD96   58.0   160    15   -15   4.02 0.5935
WVFGRD96   59.0   165    15   -10   4.02 0.5878

The best solution is

WVFGRD96   32.0   260    85   -65   3.76 0.7362

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

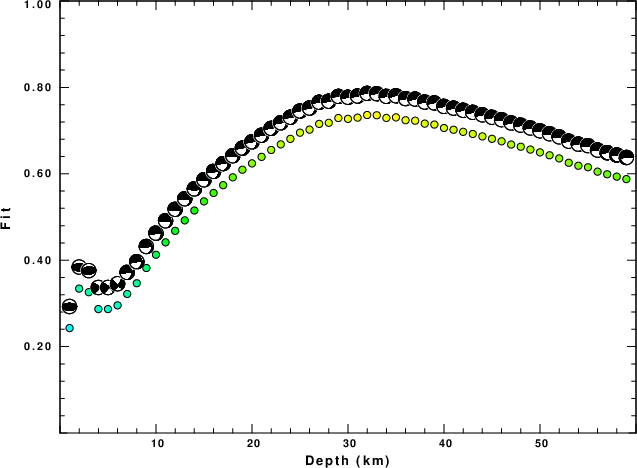

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

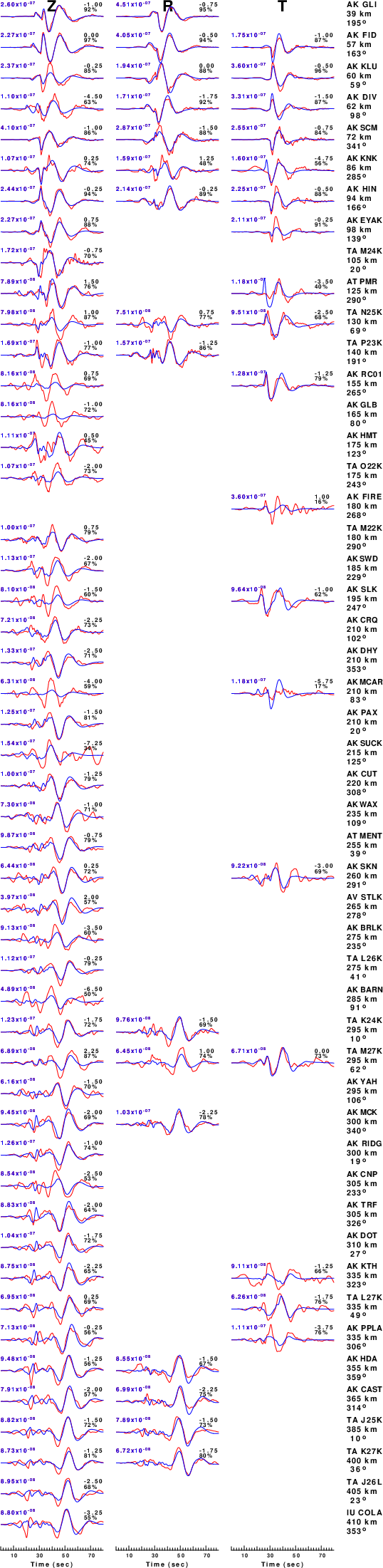

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

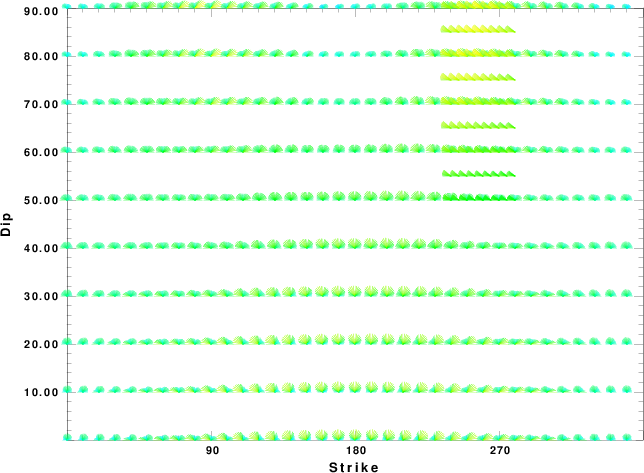

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

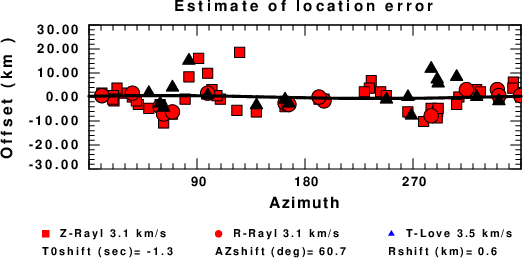

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
