Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is ak0197t82kba and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0197t82kba/executive.
2019/06/19 04:55:20 62.249 -150.497 18.2 3.8 Alaska

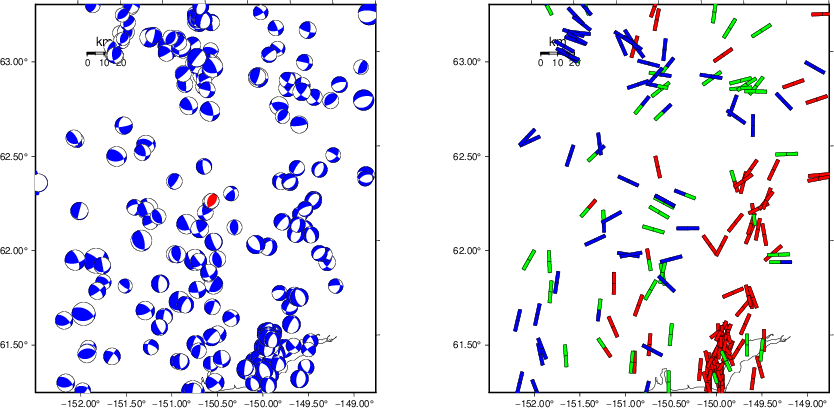

USGS/SLU Moment Tensor Solution
ENS 2019/06/19 04:55:20:0 62.25 -150.50 18.2 3.8 Alaska
Stations used:
AK.BPAW AK.BWN AK.CAST AK.DHY AK.DIV AK.DOT AK.EYAK AK.GHO
AK.GLI AK.HDA AK.HIN AK.KLU AK.KNK AK.KTH AK.MCK AK.MLY
AK.PAX AK.PPLA AK.PWL AK.RIDG AK.RND AK.SAW AK.SCM AK.SKN
AK.SSN AK.TRF AK.WRH AT.MENT AT.PMR AV.STLK IU.COLA TA.I20K
TA.I23K TA.J18K TA.J19K TA.J20K TA.J25K TA.K20K TA.K24K
TA.L18K TA.L19K TA.L26K TA.M17K TA.M19K TA.M22K TA.M24K
TA.N18K TA.O18K TA.O19K TA.POKR
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 5.31e+21 dyne-cm
Mw = 3.75
Z = 20 km
Plane Strike Dip Rake
NP1 41 47 105
NP2 200 45 75
Principal Axes:
Axis Value Plunge Azimuth
T 5.31e+21 79 25
N 0.00e+00 11 211
P -5.31e+21 1 121
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.22e+21
Mxy 2.39e+21
Mxz 9.13e+20
Myy -3.90e+21
Myz 3.32e+20
Mzz 5.13e+21
-------------#
------------##########
------------################
-----------##################-
-----------#####################--
-----------######################---
-----------#######################----
-----------########################-----
----------########## ###########------
----------########### T ###########-------
----------########### ##########--------
---------########################---------
---------#######################----------
--------######################----------
--------#####################-----------
-------###################---------
------#################----------- P
------##############-------------
----##########----------------
----####--------------------
##--------------------
--------------
Global CMT Convention Moment Tensor:
R T P
5.13e+21 9.13e+20 -3.32e+20
9.13e+20 -1.22e+21 -2.39e+21
-3.32e+20 -2.39e+21 -3.90e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190619045520/index.html
|
STK = 200
DIP = 45
RAKE = 75
MW = 3.75
HS = 20.0
The NDK file is 20190619045520.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

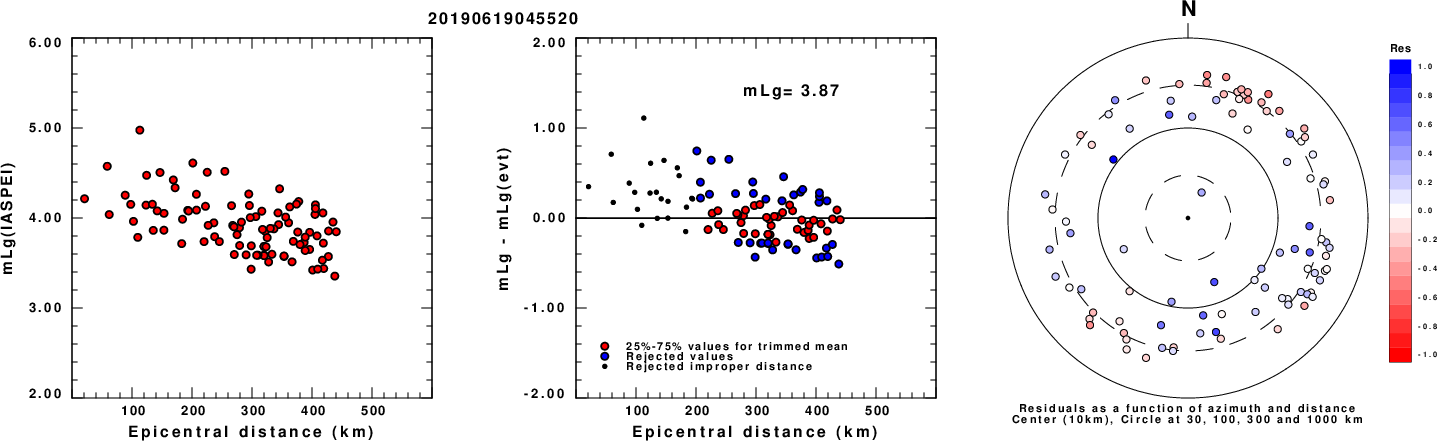

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

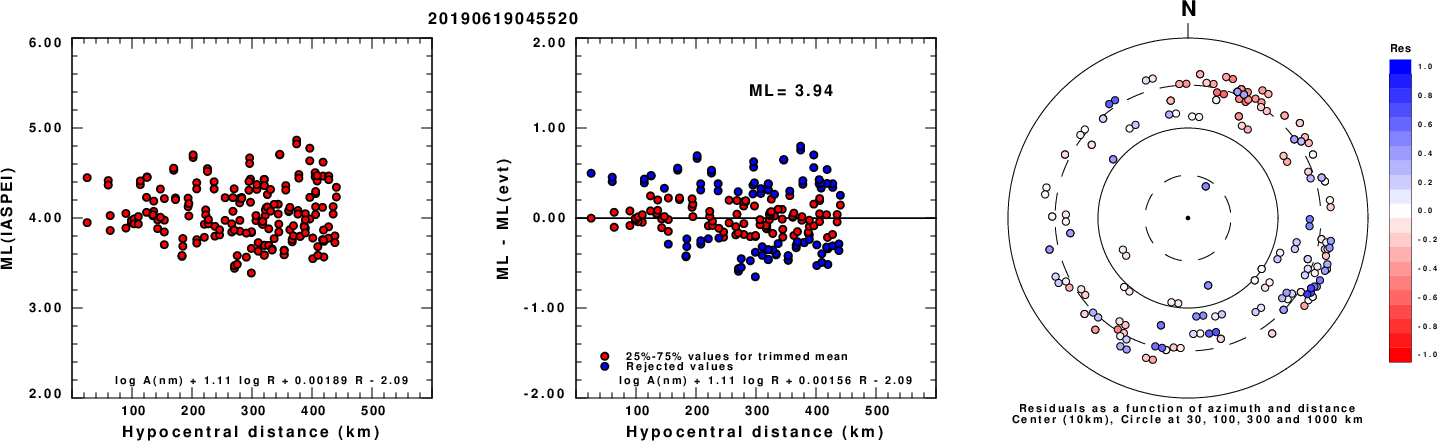

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

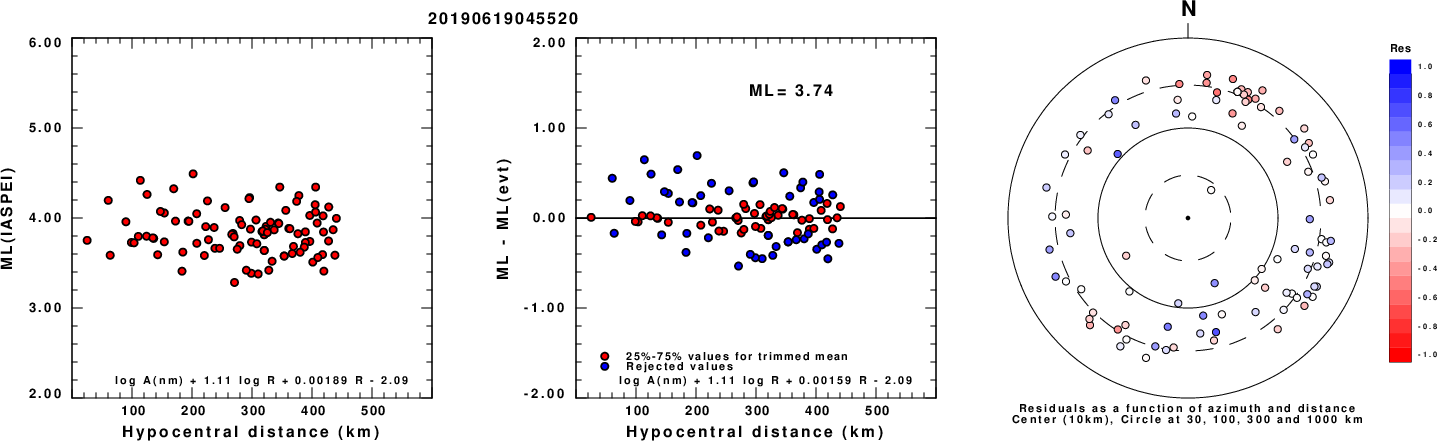

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

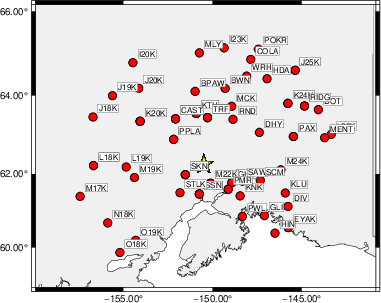

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 50 45 -90 3.25 0.2836
WVFGRD96 2.0 50 45 -90 3.40 0.3864
WVFGRD96 3.0 55 50 -80 3.43 0.2760
WVFGRD96 4.0 270 80 40 3.35 0.2267
WVFGRD96 5.0 275 20 -20 3.39 0.2531
WVFGRD96 6.0 275 20 -20 3.40 0.2960
WVFGRD96 7.0 270 20 -25 3.42 0.3335
WVFGRD96 8.0 255 15 -40 3.51 0.3628
WVFGRD96 9.0 255 15 -40 3.52 0.3960
WVFGRD96 10.0 260 20 -35 3.55 0.4247
WVFGRD96 11.0 295 30 40 3.60 0.4552
WVFGRD96 12.0 300 30 45 3.63 0.4833
WVFGRD96 13.0 195 45 70 3.64 0.5294
WVFGRD96 14.0 195 45 70 3.66 0.5721
WVFGRD96 15.0 195 45 70 3.68 0.6070
WVFGRD96 16.0 195 45 70 3.70 0.6348
WVFGRD96 17.0 195 45 70 3.72 0.6557
WVFGRD96 18.0 200 45 75 3.73 0.6706
WVFGRD96 19.0 200 45 75 3.74 0.6798
WVFGRD96 20.0 200 45 75 3.75 0.6828
WVFGRD96 21.0 205 45 80 3.77 0.6786
WVFGRD96 22.0 205 45 80 3.78 0.6719
WVFGRD96 23.0 205 45 80 3.78 0.6604
WVFGRD96 24.0 205 45 80 3.79 0.6452
WVFGRD96 25.0 205 45 85 3.80 0.6276
WVFGRD96 26.0 30 45 90 3.80 0.6082
WVFGRD96 27.0 25 45 85 3.81 0.5871
WVFGRD96 28.0 20 45 80 3.81 0.5661
WVFGRD96 29.0 20 45 80 3.82 0.5437
The best solution is
WVFGRD96 20.0 200 45 75 3.75 0.6828
The mechanism corresponding to the best fit is
|
|
|

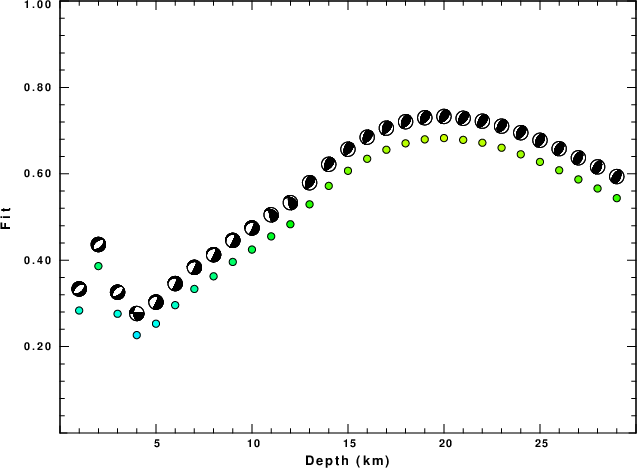

The best fit as a function of depth is given in the following figure:
|
|
|

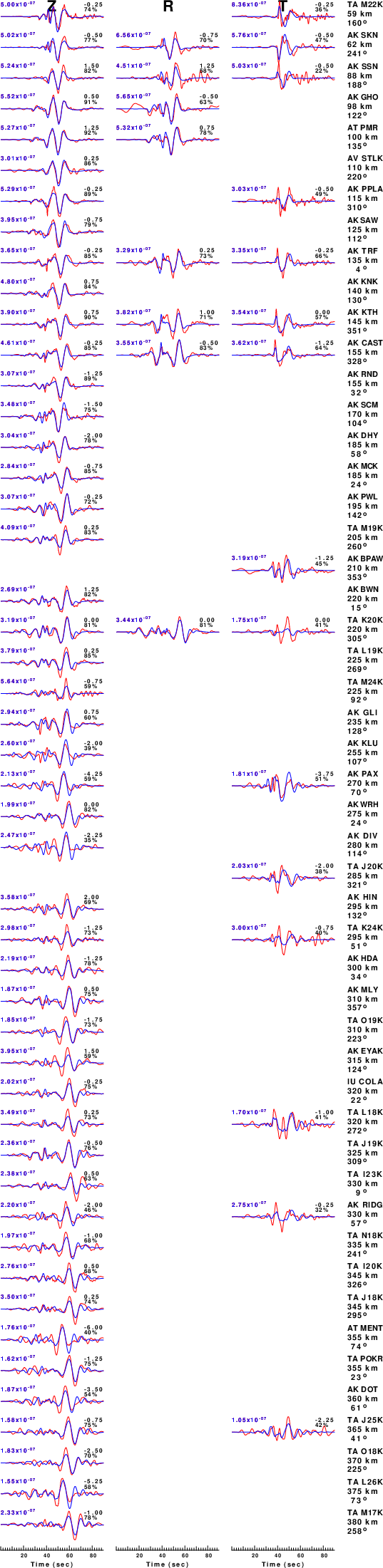

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

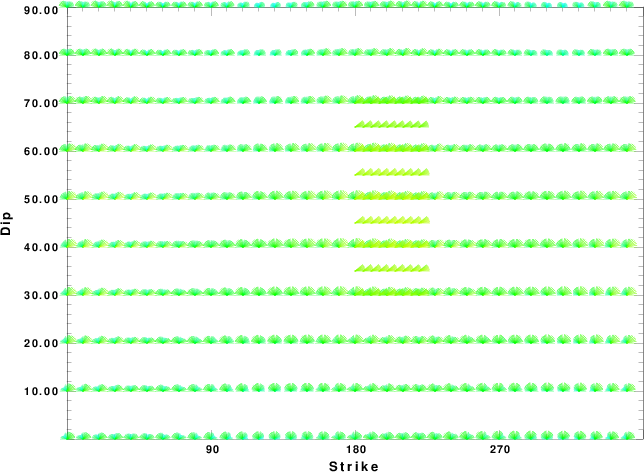

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

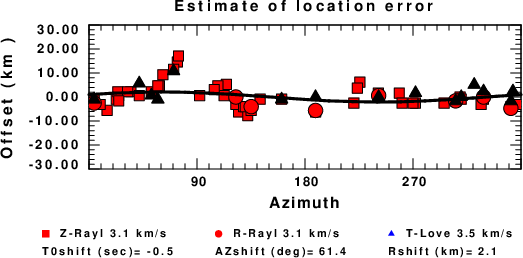

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
