The ANSS event ID is ak0195ue13zz and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0195ue13zz/executive.

2019/05/07 21:46:35 61.389 -149.885 38.0 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/05/07 21:46:35:0  61.39 -149.88  38.0 3.7 Alaska

 Stations used:
   AK.BMR AK.CRQ AK.DIV AK.FID AK.GHO AK.GLI AK.KNK AK.MCK
   AK.PAX AK.PWL AK.SAW AK.SKN AK.SSN AK.SWD AT.PMR TA.M22K
   TA.N25K TA.O22K

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 8.61e+21 dyne-cm
  Mw = 3.89
  Z  = 53 km
  Plane   Strike  Dip  Rake
   NP1      200    80   -20
   NP2      294    70   -169
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.61e+21      7     248
    N   0.00e+00     68     354
    P  -8.61e+21     21     155

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.00e+21
       Mxy     5.78e+21
       Mxz     2.27e+21
       Myy     6.01e+21
       Myz    -2.12e+21
       Mzz    -1.01e+21




                     --------------
                 -----------------#####
              ------------------##########
             ------------------############
           -------------------###############
          -------------------#################
         #########-----------##################
        #################---####################
        ###################---##################
       ###################--------###############
       ###################-----------############
       ##################---------------#########
       #################------------------#######
           #############--------------------####
         T ############-----------------------##
           ############------------------------
          ############------------------------
           ###########-----------------------
             ########------------   -------
              #######------------ P ------
                 ####------------   ---
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.01e+21   2.27e+21   2.12e+21
  2.27e+21  -5.00e+21  -5.78e+21
  2.12e+21  -5.78e+21   6.01e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190507214635/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 200
      DIP = 80
     RAKE = -20
       MW = 3.89
       HS = 53.0

The NDK file is 20190507214635.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

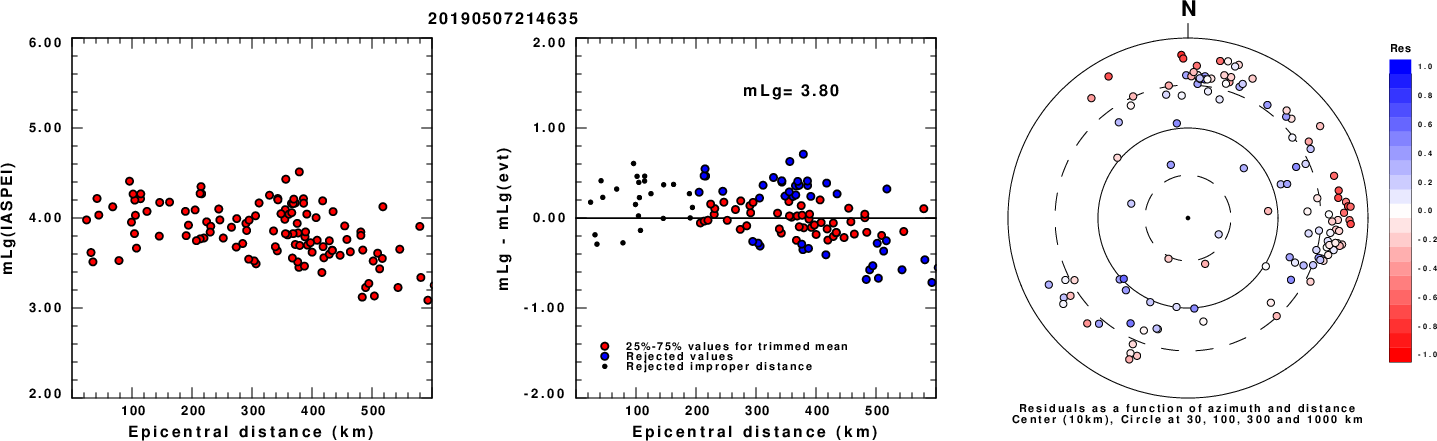

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

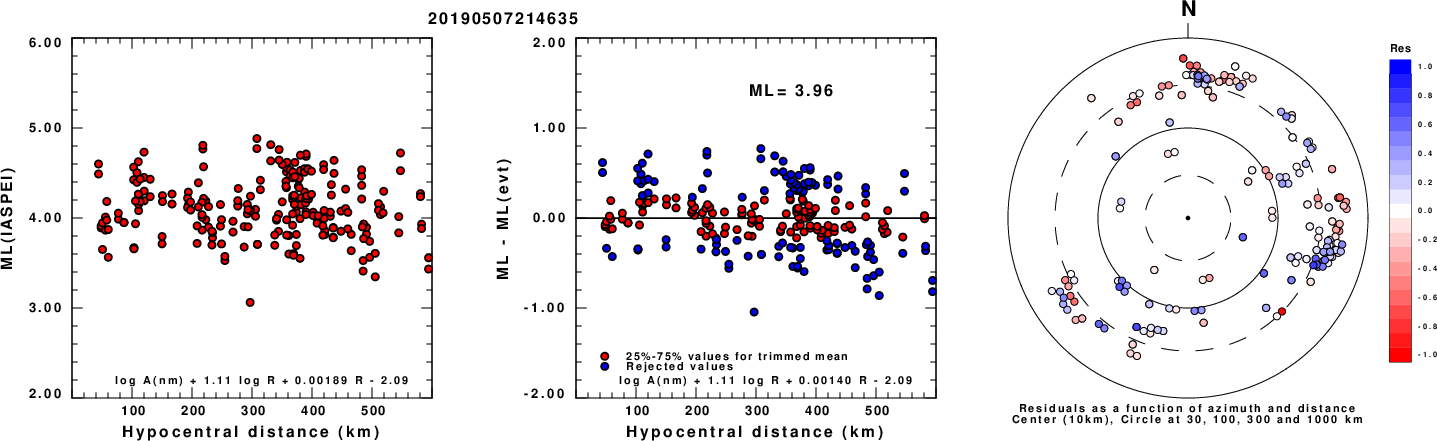

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

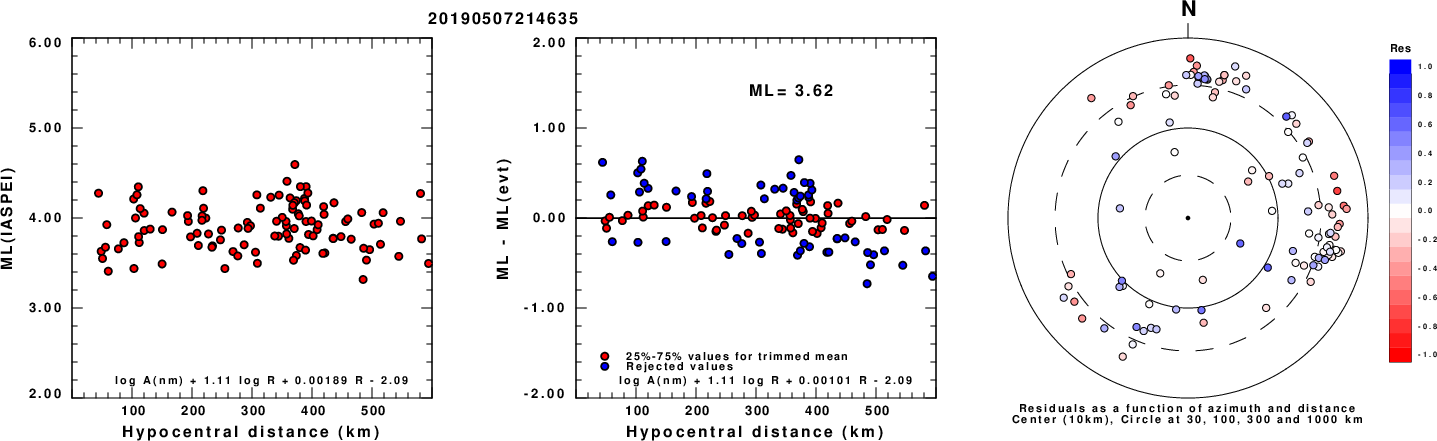

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

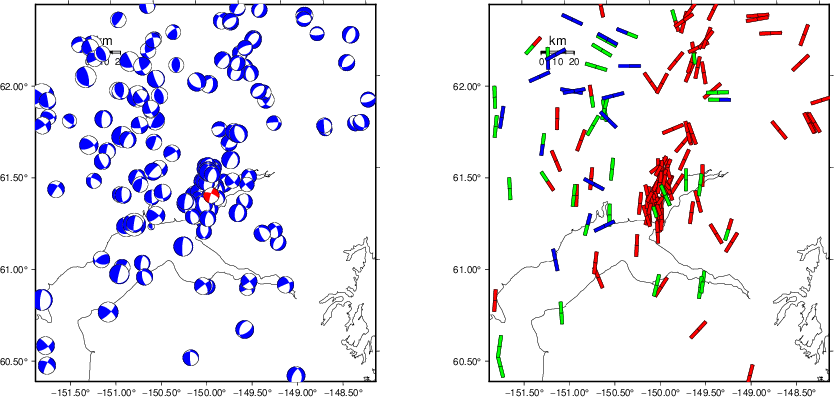

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

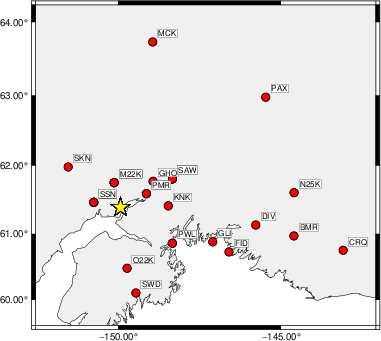

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   295    75     0   2.95 0.2443
WVFGRD96    2.0   295    70    10   3.10 0.3183
WVFGRD96    3.0   295    60    15   3.18 0.3441
WVFGRD96    4.0   295    60    10   3.21 0.3539
WVFGRD96    5.0   290    75   -25   3.24 0.3581
WVFGRD96    6.0   290    75   -25   3.27 0.3626
WVFGRD96    7.0   110    65   -15   3.30 0.3640
WVFGRD96    8.0   110    60   -15   3.35 0.3633
WVFGRD96    9.0   110    65   -15   3.36 0.3572
WVFGRD96   10.0   110    65   -15   3.38 0.3488
WVFGRD96   11.0    25    75    20   3.39 0.3529
WVFGRD96   12.0    25    75    15   3.41 0.3570
WVFGRD96   13.0    25    70    20   3.43 0.3607
WVFGRD96   14.0    25    65    15   3.45 0.3648
WVFGRD96   15.0    25    65    10   3.47 0.3705
WVFGRD96   16.0    25    65    15   3.49 0.3771
WVFGRD96   17.0    25    65    15   3.50 0.3830
WVFGRD96   18.0    25    70    10   3.52 0.3896
WVFGRD96   19.0    25    75    10   3.53 0.4013
WVFGRD96   20.0    25    75    10   3.55 0.4132
WVFGRD96   21.0    25    70    10   3.57 0.4262
WVFGRD96   22.0    25    75    10   3.58 0.4402
WVFGRD96   23.0    25    75    10   3.59 0.4551
WVFGRD96   24.0    25    75    10   3.60 0.4693
WVFGRD96   25.0   200    90    10   3.60 0.4780
WVFGRD96   26.0    25    75    10   3.62 0.5004
WVFGRD96   27.0   200    90    10   3.62 0.5160
WVFGRD96   28.0   200    80    10   3.63 0.5374
WVFGRD96   29.0   200    85    10   3.64 0.5560
WVFGRD96   30.0   200    85    10   3.65 0.5715
WVFGRD96   31.0   200    85    10   3.66 0.5857
WVFGRD96   32.0   205    85     0   3.67 0.5963
WVFGRD96   33.0   205    85     0   3.68 0.6066
WVFGRD96   34.0   200    80   -10   3.67 0.6124
WVFGRD96   35.0   200    80   -15   3.68 0.6212
WVFGRD96   36.0   200    80   -15   3.70 0.6265
WVFGRD96   37.0   200    80   -15   3.71 0.6355
WVFGRD96   38.0   200    80   -10   3.72 0.6396
WVFGRD96   39.0   200    80   -10   3.74 0.6458
WVFGRD96   40.0   200    80   -20   3.78 0.6522
WVFGRD96   41.0   200    80   -20   3.80 0.6561
WVFGRD96   42.0   200    80   -20   3.81 0.6571
WVFGRD96   43.0   200    80   -20   3.82 0.6619
WVFGRD96   44.0   200    80   -20   3.83 0.6626
WVFGRD96   45.0   200    80   -20   3.84 0.6660
WVFGRD96   46.0   200    80   -20   3.85 0.6669
WVFGRD96   47.0   200    80   -20   3.85 0.6690
WVFGRD96   48.0   200    80   -20   3.86 0.6692
WVFGRD96   49.0   200    80   -20   3.87 0.6709
WVFGRD96   50.0   200    80   -20   3.87 0.6702
WVFGRD96   51.0   200    80   -20   3.88 0.6727
WVFGRD96   52.0   200    80   -20   3.89 0.6709
WVFGRD96   53.0   200    80   -20   3.89 0.6728
WVFGRD96   54.0   200    80   -20   3.90 0.6705
WVFGRD96   55.0   200    80   -20   3.90 0.6713
WVFGRD96   56.0   200    80   -20   3.91 0.6689
WVFGRD96   57.0   200    80   -20   3.91 0.6685
WVFGRD96   58.0   200    80   -20   3.91 0.6697
WVFGRD96   59.0   200    80   -20   3.92 0.6663

The best solution is

WVFGRD96   53.0   200    80   -20   3.89 0.6728

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

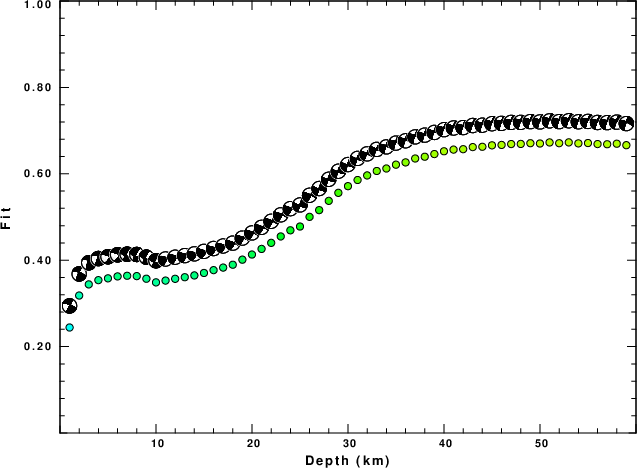

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

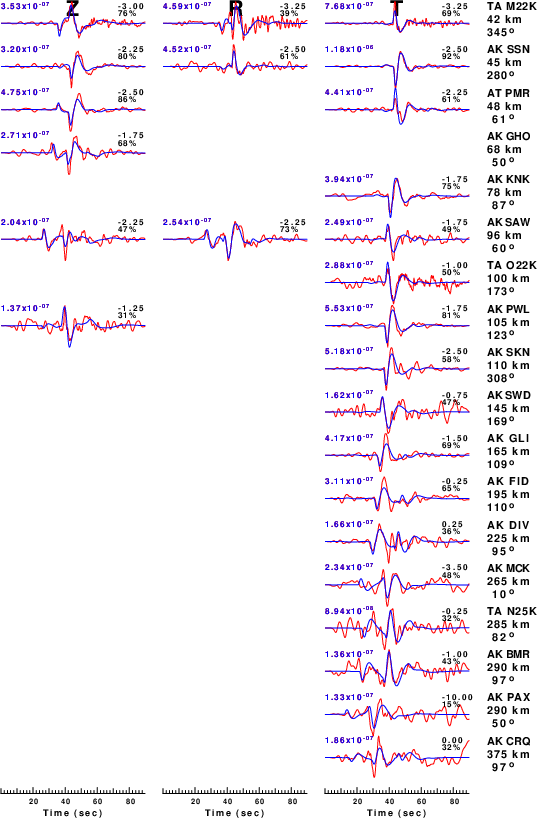

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

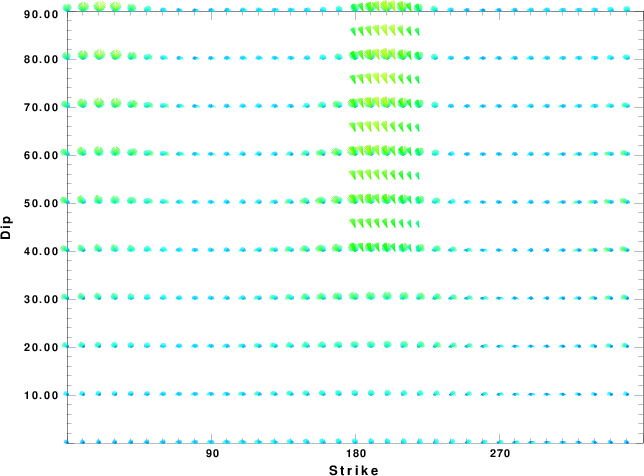

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

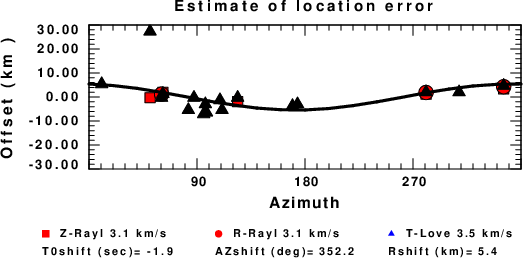

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
