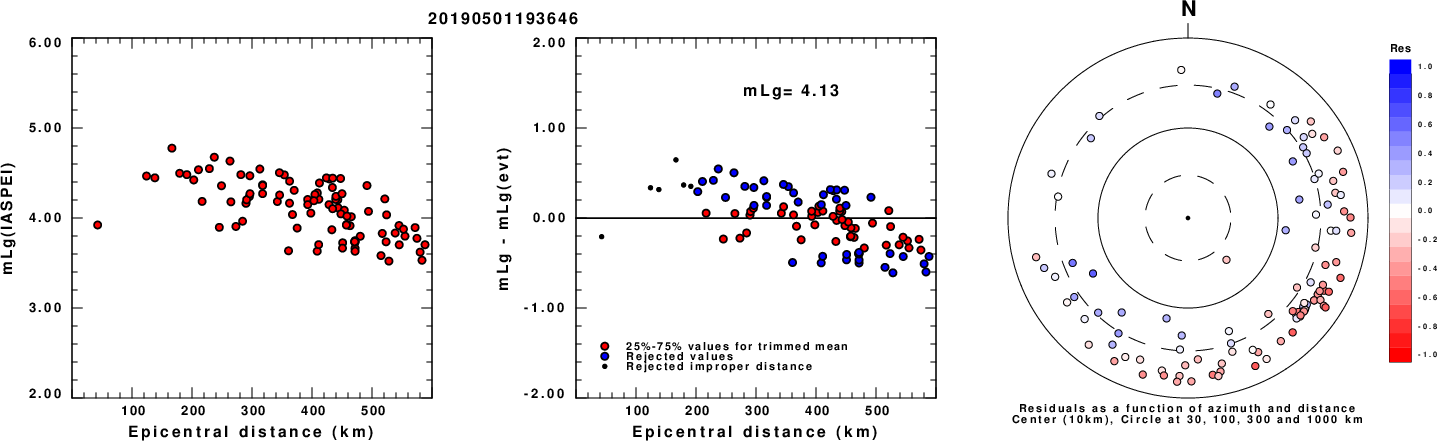

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is ak0195kfk1kc and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0195kfk1kc/executive.
2019/05/01 19:36:46 67.354 -156.497 7.3 4.1 Nevada
USGS/SLU Moment Tensor Solution
ENS 2019/05/01 19:36:46:0 67.35 -156.50 7.3 4.1 Nevada
Stations used:
AK.CAST AK.CHUM AK.COLD AK.GCSA AK.HDA AK.MCK AK.MLY
AK.NEA2 AK.PPD AK.RIDG AK.SKN AK.TNA AK.TRF IU.COLA TA.C16K
TA.C18K TA.C23K TA.D17K TA.D22K TA.D23K TA.E22K TA.E23K
TA.E24K TA.E25K TA.F14K TA.F15K TA.F17K TA.F18K TA.F20K
TA.F21K TA.F22K TA.F24K TA.F25K TA.F26K TA.G16K TA.G17K
TA.G18K TA.G19K TA.G23K TA.G24K TA.G25K TA.G26K TA.G27K
TA.H16K TA.H17K TA.H19K TA.H20K TA.H21K TA.H22K TA.H23K
TA.H24K TA.H27K TA.I17K TA.I20K TA.I23K TA.J14K TA.J16K
TA.J17K TA.J18K TA.J19K TA.J20K TA.J25K TA.J26L TA.K15K
TA.K17K TA.K20K TA.L16K TA.L18K TA.L19K TA.L20K TA.M17K
TA.M18K TA.M19K TA.POKR TA.TOLK XV.F2TN XV.F3TN XV.F4TN
XV.F5MN XV.F6TP XV.F7TV XV.F8KN XV.FNN1 XV.FNN2 XV.FPAP
XV.FTGH
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Best Fitting Double Couple
Mo = 1.17e+22 dyne-cm
Mw = 3.98
Z = 12 km
Plane Strike Dip Rake
NP1 303 61 -132
NP2 185 50 -40
Principal Axes:
Axis Value Plunge Azimuth
T 1.17e+22 6 62
N 0.00e+00 36 328
P -1.17e+22 53 160
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.14e+21
Mxy 6.14e+21
Mxz 5.88e+21
Myy 8.58e+21
Myz -8.02e+20
Mzz -7.44e+21
-------#######
--------##############
----------##################
---------#####################
----------########################
##########----####################
###########---------############### T
###########-------------############ #
###########---------------##############
###########-------------------############
###########---------------------##########
###########----------------------#########
###########------------------------#######
##########-------------------------#####
##########------------ -----------####
##########----------- P ------------##
#########----------- ------------#
#########-------------------------
########----------------------
########--------------------
######----------------
####----------
Global CMT Convention Moment Tensor:
R T P
-7.44e+21 5.88e+21 8.02e+20
5.88e+21 -1.14e+21 -6.14e+21
8.02e+20 -6.14e+21 8.58e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190501193646/index.html
|
STK = 185
DIP = 50
RAKE = -40
MW = 3.98
HS = 12.0
The NDK file is 20190501193646.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

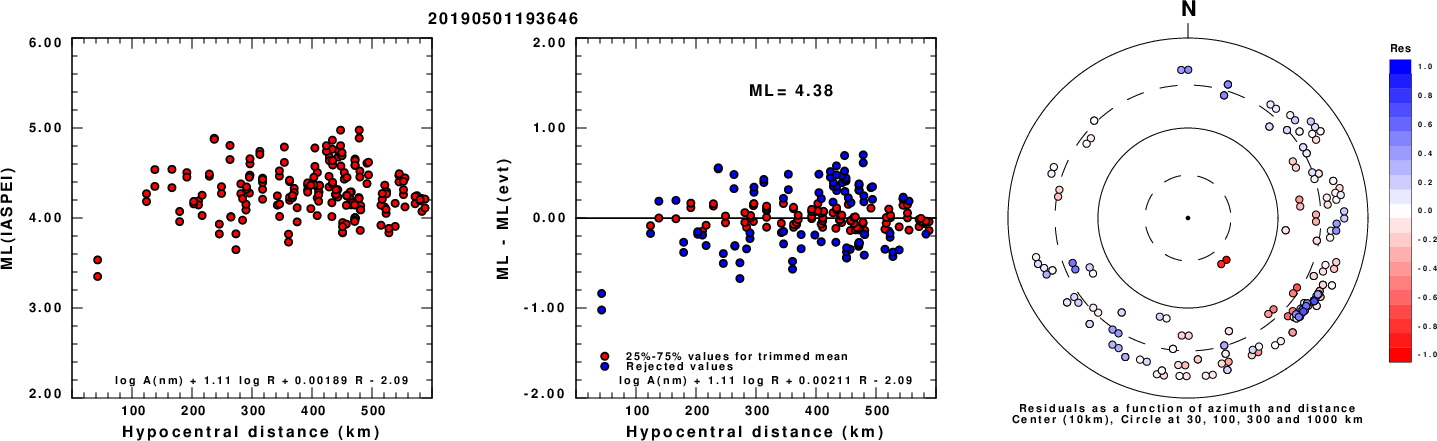

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

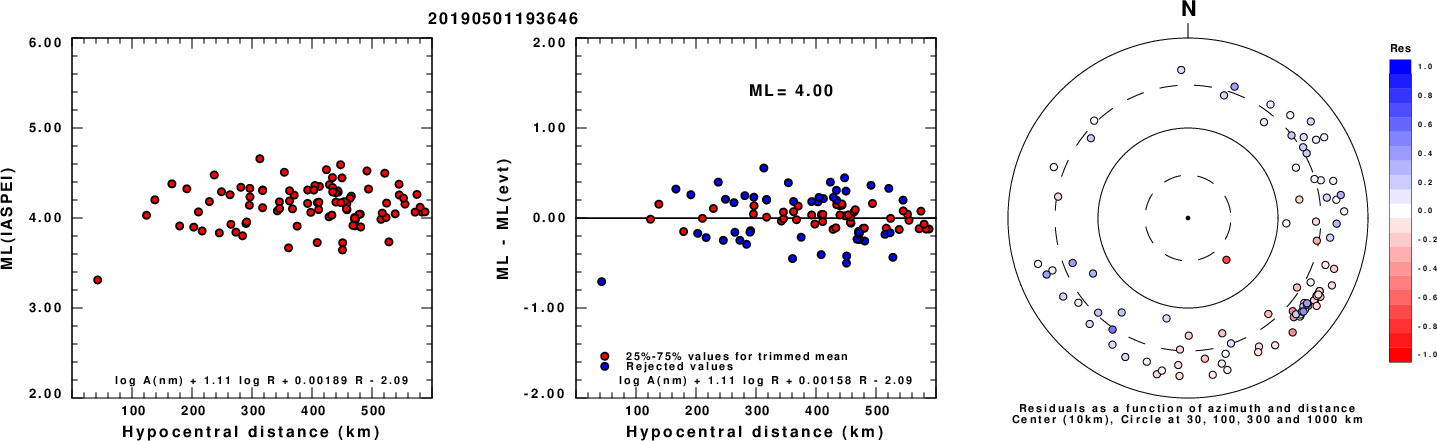

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |
The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 290 85 10 3.57 0.2986
WVFGRD96 2.0 290 85 20 3.67 0.3375
WVFGRD96 3.0 105 80 -40 3.75 0.3499
WVFGRD96 4.0 100 70 -45 3.80 0.3751
WVFGRD96 5.0 105 80 -50 3.82 0.3949
WVFGRD96 6.0 185 35 -40 3.86 0.4145
WVFGRD96 7.0 185 40 -40 3.87 0.4397
WVFGRD96 8.0 175 35 -55 3.96 0.4726
WVFGRD96 9.0 175 40 -55 3.97 0.4933
WVFGRD96 10.0 180 45 -50 3.97 0.5125
WVFGRD96 11.0 180 45 -50 3.98 0.5209
WVFGRD96 12.0 185 50 -40 3.98 0.5235
WVFGRD96 13.0 185 50 -40 3.99 0.5209
WVFGRD96 14.0 190 55 -35 3.99 0.5151
WVFGRD96 15.0 190 55 -30 4.00 0.5074
WVFGRD96 16.0 190 55 -30 4.01 0.4979
WVFGRD96 17.0 190 55 -30 4.02 0.4865
WVFGRD96 18.0 195 60 -15 4.02 0.4744
WVFGRD96 19.0 195 60 -15 4.03 0.4624
WVFGRD96 20.0 195 60 -15 4.04 0.4496
WVFGRD96 21.0 195 60 -15 4.05 0.4369
WVFGRD96 22.0 195 60 -15 4.05 0.4239
WVFGRD96 23.0 200 60 -5 4.06 0.4104
WVFGRD96 24.0 200 60 -5 4.06 0.3973
WVFGRD96 25.0 200 60 0 4.07 0.3840
WVFGRD96 26.0 205 60 10 4.07 0.3709
WVFGRD96 27.0 205 60 10 4.07 0.3583
WVFGRD96 28.0 205 60 10 4.08 0.3456
WVFGRD96 29.0 205 60 10 4.08 0.3332
The best solution is
WVFGRD96 12.0 185 50 -40 3.98 0.5235
The mechanism corresponding to the best fit is
|
|
|

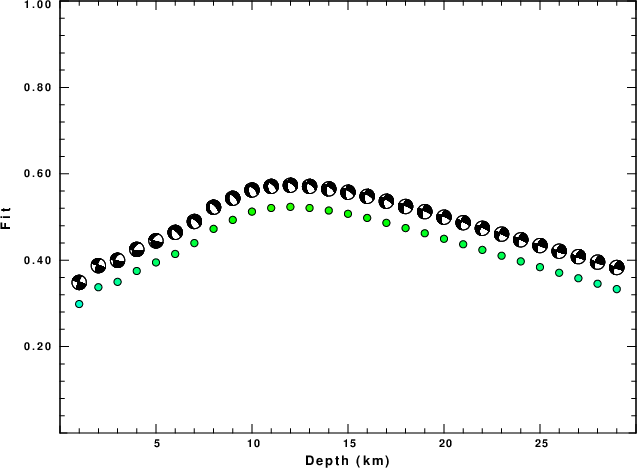

The best fit as a function of depth is given in the following figure:
|
|
|

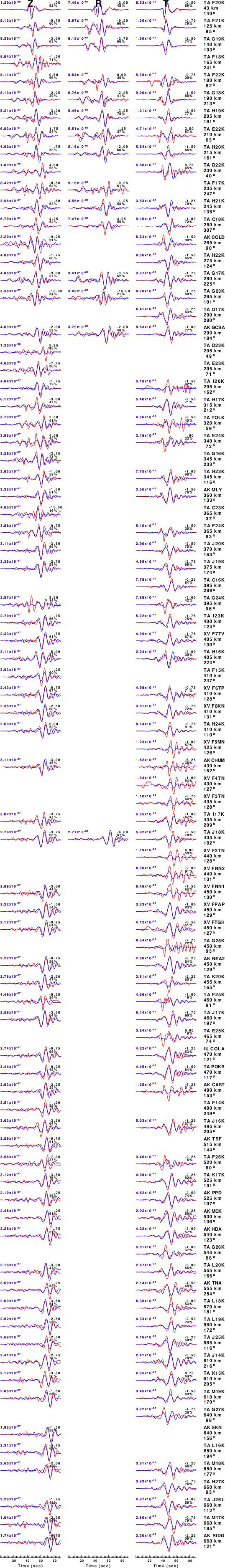

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

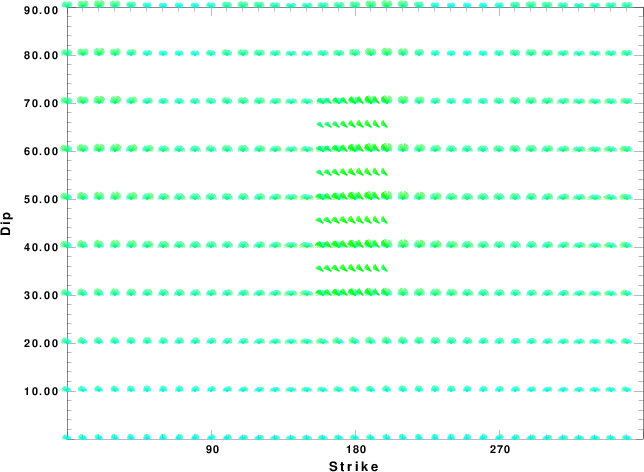

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

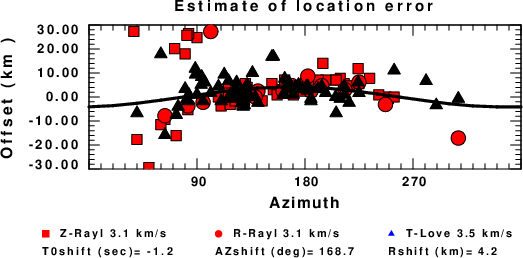

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
