The ANSS event ID is ak0195f5rhn0 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0195f5rhn0/executive.
2019/04/28 00:58:50 61.382 -149.908 44.5 4 Alaska

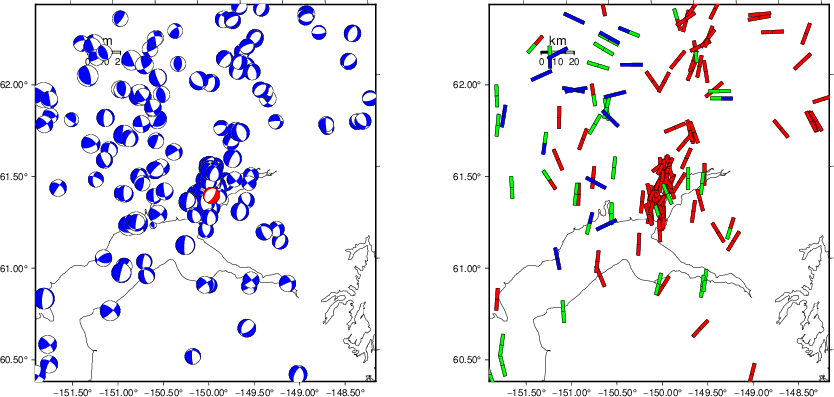

USGS/SLU Moment Tensor Solution ENS 2019/04/28 00:58:50:0 61.38 -149.91 44.5 4.0 Alaska Stations used: AK.FIRE AK.GHO AK.GLI AK.HIN AK.KLU AK.KNK AK.PWL AK.RC01 AK.RND AK.SAW AK.SKN AK.SLK AK.SSN AK.SWD AK.TRF AT.PMR AV.STLK TA.M22K TA.M23K TA.M24K TA.O22K Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3 Best Fitting Double Couple Mo = 1.72e+22 dyne-cm Mw = 4.09 Z = 54 km Plane Strike Dip Rake NP1 34 65 -95 NP2 225 25 -80 Principal Axes: Axis Value Plunge Azimuth T 1.72e+22 20 127 N 0.00e+00 4 36 P -1.72e+22 69 295 Moment Tensor: (dyne-cm) Component Value Mxx 5.22e+21 Mxy -6.48e+21 Mxz -5.78e+21 Myy 7.74e+21 Myz 9.60e+21 Mzz -1.30e+22 ############## ##############---##### #########-----------------#- #######--------------------### #######----------------------##### ######-----------------------####### #####-------------------------######## #####-------------------------########## ####--------- --------------########## #####--------- P -------------############ ####---------- ------------############# ####------------------------############## ###------------------------############### ##----------------------################ ##---------------------################# ##------------------########### #### #-----------------############ T ### #--------------############## ## ----------#################### ------###################### ###################### ############## Global CMT Convention Moment Tensor: R T P -1.30e+22 -5.78e+21 -9.60e+21 -5.78e+21 5.22e+21 6.48e+21 -9.60e+21 6.48e+21 7.74e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190428005850/index.html |
STK = 225 DIP = 25 RAKE = -80 MW = 4.09 HS = 54.0
The NDK file is 20190428005850.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

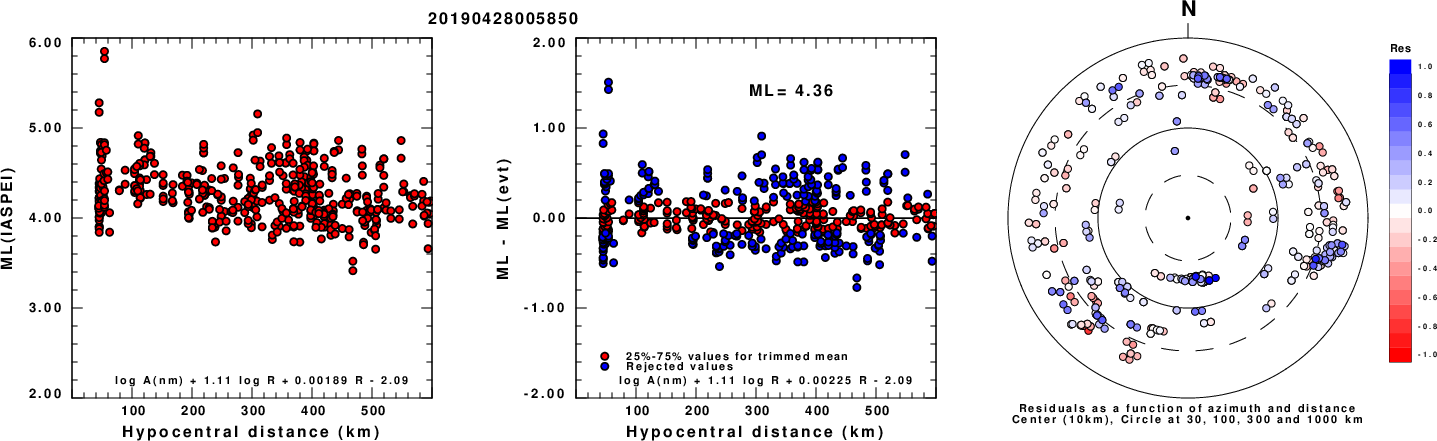

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

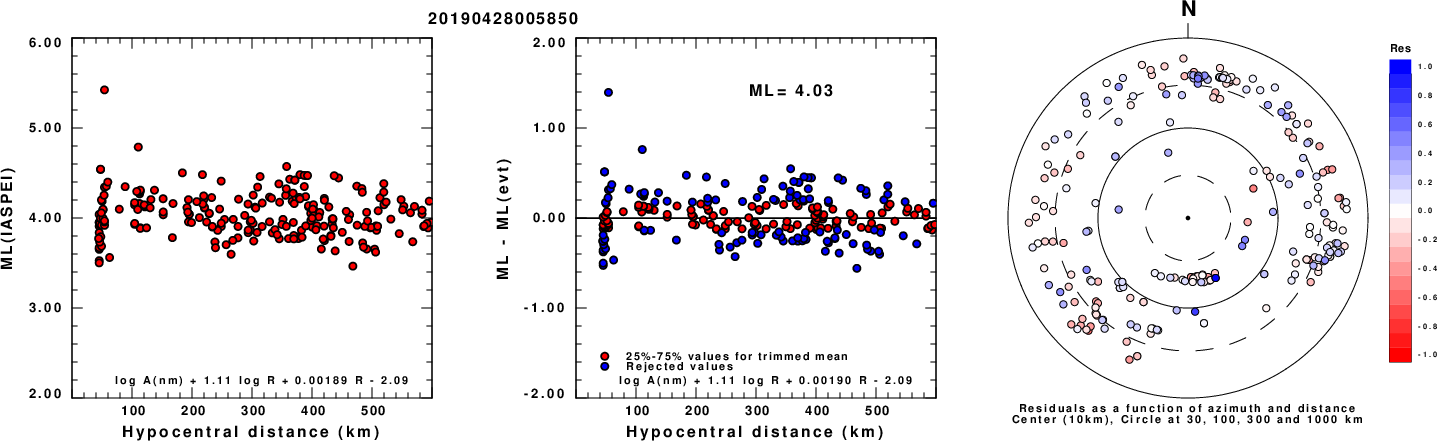

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

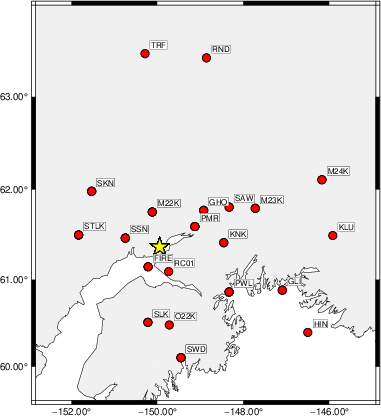

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 55 40 90 3.24 0.1899 WVFGRD96 2.0 55 40 90 3.38 0.2562 WVFGRD96 3.0 55 40 90 3.43 0.2336 WVFGRD96 4.0 185 60 -55 3.41 0.2231 WVFGRD96 5.0 25 80 60 3.42 0.2423 WVFGRD96 6.0 25 85 55 3.43 0.2603 WVFGRD96 7.0 25 85 50 3.44 0.2724 WVFGRD96 8.0 25 85 55 3.51 0.2813 WVFGRD96 9.0 110 45 40 3.54 0.2981 WVFGRD96 10.0 110 55 45 3.56 0.3133 WVFGRD96 11.0 110 55 45 3.58 0.3265 WVFGRD96 12.0 110 55 45 3.59 0.3358 WVFGRD96 13.0 290 45 25 3.58 0.3453 WVFGRD96 14.0 290 45 20 3.59 0.3532 WVFGRD96 15.0 290 45 25 3.60 0.3605 WVFGRD96 16.0 290 45 20 3.61 0.3670 WVFGRD96 17.0 270 60 -35 3.64 0.3729 WVFGRD96 18.0 270 60 -35 3.65 0.3788 WVFGRD96 19.0 270 60 -35 3.66 0.3835 WVFGRD96 20.0 270 60 -35 3.68 0.3865 WVFGRD96 21.0 285 45 -5 3.67 0.3884 WVFGRD96 22.0 285 45 -5 3.68 0.3928 WVFGRD96 23.0 280 45 -10 3.69 0.3973 WVFGRD96 24.0 280 45 -15 3.71 0.4021 WVFGRD96 25.0 280 45 -20 3.72 0.4077 WVFGRD96 26.0 280 45 -20 3.73 0.4144 WVFGRD96 27.0 275 45 -25 3.74 0.4211 WVFGRD96 28.0 270 25 -25 3.75 0.4297 WVFGRD96 29.0 270 25 -25 3.77 0.4382 WVFGRD96 30.0 265 25 -35 3.78 0.4482 WVFGRD96 31.0 260 25 -40 3.79 0.4601 WVFGRD96 32.0 255 25 -45 3.81 0.4734 WVFGRD96 33.0 250 25 -50 3.82 0.4862 WVFGRD96 34.0 250 25 -55 3.83 0.5030 WVFGRD96 35.0 250 25 -55 3.84 0.5175 WVFGRD96 36.0 245 25 -60 3.85 0.5311 WVFGRD96 37.0 245 25 -60 3.86 0.5426 WVFGRD96 38.0 240 25 -70 3.88 0.5524 WVFGRD96 39.0 235 25 -75 3.89 0.5621 WVFGRD96 40.0 235 25 -70 4.00 0.5580 WVFGRD96 41.0 235 25 -70 4.01 0.5747 WVFGRD96 42.0 235 25 -70 4.02 0.5876 WVFGRD96 43.0 235 25 -70 4.03 0.5990 WVFGRD96 44.0 230 25 -75 4.04 0.6089 WVFGRD96 45.0 230 25 -75 4.05 0.6164 WVFGRD96 46.0 230 25 -75 4.05 0.6241 WVFGRD96 47.0 230 25 -75 4.06 0.6295 WVFGRD96 48.0 230 25 -75 4.06 0.6352 WVFGRD96 49.0 230 25 -75 4.07 0.6383 WVFGRD96 50.0 230 25 -75 4.08 0.6426 WVFGRD96 51.0 225 25 -80 4.08 0.6441 WVFGRD96 52.0 225 25 -80 4.09 0.6466 WVFGRD96 53.0 225 25 -80 4.09 0.6463 WVFGRD96 54.0 225 25 -80 4.09 0.6471 WVFGRD96 55.0 225 25 -80 4.10 0.6457 WVFGRD96 56.0 225 25 -80 4.10 0.6445 WVFGRD96 57.0 225 25 -80 4.10 0.6430 WVFGRD96 58.0 225 25 -80 4.10 0.6383 WVFGRD96 59.0 225 25 -80 4.10 0.6363
The best solution is
WVFGRD96 54.0 225 25 -80 4.09 0.6471
The mechanism corresponding to the best fit is
![]() |
|

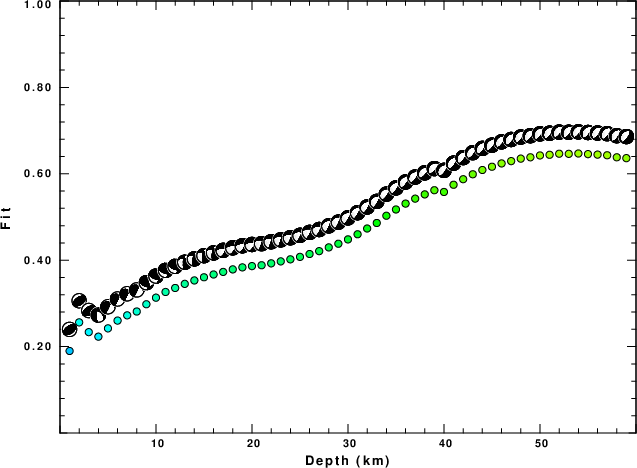

The best fit as a function of depth is given in the following figure:
![]() |
|

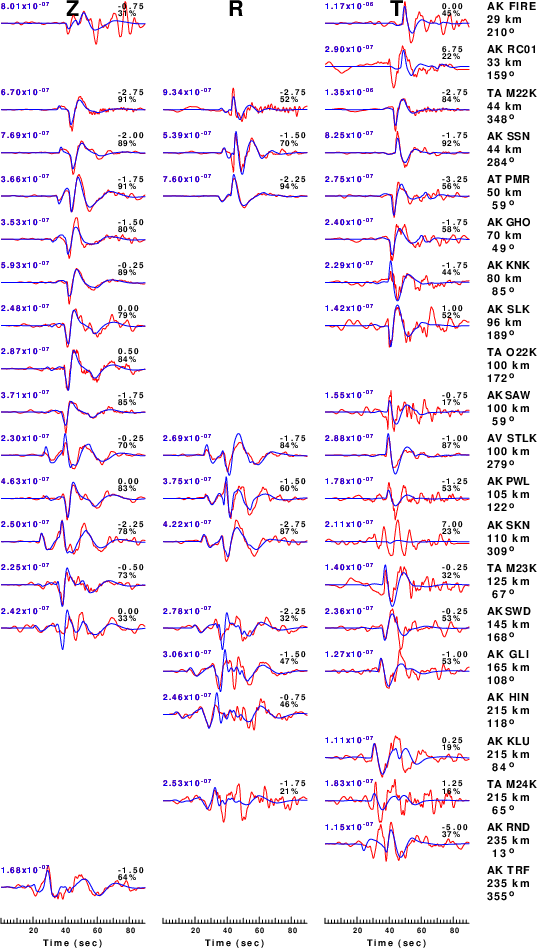

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

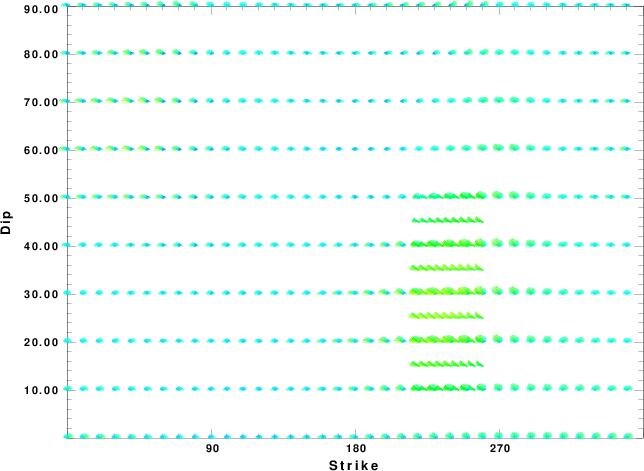

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

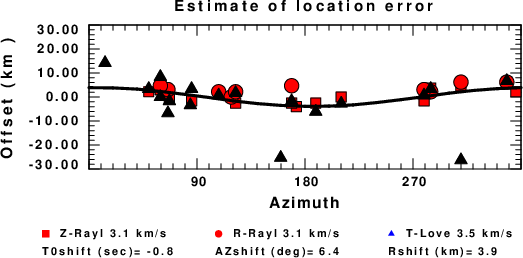

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
