Location
SLU Location
To check the ANSS location or to compare the observed P-wave first motions to the moment tensor solution, P- and S-wave first arrival times were manually read together with the P-wave first motions. The subsequent output of the program elocate is given in the file elocate.txt. The first motion plot is shown below.
Location ANSS
The ANSS event ID is us70003d0h and the event page is at
https://earthquake.usgs.gov/earthquakes/eventpage/us70003d0h/executive.
2019/04/27 17:01:04 32.666 -109.099 10.0 3.4 Arizona
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2019/04/27 17:01:04:0 32.67 -109.10 10.0 3.4 Arizona
Stations used:
AE.113A AE.319A AE.BABIT AE.BARN AE.HANNA AE.PRCT AE.TONTO
AE.U15A AE.W13A AE.X16A AE.X18A AE.Y14A CI.GLA CI.GMR
CI.PDM EP.KIDD IM.TX31 IU.ANMO IU.TUC MX.HSIG N4.MSTX
NN.V12A SC.121A SC.Y22A TA.Y22D TX.ALPN TX.MNHN TX.ODSA
TX.PB03 TX.PB05 TX.PB07 TX.PB10 TX.PB11 TX.PECS US.MVCO
US.WUAZ UU.KNB YX.UNM2 YX.UNM3 YX.UNM5
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 1.64e+21 dyne-cm
Mw = 3.41
Z = 9 km
Plane Strike Dip Rake
NP1 191 66 -129
NP2 75 45 -35
Principal Axes:
Axis Value Plunge Azimuth
T 1.64e+21 12 309
N 0.00e+00 35 210
P -1.64e+21 52 55
Moment Tensor: (dyne-cm)
Component Value
Mxx 4.03e+20
Mxy -1.06e+21
Mxz -2.46e+20
Myy 5.38e+20
Myz -9.18e+20
Mzz -9.41e+20
##########----
############----------
##############--------------
############----------------
# T ###########-------------------
## ##########---------------------
###############----------- ---------
###############------------ P ----------
###############------------ ----------
###############-------------------------##
###############------------------------###
###############-----------------------####
##############-----------------------#####
#############---------------------######
-############-------------------########
--##########----------------##########
-----######------------#############
----------########################
---------#####################
--------####################
------################
--############
Global CMT Convention Moment Tensor:
R T P
-9.41e+20 -2.46e+20 9.18e+20
-2.46e+20 4.03e+20 1.06e+21
9.18e+20 1.06e+21 5.38e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190427170104/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is
STK = 75
DIP = 45
RAKE = -35
MW = 3.41
HS = 9.0
The NDK file is 20190427170104.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
| SLU |
SLUFM |
USGS/SLU Moment Tensor Solution
ENS 2019/04/27 17:01:04:0 32.67 -109.10 10.0 3.4 Arizona
Stations used:
AE.113A AE.319A AE.BABIT AE.BARN AE.HANNA AE.PRCT AE.TONTO
AE.U15A AE.W13A AE.X16A AE.X18A AE.Y14A CI.GLA CI.GMR
CI.PDM EP.KIDD IM.TX31 IU.ANMO IU.TUC MX.HSIG N4.MSTX
NN.V12A SC.121A SC.Y22A TA.Y22D TX.ALPN TX.MNHN TX.ODSA
TX.PB03 TX.PB05 TX.PB07 TX.PB10 TX.PB11 TX.PECS US.MVCO
US.WUAZ UU.KNB YX.UNM2 YX.UNM3 YX.UNM5
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 1.64e+21 dyne-cm
Mw = 3.41
Z = 9 km
Plane Strike Dip Rake
NP1 191 66 -129
NP2 75 45 -35
Principal Axes:
Axis Value Plunge Azimuth
T 1.64e+21 12 309
N 0.00e+00 35 210
P -1.64e+21 52 55
Moment Tensor: (dyne-cm)
Component Value
Mxx 4.03e+20
Mxy -1.06e+21
Mxz -2.46e+20
Myy 5.38e+20
Myz -9.18e+20
Mzz -9.41e+20
##########----
############----------
##############--------------
############----------------
# T ###########-------------------
## ##########---------------------
###############----------- ---------
###############------------ P ----------
###############------------ ----------
###############-------------------------##
###############------------------------###
###############-----------------------####
##############-----------------------#####
#############---------------------######
-############-------------------########
--##########----------------##########
-----######------------#############
----------########################
---------#####################
--------####################
------################
--############
Global CMT Convention Moment Tensor:
R T P
-9.41e+20 -2.46e+20 9.18e+20
-2.46e+20 4.03e+20 1.06e+21
9.18e+20 1.06e+21 5.38e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190427170104/index.html
|

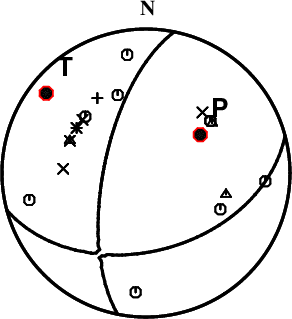

First motions and takeoff angles from an elocate run.
|
Magnitudes
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula
for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
mLg Magnitude

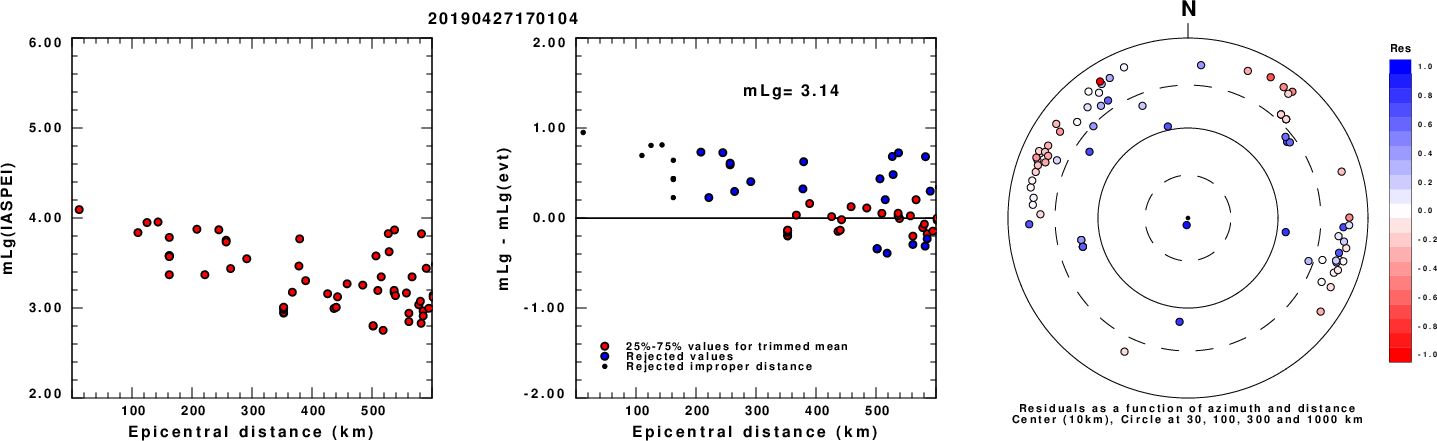

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.
ML Magnitude

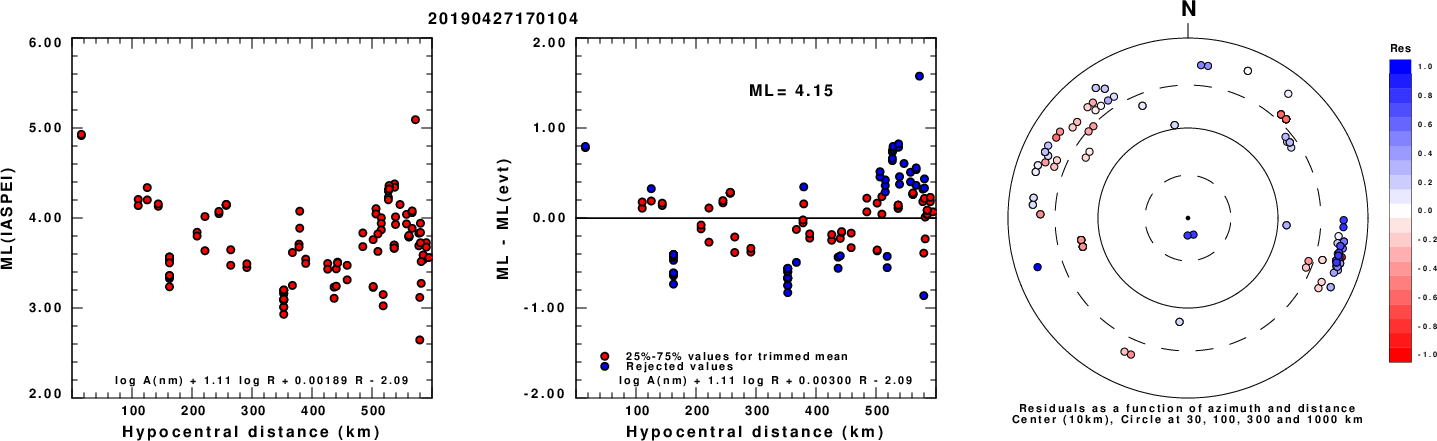

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

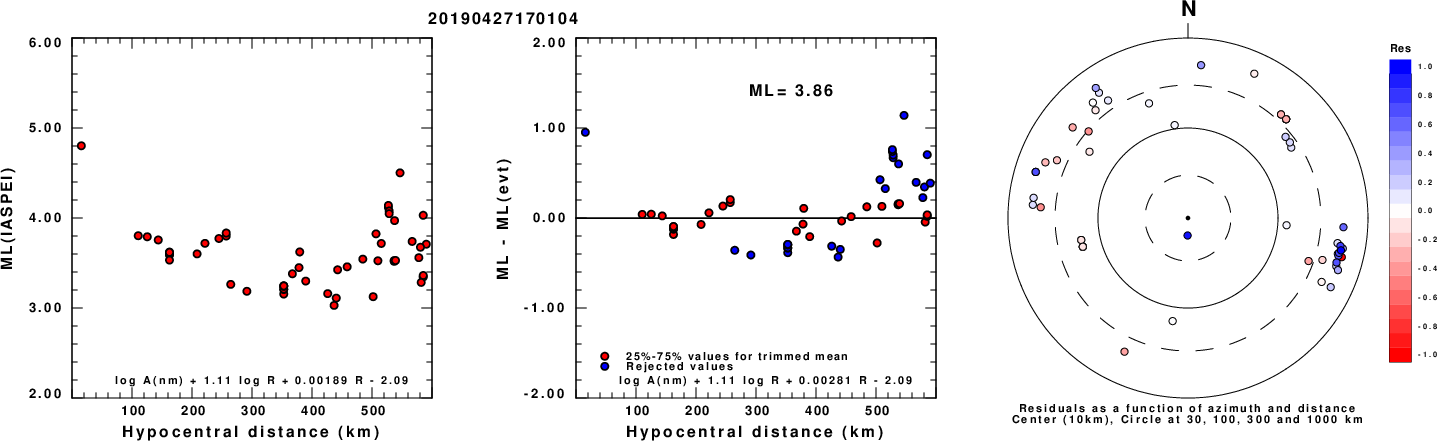

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Context

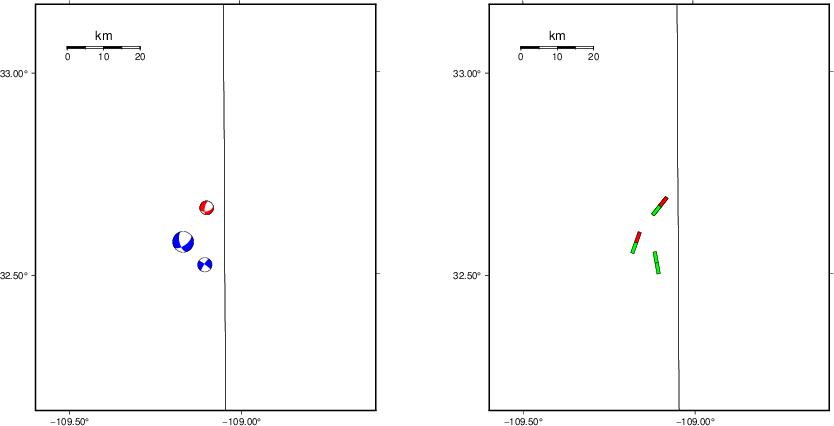

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.
Waveform Inversion using wvfgrd96

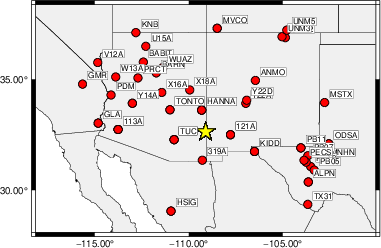

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the
stations used for (red) the waveform inversion are shown in the next figure.
|
|
Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 55 45 -60 3.29 0.3914
WVFGRD96 2.0 65 45 -45 3.35 0.3842
WVFGRD96 3.0 85 35 -10 3.38 0.4004
WVFGRD96 4.0 90 35 -5 3.38 0.4326
WVFGRD96 5.0 90 35 0 3.38 0.4569
WVFGRD96 6.0 70 40 -35 3.41 0.4816
WVFGRD96 7.0 70 40 -40 3.42 0.5012
WVFGRD96 8.0 75 45 -35 3.41 0.5119
WVFGRD96 9.0 75 45 -35 3.41 0.5156
WVFGRD96 10.0 75 45 -30 3.42 0.5134
WVFGRD96 11.0 80 45 -30 3.42 0.5152
WVFGRD96 12.0 80 45 -30 3.42 0.5146
WVFGRD96 13.0 80 45 -25 3.42 0.5129
WVFGRD96 14.0 85 50 -25 3.42 0.5104
WVFGRD96 15.0 85 50 -25 3.43 0.5082
WVFGRD96 16.0 90 50 -20 3.44 0.5055
WVFGRD96 17.0 90 50 -20 3.44 0.5032
WVFGRD96 18.0 90 50 -20 3.45 0.5004
WVFGRD96 19.0 90 50 -20 3.46 0.4969
WVFGRD96 20.0 90 45 -20 3.48 0.4911
WVFGRD96 21.0 90 45 -20 3.49 0.4867
WVFGRD96 22.0 90 50 -20 3.50 0.4815
WVFGRD96 23.0 110 45 25 3.51 0.4786
WVFGRD96 24.0 110 45 25 3.52 0.4724
WVFGRD96 25.0 110 45 25 3.53 0.4656
WVFGRD96 26.0 110 45 20 3.54 0.4586
WVFGRD96 27.0 110 45 20 3.55 0.4504
WVFGRD96 28.0 110 45 15 3.56 0.4409
WVFGRD96 29.0 115 45 15 3.58 0.4310
The best solution is
WVFGRD96 9.0 75 45 -35 3.41 0.5156
The mechanism corresponding to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

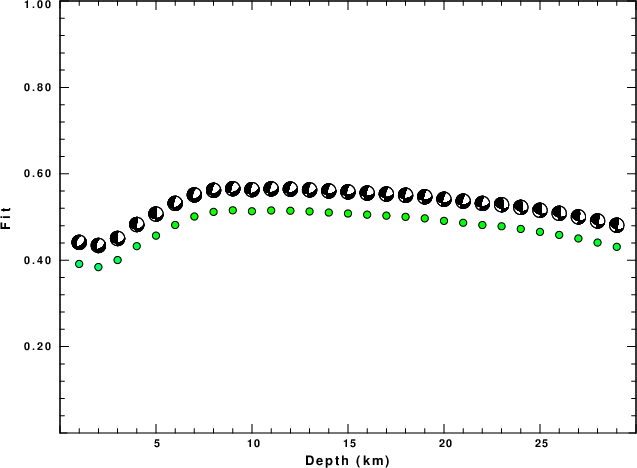

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|

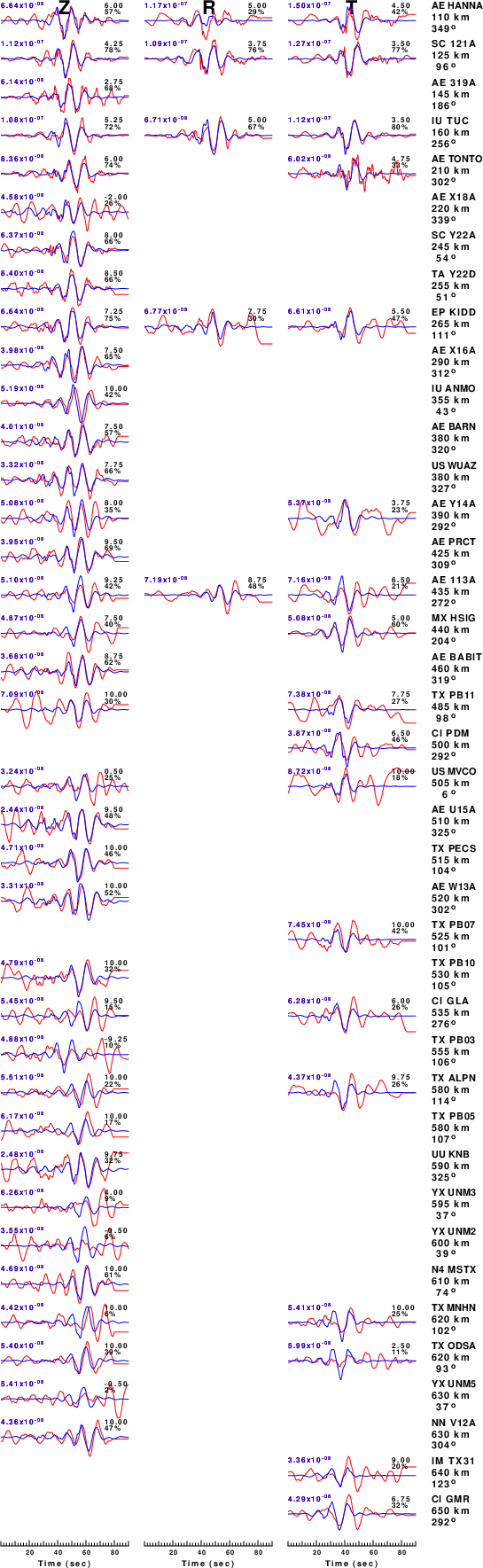

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
|
|
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.
|
|
|

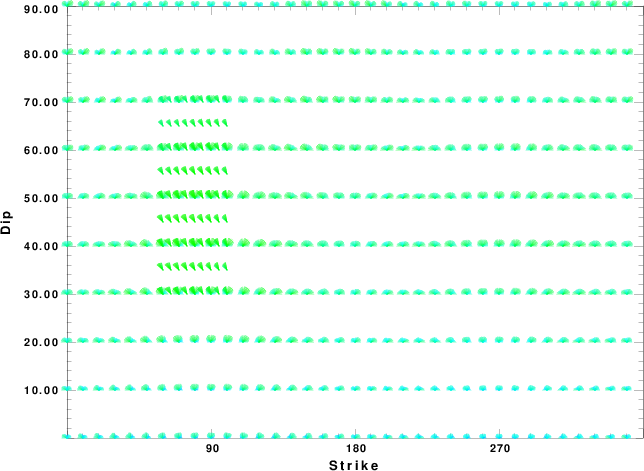

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

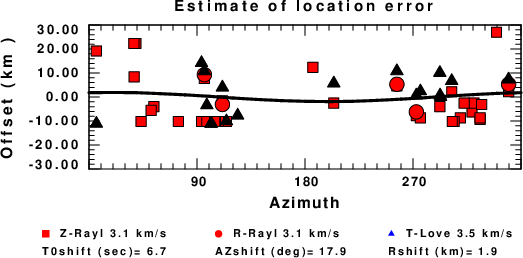

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Velocity Model
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows
(The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00
9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00
10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00
20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00
0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
