2019/03/31 14:41:36 62.208 -151.247 76.6 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/03/31 14:41:36:0  62.21 -151.25  76.6 4.0 Alaska

 Stations used:
   AK.BWN AK.CUT AK.GHO AK.GLI AK.KNK AK.KTH AK.MCK AK.NEA2
   AK.PPLA AK.RC01 AK.RND AK.SAW AK.SCM AK.SKN AK.SSN AK.TRF
   AT.PMR AV.RDDF AV.SPBG AV.SPCR AV.STLK GS.PR01 GS.PR03
   GS.PR04 GS.PR05 PR.CRPR TA.K20K TA.L19K TA.L20K TA.M22K
   TA.O22K XV.FAPT XV.FPAP

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +60
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.99e+22 dyne-cm
  Mw = 4.25
  Z  = 82 km
  Plane   Strike  Dip  Rake
   NP1      341    84   104
   NP2       95    15    25
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.99e+22     49     266
    N   0.00e+00     14     159
    P  -2.99e+22     37      59

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.04e+21
       Mxy    -7.44e+21
       Mxz    -8.61e+21
       Myy    -1.26e+21
       Myz    -2.70e+22
       Mzz     6.31e+21




                     --------------
                 #####-----------------
              #########-------------------
             ###########-------------------
           ##############--------------------
          ################--------------------
         ##################-----------   ------
        ###################----------- P -------
        ####################----------   -------
       ######################--------------------
       #########   ##########--------------------
       -######## T ###########-------------------
       -########   ############-----------------#
        -######################-----------------
        --######################---------------#
         --#####################--------------#
          --#####################------------#
           ---###################----------##
             ---##################-------##
              -----###############----####
                 --------#######---####
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  6.31e+21  -8.61e+21   2.70e+22
 -8.61e+21  -5.04e+21   7.44e+21
  2.70e+22   7.44e+21  -1.26e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190331144136/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 95
      DIP = 15
     RAKE = 25
       MW = 4.25
       HS = 82.0

The NDK file is 20190331144136.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

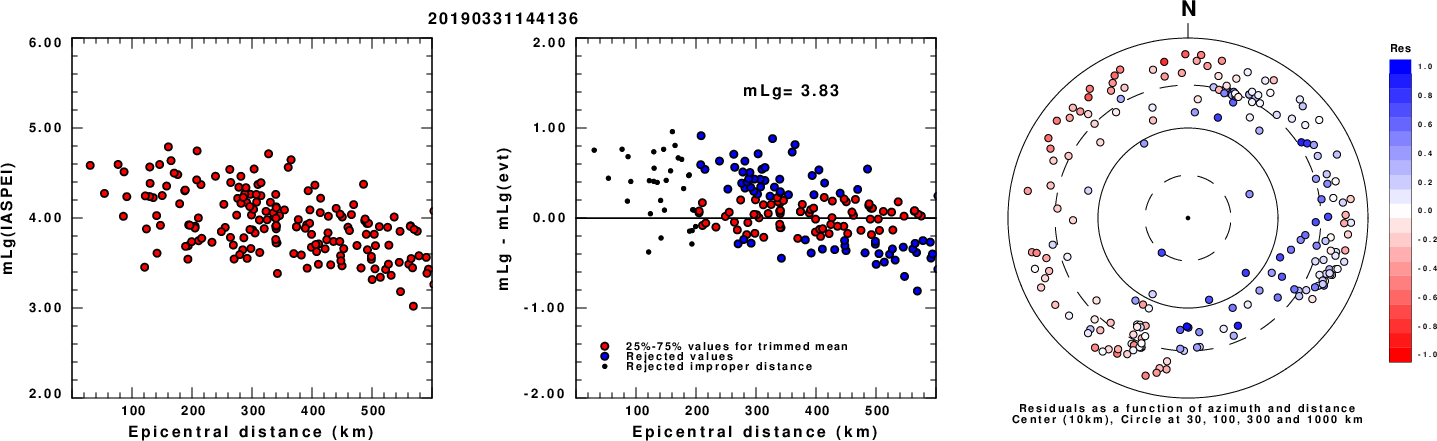

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

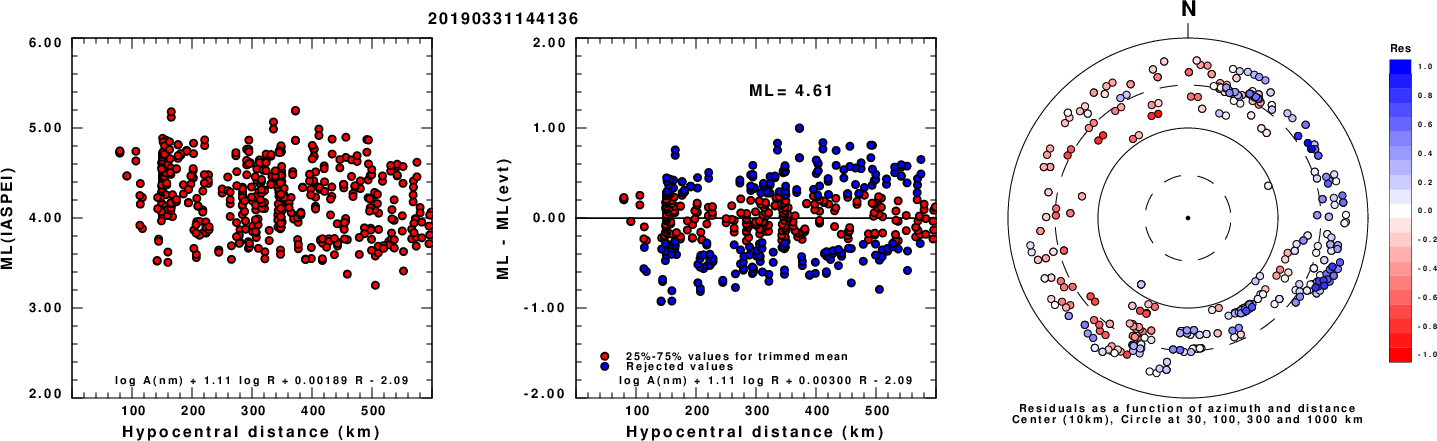

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

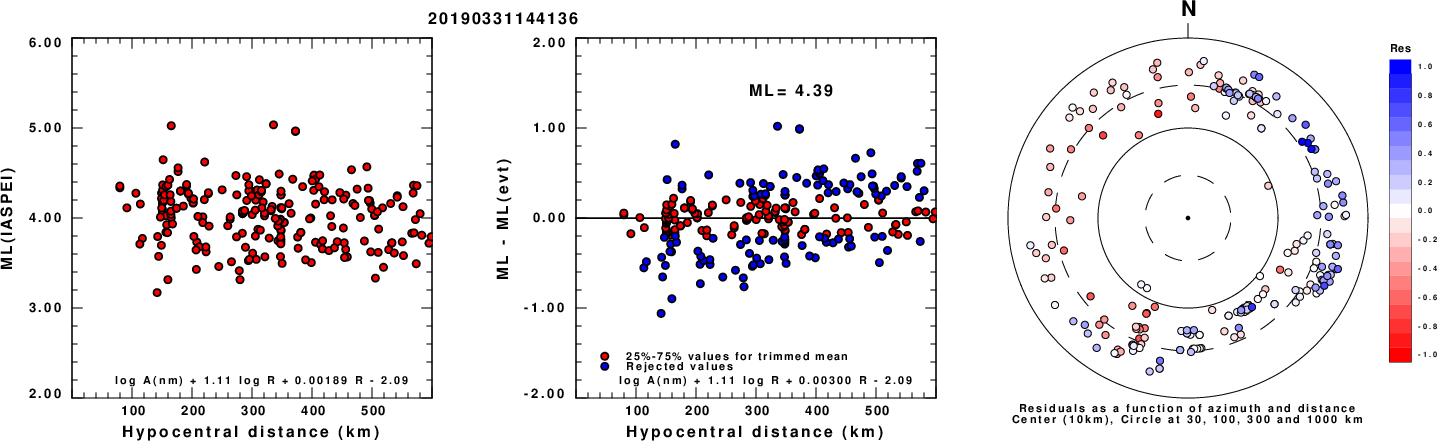

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

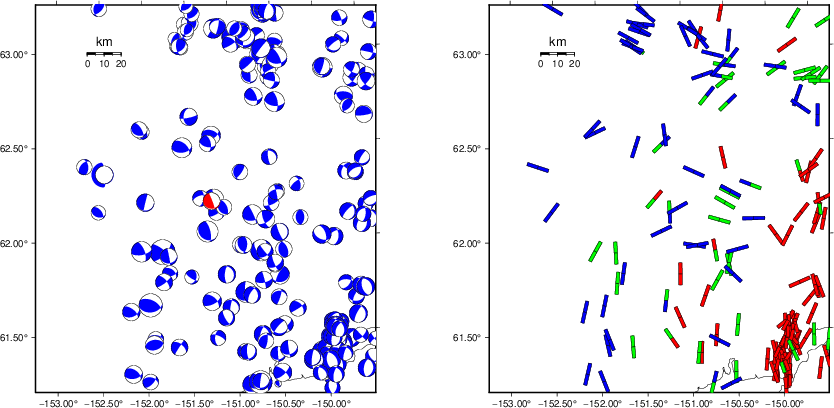

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

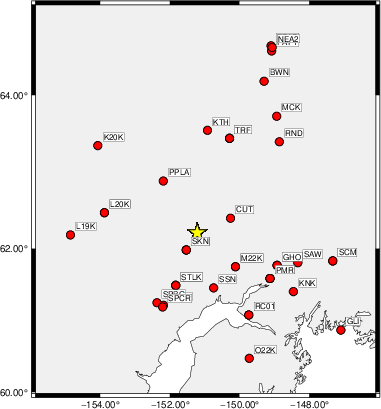

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   155    65    15   3.36 0.2280
WVFGRD96    4.0   155    75    20   3.48 0.2938
WVFGRD96    6.0   155    80    15   3.54 0.3185
WVFGRD96    8.0   155    80    15   3.62 0.3277
WVFGRD96   10.0   330    75   -10   3.66 0.3280
WVFGRD96   12.0   330    80    -5   3.69 0.3261
WVFGRD96   14.0   330    80    -5   3.72 0.3197
WVFGRD96   16.0   325    80   -10   3.73 0.3108
WVFGRD96   18.0   145    75    10   3.74 0.3036
WVFGRD96   20.0   145    75    10   3.76 0.2962
WVFGRD96   22.0   145    75    15   3.77 0.2888
WVFGRD96   24.0   270    80   -10   3.85 0.2875
WVFGRD96   26.0   270    85   -15   3.87 0.3015
WVFGRD96   28.0   265    90   -15   3.90 0.3179
WVFGRD96   30.0    85    80    15   3.91 0.3357
WVFGRD96   32.0   260    90   -15   3.93 0.3475
WVFGRD96   34.0   260    90   -20   3.96 0.3689
WVFGRD96   36.0    80    80    10   3.97 0.3894
WVFGRD96   38.0    80    80    15   4.00 0.4119
WVFGRD96   40.0    80    85    20   4.06 0.4313
WVFGRD96   42.0    85    65    10   4.08 0.4348
WVFGRD96   44.0    85    60    10   4.10 0.4442
WVFGRD96   46.0    85    55    10   4.12 0.4561
WVFGRD96   48.0    85    55    10   4.13 0.4705
WVFGRD96   50.0    80    50     5   4.15 0.4879
WVFGRD96   52.0    80    45     5   4.17 0.5036
WVFGRD96   54.0    80    45     5   4.18 0.5208
WVFGRD96   56.0    80    45     5   4.19 0.5331
WVFGRD96   58.0    80    40     5   4.20 0.5470
WVFGRD96   60.0    85    40    15   4.20 0.5577
WVFGRD96   62.0    85    40    15   4.20 0.5662
WVFGRD96   64.0    90    20    15   4.22 0.5817
WVFGRD96   66.0    90    20    15   4.22 0.5981
WVFGRD96   68.0    95    15    25   4.23 0.6102
WVFGRD96   70.0    95    15    25   4.24 0.6210
WVFGRD96   72.0    95    15    25   4.24 0.6284
WVFGRD96   74.0    95    15    25   4.24 0.6356
WVFGRD96   76.0    95    15    25   4.24 0.6403
WVFGRD96   78.0    95    15    25   4.25 0.6442
WVFGRD96   80.0    95    15    25   4.25 0.6465
WVFGRD96   82.0    95    15    25   4.25 0.6477
WVFGRD96   84.0   100    10    30   4.25 0.6473
WVFGRD96   86.0   100    10    30   4.25 0.6461
WVFGRD96   88.0   100    10    30   4.25 0.6435
WVFGRD96   90.0   105    10    35   4.25 0.6417
WVFGRD96   92.0   105    10    35   4.25 0.6399
WVFGRD96   94.0   105    10    35   4.25 0.6370
WVFGRD96   96.0   105    10    35   4.25 0.6331
WVFGRD96   98.0   105    10    35   4.25 0.6278
WVFGRD96  100.0   105    10    35   4.25 0.6236
WVFGRD96  102.0   105    10    35   4.25 0.6208
WVFGRD96  104.0   105    10    35   4.25 0.6152
WVFGRD96  106.0   110    10    40   4.25 0.6093
WVFGRD96  108.0   110    10    40   4.25 0.6041
WVFGRD96  110.0   110    10    40   4.25 0.5996
WVFGRD96  112.0   110    10    40   4.25 0.5948
WVFGRD96  114.0   115    10    45   4.25 0.5881
WVFGRD96  116.0   115    10    45   4.25 0.5823
WVFGRD96  118.0   115    10    45   4.25 0.5797
WVFGRD96  120.0   120    10    50   4.25 0.5744
WVFGRD96  122.0   120    10    50   4.25 0.5711
WVFGRD96  124.0   120    10    50   4.25 0.5682
WVFGRD96  126.0   125    10    55   4.25 0.5620
WVFGRD96  128.0   130    10    60   4.25 0.5532
WVFGRD96  130.0   140    10    70   4.25 0.5230
WVFGRD96  132.0   140    10    70   4.24 0.4840
WVFGRD96  134.0   140    10    70   4.23 0.4449
WVFGRD96  136.0   145    10    75   4.22 0.4082
WVFGRD96  138.0   130    15    65   4.21 0.3935
WVFGRD96  140.0   130    15    60   4.21 0.3811
WVFGRD96  142.0   140    15    70   4.20 0.3567
WVFGRD96  144.0   140    20    70   4.20 0.3240
WVFGRD96  146.0   150    20    80   4.18 0.2782
WVFGRD96  148.0   140    25    75   4.16 0.2276

The best solution is

WVFGRD96   82.0    95    15    25   4.25 0.6477

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

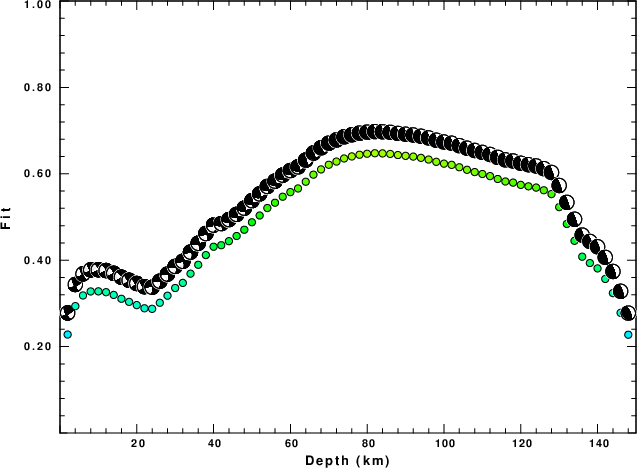

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

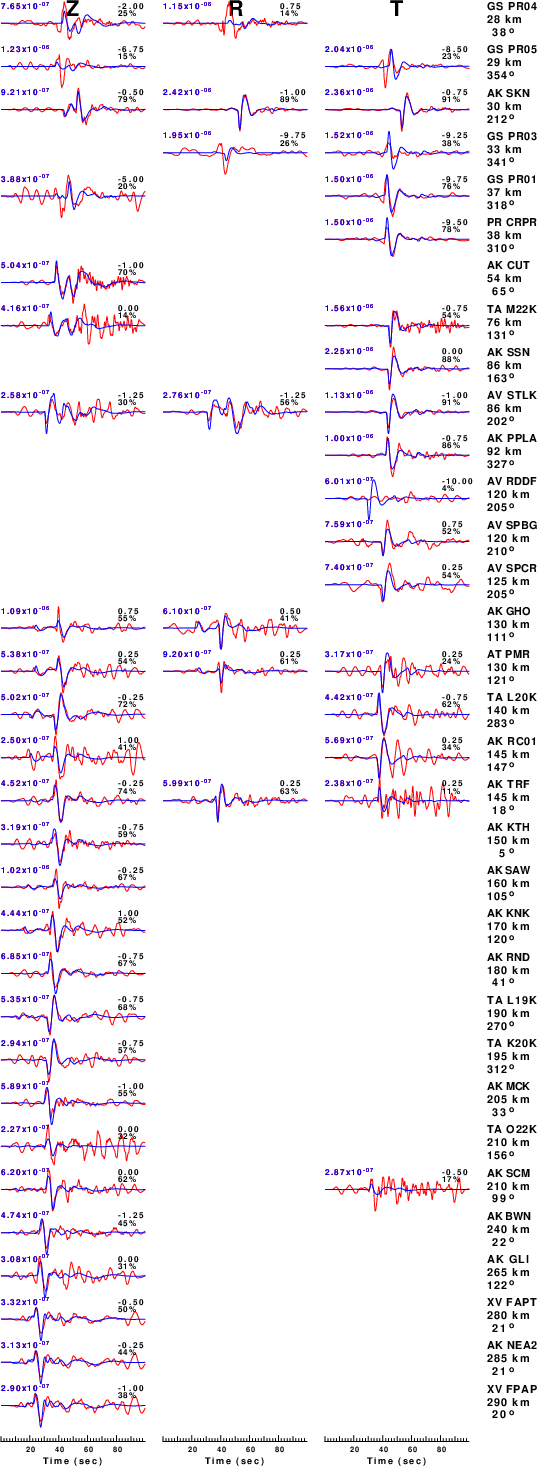

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

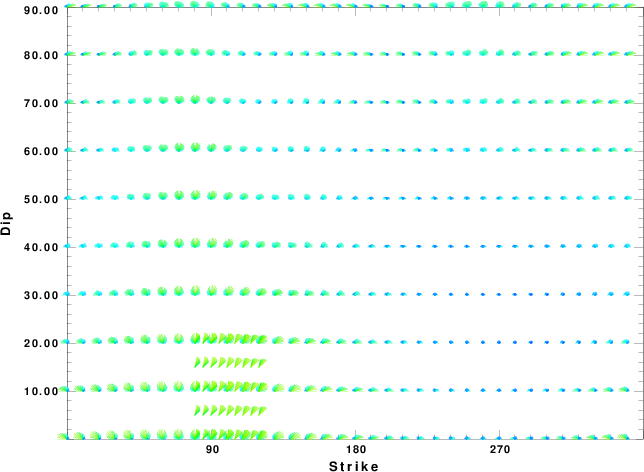

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

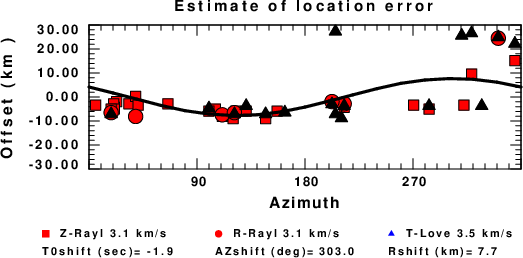

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
