Location

SLU Location

My initial RMT solution with the CUS or WUS model wanted a source depth of 2 km but with a mechanism with nodal planes below, but the P- and T-axes reversed. So P-wave first motions were read as well as P and S times and the program elocate was used to locate the event. The free depth was 21 km for the WUS model and 13 km forthe CUS model. The location for a fixed depth of 12 for the WUS model gives agreement between the MT solution and the first motions. The output of the relocation run with fixed depth is in the file elocate.txt.

Because of the dispersion measurements, the WUS model was used for the moment tensor solution. In addition only lower frequencies were used, e.g., the 0.03 - 0.06 Hz band, because the true model seems to be intermediate between the WUS and CUS models.

Location ANSS

The ANSS event ID is us1000jjub and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us1000jjub/executive.

2019/03/21 16:33:03 66.672 -130.443 4.1 4 NWT, Canada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2019/03/21 16:33:03:0 66.67 -130.44 4.1 4.0 NWT, Canada Stations used: CN.DAWY CN.INK NY.FARO NY.MAYO NY.WGLY TA.C36M TA.D28M TA.E27K TA.E28M TA.E29M TA.EPYK TA.F30M TA.F31M TA.G27K TA.G29M TA.G30M TA.G31M TA.H27K TA.H29M TA.H31M TA.I27K TA.I28M TA.I29M TA.I30M TA.J29N TA.J30M TA.L29M TA.M30M TA.M31M Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.26e+22 dyne-cm Mw = 4.00 Z = 11 km Plane Strike Dip Rake NP1 245 80 88 NP2 75 10 100 Principal Axes: Axis Value Plunge Azimuth T 1.26e+22 55 153 N 0.00e+00 2 245 P -1.26e+22 35 336 Moment Tensor: (dyne-cm) Component Value Mxx -3.77e+21 Mxy 1.39e+21 Mxz -1.07e+22 Myy -4.74e+20 Myz 5.09e+21 Mzz 4.24e+21 -------------- ---------------------- ---------------------------- -------- ------------------- ---------- P --------------------- ----------- ---------------------- -----------------------------------### -----------------------------########### ------------------------################ ---------------------####################- -----------------########################- --------------###########################- ----------###############################- -------################################- ----################### #############- -##################### T ############- ##################### ###########- -###############################-- -###########################-- --#######################--- ---###############---- -------------- Global CMT Convention Moment Tensor: R T P 4.24e+21 -1.07e+22 -5.09e+21 -1.07e+22 -3.77e+21 -1.39e+21 -5.09e+21 -1.39e+21 -4.74e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190321163303/index.html

Preferred Solution

      STK = 75
      DIP = 10
     RAKE = 100
       MW = 4.00
       HS = 11.0

The NDK file is 20190321163303.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

SLUFM

USGS/SLU Moment Tensor Solution ENS 2019/03/21 16:33:03:0 66.67 -130.44 4.1 4.0 NWT, Canada Stations used: CN.DAWY CN.INK NY.FARO NY.MAYO NY.WGLY TA.C36M TA.D28M TA.E27K TA.E28M TA.E29M TA.EPYK TA.F30M TA.F31M TA.G27K TA.G29M TA.G30M TA.G31M TA.H27K TA.H29M TA.H31M TA.I27K TA.I28M TA.I29M TA.I30M TA.J29N TA.J30M TA.L29M TA.M30M TA.M31M Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.26e+22 dyne-cm Mw = 4.00 Z = 11 km Plane Strike Dip Rake NP1 245 80 88 NP2 75 10 100 Principal Axes: Axis Value Plunge Azimuth T 1.26e+22 55 153 N 0.00e+00 2 245 P -1.26e+22 35 336 Moment Tensor: (dyne-cm) Component Value Mxx -3.77e+21 Mxy 1.39e+21 Mxz -1.07e+22 Myy -4.74e+20 Myz 5.09e+21 Mzz 4.24e+21 -------------- ---------------------- ---------------------------- -------- ------------------- ---------- P --------------------- ----------- ---------------------- -----------------------------------### -----------------------------########### ------------------------################ ---------------------####################- -----------------########################- --------------###########################- ----------###############################- -------################################- ----################### #############- -##################### T ############- ##################### ###########- -###############################-- -###########################-- --#######################--- ---###############---- -------------- Global CMT Convention Moment Tensor: R T P 4.24e+21 -1.07e+22 -5.09e+21 -1.07e+22 -3.77e+21 -1.39e+21 -5.09e+21 -1.39e+21 -4.74e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190321163303/index.html

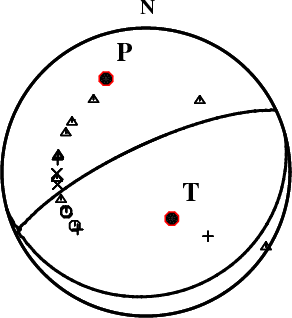

First motions and takeoff angles from an elocate run.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

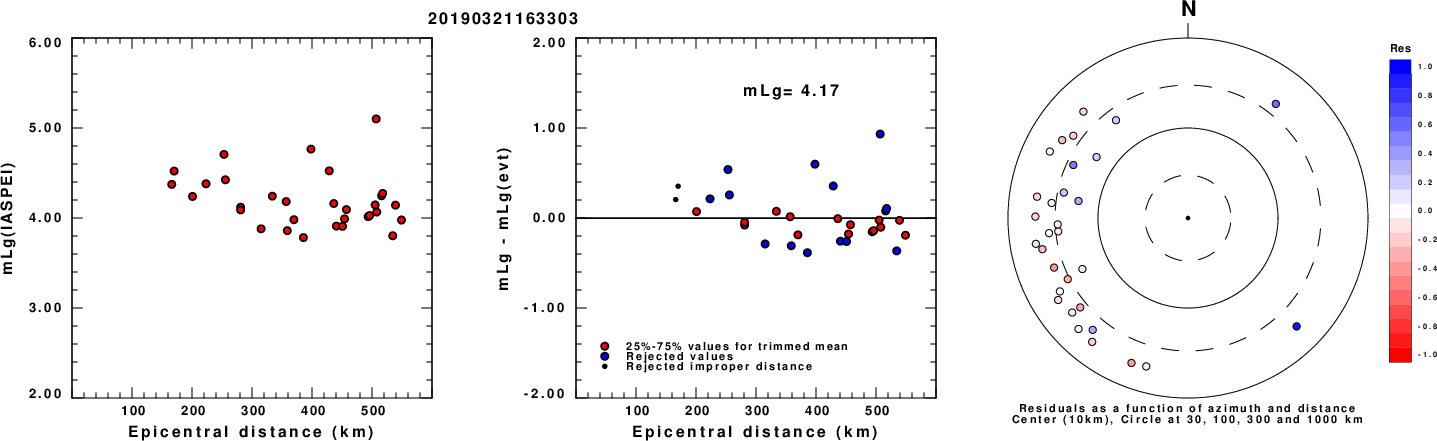

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

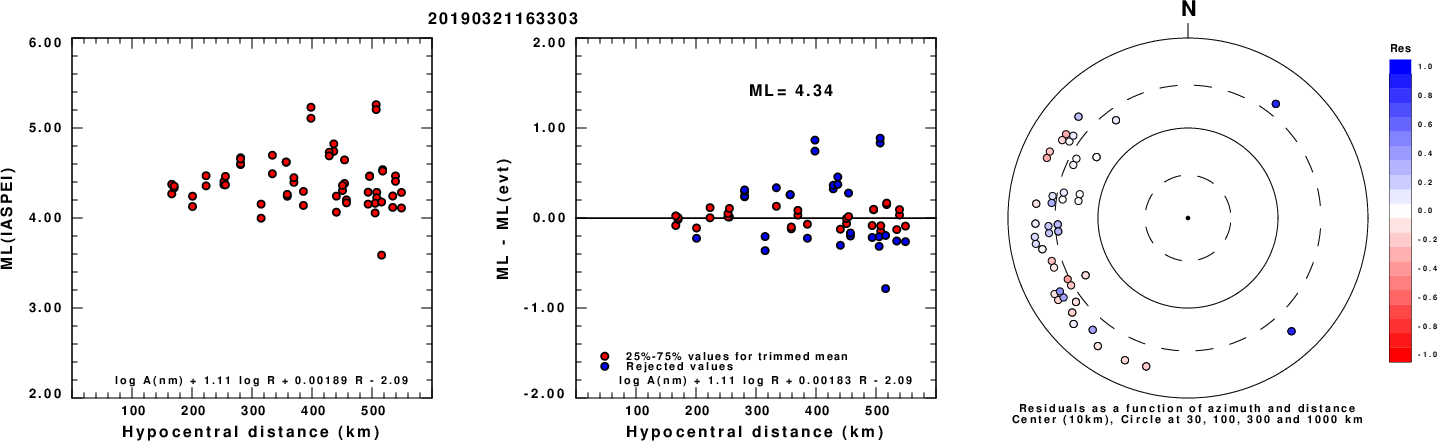

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

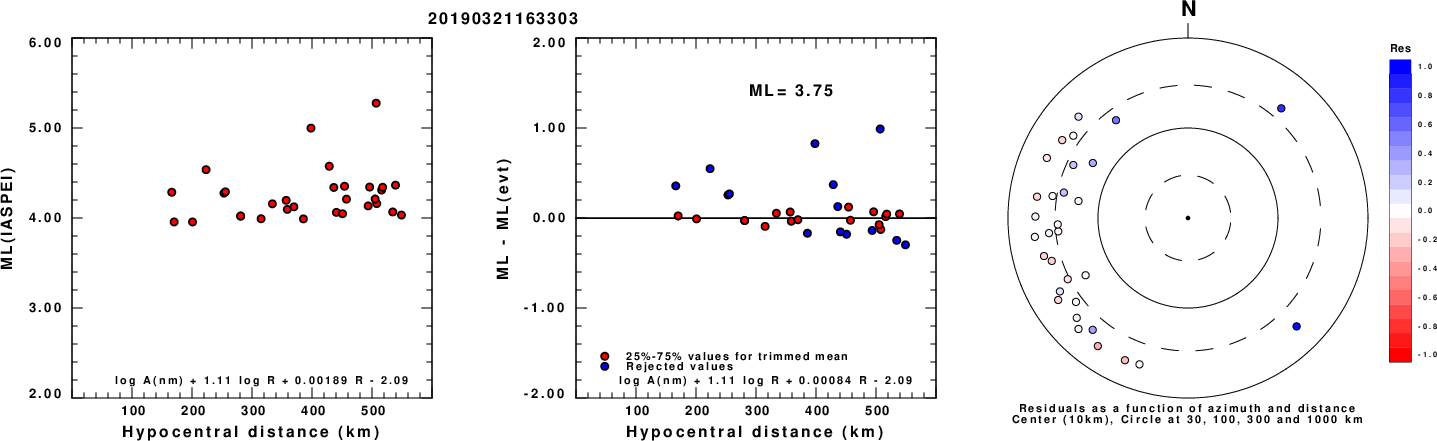

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

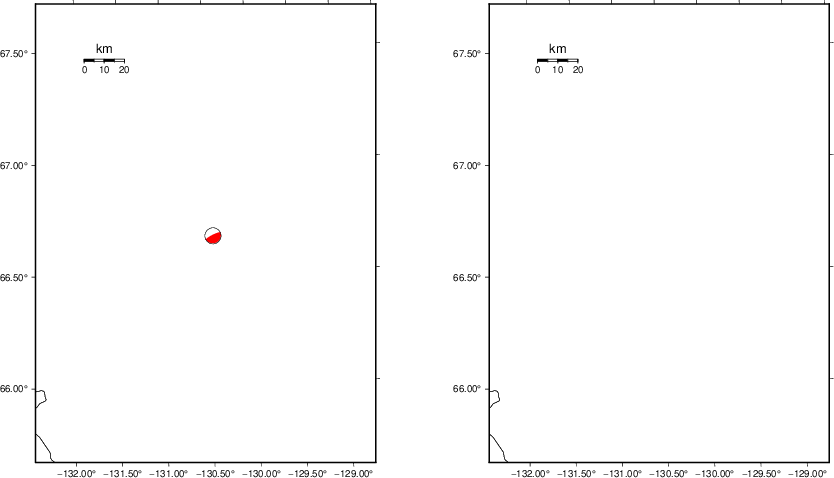

Waveform Inversion using wvfgrd96

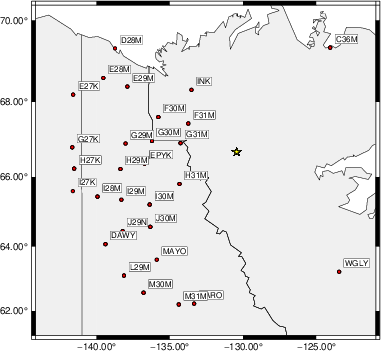

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    40    45   -95   3.73 0.2915
WVFGRD96    2.0   225    40   -90   3.79 0.2881
WVFGRD96    3.0   210    35    70   3.85 0.2567
WVFGRD96    4.0    75    15   -65   3.95 0.2931
WVFGRD96    5.0    60    15   -85   3.94 0.3190
WVFGRD96    6.0    65    90   -85   3.93 0.3401
WVFGRD96    7.0   245    85    85   3.92 0.3632
WVFGRD96    8.0   260    -5   -75   4.00 0.3761
WVFGRD96    9.0    25     5    50   4.00 0.3914
WVFGRD96   10.0   245    80    85   4.00 0.4031
WVFGRD96   11.0    75    10   100   4.00 0.4079
WVFGRD96   12.0    75    10   100   4.00 0.4078
WVFGRD96   13.0    70    10    95   4.00 0.4040
WVFGRD96   14.0    65    10    90   4.00 0.3976
WVFGRD96   15.0   245    80    90   4.00 0.3892
WVFGRD96   16.0    90    10   110   4.01 0.3796
WVFGRD96   17.0   250    80    85   4.01 0.3685
WVFGRD96   18.0   250    85    85   4.01 0.3578
WVFGRD96   19.0    90     5   110   4.01 0.3467
WVFGRD96   20.0    90     5   110   4.01 0.3354
WVFGRD96   21.0   -20    -5     0   4.03 0.3229
WVFGRD96   22.0   285    -5   -55   4.03 0.3126
WVFGRD96   23.0   250    85    85   4.03 0.3005
WVFGRD96   24.0    90     5   110   4.03 0.2884
WVFGRD96   25.0   295    -5   -45   4.04 0.2769
WVFGRD96   26.0   -20    -5     0   4.04 0.2646
WVFGRD96   27.0   315    -5   -25   4.04 0.2533
WVFGRD96   28.0   315    -5   -25   4.04 0.2418
WVFGRD96   29.0   350    -5    10   4.04 0.2302

The best solution is

WVFGRD96   11.0    75    10   100   4.00 0.4079

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

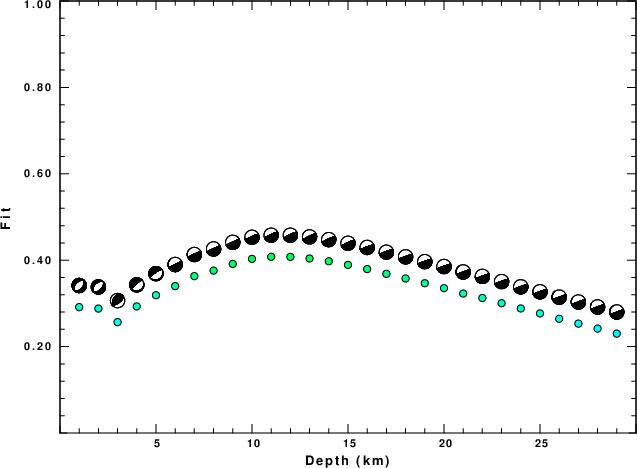

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

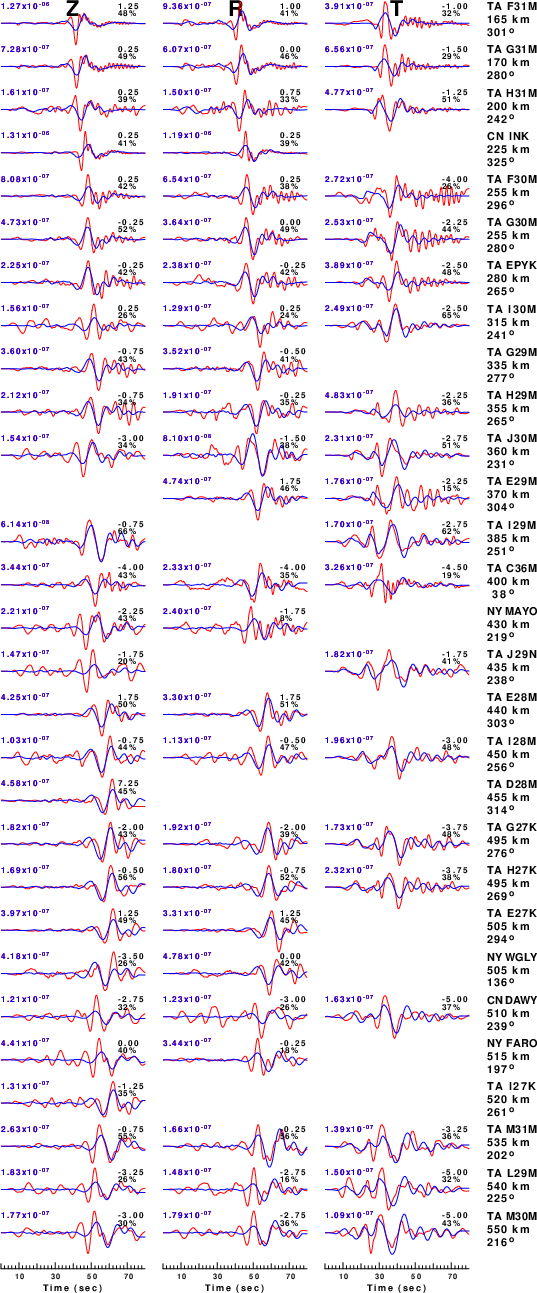

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

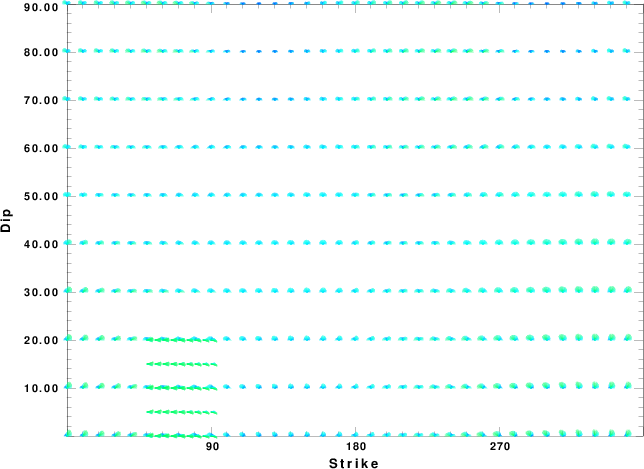

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

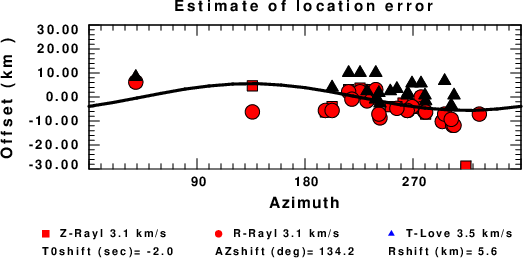

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
