Location

Location ANSS

The ANSS event ID is ak01934tsq72 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak01934tsq72/executive.

2019/03/09 22:26:10 63.245 -145.134 6.4 3.6 Alaska

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2019/03/09 22:26:10:0 63.24 -145.13 6.4 3.6 Alaska Stations used: AK.DOT AK.HDA AK.MCK AK.PAX AK.RIDG AK.RND AK.SCRK AT.MENT IU.COLA TA.HARP TA.K24K Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 3.89e+21 dyne-cm Mw = 3.66 Z = 11 km Plane Strike Dip Rake NP1 150 55 120 NP2 285 45 55 Principal Axes: Axis Value Plunge Azimuth T 3.89e+21 65 118 N 0.00e+00 24 311 P -3.89e+21 5 219 Moment Tensor: (dyne-cm) Component Value Mxx -2.18e+21 Mxy -2.16e+21 Mxz -4.08e+20 Myy -1.00e+21 Myz 1.52e+21 Mzz 3.19e+21 -------------- ---------------------- ###------------------------- ###--------------------------- #####----------------------------- #####-#################------------- ##-----#####################---------- #-------########################-------- ---------#########################------ ----------###########################----- -----------###########################---- -----------############## ###########--- ------------############# T ############-- ------------############ ############# --------------########################## --------------######################## --------------###################### ---------------################### - ------------############## P --------------########### -------------------### -------------- Global CMT Convention Moment Tensor: R T P 3.19e+21 -4.08e+20 -1.52e+21 -4.08e+20 -2.18e+21 2.16e+21 -1.52e+21 2.16e+21 -1.00e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190309222610/index.html

Preferred Solution

      STK = 285
      DIP = 45
     RAKE = 55
       MW = 3.66
       HS = 11.0

The NDK file is 20190309222610.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

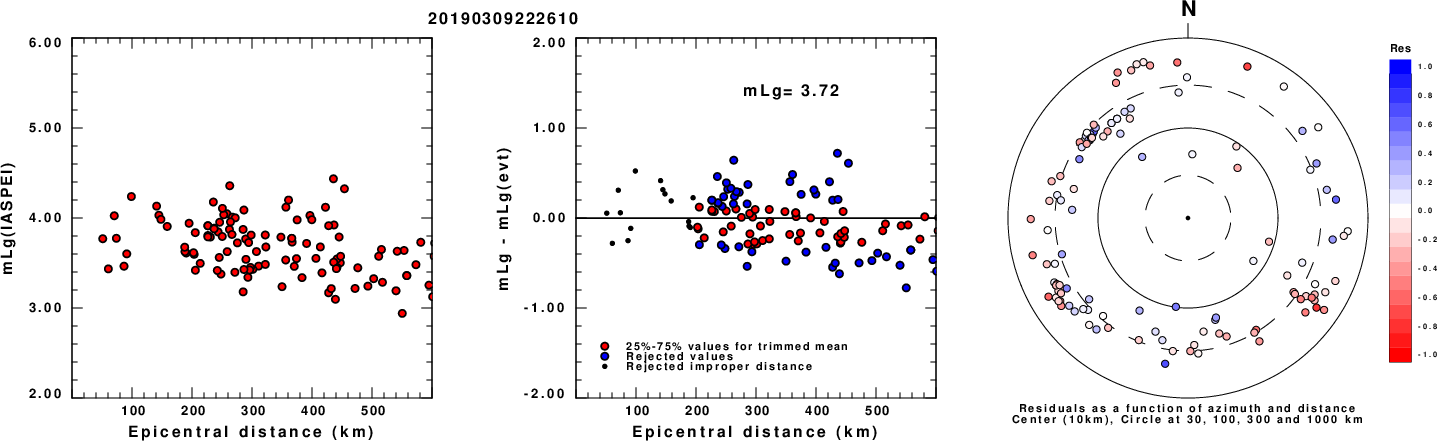

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

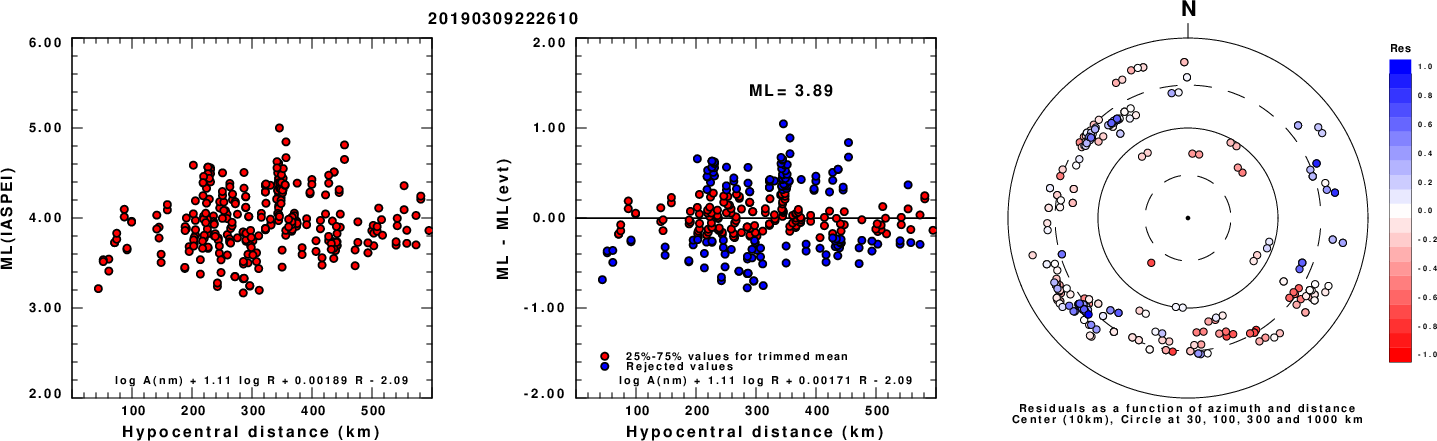

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

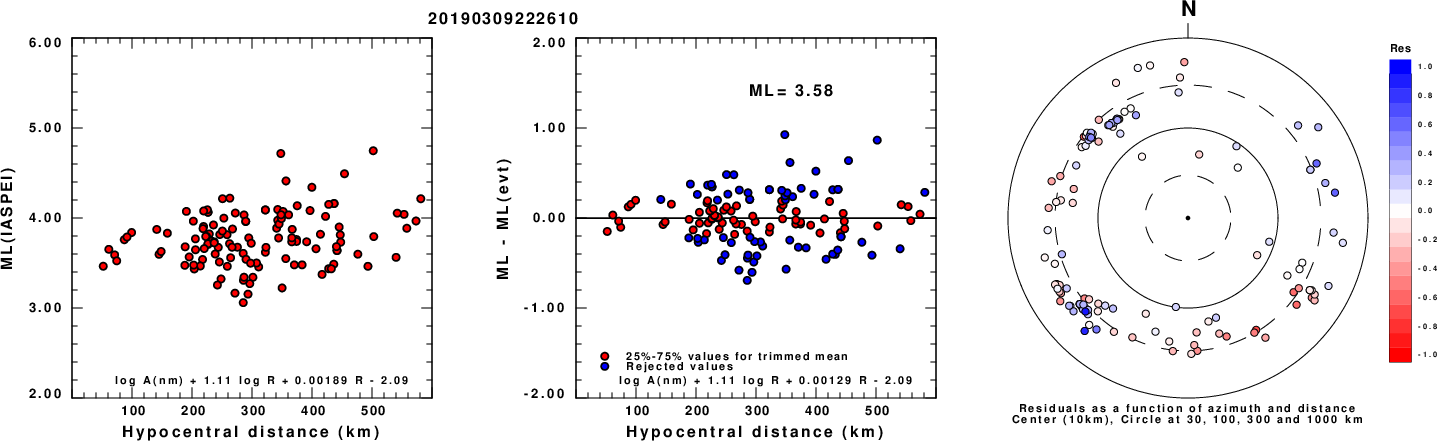

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

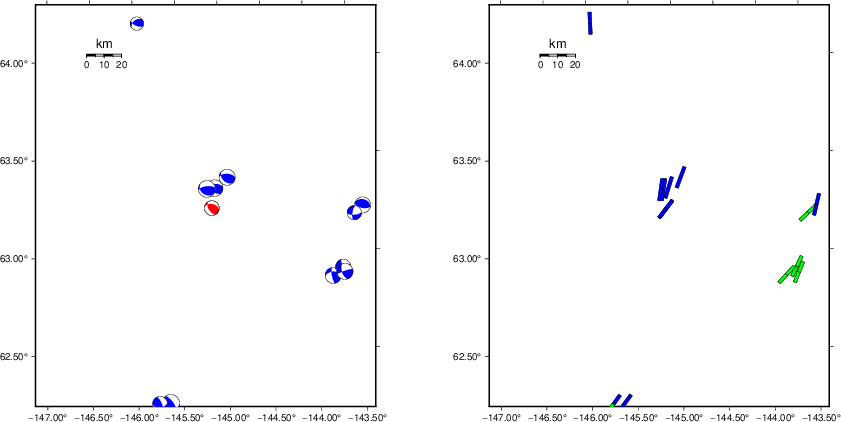

Context

Waveform Inversion using wvfgrd96

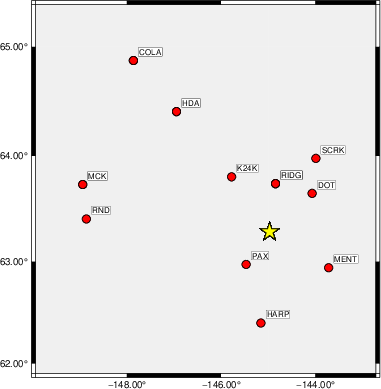

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   255    90     5   3.25 0.2752
WVFGRD96    2.0    75    75   -20   3.37 0.3204
WVFGRD96    3.0   250    75   -60   3.51 0.3372
WVFGRD96    4.0   250    75   -60   3.53 0.3703
WVFGRD96    5.0   255    80   -50   3.52 0.3868
WVFGRD96    6.0    80    90    45   3.52 0.3958
WVFGRD96    7.0   260    90   -45   3.53 0.4030
WVFGRD96    8.0   260    90   -50   3.58 0.4027
WVFGRD96    9.0   280    45    50   3.64 0.4134
WVFGRD96   10.0   285    45    55   3.65 0.4297
WVFGRD96   11.0   285    45    55   3.66 0.4334
WVFGRD96   12.0   275    50    50   3.66 0.4292
WVFGRD96   13.0   280    50    55   3.67 0.4193
WVFGRD96   14.0   280    50    50   3.66 0.4057
WVFGRD96   15.0   280    50    50   3.66 0.3903
WVFGRD96   16.0   280    50    50   3.66 0.3741
WVFGRD96   17.0   280    50    50   3.66 0.3570
WVFGRD96   18.0   275    50    45   3.66 0.3407
WVFGRD96   19.0   275    50    45   3.66 0.3250
WVFGRD96   20.0   275    50    45   3.66 0.3094
WVFGRD96   21.0   230    50    70   3.68 0.2983
WVFGRD96   22.0   220    55    60   3.68 0.2913
WVFGRD96   23.0   220    55    60   3.69 0.2850
WVFGRD96   24.0   220    55    60   3.70 0.2777
WVFGRD96   25.0   215    55    55   3.70 0.2713
WVFGRD96   26.0   215    55    55   3.71 0.2645
WVFGRD96   27.0   215    55    50   3.71 0.2572
WVFGRD96   28.0   210    60    45   3.72 0.2515
WVFGRD96   29.0   210    60    40   3.72 0.2456

The best solution is

WVFGRD96   11.0   285    45    55   3.66 0.4334

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

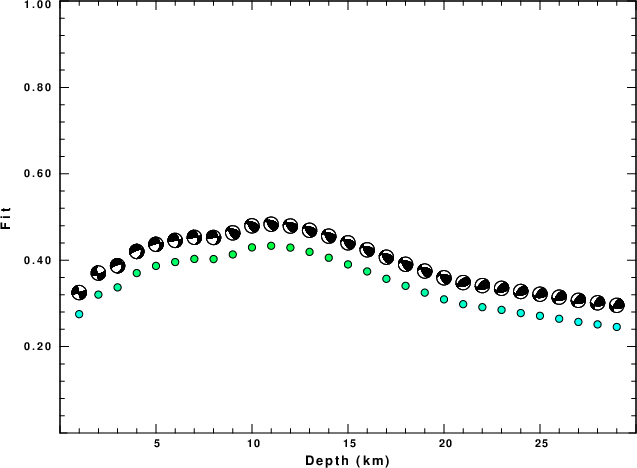

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

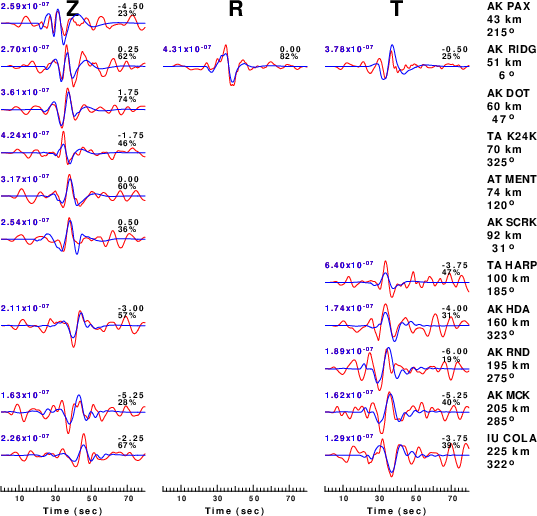

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

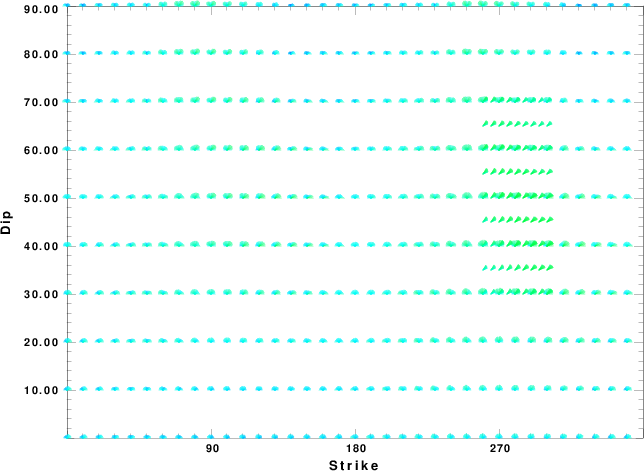

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

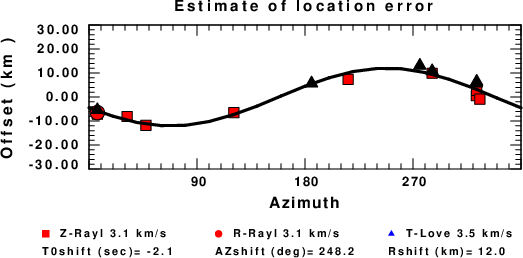

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
