Location

Location ANSS

The ANSS event ID is ak0192hihfd0 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0192hihfd0/executive.

2019/02/23 12:54:02 66.287 -156.976 38.2 3.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/02/23 12:54:02:0  66.29 -156.98  38.2 3.5 Alaska

 Stations used:
   AK.ANM AK.COLD AK.NEA2 AT.TTA TA.C18K TA.D19K TA.D22K
   TA.D23K TA.E19K TA.E22K TA.E23K TA.F17K TA.F19K TA.F24K
   TA.G16K TA.G19K TA.G23K TA.G24K TA.H17K TA.H18K TA.H21K
   TA.J16K TA.J17K TA.J18K TA.J19K TA.J20K TA.K17K TA.K20K
   TA.TOLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.53e+21 dyne-cm
  Mw = 3.39
  Z  = 10 km
  Plane   Strike  Dip  Rake
   NP1      170    85   -30
   NP2      263    60   -174
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.53e+21     17     220
    N   0.00e+00     60     341
    P  -1.53e+21     24     122

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.56e+20
       Mxy     1.26e+21
       Mxz    -1.71e+19
       Myy    -3.23e+20
       Myz    -7.63e+20
       Mzz    -1.33e+20




                     ---###########
                 -------###############
              -----------#################
             ------------##################
           --------------####################
          ---------------#####################
         ----------------######################
        --------------####---------------#######
        ---------#########--------------------##
       ------#############----------------------#
       ----################----------------------
       --##################----------------------
       ####################----------------------
        ####################--------------------
        ####################------------   -----
         ###################------------ P ----
          ###################-----------   ---
           ####   ###########----------------
             ## T ############-------------
              #   ############------------
                 ##############--------
                     ##########----



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.33e+20  -1.71e+19   7.63e+20
 -1.71e+19   4.56e+20  -1.26e+21
  7.63e+20  -1.26e+21  -3.23e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190223125402/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 170
      DIP = 85
     RAKE = -30
       MW = 3.39
       HS = 10.0

The NDK file is 20190223125402.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

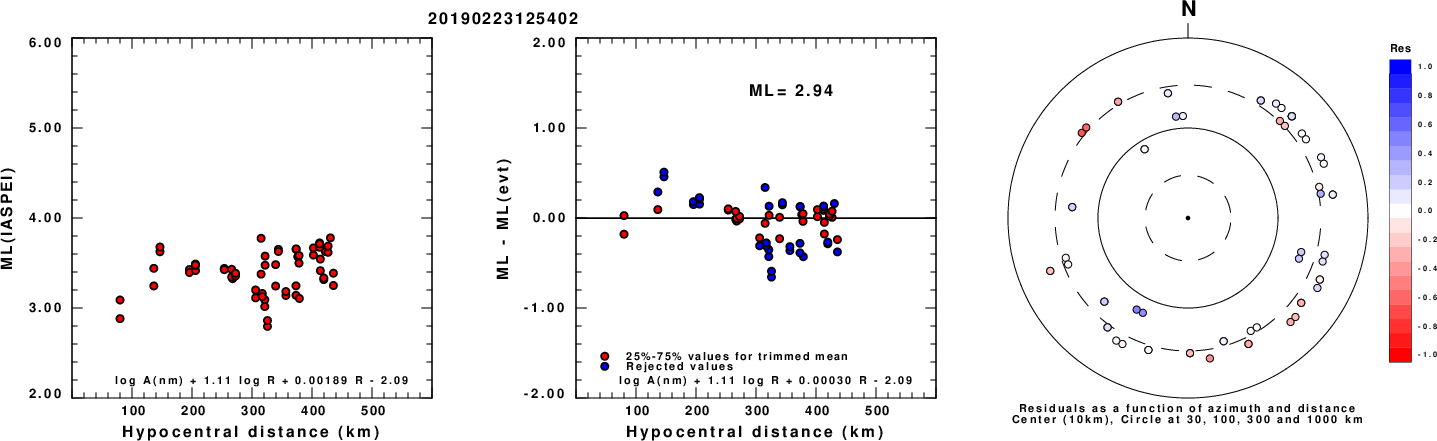

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

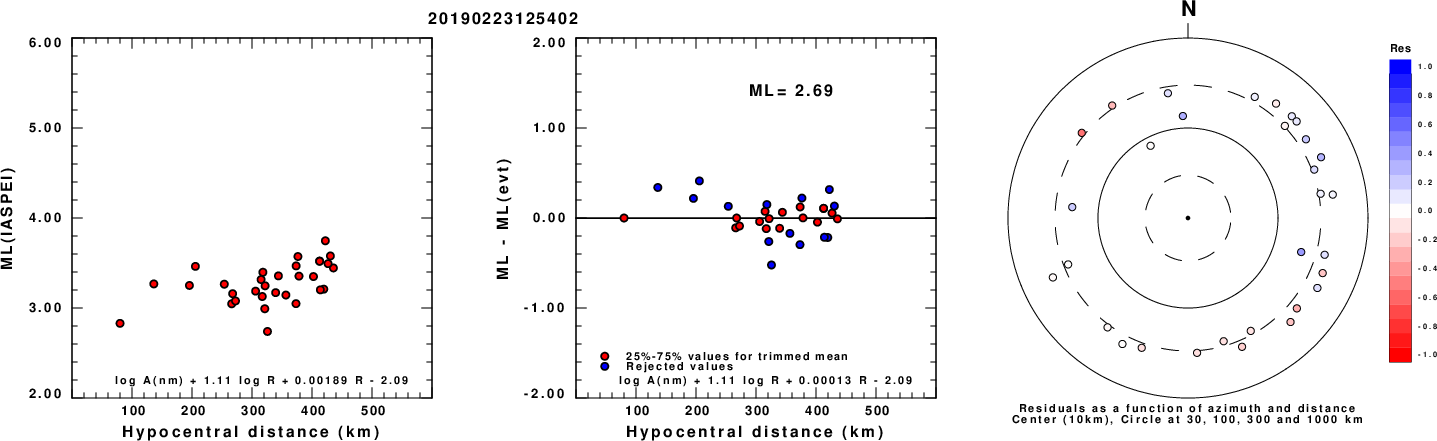

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

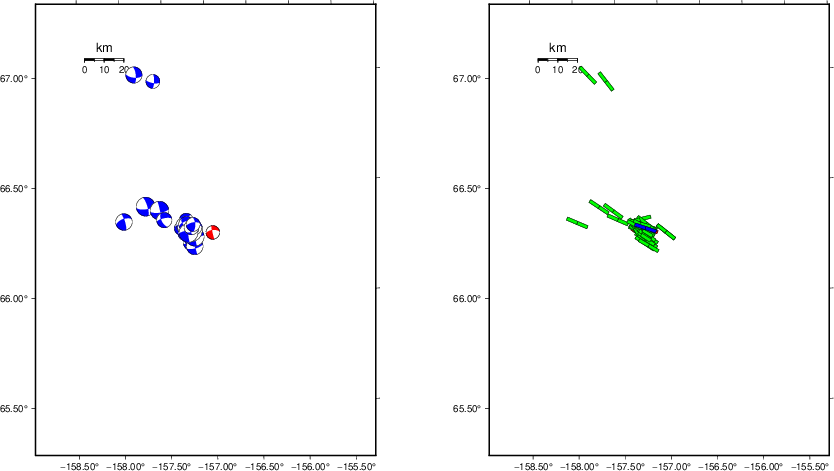

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

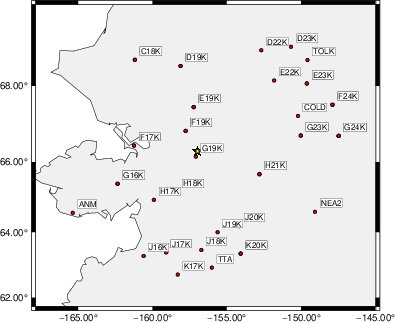

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   350    85    10   3.04 0.4297
WVFGRD96    2.0   350    90     5   3.17 0.6077
WVFGRD96    3.0   170    90    -5   3.21 0.6651
WVFGRD96    4.0   170    85   -15   3.25 0.6965
WVFGRD96    5.0   165    75   -35   3.32 0.7165
WVFGRD96    6.0   170    80   -25   3.31 0.7312
WVFGRD96    7.0   170    80   -25   3.33 0.7410
WVFGRD96    8.0   170    80   -30   3.36 0.7475
WVFGRD96    9.0   170    85   -30   3.38 0.7505
WVFGRD96   10.0   170    85   -30   3.39 0.7511
WVFGRD96   11.0   170    85   -25   3.40 0.7507
WVFGRD96   12.0   170    85   -25   3.41 0.7490
WVFGRD96   13.0   170    85   -25   3.42 0.7455
WVFGRD96   14.0   175    90   -20   3.43 0.7423
WVFGRD96   15.0   175    90   -20   3.44 0.7387
WVFGRD96   16.0   175    90   -20   3.45 0.7346
WVFGRD96   17.0   175    90   -15   3.46 0.7297
WVFGRD96   18.0   355    90   -15   3.46 0.7190
WVFGRD96   19.0   355    90   -15   3.47 0.7151
WVFGRD96   20.0   175    80    15   3.48 0.7178
WVFGRD96   21.0   355    90   -15   3.49 0.7031
WVFGRD96   22.0   175    80    15   3.50 0.7047
WVFGRD96   23.0   175    80    15   3.51 0.6975
WVFGRD96   24.0   175    80    15   3.51 0.6888
WVFGRD96   25.0   175    80    15   3.52 0.6796
WVFGRD96   26.0   175    80    15   3.53 0.6701
WVFGRD96   27.0   175    80    15   3.54 0.6595
WVFGRD96   28.0   175    80    15   3.55 0.6487
WVFGRD96   29.0   175    75    15   3.55 0.6385
WVFGRD96   30.0   175    75    15   3.56 0.6276
WVFGRD96   31.0   175    75    15   3.57 0.6166
WVFGRD96   32.0   175    75    15   3.58 0.6055
WVFGRD96   33.0   175    75    15   3.59 0.5936
WVFGRD96   34.0   175    80    15   3.59 0.5809
WVFGRD96   35.0   175    80    15   3.60 0.5700
WVFGRD96   36.0   175    80    15   3.62 0.5593
WVFGRD96   37.0   175    80    15   3.63 0.5490
WVFGRD96   38.0   350    80   -10   3.62 0.5365
WVFGRD96   39.0   355    80    -5   3.65 0.5265
WVFGRD96   40.0   350    75   -15   3.67 0.5177
WVFGRD96   41.0   350    85   -20   3.68 0.5095
WVFGRD96   42.0   175    90   -45   3.73 0.5055
WVFGRD96   43.0   175    85   -40   3.74 0.4987
WVFGRD96   44.0   175    85   -40   3.74 0.4920
WVFGRD96   45.0   175    85   -40   3.75 0.4855
WVFGRD96   46.0     0    85    45   3.76 0.4769
WVFGRD96   47.0     0    90    40   3.77 0.4702
WVFGRD96   48.0   175    85   -40   3.76 0.4674
WVFGRD96   49.0   175    80   -35   3.77 0.4636
WVFGRD96   50.0   175    80   -35   3.78 0.4603
WVFGRD96   51.0    85    80    10   3.75 0.4601
WVFGRD96   52.0    85    80    10   3.76 0.4605
WVFGRD96   53.0    85    80    10   3.77 0.4605
WVFGRD96   54.0    85    75    10   3.78 0.4610
WVFGRD96   55.0    85    75    10   3.78 0.4630
WVFGRD96   56.0    85    75    10   3.79 0.4652
WVFGRD96   57.0    85    75    10   3.80 0.4665
WVFGRD96   58.0    85    75    10   3.80 0.4678
WVFGRD96   59.0    85    75    10   3.81 0.4686

The best solution is

WVFGRD96   10.0   170    85   -30   3.39 0.7511

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

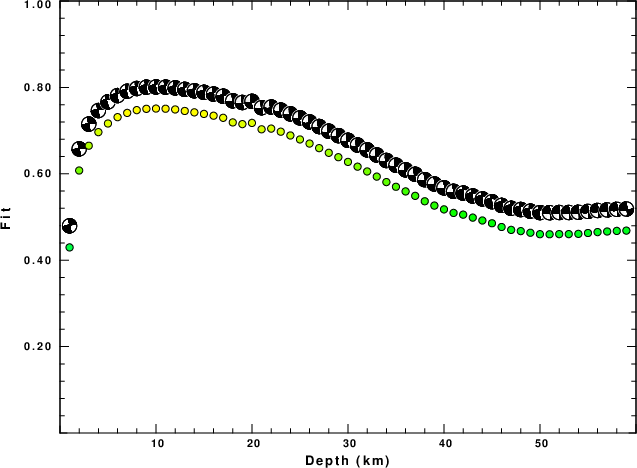

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

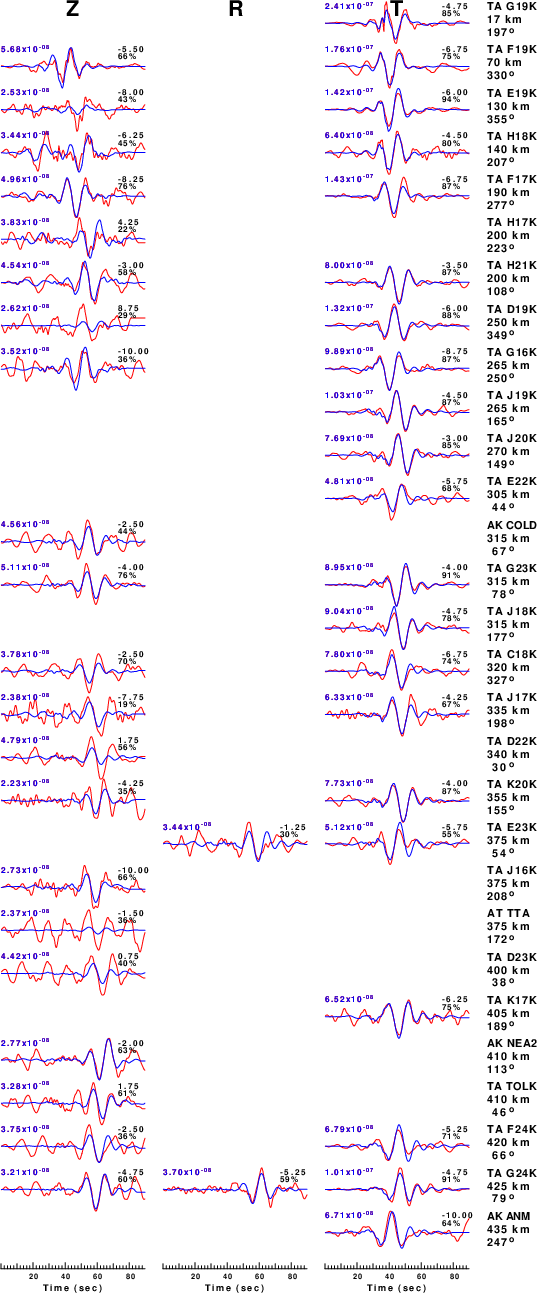

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

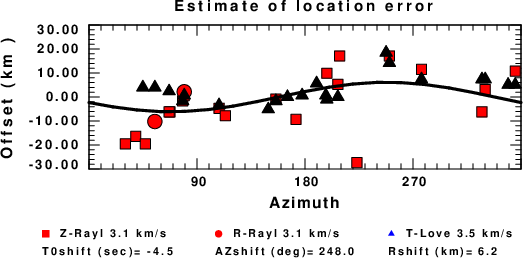

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 09:00:22 AM CDT 2024
