Location

Location ANSS

The ANSS event ID is ak0191pitgo3 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0191pitgo3/executive.

2019/02/06 20:04:45 61.408 -150.030 34.3 4.1 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/02/06 20:04:45:0  61.41 -150.03  34.3 4.1 Alaska

 Stations used:
   AK.CUT AK.FIRE AK.GHO AK.HIN AK.KLU AK.KNK AK.PWL AK.RC01
   AK.SAW AK.SCM AK.SKN AK.SLK AK.SSN AK.SWD AT.PMR AV.ILSW
   AV.STLK TA.M22K TA.O22K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.51e+22 dyne-cm
  Mw = 4.20
  Z  = 53 km
  Plane   Strike  Dip  Rake
   NP1      210    80   -80
   NP2      345    14   -135
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.51e+22     34     291
    N   0.00e+00     10      28
    P  -2.51e+22     54     132

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.60e+21
       Mxy    -1.52e+21
       Mxz     1.23e+22
       Myy     1.01e+22
       Myz    -1.98e+22
       Mzz    -8.46e+21




                     ##########----
                 ##################---#
              ######################--####
             #####################------###
           ######################---------###
          ######################-----------###
         #####################--------------###
        ######   ############----------------###
        ###### T ###########-----------------###
       #######   ##########-------------------###
       ###################--------------------###
       ##################---------------------###
       #################----------------------###
        ###############----------   ----------##
        ##############----------- P ---------###
         ############------------   ---------##
          ##########------------------------##
           ########------------------------##
             ######-----------------------#
              ####----------------------##
                 #--------------------#
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.46e+21   1.23e+22   1.98e+22
  1.23e+22  -1.60e+21   1.52e+21
  1.98e+22   1.52e+21   1.01e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190206200445/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 210
      DIP = 80
     RAKE = -80
       MW = 4.20
       HS = 53.0

The NDK file is 20190206200445.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

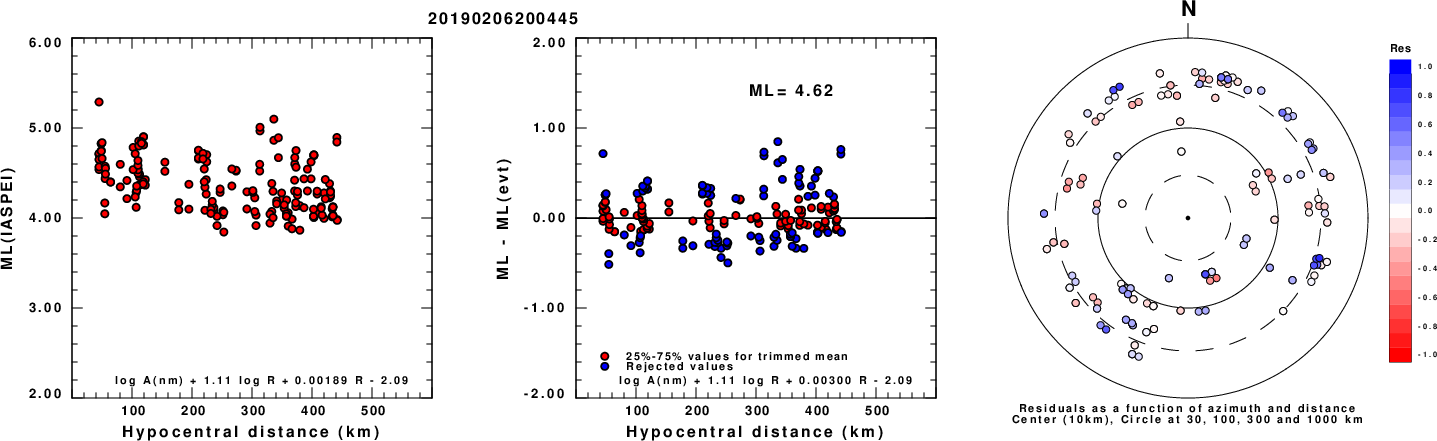

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

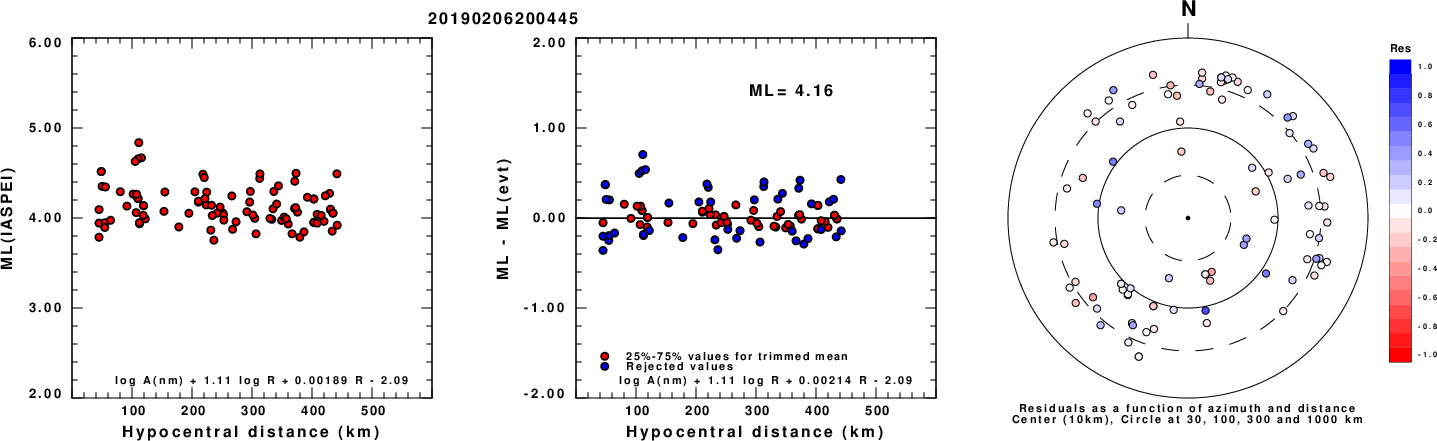

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

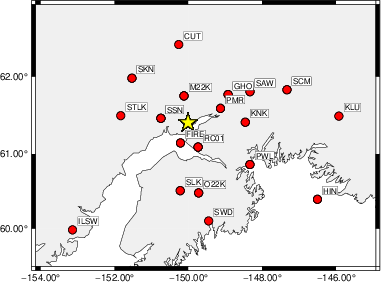

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   300    85   -10   3.21 0.1624
WVFGRD96    2.0   120    75    -5   3.37 0.2244
WVFGRD96    3.0   120    70   -10   3.45 0.2580
WVFGRD96    4.0   120    65   -10   3.51 0.2786
WVFGRD96    5.0   120    65   -10   3.54 0.2929
WVFGRD96    6.0   120    65   -15   3.58 0.3092
WVFGRD96    7.0   120    65   -15   3.61 0.3239
WVFGRD96    8.0   120    65   -20   3.66 0.3346
WVFGRD96    9.0   120    65   -20   3.68 0.3393
WVFGRD96   10.0   120    65   -15   3.70 0.3399
WVFGRD96   11.0   120    65   -15   3.71 0.3390
WVFGRD96   12.0   120    65   -15   3.73 0.3369
WVFGRD96   13.0   125    70   -15   3.74 0.3367
WVFGRD96   14.0   125    65   -15   3.75 0.3384
WVFGRD96   15.0   125    65   -15   3.76 0.3412
WVFGRD96   16.0   125    65   -15   3.78 0.3456
WVFGRD96   17.0   225    70    10   3.79 0.3491
WVFGRD96   18.0   225    70    10   3.81 0.3543
WVFGRD96   19.0   225    70    10   3.82 0.3584
WVFGRD96   20.0   225    70    10   3.83 0.3635
WVFGRD96   21.0   225    70    10   3.84 0.3681
WVFGRD96   22.0   225    70    10   3.85 0.3736
WVFGRD96   23.0   225    65    15   3.86 0.3796
WVFGRD96   24.0   225    65    15   3.88 0.3860
WVFGRD96   25.0   225    65    15   3.88 0.3916
WVFGRD96   26.0   225    65    15   3.89 0.3974
WVFGRD96   27.0   225    65    15   3.90 0.4021
WVFGRD96   28.0   225    65    15   3.91 0.4063
WVFGRD96   29.0   225    65    15   3.92 0.4093
WVFGRD96   30.0    90    35   -15   3.93 0.4095
WVFGRD96   31.0    85    35   -20   3.94 0.4184
WVFGRD96   32.0    80    30   -30   3.96 0.4296
WVFGRD96   33.0    75    20   -35   3.97 0.4462
WVFGRD96   34.0    75    20   -35   3.98 0.4628
WVFGRD96   35.0   210    85   -80   4.00 0.4835
WVFGRD96   36.0   205    80   -80   4.00 0.5019
WVFGRD96   37.0   210    80   -80   4.01 0.5190
WVFGRD96   38.0   210    80   -80   4.01 0.5340
WVFGRD96   39.0   210    80   -75   4.01 0.5461
WVFGRD96   40.0   210    85   -80   4.16 0.5486
WVFGRD96   41.0   210    80   -80   4.16 0.5536
WVFGRD96   42.0   210    80   -80   4.16 0.5574
WVFGRD96   43.0   210    80   -80   4.17 0.5606
WVFGRD96   44.0   210    80   -80   4.17 0.5619
WVFGRD96   45.0   210    80   -80   4.17 0.5650
WVFGRD96   46.0   210    80   -80   4.18 0.5653
WVFGRD96   47.0   210    80   -80   4.18 0.5683
WVFGRD96   48.0   210    80   -80   4.19 0.5695
WVFGRD96   49.0   210    80   -80   4.19 0.5709
WVFGRD96   50.0   210    80   -80   4.19 0.5722
WVFGRD96   51.0   210    80   -80   4.20 0.5721
WVFGRD96   52.0   210    80   -80   4.20 0.5724
WVFGRD96   53.0   210    80   -80   4.20 0.5726
WVFGRD96   54.0   210    80   -80   4.21 0.5704
WVFGRD96   55.0   210    80   -80   4.21 0.5703
WVFGRD96   56.0   210    80   -80   4.21 0.5686
WVFGRD96   57.0   205    80   -80   4.22 0.5663
WVFGRD96   58.0   205    80   -80   4.22 0.5642
WVFGRD96   59.0   205    80   -75   4.23 0.5624

The best solution is

WVFGRD96   53.0   210    80   -80   4.20 0.5726

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

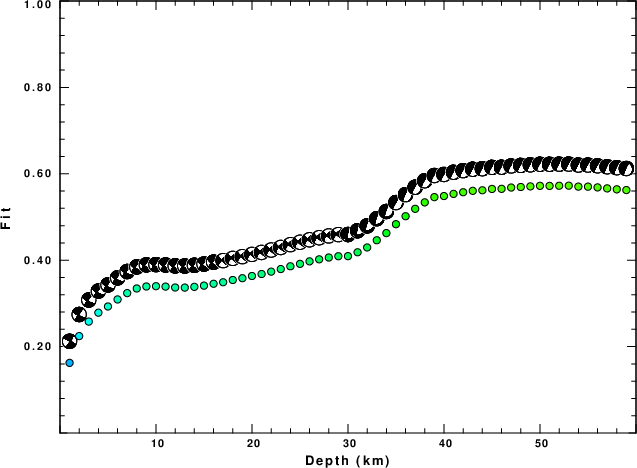

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

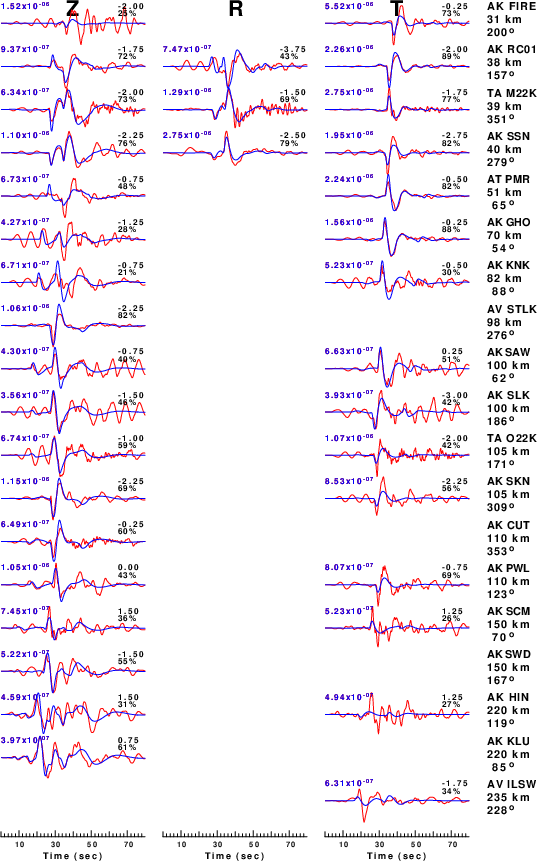

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

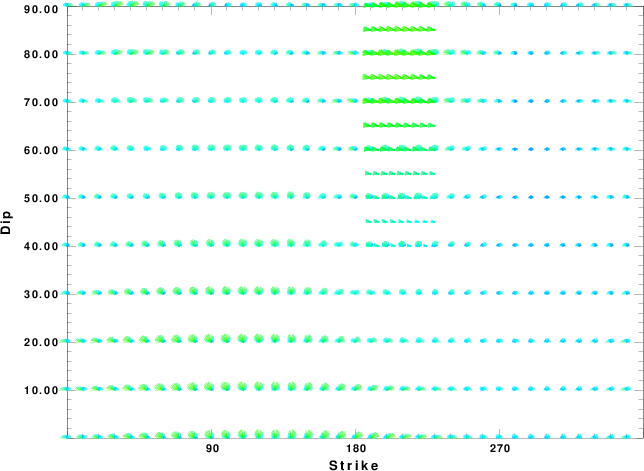

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

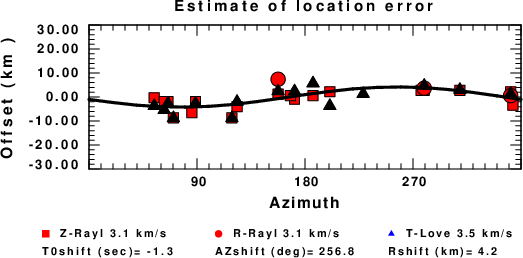

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 08:34:29 AM CDT 2024
