Location

Location ANSS

The ANSS event ID is ak019ndzw4e and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak019ndzw4e/executive.

2019/01/14 14:23:14 69.599 -145.069 15.8 4.1 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/01/14 14:23:14:0  69.60 -145.07  15.8 4.1 Alaska

 Stations used:
   AK.COLD AK.FYU AK.PPD TA.C27K TA.D24K TA.E23K TA.E25K
   TA.F25K TA.F26K TA.F28M TA.G22K TA.G23K TA.G31M TA.H24K
   TA.H27K TA.I23K TA.I27K TA.POKR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.26e+22 dyne-cm
  Mw = 4.00
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1      195    80    35
   NP2       98    56   168
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.26e+22     31      62
    N   0.00e+00     54     209
    P  -1.26e+22     16     322

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.24e+21
       Mxy     9.41e+21
       Mxz    -2.65e+19
       Myy     2.77e+21
       Myz     7.02e+21
       Mzz     2.47e+21




                     ------------##
                 ---------------#######
              --   ------------###########
             --- P -----------#############
           -----   ----------################
          -------------------#################
         -------------------###########   #####
        -------------------############ T ######
        -------------------############   ######
       #------------------#######################
       ##-----------------#######################
       ###---------------########################
       #####-------------########################
        #######---------#######################-
        ###########-----###################-----
         ###############-#############---------
          #############-----------------------
           ############----------------------
             ##########--------------------
              #########-------------------
                 ######----------------
                     ##------------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.47e+21  -2.65e+19  -7.02e+21
 -2.65e+19  -5.24e+21  -9.41e+21
 -7.02e+21  -9.41e+21   2.77e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190114142314/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 195
      DIP = 80
     RAKE = 35
       MW = 4.00
       HS = 13.0

The NDK file is 20190114142314.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

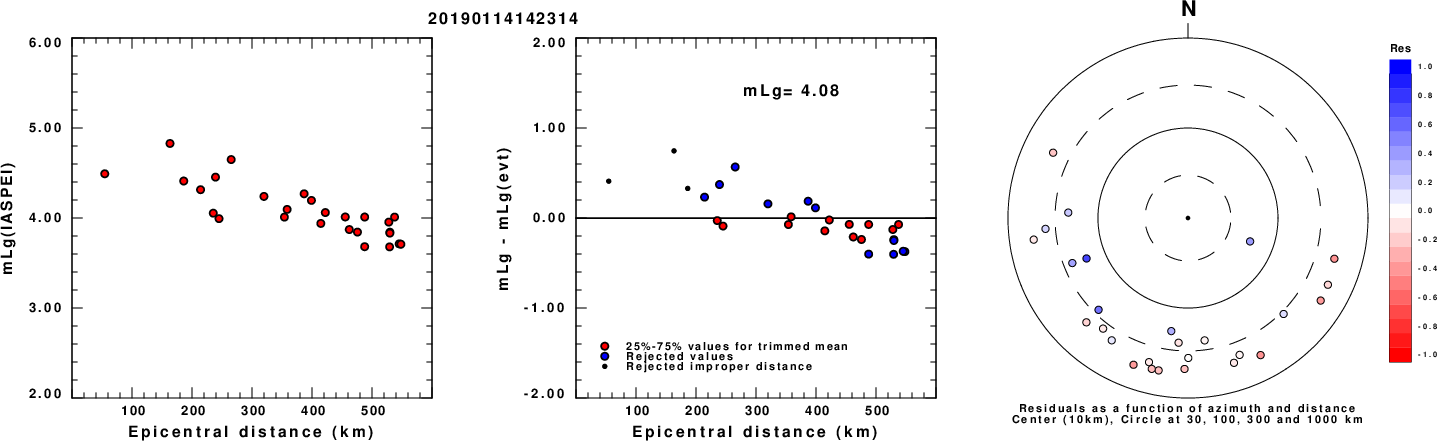

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

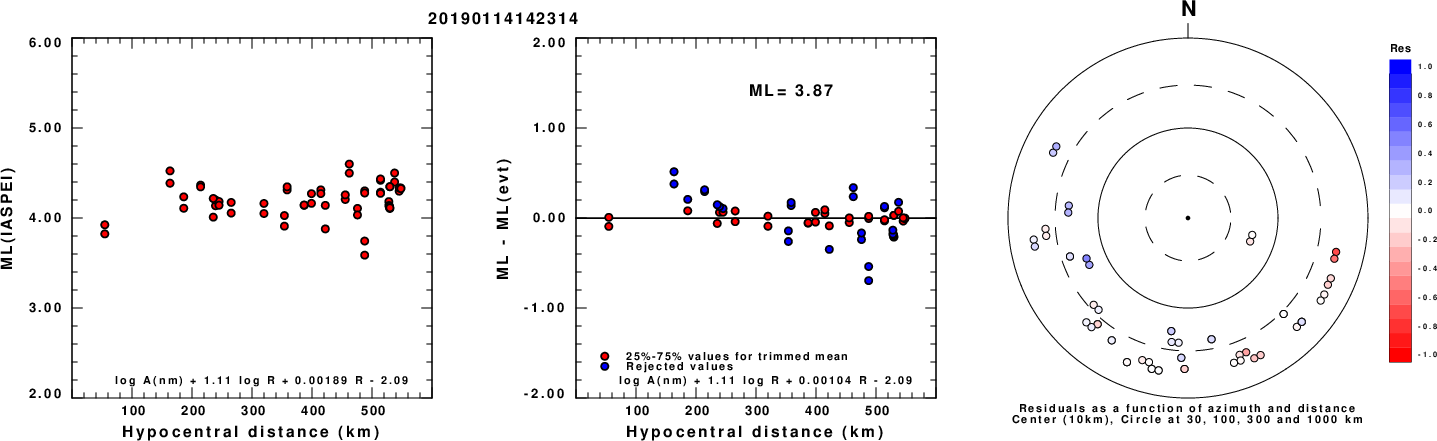

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

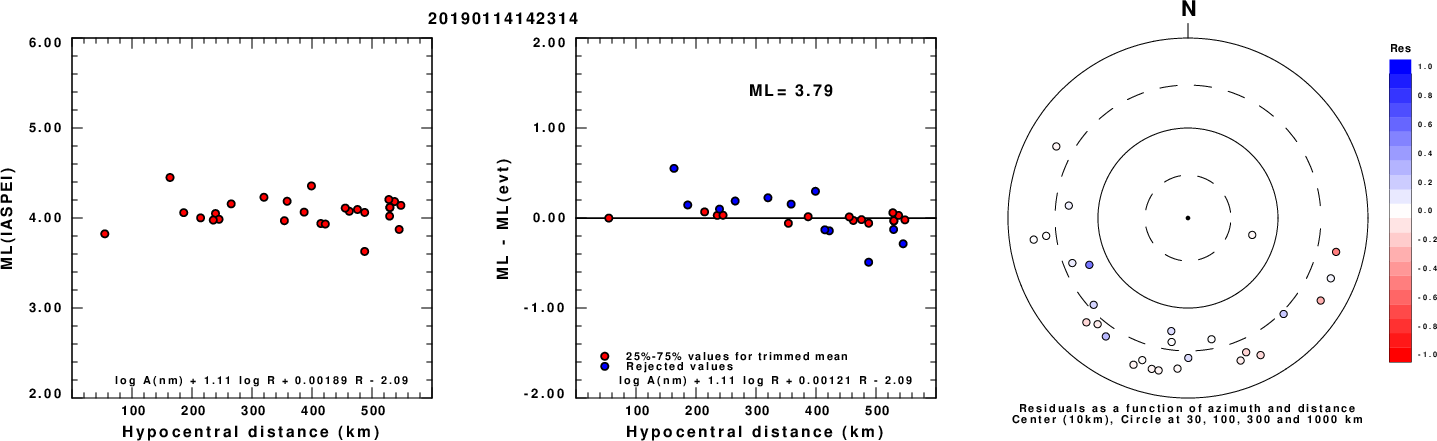

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

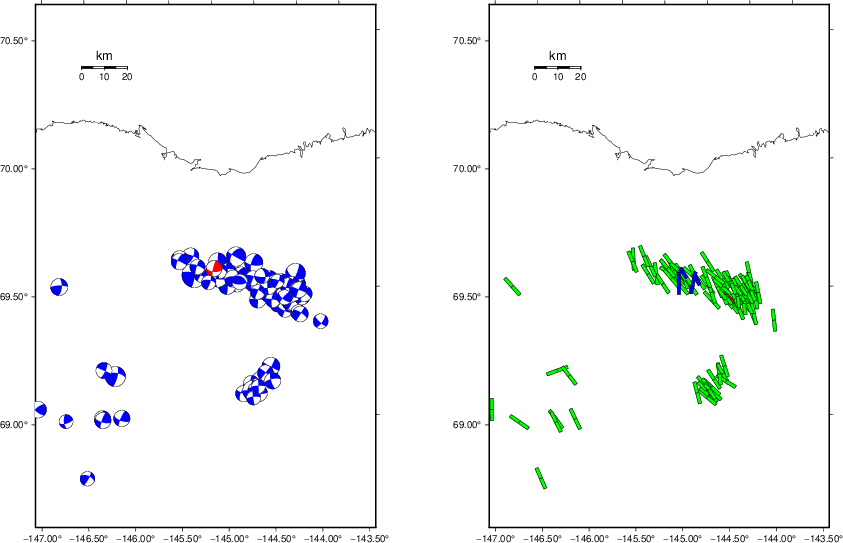

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

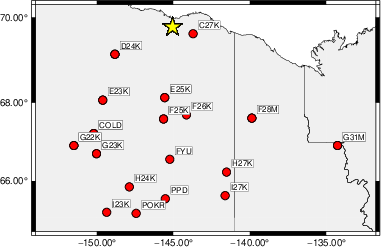

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    20    60   -30   3.67 0.2778
WVFGRD96    2.0   175    45   -50   3.80 0.3445
WVFGRD96    3.0     5    75   -45   3.81 0.3735
WVFGRD96    4.0     5    75   -45   3.84 0.4131
WVFGRD96    5.0     5    80   -45   3.85 0.4428
WVFGRD96    6.0    10    85   -45   3.87 0.4706
WVFGRD96    7.0   190    90    40   3.87 0.4892
WVFGRD96    8.0     5    80   -45   3.94 0.5119
WVFGRD96    9.0     5    80   -45   3.95 0.5226
WVFGRD96   10.0    10    85   -40   3.96 0.5290
WVFGRD96   11.0   195    80    35   3.97 0.5334
WVFGRD96   12.0    10    90   -35   3.98 0.5335
WVFGRD96   13.0   195    80    35   4.00 0.5375
WVFGRD96   14.0   195    75    35   4.01 0.5368
WVFGRD96   15.0   195    75    35   4.02 0.5342
WVFGRD96   16.0   195    75    35   4.03 0.5298
WVFGRD96   17.0   195    70    35   4.05 0.5246
WVFGRD96   18.0   195    70    35   4.06 0.5187
WVFGRD96   19.0   195    70    35   4.07 0.5122
WVFGRD96   20.0   195    70    35   4.08 0.5043
WVFGRD96   21.0   195    70    40   4.09 0.4966
WVFGRD96   22.0   195    70    40   4.10 0.4884
WVFGRD96   23.0   200    70    45   4.11 0.4796
WVFGRD96   24.0   200    70    45   4.12 0.4708
WVFGRD96   25.0   200    70    45   4.13 0.4619
WVFGRD96   26.0   200    70    45   4.14 0.4520
WVFGRD96   27.0   200    70    50   4.15 0.4421
WVFGRD96   28.0   200    70    50   4.16 0.4313
WVFGRD96   29.0   200    70    50   4.17 0.4195
WVFGRD96   30.0   200    70    50   4.18 0.4078
WVFGRD96   31.0   195    75    45   4.18 0.3964
WVFGRD96   32.0   195    75    50   4.18 0.3857
WVFGRD96   33.0   195    75    45   4.20 0.3759
WVFGRD96   34.0   195    80    45   4.20 0.3680
WVFGRD96   35.0   195    80    45   4.21 0.3610
WVFGRD96   36.0   195    80    45   4.21 0.3547
WVFGRD96   37.0    10    80    25   4.23 0.3478
WVFGRD96   38.0    10    75    20   4.25 0.3460
WVFGRD96   39.0    10    75    20   4.26 0.3448
WVFGRD96   40.0    10    75    30   4.31 0.3454
WVFGRD96   41.0    10    75    25   4.33 0.3428
WVFGRD96   42.0   110    60    30   4.34 0.3422
WVFGRD96   43.0   110    60    30   4.35 0.3443
WVFGRD96   44.0   110    65    25   4.37 0.3462
WVFGRD96   45.0   110    65    25   4.38 0.3484
WVFGRD96   46.0   110    65    25   4.39 0.3488
WVFGRD96   47.0   110    65    25   4.40 0.3497
WVFGRD96   48.0   110    65    25   4.41 0.3492
WVFGRD96   49.0   110    65    25   4.42 0.3475
WVFGRD96   50.0   110    65    25   4.43 0.3457
WVFGRD96   51.0   280    60     5   4.44 0.3497
WVFGRD96   52.0   280    65     5   4.45 0.3529
WVFGRD96   53.0   280    65     0   4.45 0.3564
WVFGRD96   54.0   280    65     0   4.46 0.3591
WVFGRD96   55.0   280    65     0   4.47 0.3619
WVFGRD96   56.0   275    65    -5   4.46 0.3646
WVFGRD96   57.0   275    65    -5   4.47 0.3667
WVFGRD96   58.0   275    65    -5   4.48 0.3686
WVFGRD96   59.0   275    65    -5   4.48 0.3698

The best solution is

WVFGRD96   13.0   195    80    35   4.00 0.5375

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

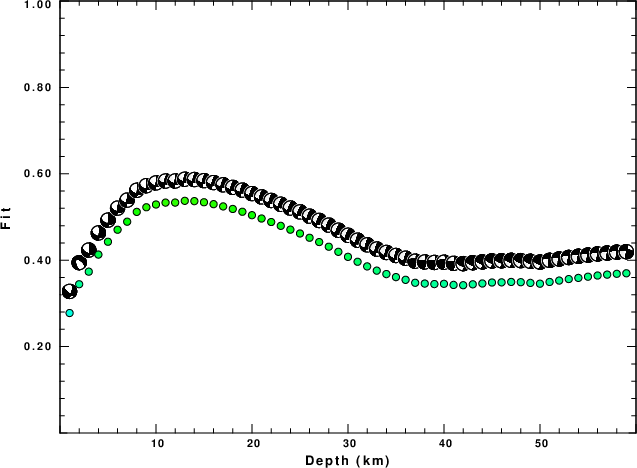

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

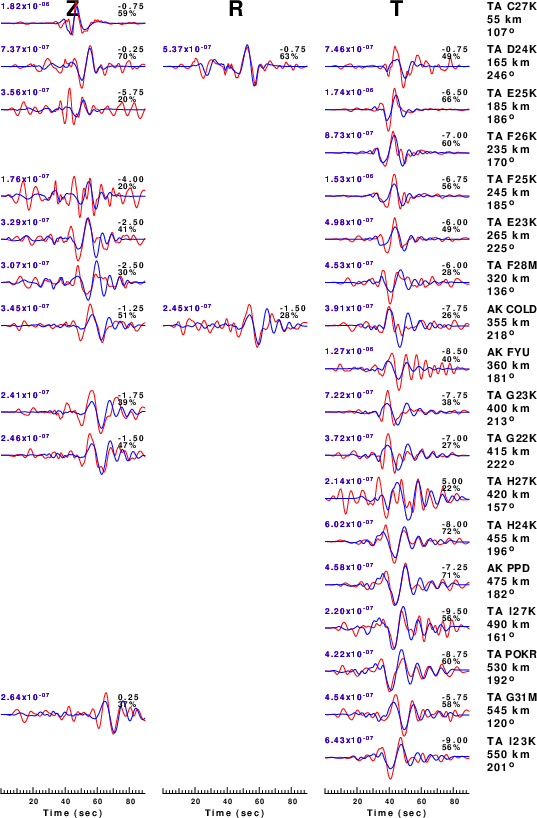

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

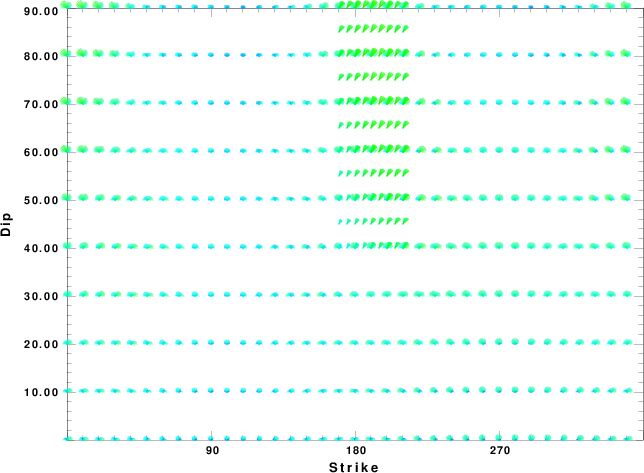

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

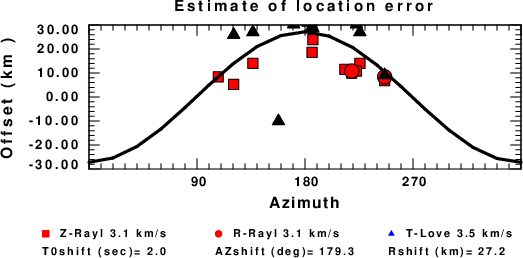

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 08:07:41 AM CDT 2024
