Location

Location ANSS

The ANSS event ID is ak019lrs7iu and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak019lrs7iu/executive.

2019/01/13 16:45:55 61.299 -150.065 44.8 5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2019/01/13 16:45:55:0  61.30 -150.07  44.8 5.0 Alaska

 Stations used:
   AK.BRLK AK.CAST AK.CNP AK.CUT AK.GHO AK.GLB AK.HDA AK.HOM
   AK.KNK AK.KTH AK.PAX AK.PWL AK.RND AK.SAW AK.SCM AK.SCRK
   AK.SKN AK.SWD AK.WRH AT.MENT AT.PMR AV.ILSW AV.STLK GM.AD09
   GM.AD13 IU.COLA TA.I23K TA.J18K TA.K20K TA.M22K TA.M26K
   TA.N19K TA.N25K TA.O22K TA.P19K

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 2.63e+23 dyne-cm
  Mw = 4.88
  Z  = 46 km
  Plane   Strike  Dip  Rake
   NP1      200    65   -60
   NP2      326    38   -137
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.63e+23     15     269
    N   0.00e+00     27       6
    P  -2.63e+23     59     153

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.62e+22
       Mxy     3.52e+22
       Mxz     1.02e+23
       Myy     2.31e+23
       Myz    -1.19e+23
       Mzz    -1.74e+23




                     --------------
                 -####----------#######
              ###############-############
             ###############----###########
           ################-------###########
          ################----------##########
         ################-------------#########
        ################---------------#########
        ###############-----------------########
       ###############-------------------########
       ##   ##########--------------------#######
       ## T #########---------------------#######
       ##   #########----------------------######
        ############----------   ----------#####
        ############---------- P ----------#####
         ###########----------   ----------####
          #########-----------------------####
           ########-----------------------###
             #######---------------------##
              ######--------------------##
                 ###-------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.74e+23   1.02e+23   1.19e+23
  1.02e+23  -5.62e+22  -3.52e+22
  1.19e+23  -3.52e+22   2.31e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190113164555/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 200
      DIP = 65
     RAKE = -60
       MW = 4.88
       HS = 46.0

The NDK file is 20190113164555.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

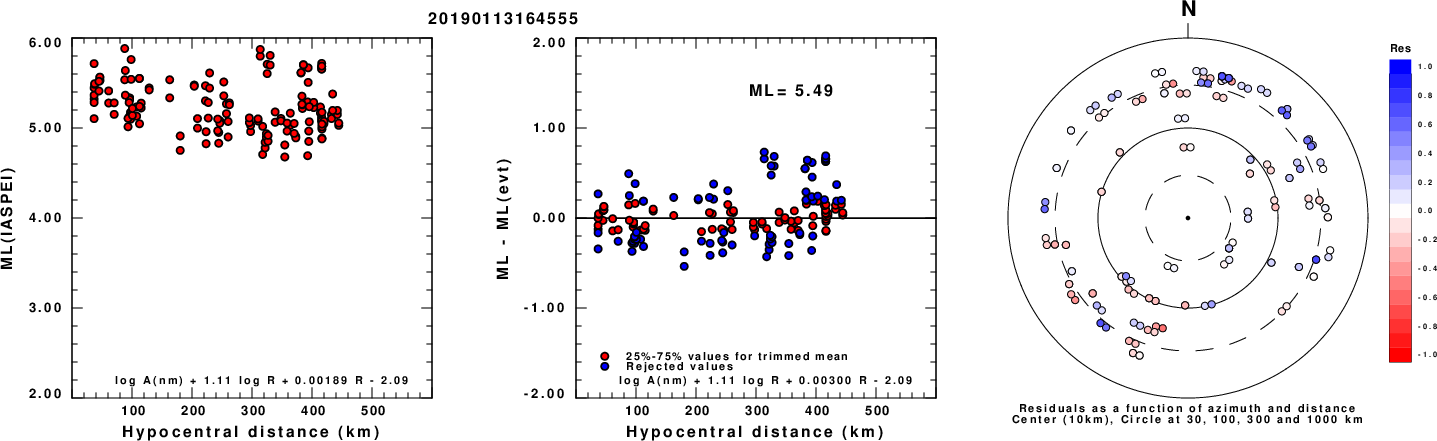

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

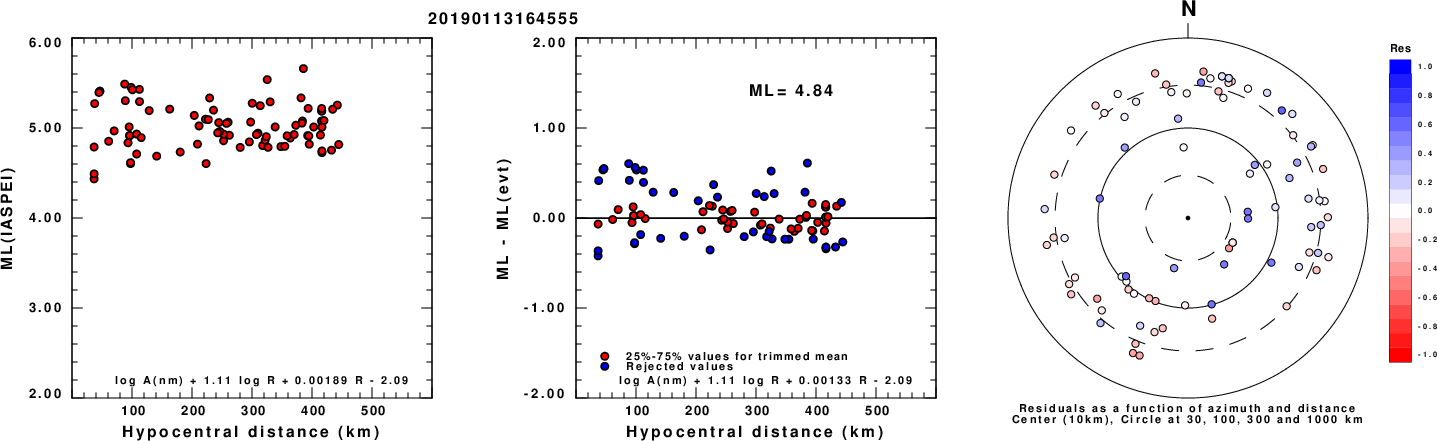

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

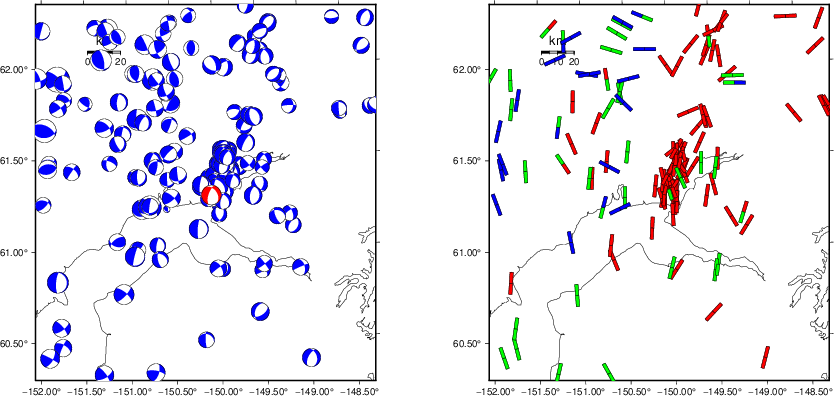

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

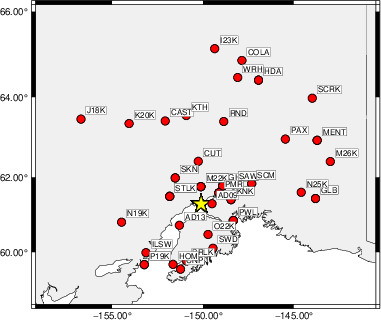

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    10    45    90   4.08 0.1781
WVFGRD96    2.0   185    45    85   4.23 0.2464
WVFGRD96    3.0   180    45    80   4.28 0.2445
WVFGRD96    4.0   145    90   -30   4.22 0.2399
WVFGRD96    5.0   300    60   -20   4.26 0.2526
WVFGRD96    6.0   300    55   -20   4.29 0.2678
WVFGRD96    7.0   240    60    25   4.31 0.2856
WVFGRD96    8.0   240    60    35   4.38 0.3059
WVFGRD96    9.0   240    60    30   4.39 0.3235
WVFGRD96   10.0   240    65    30   4.41 0.3379
WVFGRD96   11.0   240    65    30   4.43 0.3496
WVFGRD96   12.0   240    65    30   4.45 0.3597
WVFGRD96   13.0   240    65    30   4.46 0.3673
WVFGRD96   14.0   240    65    30   4.47 0.3727
WVFGRD96   15.0    55    65    25   4.48 0.3813
WVFGRD96   16.0    60    65    30   4.50 0.3910
WVFGRD96   17.0    60    65    30   4.51 0.4009
WVFGRD96   18.0    45    75    35   4.52 0.4106
WVFGRD96   19.0    45    75    35   4.54 0.4202
WVFGRD96   20.0    45    75    35   4.55 0.4292
WVFGRD96   21.0    45    75    40   4.57 0.4374
WVFGRD96   22.0    45    75    40   4.58 0.4473
WVFGRD96   23.0    45    75    40   4.59 0.4563
WVFGRD96   24.0    45    75    40   4.60 0.4644
WVFGRD96   25.0    40    85    40   4.61 0.4718
WVFGRD96   26.0    40    85    40   4.62 0.4807
WVFGRD96   27.0    40    85    40   4.63 0.4892
WVFGRD96   28.0   215    85   -40   4.64 0.4988
WVFGRD96   29.0    35    90    40   4.65 0.5060
WVFGRD96   30.0   215    85   -45   4.66 0.5173
WVFGRD96   31.0   215    80   -45   4.66 0.5266
WVFGRD96   32.0   210    75   -45   4.67 0.5370
WVFGRD96   33.0   210    75   -45   4.68 0.5467
WVFGRD96   34.0   210    70   -45   4.69 0.5561
WVFGRD96   35.0   210    75   -45   4.70 0.5633
WVFGRD96   36.0   210    70   -45   4.71 0.5683
WVFGRD96   37.0   210    70   -45   4.72 0.5725
WVFGRD96   38.0   205    70   -50   4.73 0.5766
WVFGRD96   39.0   205    70   -45   4.74 0.5807
WVFGRD96   40.0   205    70   -60   4.83 0.5820
WVFGRD96   41.0   205    70   -60   4.84 0.5886
WVFGRD96   42.0   205    70   -60   4.85 0.5941
WVFGRD96   43.0   205    70   -60   4.86 0.5974
WVFGRD96   44.0   205    70   -60   4.87 0.5995
WVFGRD96   45.0   200    65   -60   4.87 0.6018
WVFGRD96   46.0   200    65   -60   4.88 0.6026
WVFGRD96   47.0   200    65   -60   4.89 0.6024
WVFGRD96   48.0   200    65   -60   4.89 0.6013
WVFGRD96   49.0   200    65   -60   4.90 0.5988
WVFGRD96   50.0   200    65   -60   4.90 0.5957
WVFGRD96   51.0   200    65   -65   4.91 0.5923
WVFGRD96   52.0   200    65   -65   4.92 0.5879
WVFGRD96   53.0   200    65   -65   4.92 0.5836
WVFGRD96   54.0   200    65   -65   4.92 0.5779
WVFGRD96   55.0   200    65   -65   4.92 0.5719
WVFGRD96   56.0   200    65   -65   4.93 0.5661
WVFGRD96   57.0   200    65   -65   4.93 0.5594
WVFGRD96   58.0   200    65   -65   4.93 0.5522
WVFGRD96   59.0   195    65   -65   4.93 0.5454

The best solution is

WVFGRD96   46.0   200    65   -60   4.88 0.6026

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

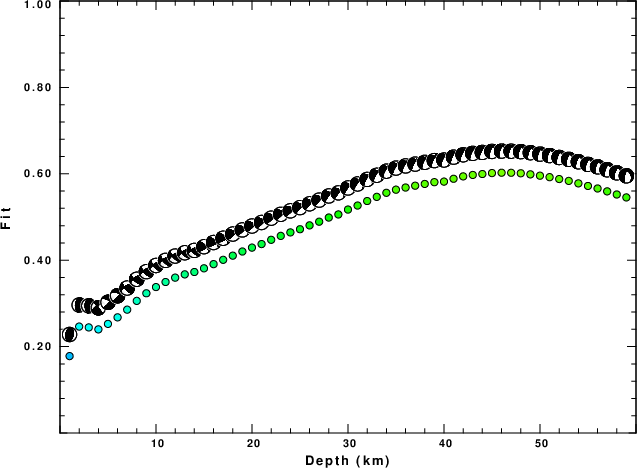

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

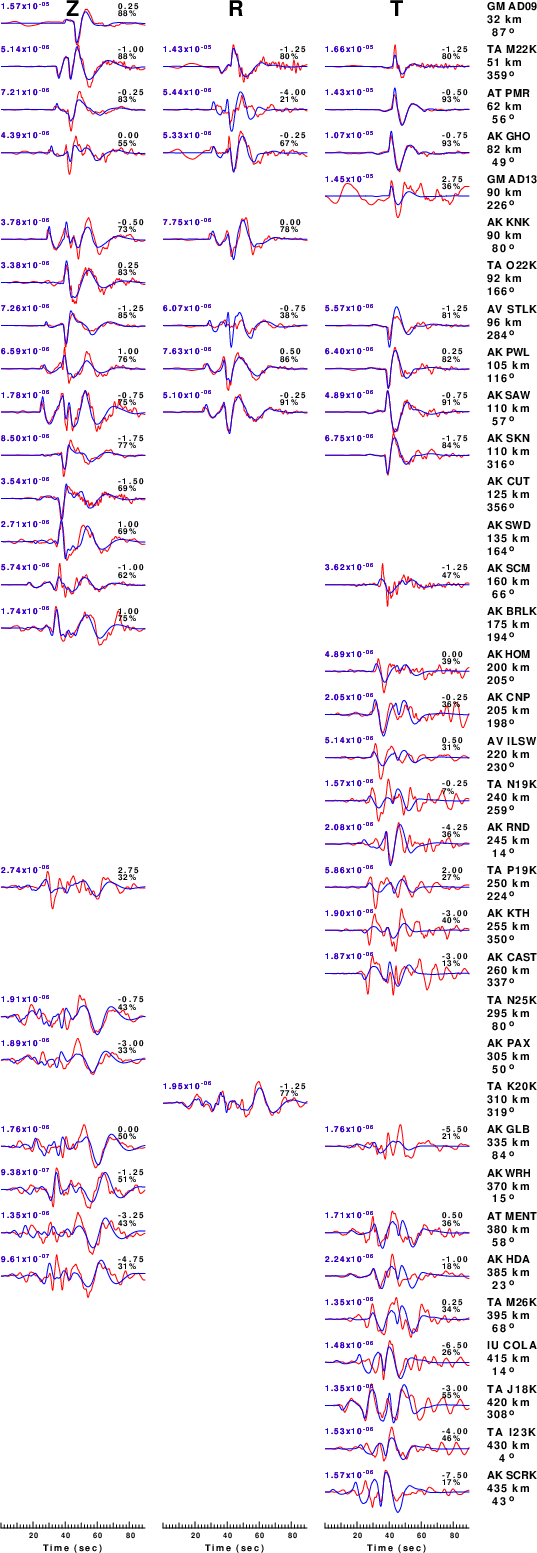

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

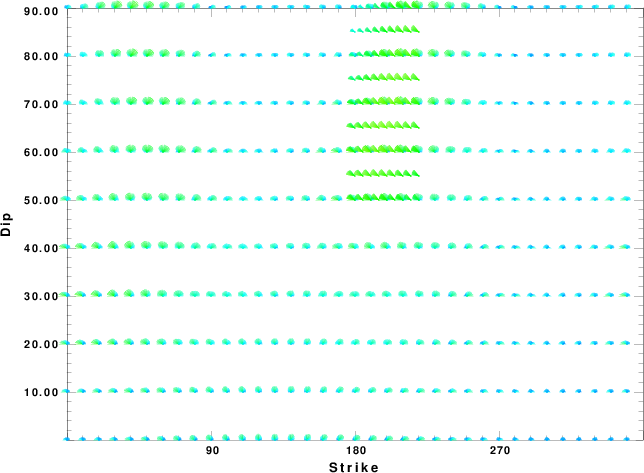

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

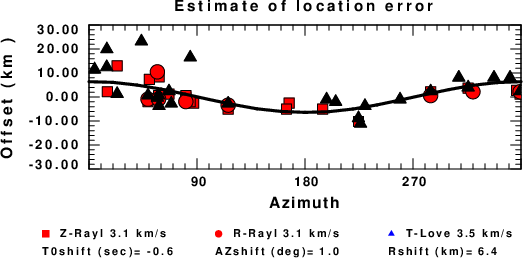

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 07:59:13 AM CDT 2024
