Location
Location ANSS
The ANSS event ID is ak0191pccr7 and the event page is at
https://earthquake.usgs.gov/earthquakes/eventpage/ak0191pccr7/executive.
2019/01/01 03:03:30 61.297 -149.952 44.4 5 Alaska
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2019/01/01 03:03:30:0 61.30 -149.95 44.4 5.0 Alaska
Stations used:
AK.CUT AK.DHY AK.GHO AK.GLI AK.KLU AK.KNK AK.KTH AK.PWL
AK.RC01 AK.SAW AK.SCM AK.SKN AK.SLK AK.TRF AT.PMR AV.ILSW
AV.SPU GM.AD13 TA.L19K TA.M20K TA.M22K TA.O22K
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.63e+23 dyne-cm
Mw = 4.88
Z = 48 km
Plane Strike Dip Rake
NP1 175 53 -106
NP2 20 40 -70
Principal Axes:
Axis Value Plunge Azimuth
T 2.63e+23 7 276
N 0.00e+00 13 184
P -2.63e+23 76 33
Moment Tensor: (dyne-cm)
Component Value
Mxx -8.70e+21
Mxy -3.39e+22
Mxz -5.01e+22
Myy 2.52e+23
Myz -6.39e+22
Mzz -2.43e+23
####----------
######--------------##
########----------------####
########------------------####
#########--------------------#####
##########---------------------#####
##########----------------------######
###########----------------------#######
#########--------- ----------#######
T #########--------- P ----------########
#########--------- ----------########
############----------------------########
############---------------------#########
###########---------------------########
############-------------------#########
###########------------------#########
###########----------------#########
###########-------------##########
##########----------##########
##########-------###########
#########--###########
#------#######
Global CMT Convention Moment Tensor:
R T P
-2.43e+23 -5.01e+22 6.39e+22
-5.01e+22 -8.70e+21 3.39e+22
6.39e+22 3.39e+22 2.52e+23
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190101030330/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is
STK = 20
DIP = 40
RAKE = -70
MW = 4.88
HS = 48.0
The NDK file is 20190101030330.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
| SLU |
USGSW |

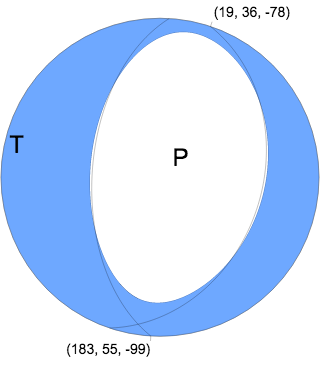

USGS/SLU Moment Tensor Solution
ENS 2019/01/01 03:03:30:0 61.30 -149.95 44.4 5.0 Alaska
Stations used:
AK.CUT AK.DHY AK.GHO AK.GLI AK.KLU AK.KNK AK.KTH AK.PWL
AK.RC01 AK.SAW AK.SCM AK.SKN AK.SLK AK.TRF AT.PMR AV.ILSW
AV.SPU GM.AD13 TA.L19K TA.M20K TA.M22K TA.O22K
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.63e+23 dyne-cm
Mw = 4.88
Z = 48 km
Plane Strike Dip Rake
NP1 175 53 -106
NP2 20 40 -70
Principal Axes:
Axis Value Plunge Azimuth
T 2.63e+23 7 276
N 0.00e+00 13 184
P -2.63e+23 76 33
Moment Tensor: (dyne-cm)
Component Value
Mxx -8.70e+21
Mxy -3.39e+22
Mxz -5.01e+22
Myy 2.52e+23
Myz -6.39e+22
Mzz -2.43e+23
####----------
######--------------##
########----------------####
########------------------####
#########--------------------#####
##########---------------------#####
##########----------------------######
###########----------------------#######
#########--------- ----------#######
T #########--------- P ----------########
#########--------- ----------########
############----------------------########
############---------------------#########
###########---------------------########
############-------------------#########
###########------------------#########
###########----------------#########
###########-------------##########
##########----------##########
##########-------###########
#########--###########
#------#######
Global CMT Convention Moment Tensor:
R T P
-2.43e+23 -5.01e+22 6.39e+22
-5.01e+22 -8.70e+21 3.39e+22
6.39e+22 3.39e+22 2.52e+23
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20190101030330/index.html
|
W-phase Moment Tensor (Mww)
Moment 2.902e+16 N-m
Magnitude 4.91 Mww
Depth 45.5 km
Percent DC 85%
Half Duration 0.73 s
Catalog US
Data Source US 3
Contributor US 3
Nodal Planes
Plane Strike Dip Rake
NP1 183 55 -99
NP2 19 36 -78
Principal Axes
Axis Value Plunge Azimuth
T 2.781e+16 N-m 9 280
N 0.230e+16 N-m 7 188
P -3.010e+16 N-m 78 61
|
Magnitudes
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula
for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
ML Magnitude

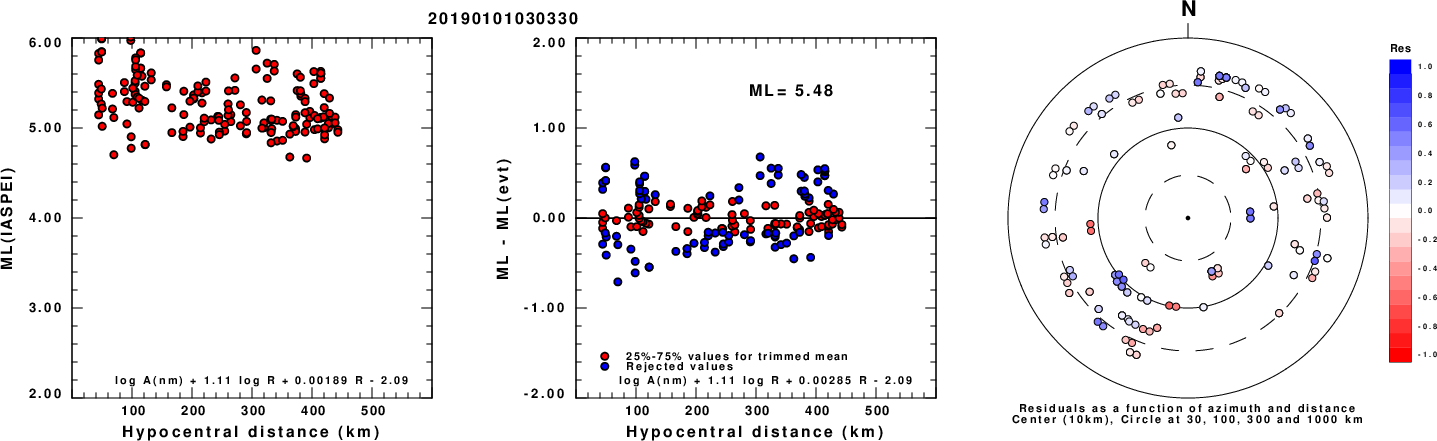

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

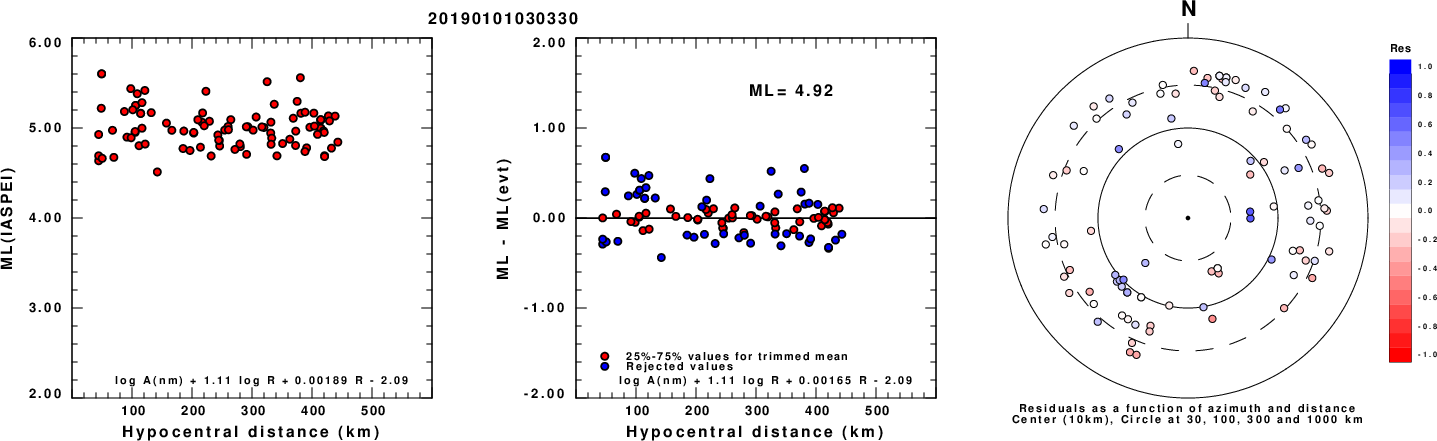

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Context

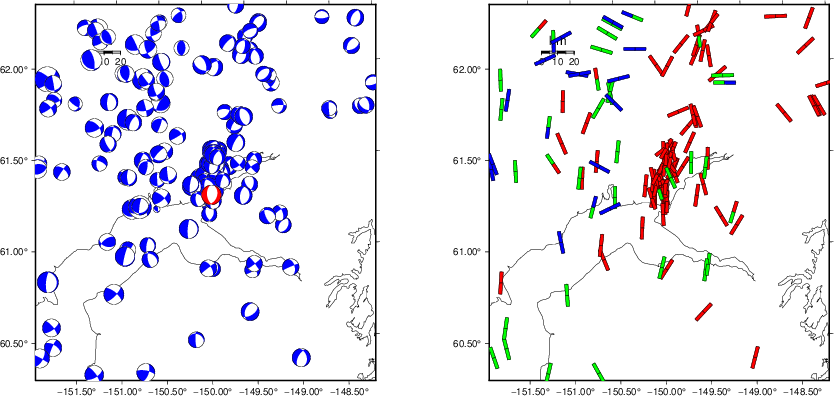

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.
Waveform Inversion using wvfgrd96
The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the
stations used for (red) the waveform inversion are shown in the next figure.
|
|

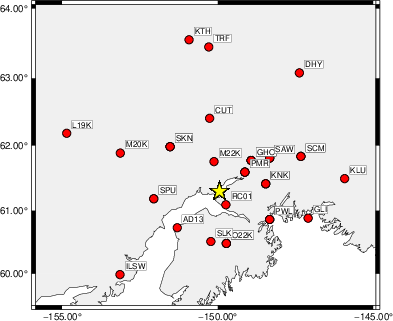

Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 180 50 85 3.98 0.1475
WVFGRD96 2.0 180 45 80 4.14 0.2038
WVFGRD96 3.0 160 50 55 4.17 0.2040
WVFGRD96 4.0 310 60 -35 4.16 0.2177
WVFGRD96 5.0 305 55 -30 4.20 0.2350
WVFGRD96 6.0 310 60 -25 4.22 0.2501
WVFGRD96 7.0 235 70 35 4.26 0.2705
WVFGRD96 8.0 235 70 40 4.33 0.2863
WVFGRD96 9.0 240 65 35 4.35 0.3013
WVFGRD96 10.0 240 65 35 4.37 0.3132
WVFGRD96 11.0 240 65 35 4.39 0.3203
WVFGRD96 12.0 240 65 35 4.41 0.3239
WVFGRD96 13.0 235 70 30 4.43 0.3265
WVFGRD96 14.0 235 70 30 4.44 0.3271
WVFGRD96 15.0 50 60 -15 4.44 0.3265
WVFGRD96 16.0 50 60 -15 4.45 0.3280
WVFGRD96 17.0 55 65 20 4.47 0.3294
WVFGRD96 18.0 55 65 20 4.48 0.3300
WVFGRD96 19.0 55 65 20 4.49 0.3296
WVFGRD96 20.0 55 65 20 4.50 0.3296
WVFGRD96 21.0 225 70 -35 4.53 0.3284
WVFGRD96 22.0 225 70 -35 4.54 0.3321
WVFGRD96 23.0 225 70 -35 4.55 0.3345
WVFGRD96 24.0 50 60 -15 4.54 0.3356
WVFGRD96 25.0 50 65 -10 4.54 0.3392
WVFGRD96 26.0 50 65 -10 4.55 0.3423
WVFGRD96 27.0 50 65 -10 4.56 0.3458
WVFGRD96 28.0 45 65 -25 4.58 0.3532
WVFGRD96 29.0 45 60 -30 4.59 0.3593
WVFGRD96 30.0 220 65 -40 4.62 0.3656
WVFGRD96 31.0 220 65 -40 4.62 0.3751
WVFGRD96 32.0 215 60 -50 4.64 0.3825
WVFGRD96 33.0 215 60 -50 4.65 0.3913
WVFGRD96 34.0 205 55 -65 4.66 0.3997
WVFGRD96 35.0 205 55 -65 4.67 0.4065
WVFGRD96 36.0 -5 40 -110 4.68 0.4099
WVFGRD96 37.0 -5 40 -110 4.69 0.4115
WVFGRD96 38.0 0 40 -100 4.70 0.4133
WVFGRD96 39.0 15 40 -80 4.72 0.4175
WVFGRD96 40.0 20 40 -70 4.80 0.4351
WVFGRD96 41.0 20 40 -70 4.81 0.4406
WVFGRD96 42.0 15 40 -75 4.83 0.4453
WVFGRD96 43.0 15 40 -75 4.84 0.4495
WVFGRD96 44.0 15 40 -75 4.85 0.4525
WVFGRD96 45.0 20 40 -70 4.86 0.4546
WVFGRD96 46.0 20 40 -70 4.87 0.4567
WVFGRD96 47.0 20 40 -70 4.88 0.4570
WVFGRD96 48.0 20 40 -70 4.88 0.4585
WVFGRD96 49.0 20 40 -70 4.89 0.4583
WVFGRD96 50.0 20 40 -70 4.90 0.4574
WVFGRD96 51.0 20 40 -70 4.90 0.4565
WVFGRD96 52.0 25 45 -65 4.91 0.4554
WVFGRD96 53.0 25 45 -65 4.91 0.4552
WVFGRD96 54.0 25 45 -65 4.91 0.4544
WVFGRD96 55.0 25 45 -60 4.91 0.4538
WVFGRD96 56.0 25 45 -60 4.92 0.4540
WVFGRD96 57.0 25 45 -60 4.92 0.4528
WVFGRD96 58.0 25 45 -60 4.92 0.4522
WVFGRD96 59.0 30 45 -55 4.92 0.4502
The best solution is
WVFGRD96 48.0 20 40 -70 4.88 0.4585
The mechanism corresponding to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|
The best fit as a function of depth is given in the following figure:
|
|

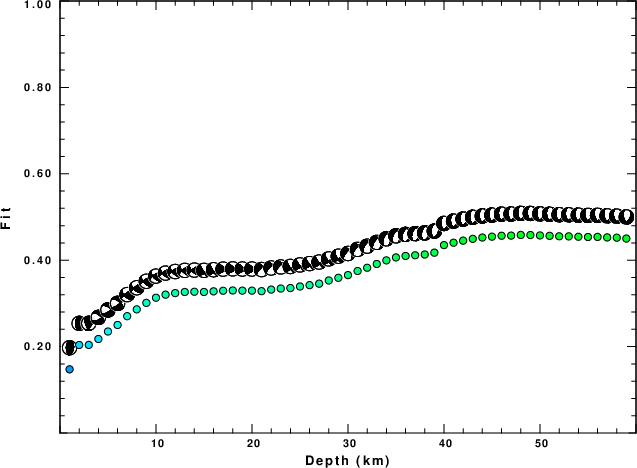

Figure 2. Depth sensitivity for waveform mechanism
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
|
|

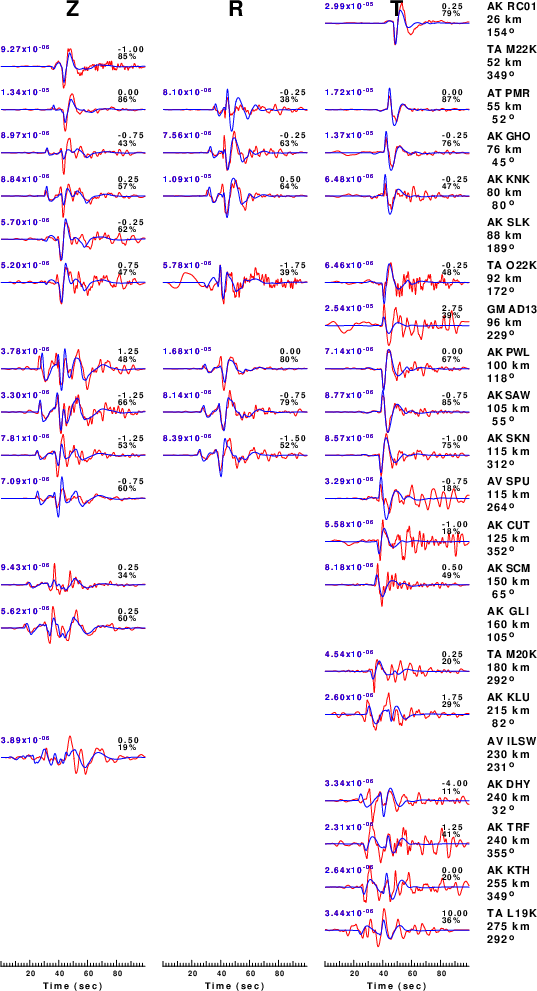

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.
|
|
|

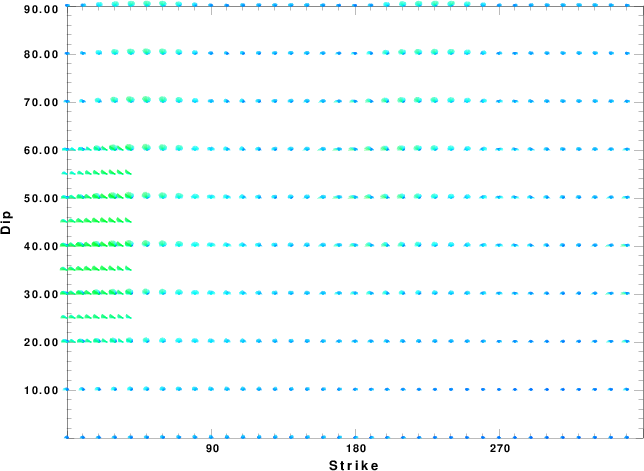

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

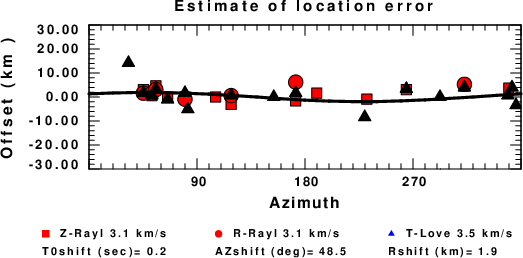

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Velocity Model
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows
(The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
Last Changed Thu Apr 25 07:28:47 AM CDT 2024
